Aluminum Jacketing
Aluminum Jacketing
US $1.00 - US $2.00
Production Lead Time:
2 day(s)
Shipping Method:
ex-factory
Hi Therm Insulation Limited

Hi Therm Insulation Limited

Hong Kong

Distributor, Exporter, Manufacturer, Wholesaler

Average Response time

N/A

SUPPLIER INFO LAST UPDATED: 18 Jan 2021

ADVERTISE SINCE: 30 Nov 2020

Product Attribute(s)
Feature:

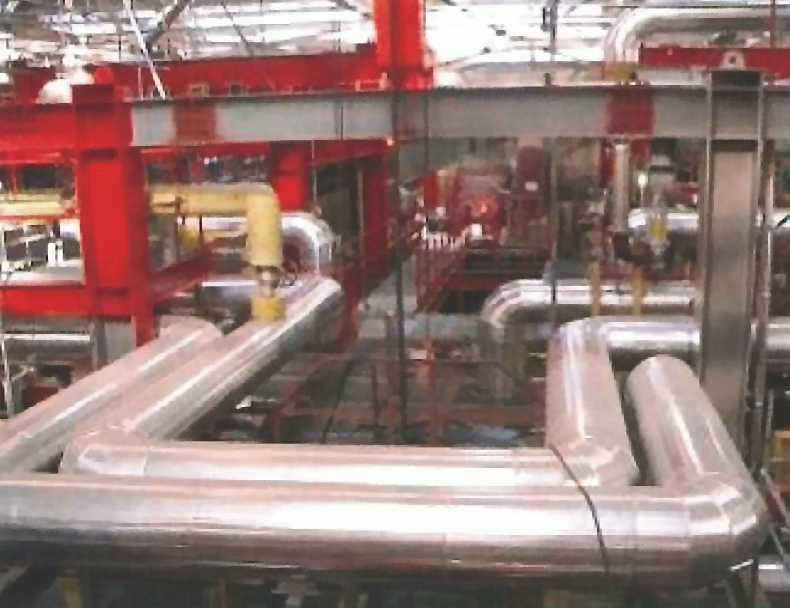

Hi Therm’s aluminum jacketing are suitable for most general purpose industrial conditions which existing in refineries, power plants, chemical plants and used for the protection of pipes and tanks, as well as vessels.
Description

Hi Therm’s aluminum jacketing are suitable for most general

purpose industrial conditions which existing in refineries, power

plants, chemical plants and used for the protection of pipes and

tanks, as well as vessels. Hi

Hi Therm’s aluminum jacketing using only top quality type of

3003 or 3105 series Aluminum and conforming to ASTM B-29

Standards, in the temper range of H14 through H19

Specifications: either stucco embossed or smooth finishes

Thickness: 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm

Length: 15 and 30 meter length (depending on the thickness and

other lengths available on request.)


Aluminum Deep Corrugated Sheet

Hi Therm’s corrugated sheets are made from high grade aluminum

and available in a smooth finishes or a stucco embossed pattern.

They are supplied in 3003, 1060, 110 or 5005 alloy. Widely used

to cover insulation on tank farms, heat exchangers, acid tanks,

LPG storage units, and food processing plants

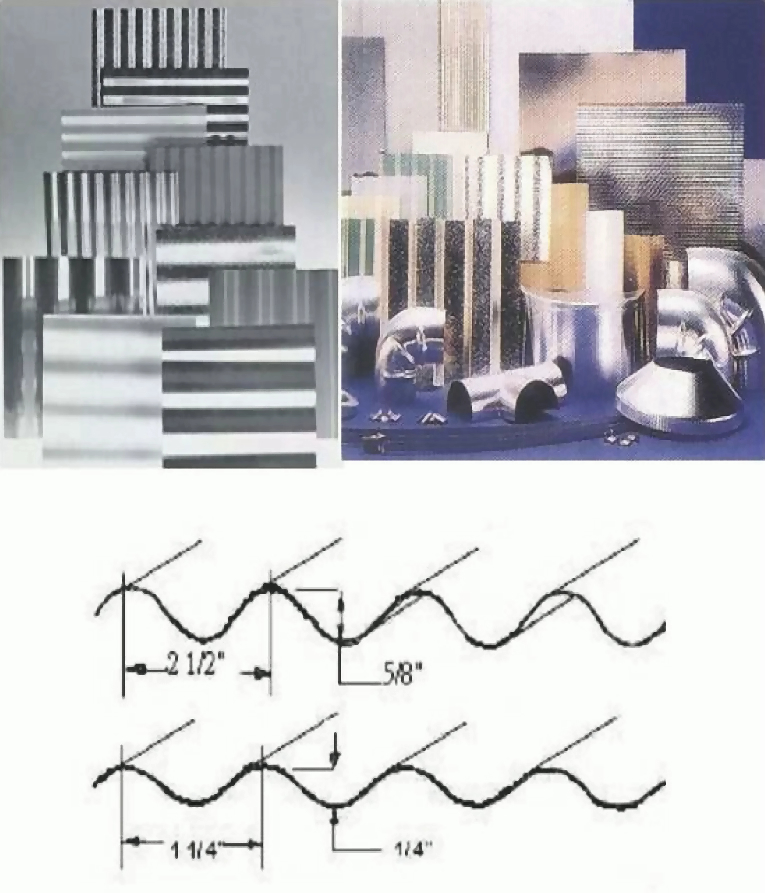

Corrugated Sheets: The 4.8mm corrugations have a depth of 0.8mm

The 31.5mm corrugations have a depth of 6.35mm

The 63.5mm corrugations have a depth of 18.9mm

Thickness Range:  0.4mm - 1.0mm

Width:  31.8mm & 63.5mm corrugation - 838mm or 1118mm 63.5mm - 914mm or 1220mm

Length:  31.5 mm corrugations up to 3.7m 63.5mm corrugations up to 4.4m

(Minimum 914mm; 4.8 mm corrugations up to 30.5 m length) - Standard


Types of Moisture Barrier

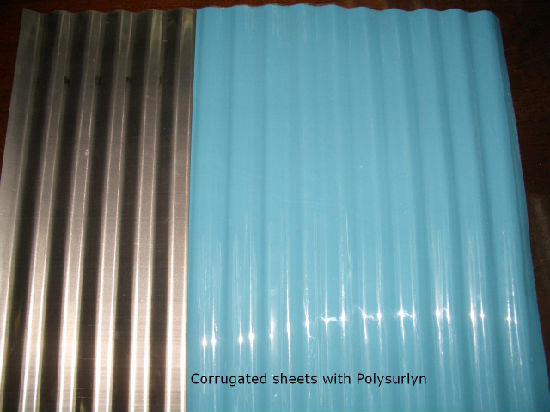

1: Polysurlyn Moisture Barrier: Hi Therm’s Aluminum sheet with

Polysurlyn Moisture heat-laminated full size to prevent moisture

and corrosion inside jacketing contact with the insulation causing

galvanic or chemical corrosion. This jacketing available in smooth,

stucco embossed or corrugation finishes.

2: Kraft Paper: Consist of 1 mil thick polyethylene and 18KG

virgin Kraft paper heat and pressure boned to the inner surface.

Rolls Length: Except Corrugated sheet, the material could be in

15 & 30 meter per roll
