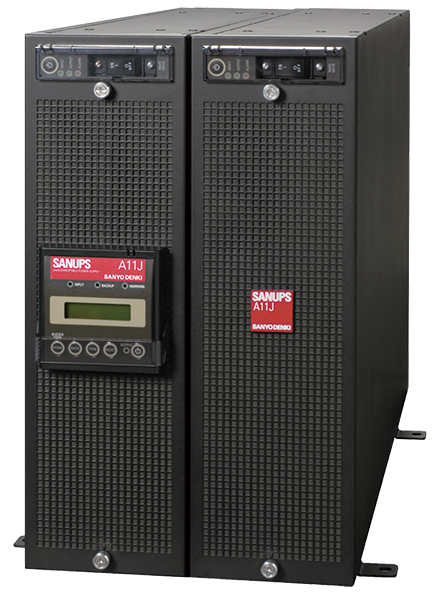

The SANUPS A11J ONLINE UPS delivers the highest level of
Reliability and flexibility in the industry.
It is the ideal power solution to ensure the stable operation of
Mission-critical systems like data centers and servers.

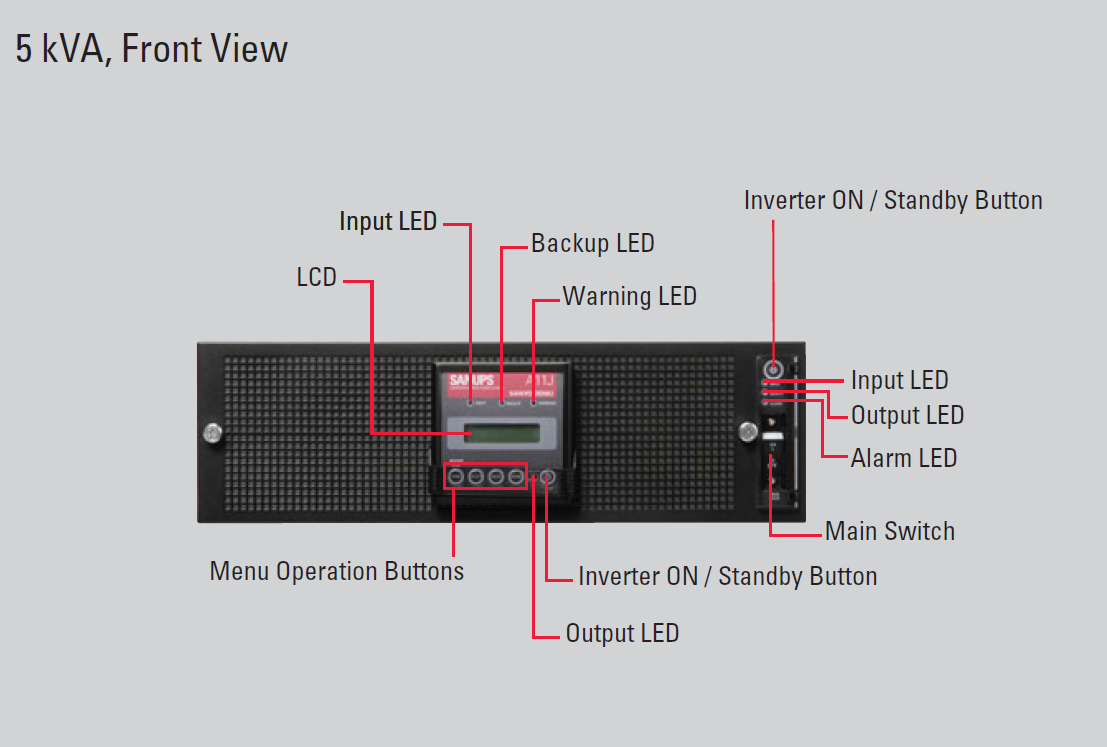

* The orientation of the front LCD panel can be changed freely.
・Product Features・
The double conversion online UPS A11J achieves a conversion efficiency of 93%*.
This high efficiency reduces running costs and contributes to energy savings.
* With the 5 kVA single unit model.

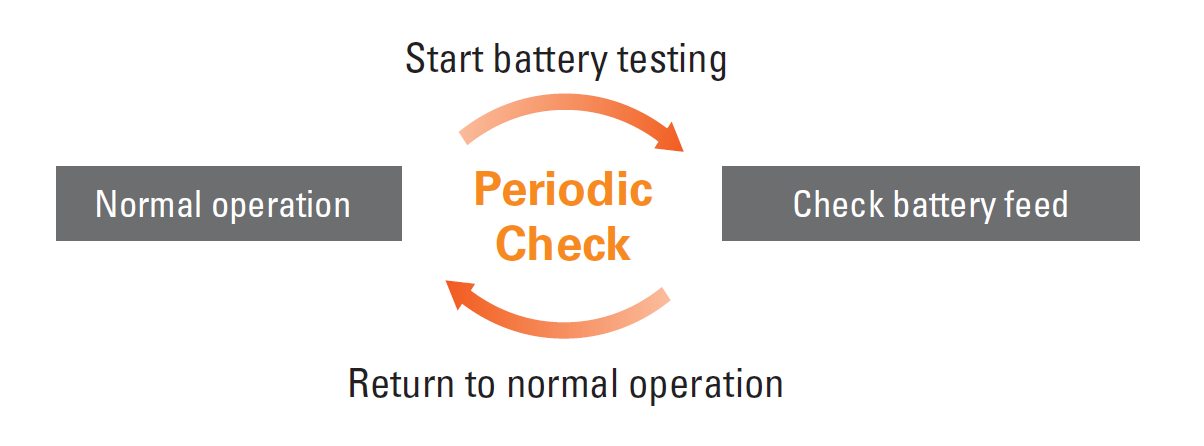

- Automatic Battery Self-Test
Battery within The A11J UPS can automatically perform self-tests at regular intervals,
Ensuring reliable operation in the event of a power failure.
Such testing requires no power interruption to loads**.
** The battery test interval can be set by the user.

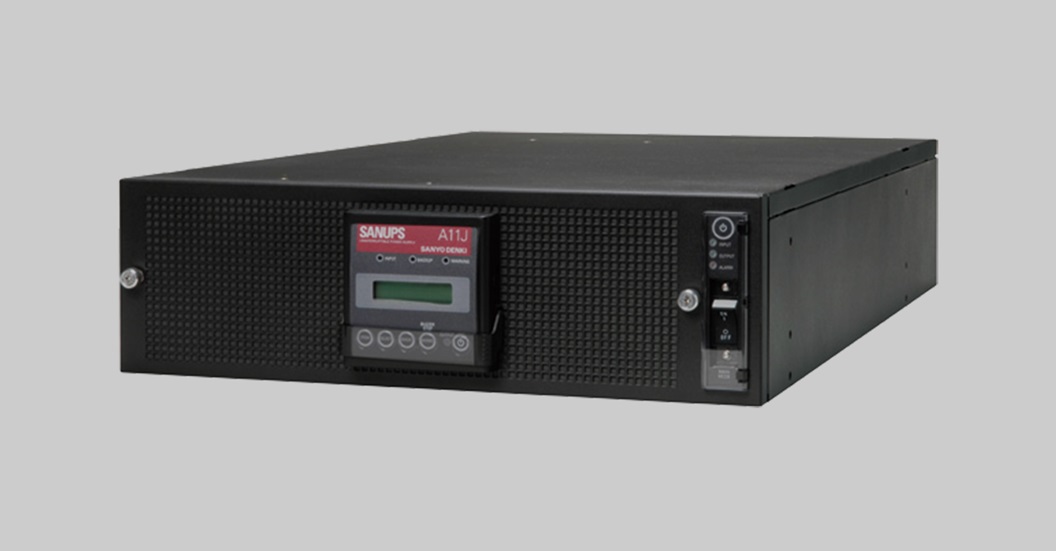

The A11J UPS is the most compact double conversion ONLINE UPS in the industry***,
With a height of only 3U for a 5 kVA unit (approximately 130 mm).
*** As of August 2011. Investigated by SANYO DENKI.

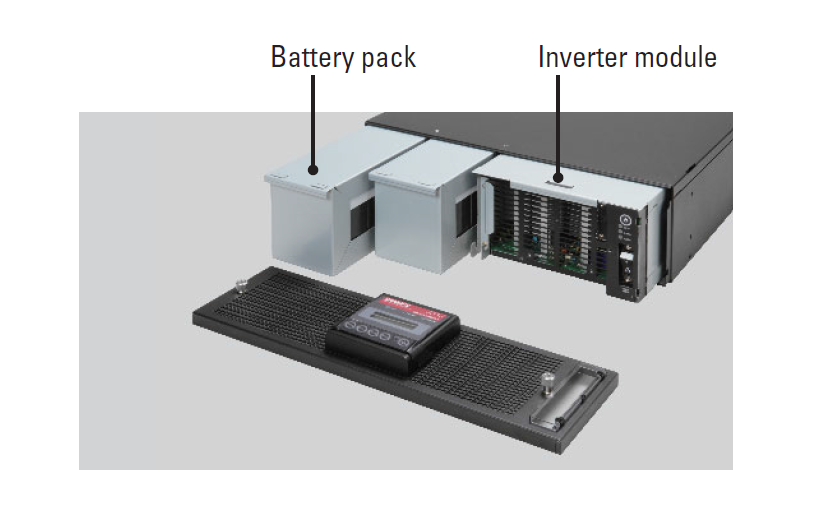

Front-access module design allows users to replace battery packs and inverter module easily.
A built-in maintenance bypass allows maintenance to be performed while grid power is being supplied.
During parallel redundant operation, maintenance can be performed
Without interrupting the inverter power to critical loads.
・Simple Specification・
| Model | A11J502A002TU | A11J103A002TU |
| Rated Output Capacity | 5.0 kVA/4.5 kW | 10 kVA/9 kW |
| Technology | Topology | Double conversion online |
| Cooling Method | Forced air cooling |
| Inverter | High-frequency PWM |
| AC Input | No. of Phases/wires | Single-phase 2-wire |
| Rated Voltage | 200/208/220/230/240 V |
| Rated Frequency | 50/60 Hz |
| Input Power Factor | 0.95 or greater |
| AC Output | No. of Phases/wires | Single-phase 2-wire |
| Rated Voltage | 200/208/220/230/240 V |
| Rated Frequency | 50/60 Hz |
| Load Power Factor | 0.9 lagging (Variation range: 0.7 lagging to 1.0) |
| Overcurrent Protection | 110% or more (Automatic transfer to bypass) |
| Battery | Type | Small-sized valve-regulated lead-acid (VRLA) battery |
| No. of batteries | 16 (12 V per battery) | 32 (12 V per battery) |
| Battery Backup Time | 5 min (at a 25°C ambient temperature, load power factor of 0.8, using new, fully-charged batteries) |
| Acoustic Noise | 45 dB | 50 dB |
| Heat Dissipation | 339 W | 730 W |

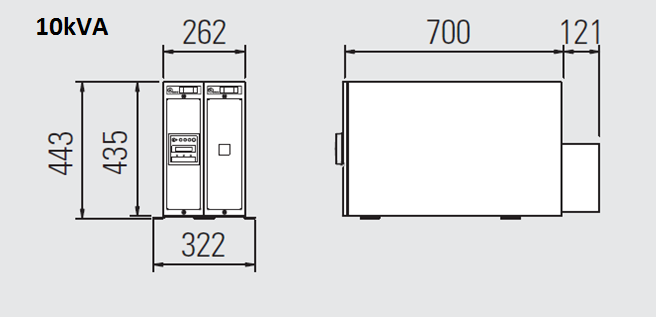

| Width | 130 mm | 262 mm |
| Height | 435 mm | 435 mm |
| Depth* | 700 + 115 mm | 700 + 121 mm |
| Mass | 61 kg | 126 kg |
* Depth of UPS unit + cable cover

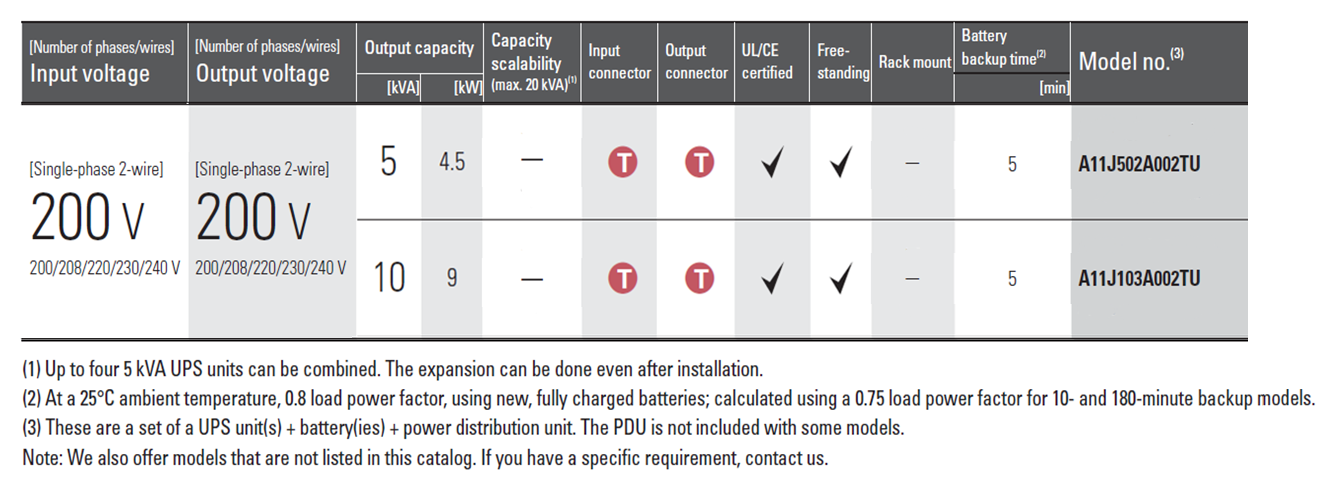

・Line-up・
