2MP OV2732 MIPI and DVP Parallel Camera Module

美元 $11.40 - 美元 $13.30

美元 $12.00 - 美元 $14.00

生产所需时间:

7 日

运送方式:

express delivery

Model:

HAMPO-J4K-OV2732 V3.0

Image Sensor:

OV2732

View Angle:

68.7°(DFOV)

Focusing:

Resolution:

2MP

Module Size:

18.50 x 12.50 mm

Interface:

MIPI

描述

联络供应商

Product Description

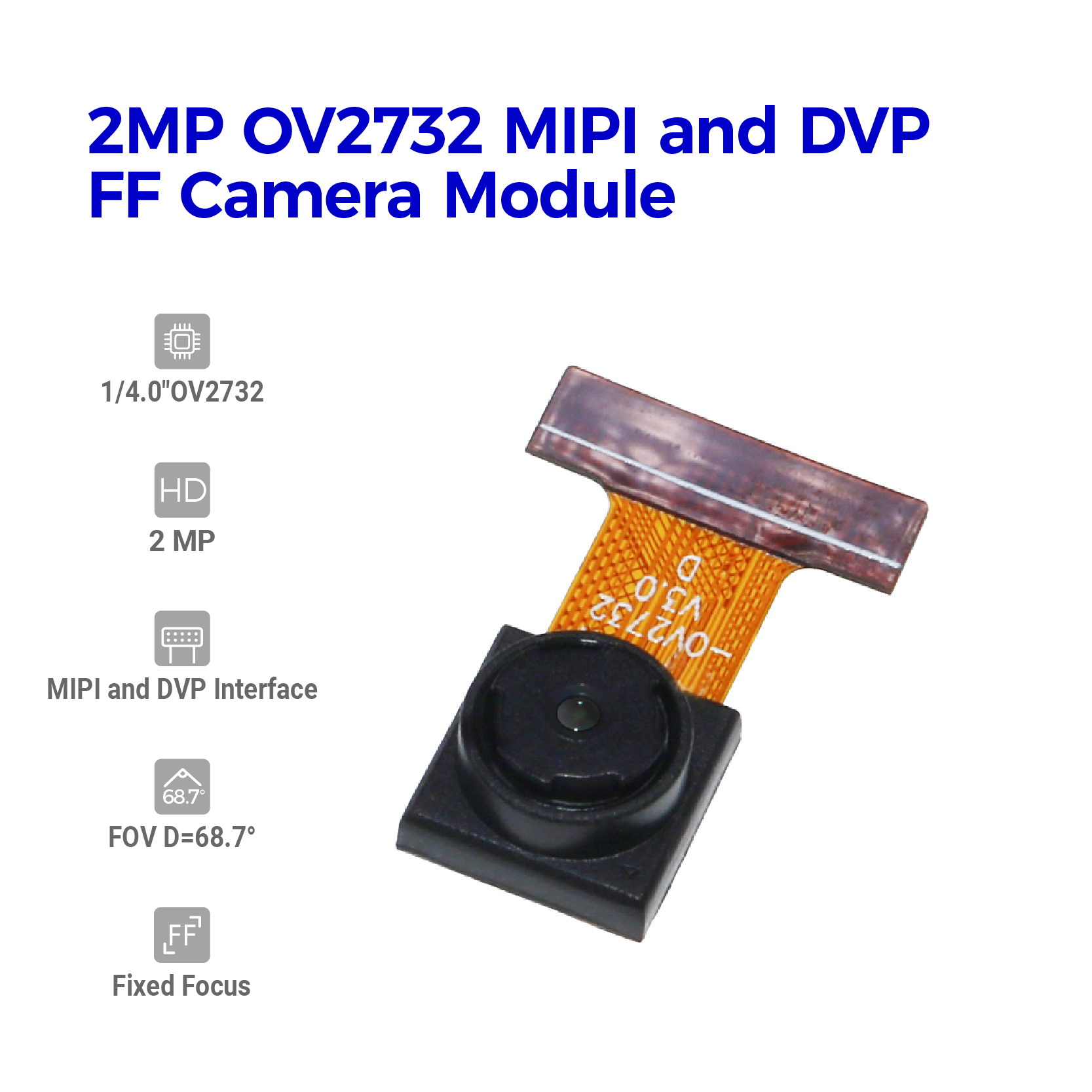

HAMPO-J4K-OV2732 V3.0 is a 2MP OmniVision OV2732 MIPI and DVP Parallel Interface Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.

APPLICATIONS :Internet of Things (IoT) ,High-end Video Conferencing ,Security ,Lifestyle Camera.

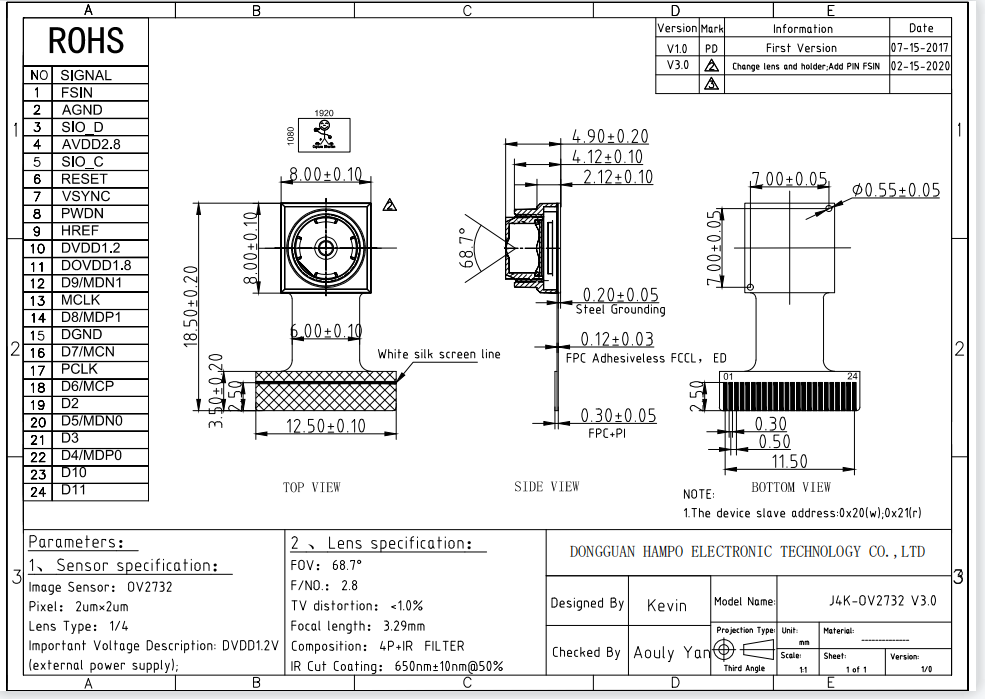

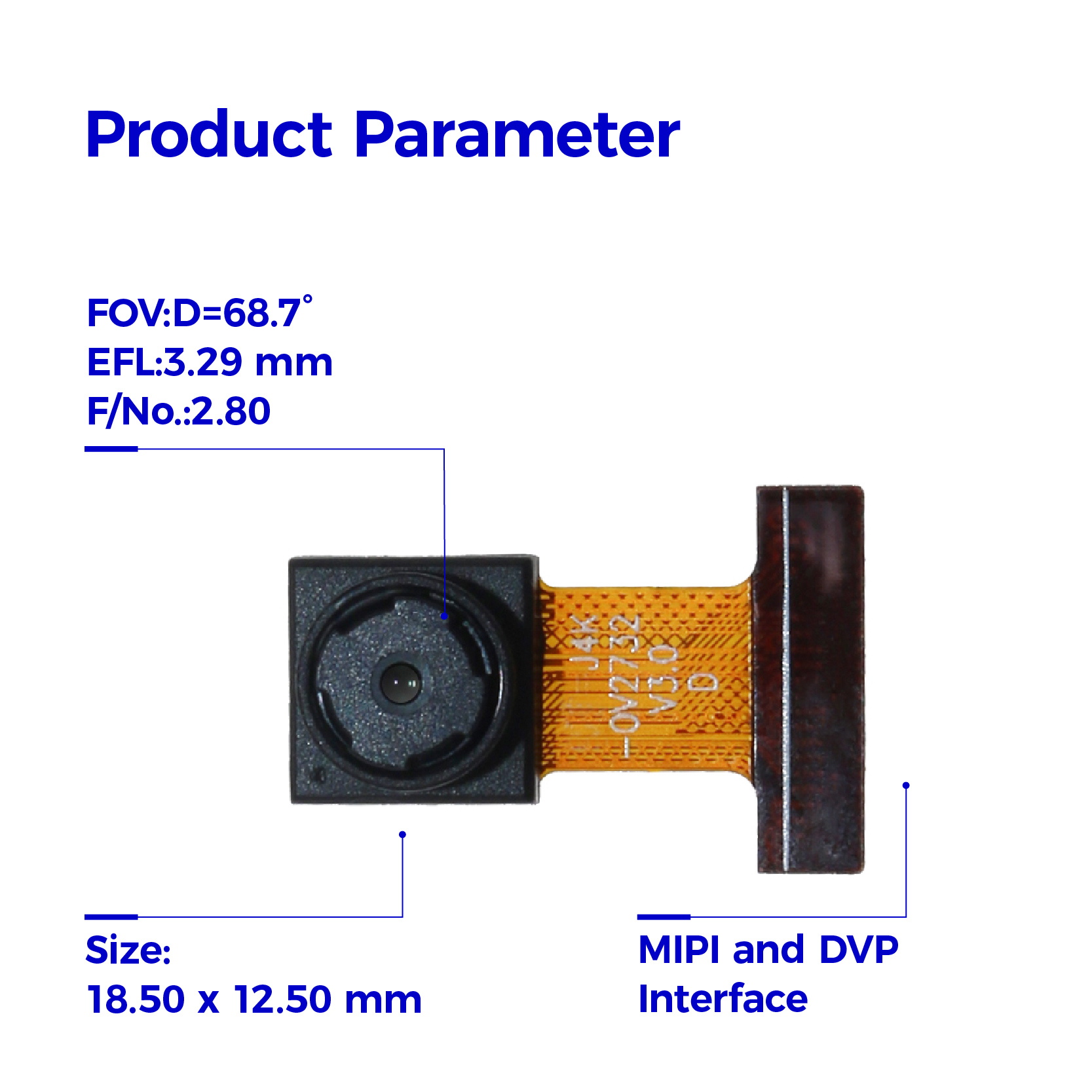

Specification

Camera Module No.	HAMPO-J4K-OV2732 V3.0
Resolution	2MP
Image Sensor	OV2732
Sensor Type	1/4"
EFL	3.29 mm
F.NO	2.80
Pixel	1920 x 1080
View Angle	68.7°(DFOV) 58.1°(HFOV) 45.0°(VFOV)
Lens Dimensions	8.00 x 8.00 x 4.90 mm
Module Size	18.50 x 12.50 mm
Module Type	Fixed Focus
Interface	MIPI and DVP Parallel
Auto Focus VCM Driver IC	None
Operating Temperature	-40°C to +85°C
Mating Connector	FH12-24S-0.5SH

Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
