-40 Celsius Charging LTO14500 500mAh Battery

美元 $4.00 - 美元 $5.00

生产所需时间:

25 日

运送方式:

Air/Sea

应用:

BBU, UPS, Freezer, outdoor lighting, database

品牌:

JYH

型号编号:

LTO14500-500

描述

联络供应商

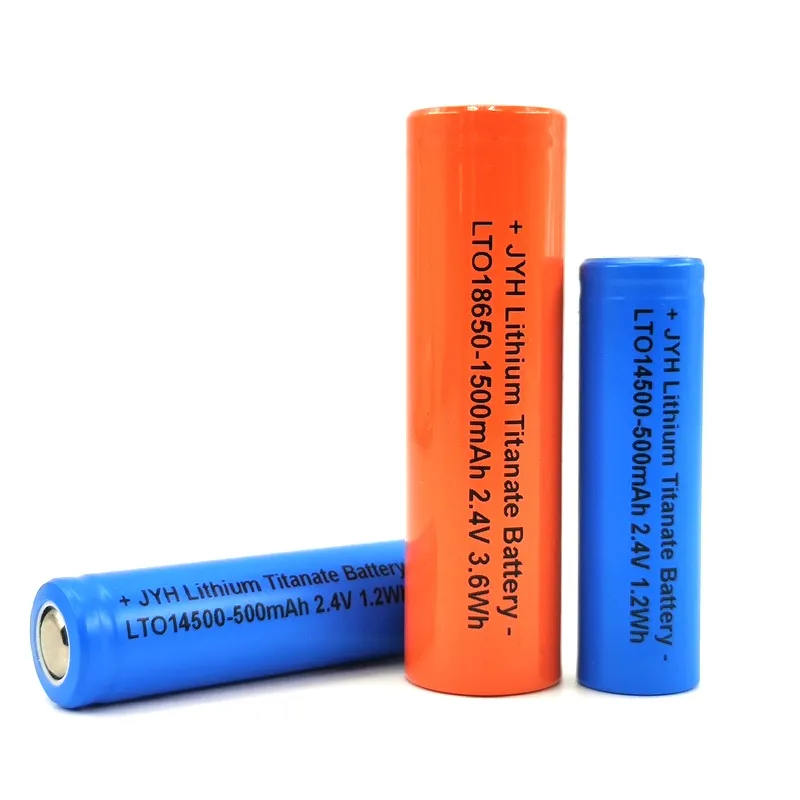

-40 Celsius Charging LTO14500 500mAh Battery

Product Features

The LTO 14500 battery has a good performance in low temperature and safety, good for outdoor application and use in high attitude areas.

TESTS PASSED:

Environmental Performance

Discharge Capacity at High Temperature

Discharge Capacity at Low Temperature

Constant Temperature and Humidity

Mechanical Performance

Vibration Test

Drop Test

Safety Performance

Overcharge

Over-discharge

Crush

Short-circuit

Heating

Impact

Low Pressure

Model	LTO14500-500
Nominal Voltage	2.4V
Nominal Capacity	500mAh
Typical Capacity	525mAh after standard charge and standard discharge
Minimum Capacity	480mAh after standard charge and standard discharge
Standard Charge	Constant current at 250mA charge to 2.8V, then constant voltage at 2.8V charge till current decline to ≤5mA
Fast Charge	Constant current at 500mA charge to 2.8V, then constant voltage at 2.8V charge till current decline to ≤5mA
Standard Discharge	100mA to 1.2V
Fast Discharge	500mA to 1.2V
Maximum Continuous Charge Current	2000mA
Maximum Continuous Discharge Current	2000mA
Operating Temperature	Charge -30℃ to 45℃ Discharge -30℃ to 60℃
Storage Temperature	<1 year -10℃ to 25℃ <3 months -10℃ to 35℃ <30days -10℃ to 45℃
Typical Weight	20g
