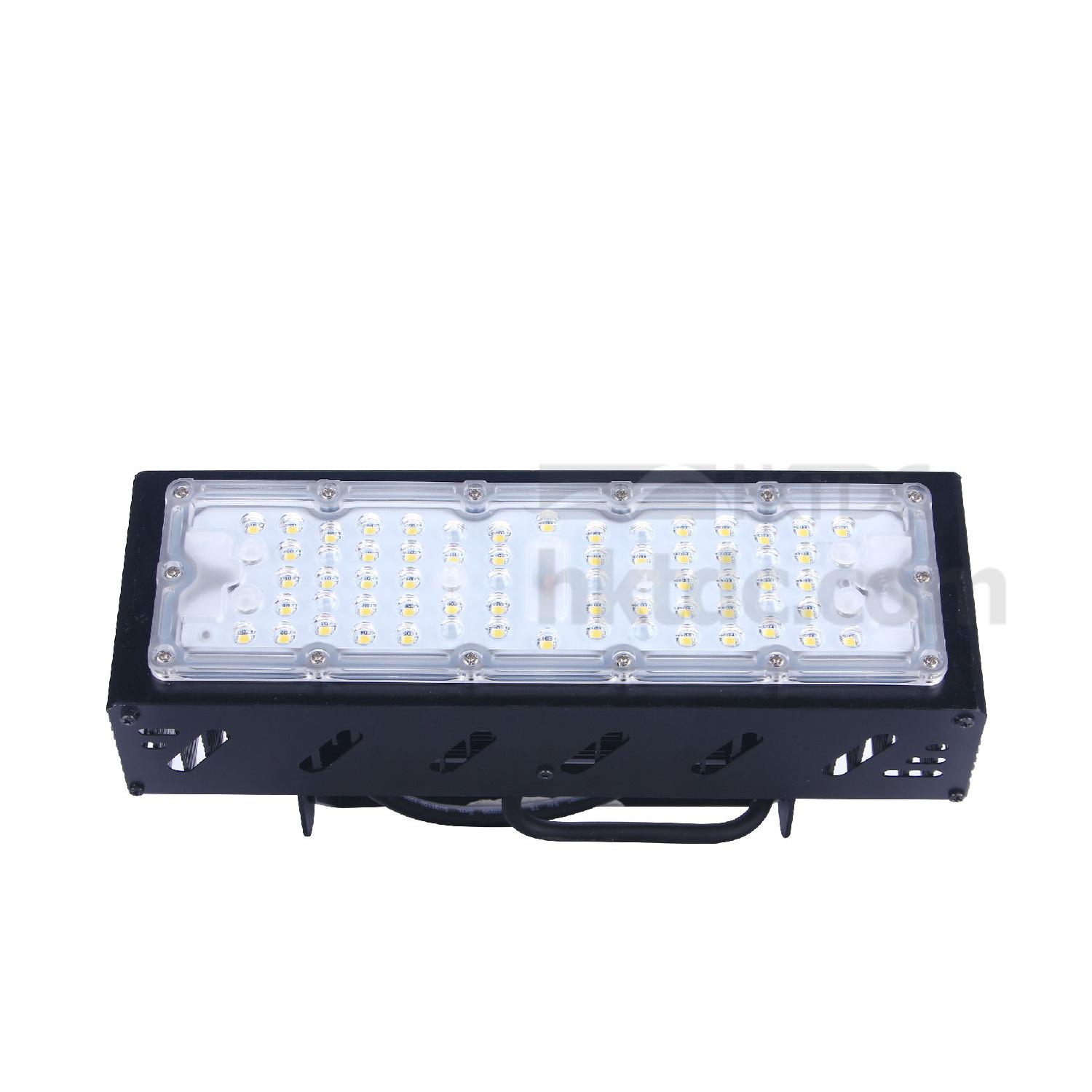

85-277VAC 50W SMD LED Floodlight of Module Type
港口:
Shenzhen, China
防护等级:
IP67
可定制:
是
电压(伏):
85-277VAC
证书:
中国3C认证, 欧盟CE认证, 欧盟EMC认证, 德国GS认证, 欧盟LVD认证, 日本PSE认证, 符合RoHS指令, 澳洲SAA认证, 美国UL认证, 德国VDE证书
光源:
发光二极管照明灯泡
主体物料:
铝
电源:
交流电
样式:
现代
表面处理:
抛光 - 不锈钢
包含灯泡:
包含
适用环境:
建筑物外墙, 公路, 工业, 广场, Warehouse
描述
联络供应商
描述
New Type: 30W, 50W, 100W, 150W, 200W, 300W, 400W, 500W LED Floodlight of Module Type
1. Power Supply
◆ 150,000 Hour electrolytic driver IC
◆ Constant current power supply, 85-277VAC, water proof, IP68, PF0.98, 90% efficiency
◆ Electritic design of anti-statics, anti-overvoltage of 4000VAC, anti-thunderstrike, anti-surge
◆ IP67 connector of electrical wire. red wire: live, blue wire: neutral, green wire: earth
2. Optoelectricity
◆ SMD LED3030, 160lm/w(lumen of LED chip)
◆ 100lm/w for floodlight
◆ 80% Lumen maintenance after 60,000 hours
◆ SMD LEDs3030 not completely arrayed in the middle area to avoid heat accumulation
◆ 60°, 90°, 80°×120° beam angle for option

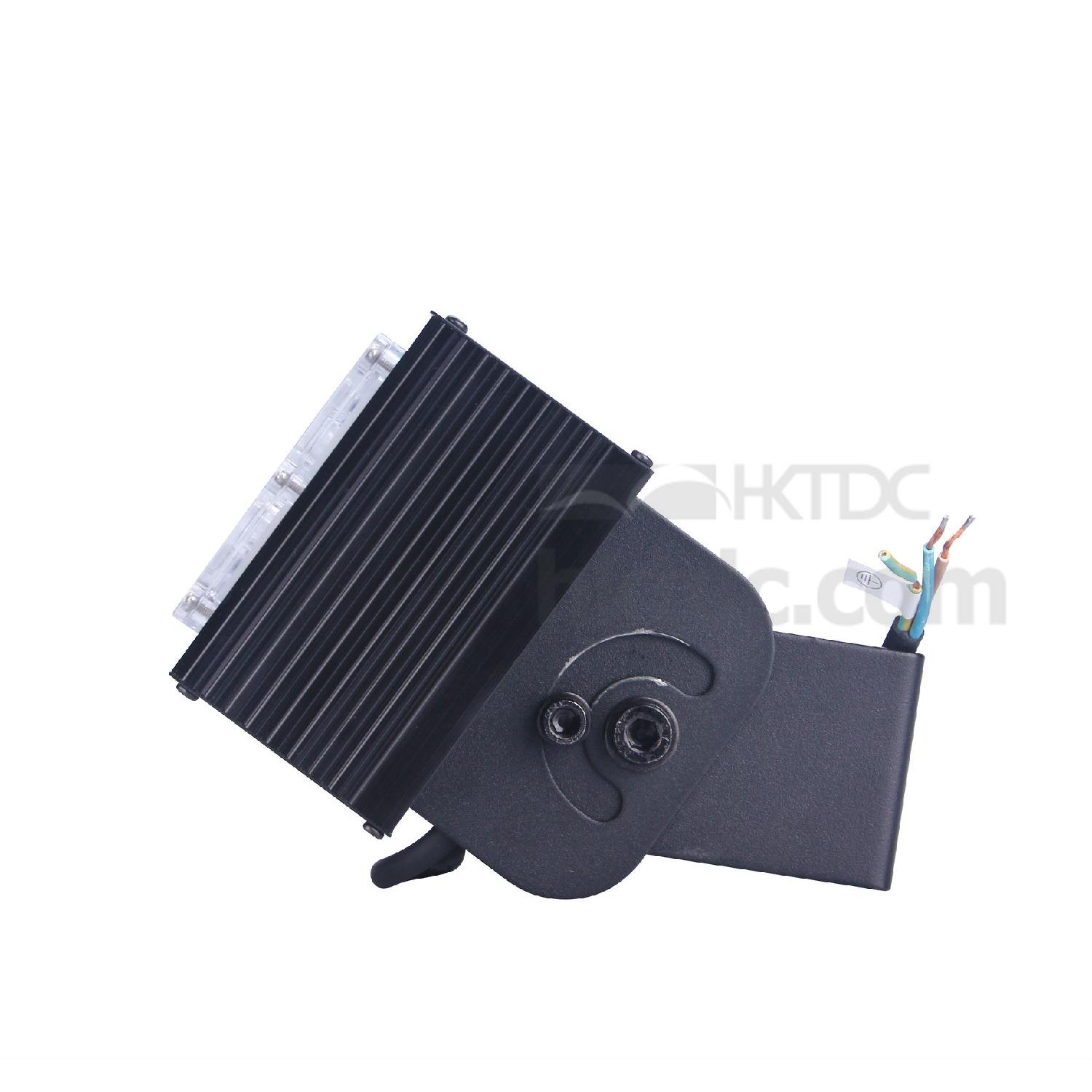

3. Aluminum Heat Sink & Heat Dissipation
◆ Die-casting aluminum, electroplated and polished to a deep, high polish
◆ Module design for high performance of heat dissipation
◆ Alluminum straight fins heat sink designed to increase its surface area. 34pcs of heat sink fins designed. More air bypasses the fins
◆ The power supply is 2mm-distance from heat sink, to avoid heat result from the power and the heat sink to dispate to each other
◆ IP67 rated, class Ⅰ, avaiable to withdraw dust and moisture
◆ Rugged and durable
◆ Two aluminum panels applied to fix the aluminum straight fins of heat sink
1. Power Supply
◆ 150,000 Hour electrolytic driver IC
◆ Constant current power supply, 85-277VAC, water proof, IP68, PF0.98, 90% efficiency
◆ Electritic design of anti-statics, anti-overvoltage of 4000VAC, anti-thunderstrike, anti-surge
◆ IP67 connector of electrical wire. red wire: live, blue wire: neutral, green wire: earth
2. Optoelectricity
◆ SMD LED3030, 160lm/w(lumen of LED chip)
◆ 100lm/w for floodlight
◆ 80% Lumen maintenance after 60,000 hours
◆ SMD LEDs3030 not completely arrayed in the middle area to avoid heat accumulation
◆ 60°, 90°, 80°×120° beam angle for option
3. Aluminum Heat Sink & Heat Dissipation
◆ Die-casting aluminum, electroplated and polished to a deep, high polish
◆ Module design for high performance of heat dissipation
◆ Alluminum straight fins heat sink designed to increase its surface area. 34pcs of heat sink fins designed. More air bypasses the fins
◆ The power supply is 2mm-distance from heat sink, to avoid heat result from the power and the heat sink to dispate to each other
◆ IP67 rated, class Ⅰ, avaiable to withdraw dust and moisture
◆ Rugged and durable
◆ Two aluminum panels applied to fix the aluminum straight fins of heat sink
