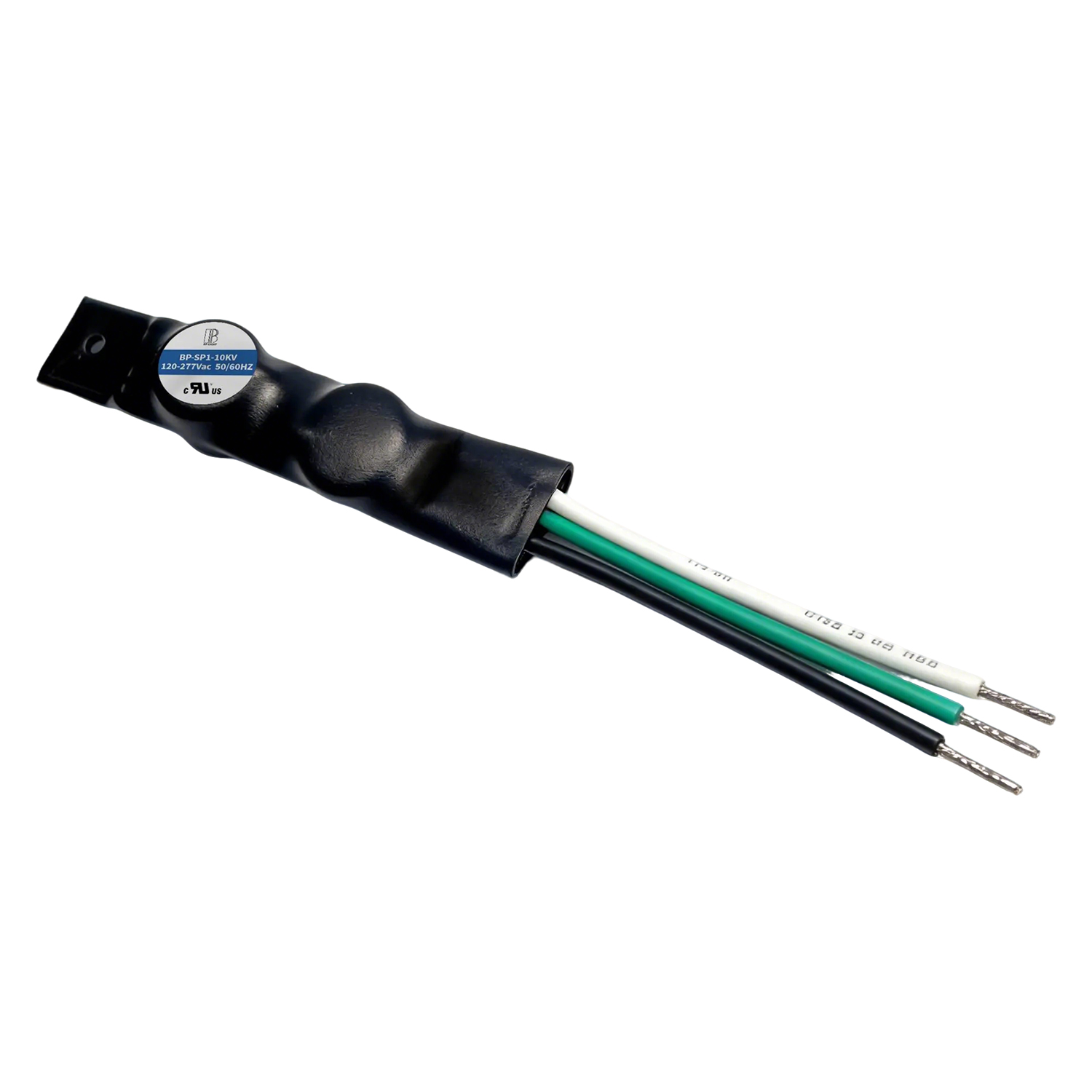

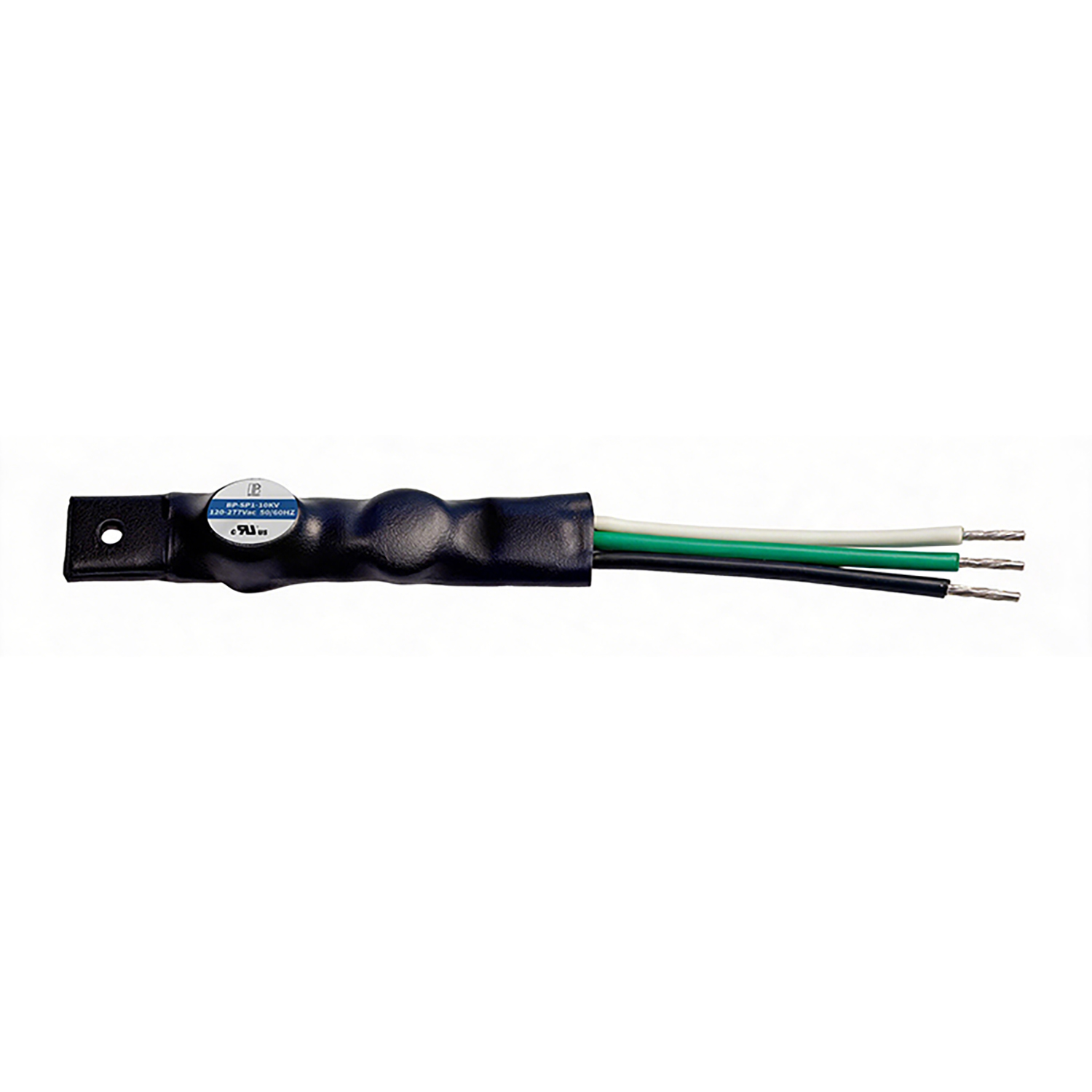

IP65 Wire Type UL 1449 Surge Protector Single Phase Surge Protection Device for Commercial Outdoor Street Light LED Driver
品牌:
BP
Model:
BP-SP1-10KV
Applicable luminaires:
Class l luminaire
Certifications:
UL1449
Connection:
Parallel
IP Rating:
IP67
Max input voltage (Un):
120-277V
Max Discharge Current:
10KA
Nominal Discharge Current:
5KA
SPD Category:
SPD
描述
联络供应商
描述
This compact wire-type UL 1449 surge protector is a single-phase LED SPD specially engineered for outdoor street lamp, commercial canopy light, parking lot light and industrial LED luminaires with 277V universal input LED drivers, providing reliable defense against lightning surges and power line transient disturbances. BP-SP1-10KV products are designed to be used in conjunction with LED Drivers to provide an additional level of pratection against powerline dis turbances in industrial and commercial applications. It is low-cost single-phase SPD.
- Smallest profile.
- All modes protection.
- MAX current (lmax)10KA
KEY FEATURES
✓AC Mains Voltage：277
✓Max Continuous Operating Voltage：AC320V/DC420V
✓Measured Limiting Voltage (MLV)：L-N:1270V L-G:1400V N-G:1370V
✓Nominal Current (In)：5KA
✓MAX current (Imax):10KA
✓Max clamping Voltage 8/20uS @10KA:1500V
✓UL1449
APPLICATIONS
✓Outdoor Road Lighting
✓Tunnel & Underground Traffic Lighting
✓Landscape Lighting & Outdoor Signage
✓Outdoor Lighting for Industrial Plants
✓Public Lighting for Transportation Hubs
TECHNICAL SPECIFICATIONS
