Power Specifications

• Power Adapter: DC 5V / 2A
• Battery: Built-in 3.7V / 3000mAh (Battery working time approx. 4.5 hours with all functions enabled)
• Charging Time: Approx. 4.5 hours (power off)
• Charging Port: Type-C port

Main Features

• Sound card function: Supported
• 48V Phantom Power: 2 channels
• Built-in battery capacity: 3000mAh
• Usage while charging: Supported
• Low battery indicator: Supported
• Audio Adjustment: Independent volume/mute control for 3 microphone interfaces; independent volume/mute control for speaker output; independent volume control for headset; independent volume control for headphones
• Function knobs: 6
• Mode/Function buttons: 16
• Custom sound effect buttons: 3
• Bluetooth accompaniment: Supported

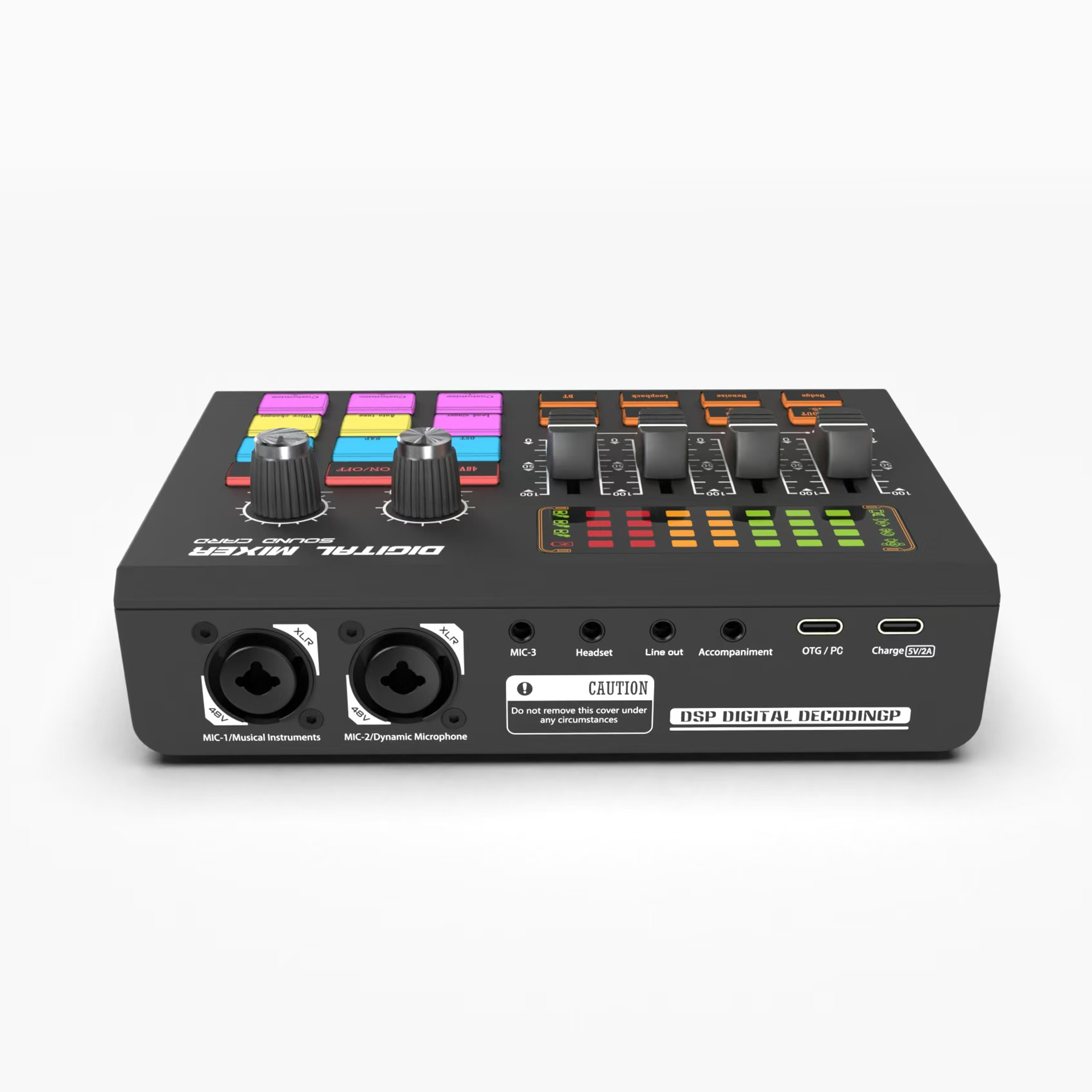

Input & Output Ports

• Accompaniment input: 1 channel (6.35mm port)
• Condenser microphone input: 1 channel (3.5mm port)
• Dynamic microphone input: 1 channel (6.35mm port)
• Instrument input: 1 channel (6.35mm port)
• Headset output: 1 channel (3.5mm port)
• Headphone output: 2 channels (3.5mm port)
• OTG port (with charging function): 1 channel (Type-C port)
• Charging port: Type-C port
• 48V condenser microphone input: 2 channels (XLR)

Accessories

• Type-C to Type-C data cable: 1 pc
• 4-segment audio cable: 1 pc
• Type-C to USB cable: 1 pc

Audio Performance Specifications

• Analog audio output: LT/RT, stereo
• Dynamic Range (D/A): 102dB
• Dynamic Range (A/D): 102dB
• Total Harmonic Distortion (D/A): -92dB
• Total Harmonic Distortion (A/D): -90dB
• Signal-to-Noise Ratio (A/D): 108dB
