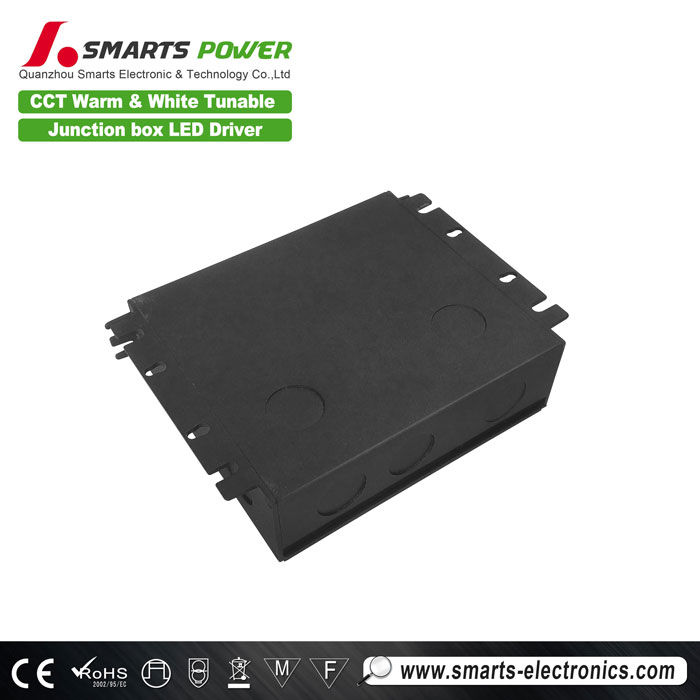

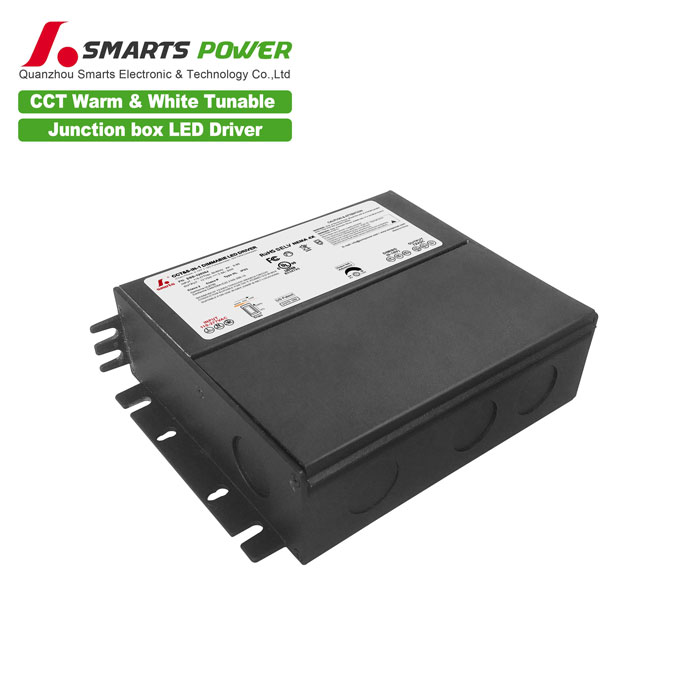

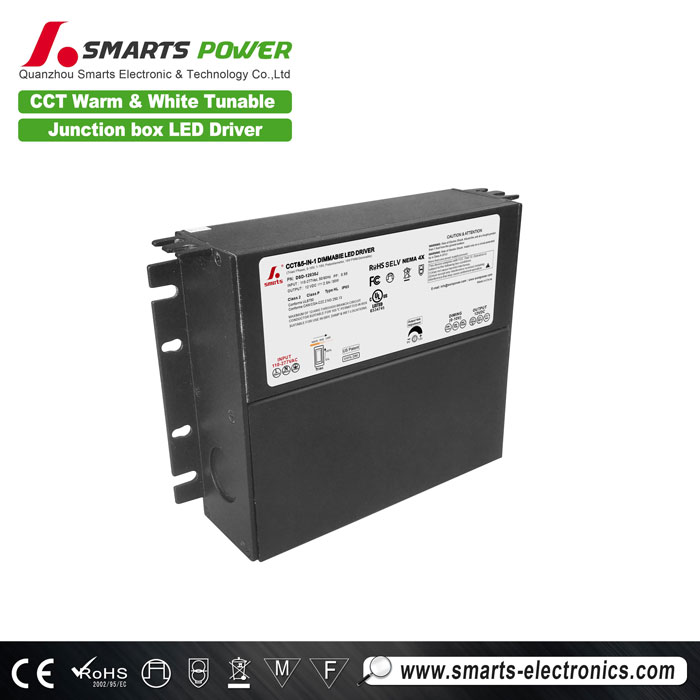

UL cUL CCT & triac/0 10V 5 in dimmable pwm input led driver 30W

Model:

DSD-12030J

Input Voltage:

110-277VAC

Output Voltage:

12VDC 24VDC 48VDC

Working Mode :

Constant voltage

Warranty:

5 years

描述

联络供应商

Model Number	DSD-12030J	DSD-24030J	DSD-48030J
Output Type
Reted Power
Reted Voltage	12V	24V	48V
Reted Current	2.5A	1.25A	0.63A
Voltage Tolerance	±0.5V
Voltage Regulation	±0.5%
Load Regulation	±1%
Input Type
Voltage Range	110-277V
Frequency Range	47-63HZ
Efficiency(Typ.)	85%@120VAC 86%@277VAC
Total Harmonic Distortion	THD< 15%(@100% load)
Power Factor(typ.)	0.99@120VAC 0.98@277VAC
AC Current(Typ.)	0.35A
Inrush Current(Typ.)	18A
Leakage Current	<0.5mA
PROTECTION
Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
Over Load	Intelligently reduce the output voltage, auto-recovery or re-power on to recovery
Over Temperate	100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over
	load is removed
ENVIRONMENT
Working Temp.	Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity	20 ~ 95% RH non-condensing
Storage temp., Humidity	-40 ~ +90, 10 ~ 95% RH
Temp .coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards	UL8750, CSAC22.2 No. 250.0-08
Withstand voltage	I/P-O/P:1.88KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC Emission	Compliance to FCC part 15 Subpart B
OTHERS
Dimension	158x120.5x42mm (LWH)
Packing	-
