0.3MP OV7251 Global Shutter MIPI Camera Module

美元 $11.40 - 美元 $14.25

美元 $12.00 - 美元 $15.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-KR7-OV7251 V4.0

Image Sensor:

OV7251

View Angle:

60°(DFOV)

Focusing:

Resolution:

0.3MP

Module Size:

25.00 x 12.50 mm

Interface:

MIPI

描述

联络供应商

Product Description

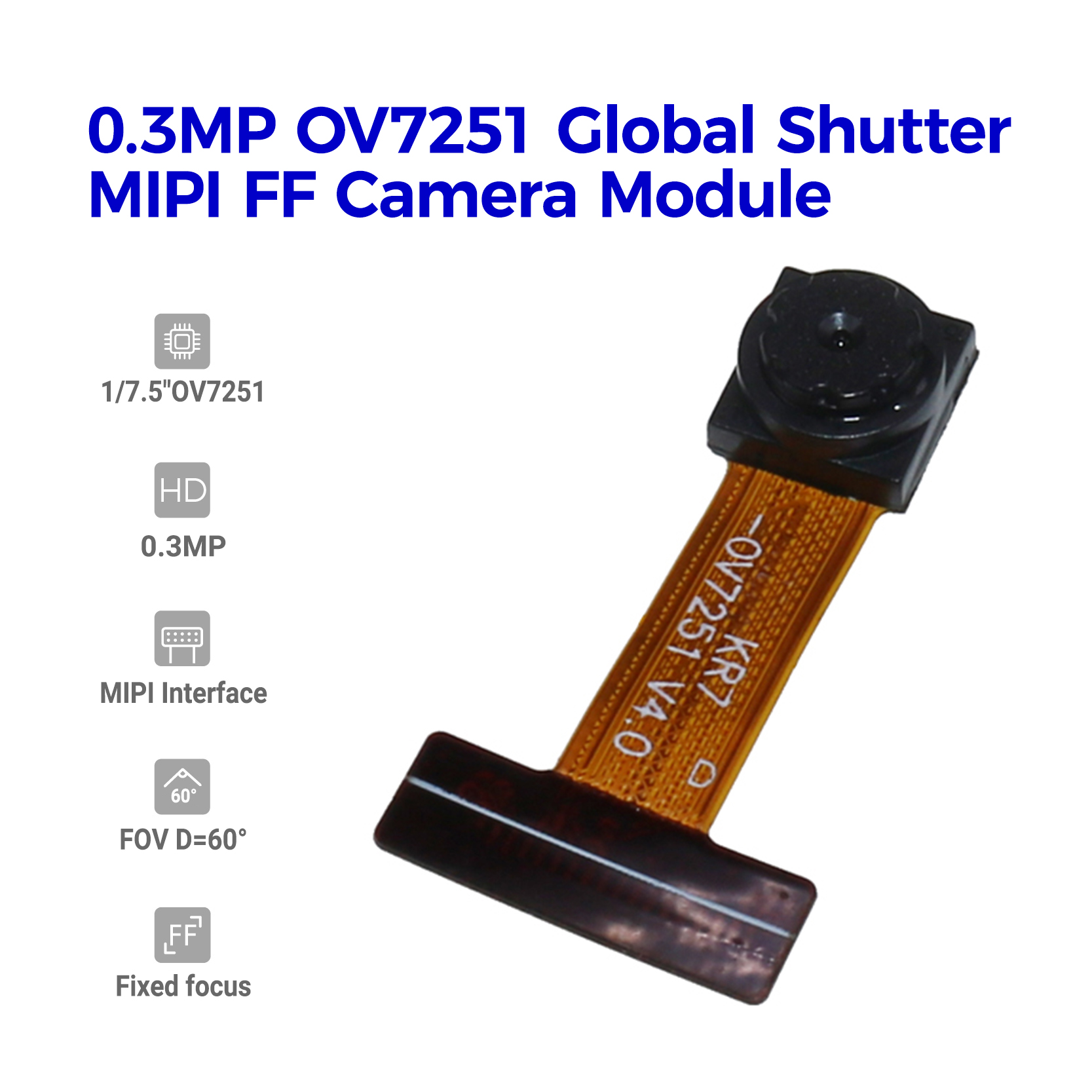

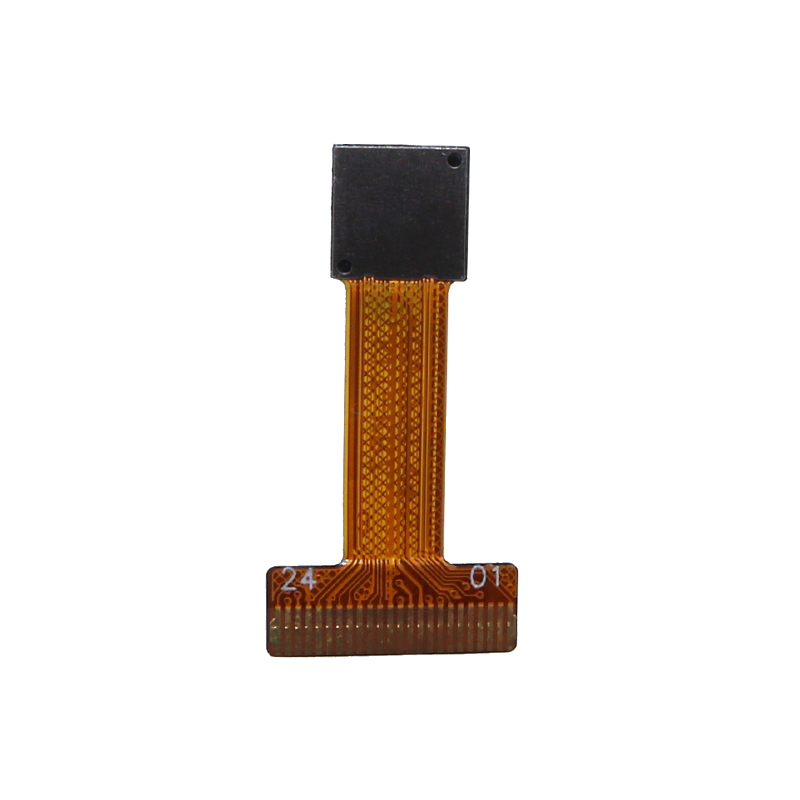

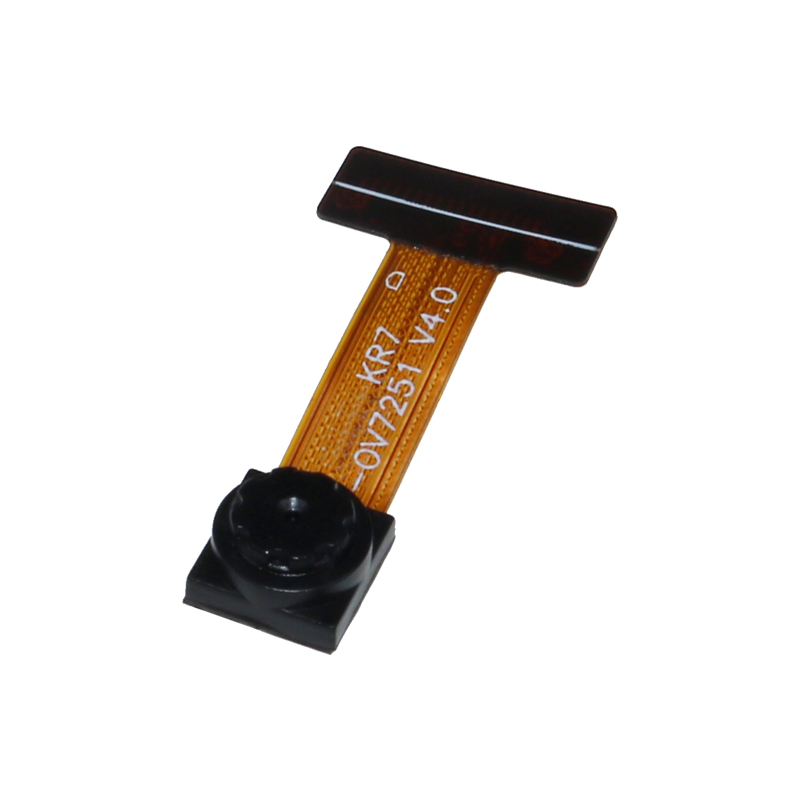

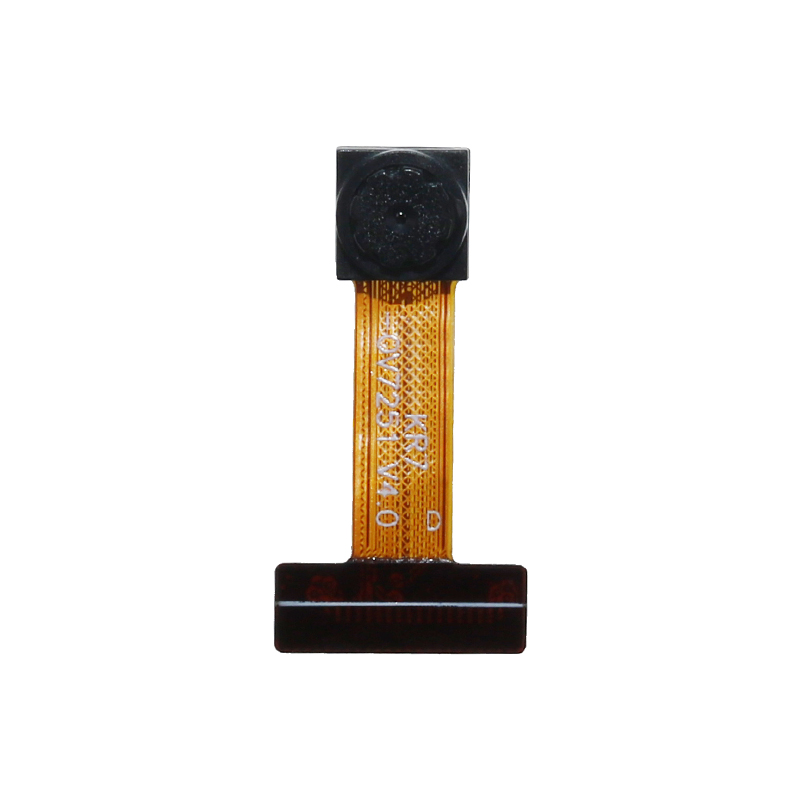

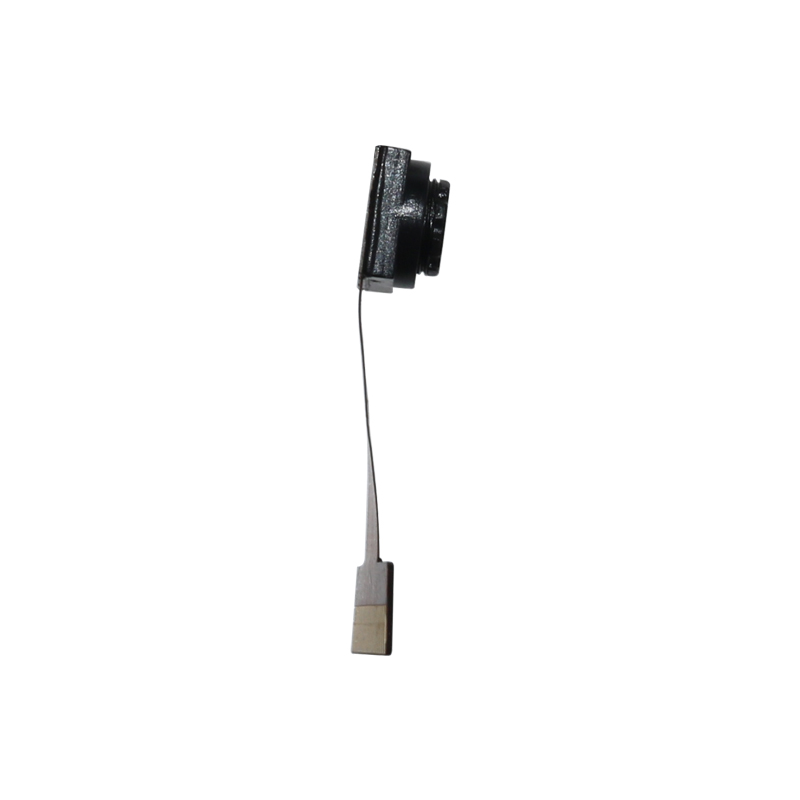

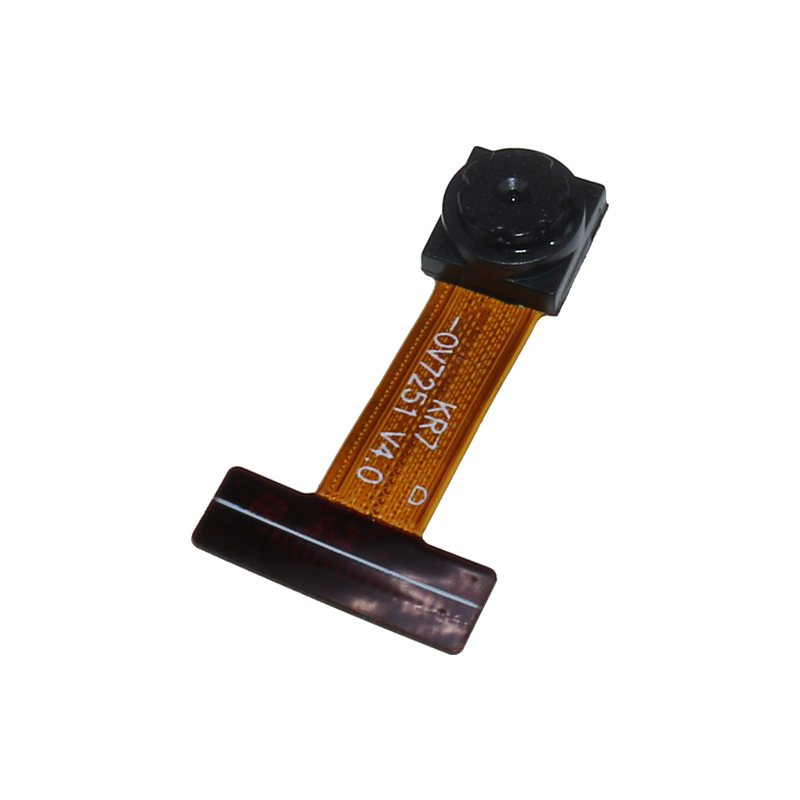

HAMPO-KR7-OV7251 V4.0 is a 0.3MP OmniVision OV7251 Global Shutter MIPI Interface Fixed Focus Camera Module.It uses Narrow pitch connectors (0.4mm pitch).

APPLICATIONS :Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the LCD, HDD or other device.

Specification
 Camera Module No.
HAMPO-KR7-OV7251 V4.0
Resolution
0.3MP
Image Sensor
OV7251 Global Shutter
Sensor Type
1/7.5"
EFL
2.50 mm
F.NO
2.80
Pixel
640 x 480
View Angle
60.0°(DFOV)
Lens Dimensions
6.50 x 6.50 x 3.87 mm
Module Size
25.00 x 12.50 mm
Module Type
Fixed Focus
Interface
MIPI
Auto Focus VCM Driver IC
None
 Operating Temperature
-30°C to +70°C
 Mating Connector
FH12-24S-0.5SH
Key Features
*improved shutter efficiency for machine vision applications

*integral 850 nm bandpass filter

*3 µm x 3 µm pixel with OmniPixel®3-GS technology

automatic black level calibration (ABLC)

*programmable controls for:
- frame rate
- mirror and flip
- cropping
- windowing

*support output formats: 8/10-bit RAW
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
