1/2.5" PS5520 5MP Fixed Focus USB Camera Module

美元 $13.00 - 美元 $18.00

生产所需时间:

7 日

运送方式:

FOB SZ

型号编号:

003-1482

尺寸:

38mm*38mm

Sensor:

PS5520

FOV:

D=100°

Dynamic Range:

85dB

Resolution:

2592*1944

描述

联络供应商

Product Description

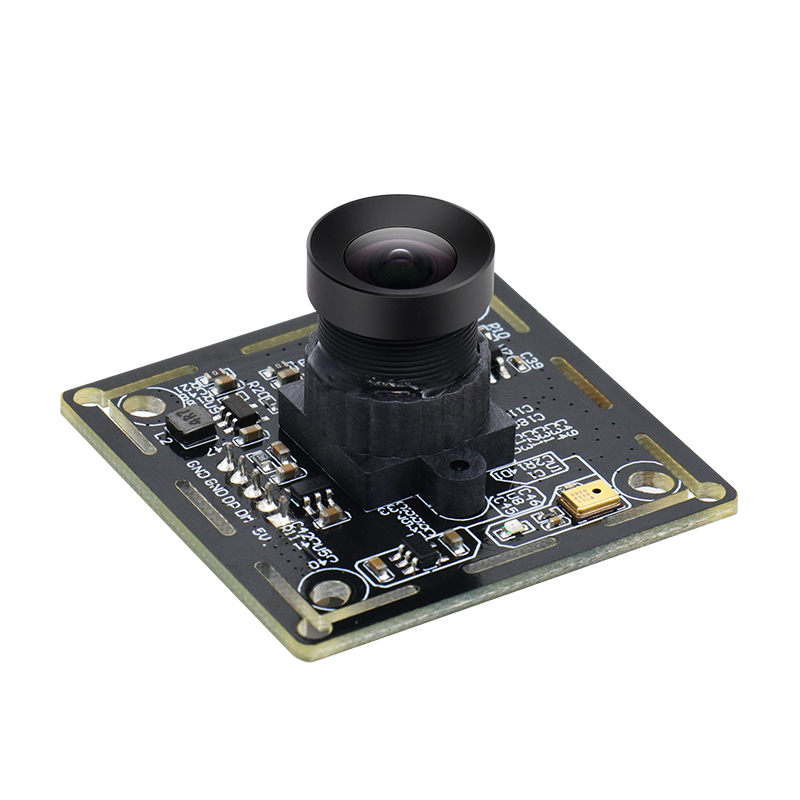

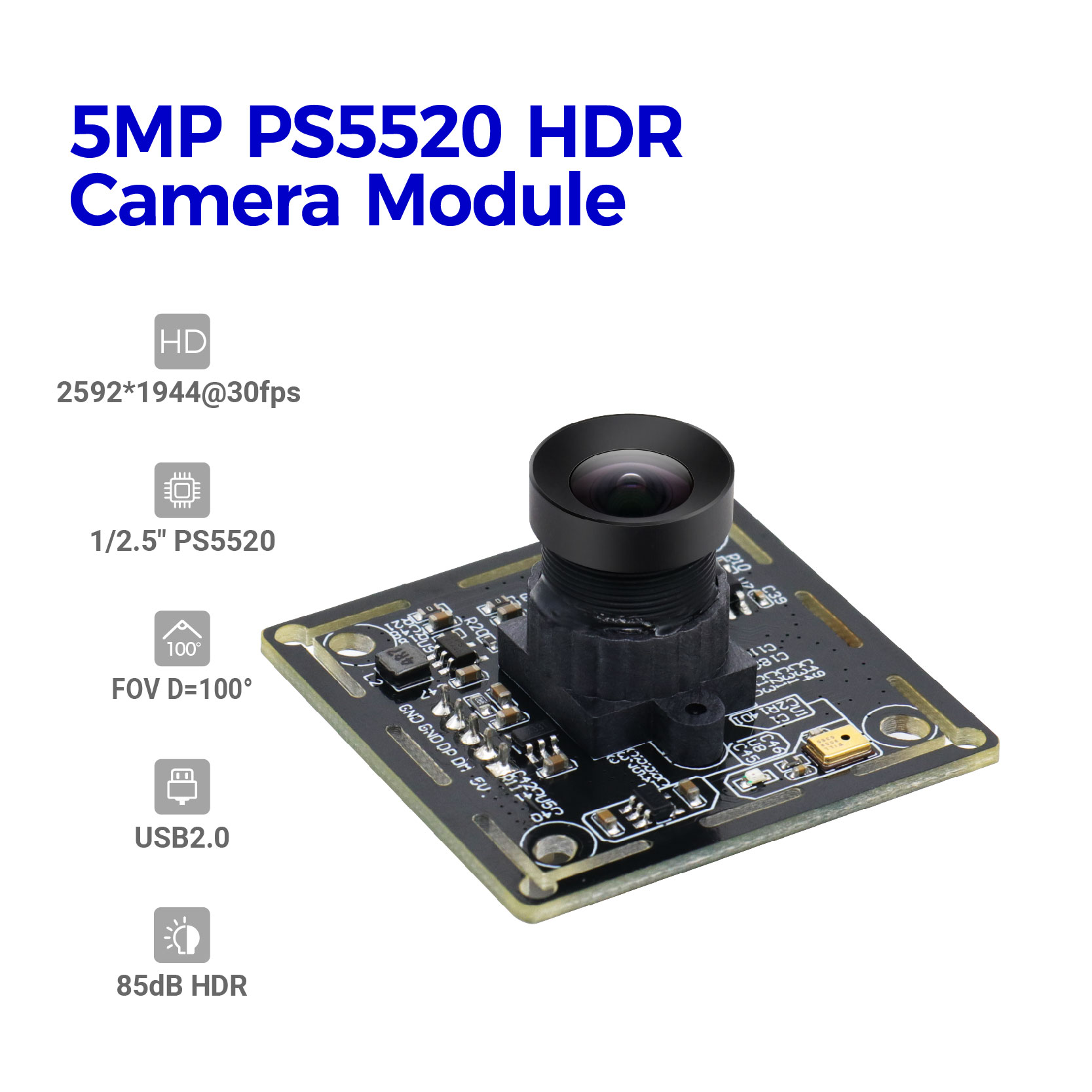

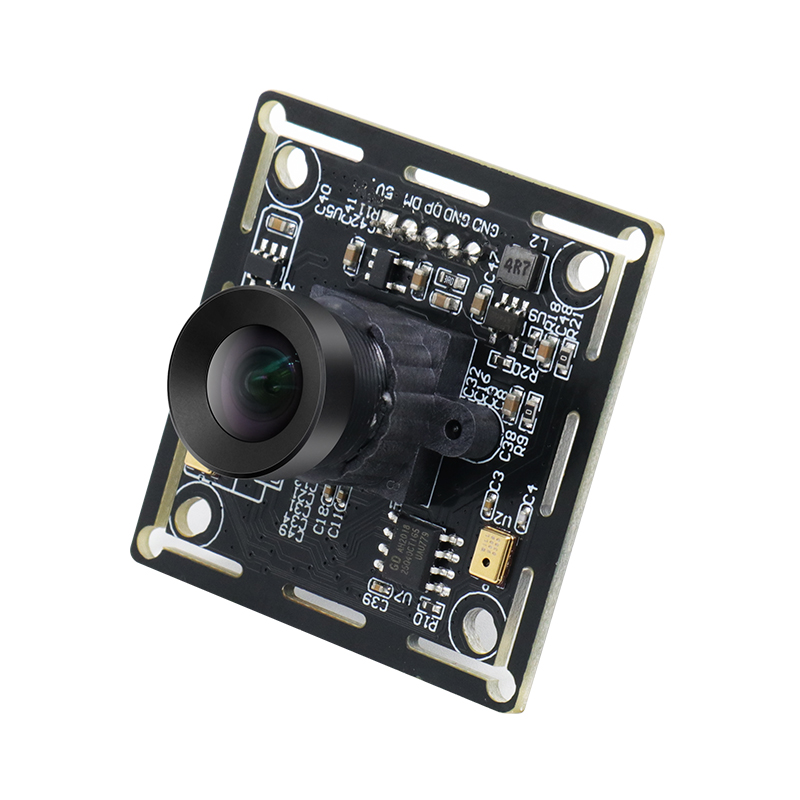

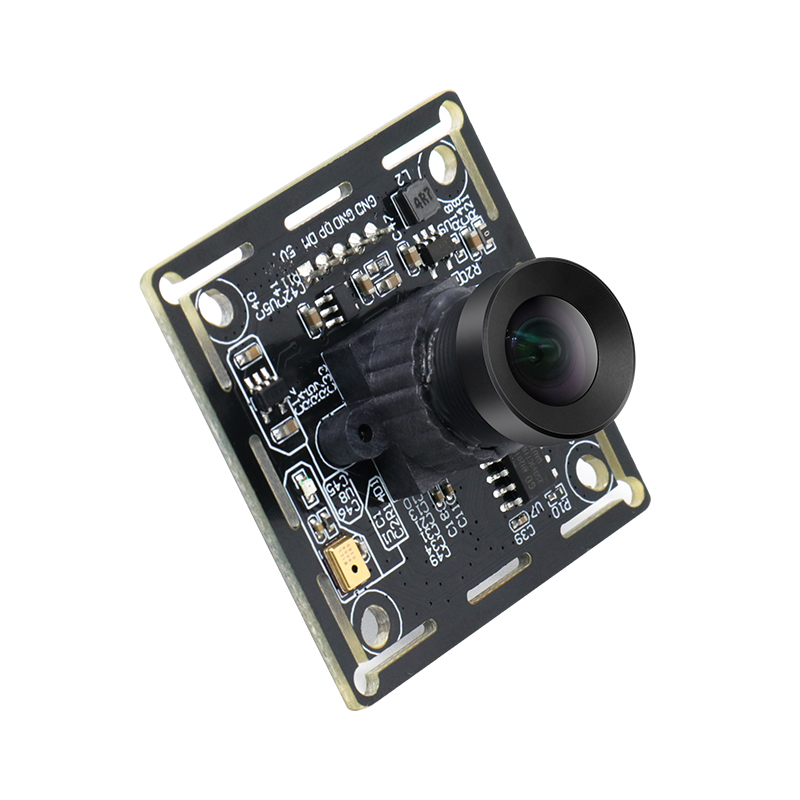

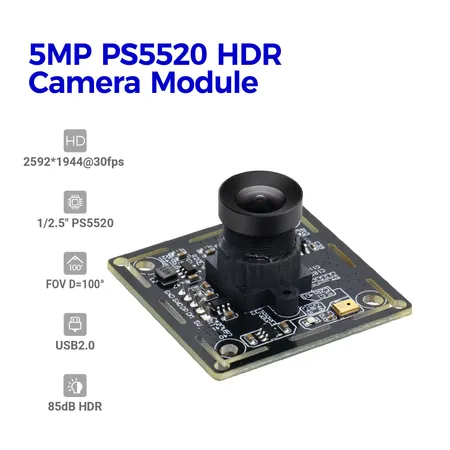

Hampo 003-1482 is a 5MP HDR(High Dynamic Range) USB camera module,adopting a 1/2.5−inch highly integrated CMOS Pixart image sensor PS5520, that output of 2592x1944 (5MP) pixels with rolling shutter readout, it embedded the new FinePixel™ and HDR sensor technology to perform excellent image quality and single-shot high dynamic range synthesized image output.

The mini camera module has a dedicated, high-performance Image Signal Processor chip (ISP) on-board that performs the entire Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images, videos and the optional MJPEG compressions.

                                                                                                                                                                                                                                                  Widely use for applications such as face recognition , access control system ,advertisement machine, smart e-blackboard, OCR reader/document scanner, smart terminal etc.

Key Features

2K HD Resolution: This camera module adopt a large chip 1/2.5" PS5520 image sensor with 2.2µm*2.2µm pixel technology from ON Semiconductor. The HD 2592×1944 of resolution at 30fps has a 2K HD image. Best for face recognition, access control system, OCR reader etc.

HD Sensor PS5520 Chip: The high definition sensor chip PS5520 enables stable working performance with better clarity as well.

Support HDR: High dynamic range up to 85dB.

Wide Range: 100 Degrees field of view, larger visual range, wider field of viewing.

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

Specification

Camera
Model No.	003-1482
Max Resolution	2592*1944
Sensor	1/2.5" PS5520
Frame Rate	MJPG: 2592×1944@30FPS; 2048×1536@30FPS; 1920×1080@30FPS; 1280×960@30FPS; 1280×720@30FPS; 1024×768@30FPS; 800×600@30FPS; 640×480@30FPS; 320×240@30FPS; YUY2: 2592×1944@2FPS; 2048×1536@5FPS; 1920×1080@5FPS; 1280×960@5FPS; 1280×720@10FPS; 1024×768@15FPS; 800×600@20FPS; 640×480@30FPS; 320×240@30FPS;
Pixel Size	2.2μm*2.2μm
Output Format	YUY2/MJPG
Dynamic Range	85dB
Lens
Focus	Fixed focus
FOV	D=100° H=85°
Lens Mount	M12 * P0.5mm
Power
Working Current	MAX 200mA
Voltage	DC 5V
Physical
Interface	USB2.0
Storage Temperature	-20ºC to +70ºC
PCB Size	3838(MM),compatible with 3232(MM)
Cable Length	3.3ft (1M)
TTL	17.5MM
Functionality and Compatibility
Adjustable parameter	Exposure/ White balance
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

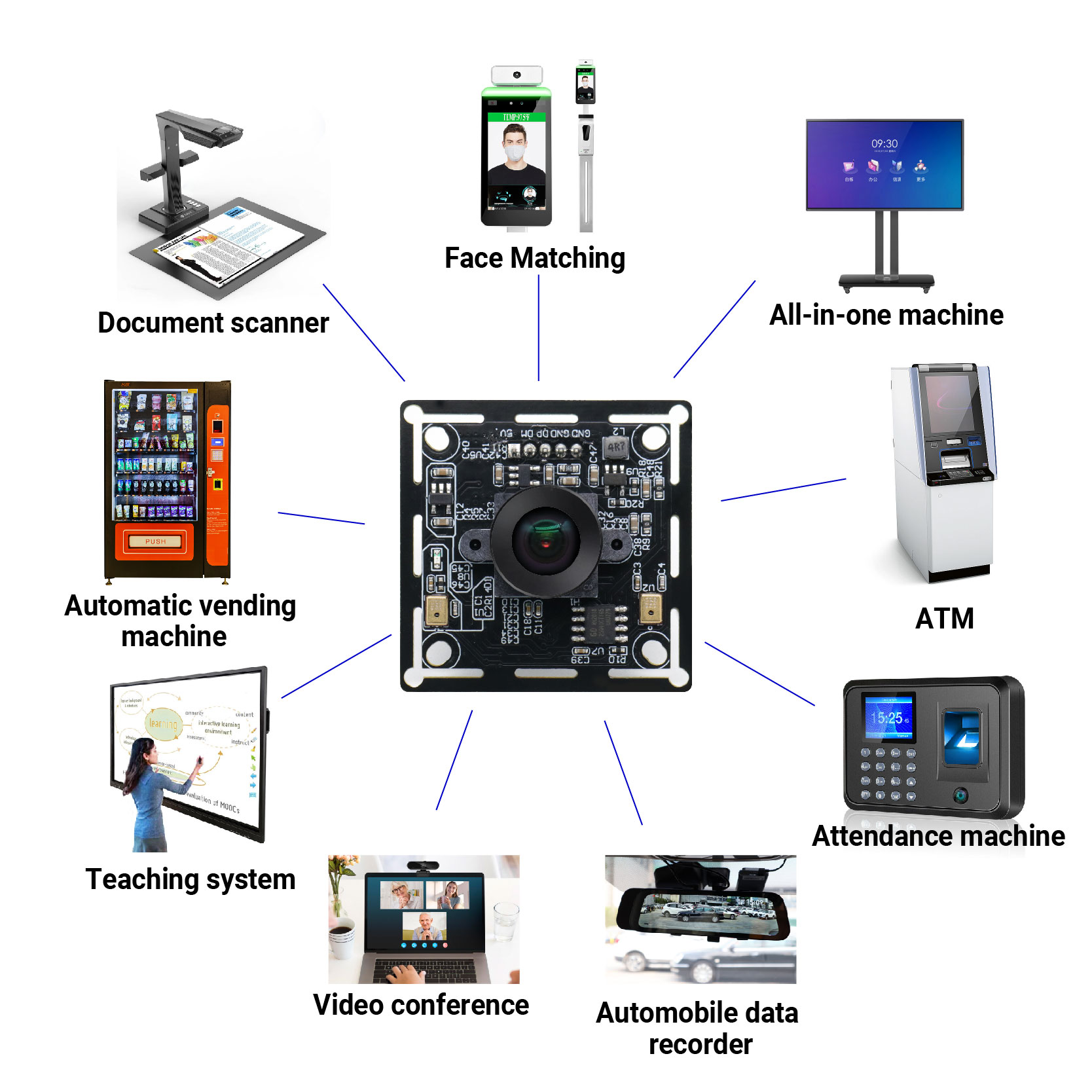

Applications

 Machine Visual

Doorbell

ATM

All-in-one Computer

Data collection

Liveness Detection
