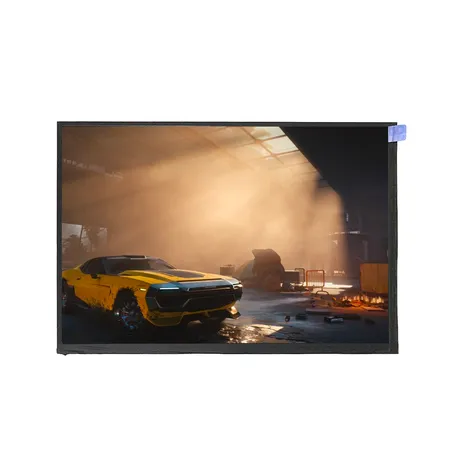

10.1 inch LCD monitor 1000nits high brightness TFT LCD 1920*1200 with dual LVDS interface customized display panel

美元 $5.00 - 美元 $10.00

生产所需时间:

25-45 日

运送方式:

Support Express · Sea freight · Land freight · Air freight

品牌:

Microtech-lcd

型号编号:

MTF101UG17A-V1

是否可订造:

可以

尺寸:

10.1inch

描述

联络供应商

10.1 inch LCD monitor 1000nits high brightness TFT LCD 1920*1200 with dual LVDS interface customized display panel

Parameter	Specification	Unit	Remarks
Active Area	216.8064(H)*135.504(V)	mm
Number Of Pixels	1920(H) xl200(V)	pixels
Pixel Pitch	0.03764(H) x RGB x 0.11292(V)	mm
Pixel Arrangement	Pixels RGB stripe arrangement
Display Mode	Normally Black
Display Colors	16.7M(8bit)	colors
Surface Treatment	HC
Contrast Ratio	900:l(typ.)
Viewing Angle(CR>10)	80/80/80/80(typ.)
Response Time	30(typ.)/35(max.)	ms
Color Gamut	72%NTSC		@BOE BLU
Power Consumption	Panel: 0.6(Typ.)	watt	@white
Outline Dimension	229.45(H)149.22(V)4.7(typ)	mm
