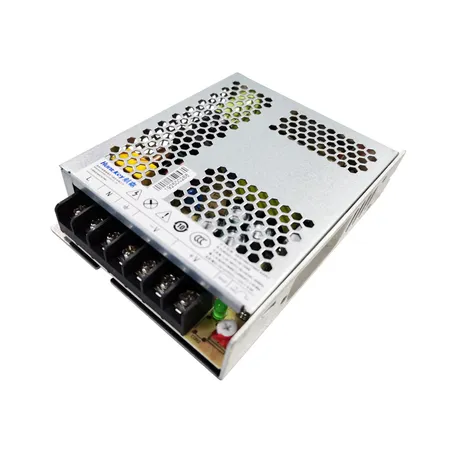

100W 24V/4.5A Single-Rail Output Switching Power Supply, AC/DC Switching Adapter

美元 $10.00 - 美元 $15.00

生产所需时间:

30 日

运送方式:

Negotiable

品牌:

Huntkey

型号编号:

HKI100-240NB

Output:

24V/4.5A

Input:

90-264V

Protections:

OVP, OCP, OTP, UVP, SCP

Dimensions:

129*97*30mm

Certificates:

CE, CB, CCC, RoHS

描述

联络供应商

100W Single-Rail Output

Features:

Specifications:

Model		HKI100-120NB	HKI100-240NB		HKI100-480NB
Output	DV/DC	12V/8.5A	24V/4.5A		48V/2.3A
	Voltage Regulation Range	10.8~13.2V	21.6~26.4V		43.2~52.8V
	Current Regulation Range	0~8.5A	0~4.5A		0~2.3A
	Regulation Precision	±1%	±1%		±1%
	Ripple	<100mVp-p	<100mVp-p		<150mVp-p
Input	Lowest Efficiency	84%	86%		86%
	Voltage Range	90~264VAC
	Surge Current	Cold boot<40A/230VAC
Protections	OVP	115%-135%(Rated Voltage), auto restore		115%-135%(Rated Voltage), power off to restore
	OCP	120%-180%(Rated Current), auto restore
	OTP	To ensure all components will not exceed a certain temperature, auto restore
	UVP	Input UVP activation point:<=60Vac, UVP restoration point:>=70Vac
	SCP	To protect components without being damaged or burned, auto restore
Environment	Operating	-30~+70°C, 5~85﹪RH, no condensation (please refer to load-deflection curve)
	Storage	-40~+85°C, 5~95﹪RH, no condensation
	Vibration	10~500HZ, 5G, 10 minutes/cycle, 60 minutes for each X-, Y-, Z-direction
Safety & EMC	Safety Standards	GB4943, EN62368
	EMC Standards	EN55032 Class B, GB9254 Class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
	Hi-Pot	I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC
Others	Dimensions	1299730mm
	Packing	30pcs/11.4kg
	Mechanical Specifications	7
