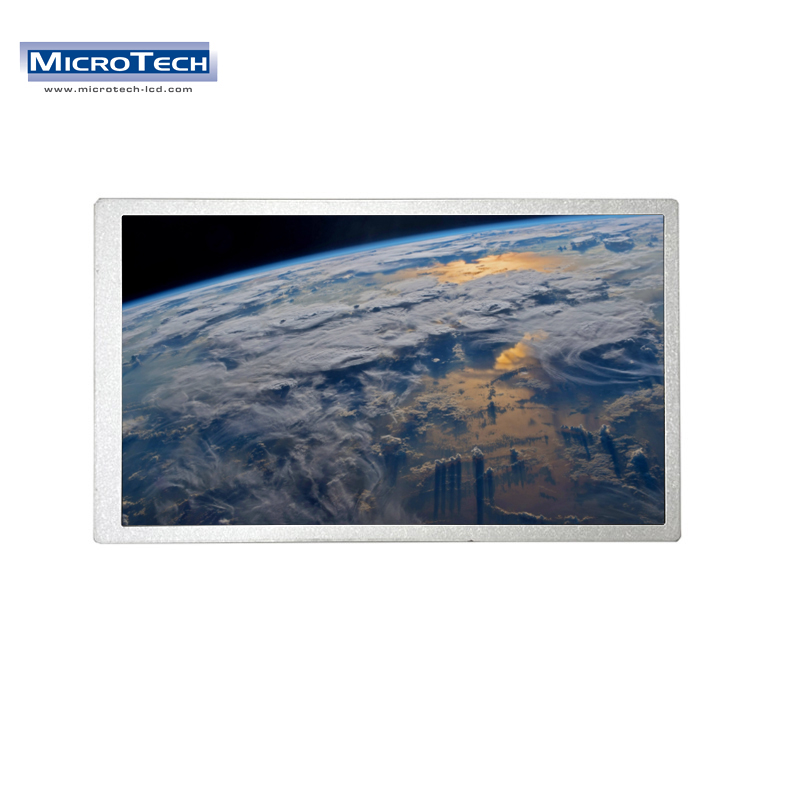

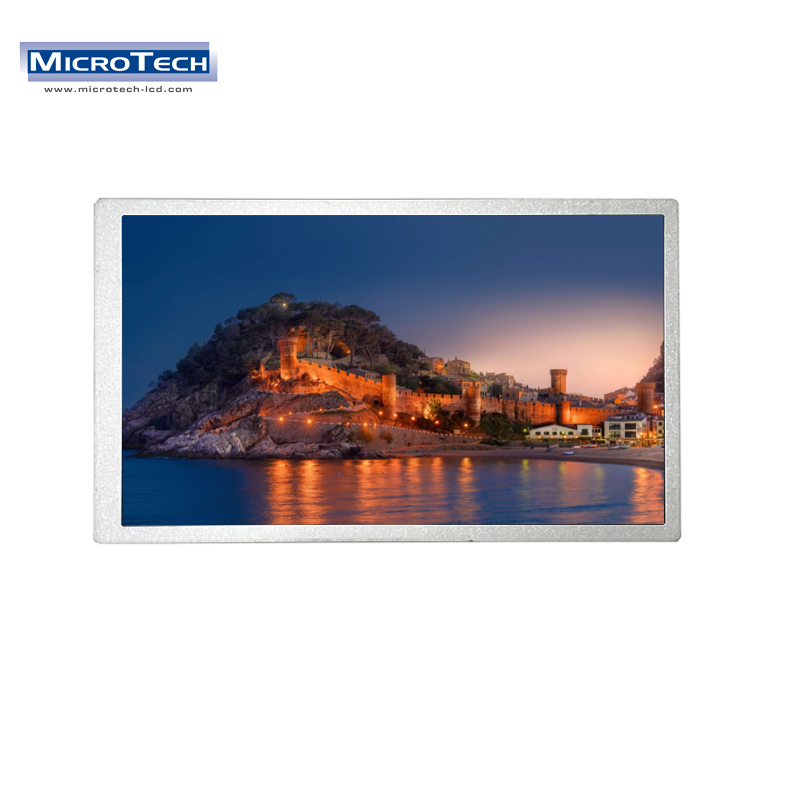

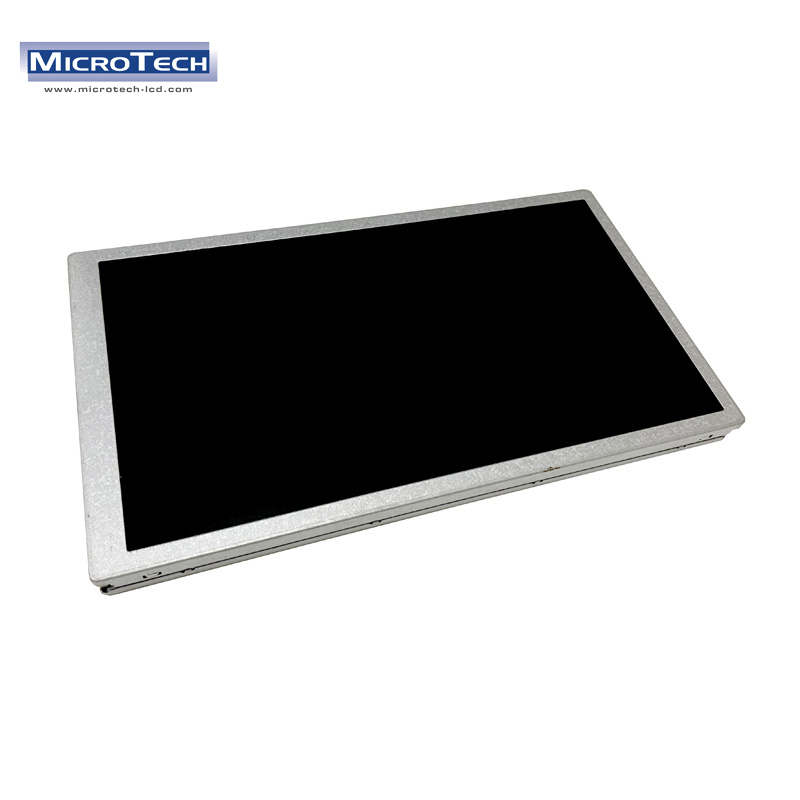

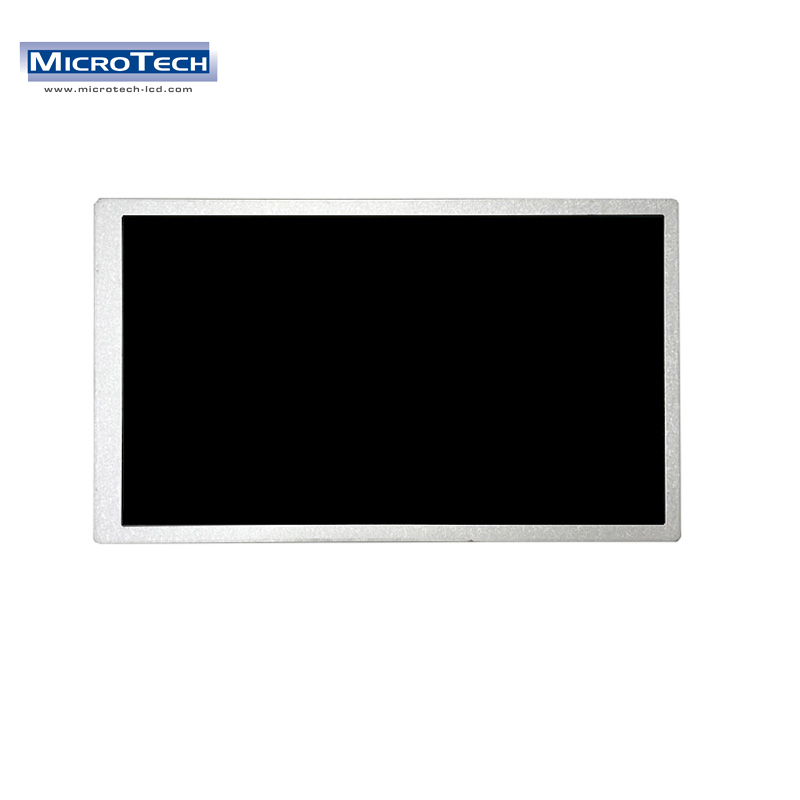

1024*600 customized TFT LCD display module 10.1 inch LCD panel
分享此页面
生产所需时间:
25 日
运送方式:
Support Express · Sea freight · Land freight · Air freight
型号编号:
MTF101WS08A-V1
品牌:
Microtech-lcd
是否可订造:
可以
尺寸:
10.1inch
描述
联络供应商
描述

1024*600 customized TFT LCD display module 10.1 inch LCD panel

Item
Specification
Unit
Panel Size
10.1”
inch
Number of Pixels
1024(H) x 3 (RGB)x600(V)
pixels
Active Area
222.72(W) x 125.28(H)
mm
Pixel Pitch
0.2175(W) x 0.2088(H)
mm
Outline Dimension
235(W)x 143(H) x 4.5(D)
mm
Number of Colors
16.7M
-
Display Mode
Normally Black
-
Viewing Direction
Full Viewing
-
Pixel Arrangement
RGB-Stripe
-
Luminance (cd/mA2)
600(TYP.)
nit
Contrast Ratio
600(TYP.)

Surface Treatment
Anti Glare
-
Interface
LVDS
-
Backlight
White LED
-
Operation Temperature
-20-70
Storage Temperature
-30-80
Weight
TBD (±10%)
g
