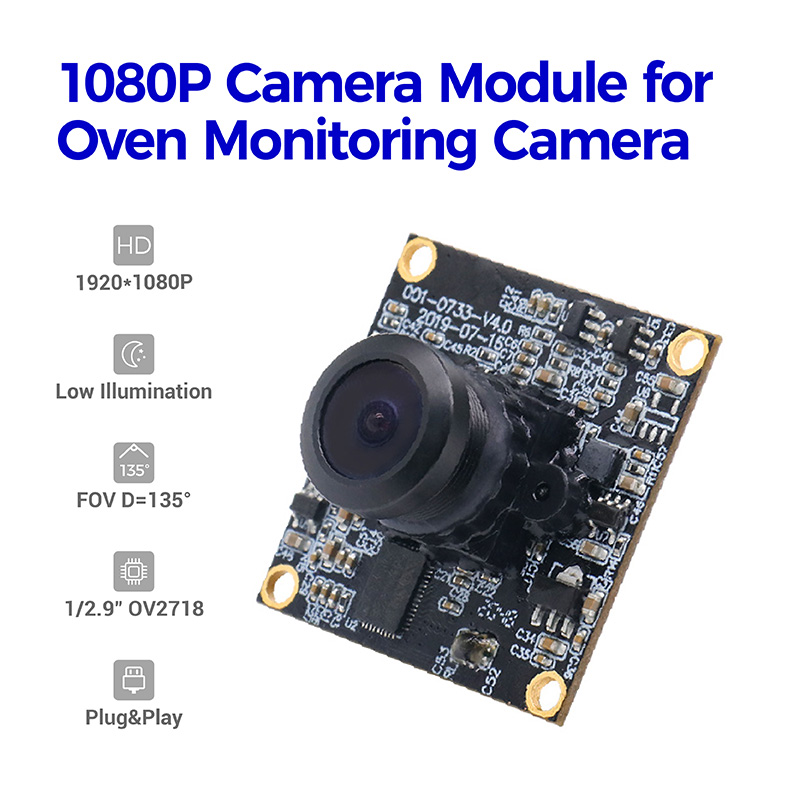

1080P Camera Module forOven Monitoring camera

美元 $11.40 - 美元 $14.25

美元 $12.00 - 美元 $15.00

生产所需时间:

5 日

运送方式:

express delivery

型号编号:

HAMPO-003-0733

应用:

Win XP/Win7/Win8/Win10/Linux

Sensor Size:

CMOS, 1/2.9" OV2718

Frame rate:

30fps

FOV:

135°

Function:

High temperature resistance

Focusing:

Fixed Focus

Resolution:

1920*1080

Size:

32*32mm

Customised:

Yes

描述

联络供应商

Product Description

HAMPO-003-0733 is a native 16:9 high definition (HD) Camera that delivers best-in-class low-light sensitivity, high dynamic range (HDR), and 1080p HD video. These capabilities make the OV2718 camera module an ideal embedded solution for mainstream security and surveillance systems.

 Built on advanced 2.8-micron OmniBSI™-2 pixel architecture, the module can record 1080p HD video at 30 frames per second (fps) in HDR mode. (The 1/2.9-inch OV2718 leverages OMNIVISION’s in-pixel HDR technology to capture exceptional images and video when recording in high- and low-light environments, a critical benefit for security and surveillance cameras).

Key Features

High dynamic range:The dynamic range up to 86DB, which can provide sharp image and accurate color reproduction even under a backlight environment.  High sensitivity&Low power consumption:
Adopting Omnivision OV2718 CMOS sensor, the camera module has a good high sensritivity and low power consumption performance.
1/2.9" OV2718 Image Sensor Processor Functions:
Lens correction, defective pixel cancelation and automatic black level correction.
High Temperature:
 70℃ of operating temperature, high temperature resistance.

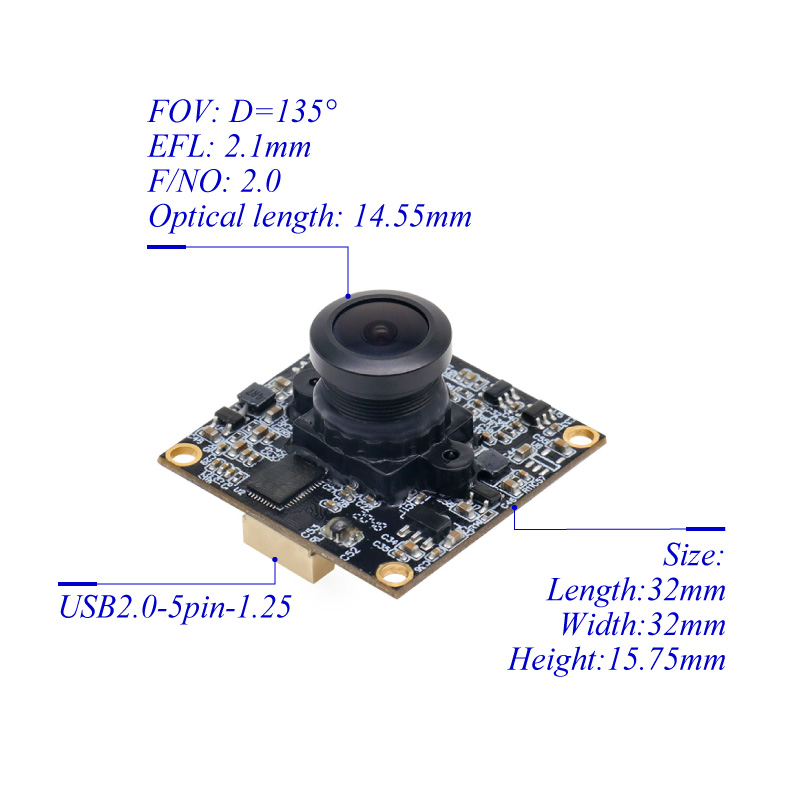

Specification

Camera
Model No.	003-0733
Max Resolution	1920(H)*1080(V)
Sensor	1/2.9" OV2718
Frame Rate	MJPG: 1920x1080@30FPS; 1280x960@30FPS; 1280x720@30FPS;
Pixel Size	2.8μm*2.8μm
Output Format	YUY2/MJPG
Dynamic Range	86dB
Lens
Focus	Fixed focus
FOV	D=135° H=115°
Lens Mount	M12 * P0.5mm

Applications

2MP usb camera mini webcam with 135 degree wide angle lens can widely used at security and surveillance cameras,smart home, smart lock,smart TV, Oven Monitoring, Video door bell,Mobile phone,Mobile payment,ATM Monitoring, Robot,access control system etc.
