1080P Stereo Dual Lens Camera Module

美元 $37.05 - 美元 $40.85

美元 $39.00 - 美元 $43.00

生产所需时间:

5 日

运送方式:

express delivery

是否可订造:

可以

型号编号:

HAMPO-003-0514

尺寸:

92*22.2

应用:

Windows XP(SP2,SP3)/Vista/7/8/10, Linux or OS with UVC driver.

Sensor Size:

1/2.7"&1/2.7"

Frame rate:

30fps

FOV:

82°

Function:

Wide Angle

描述

联络供应商

Product Description

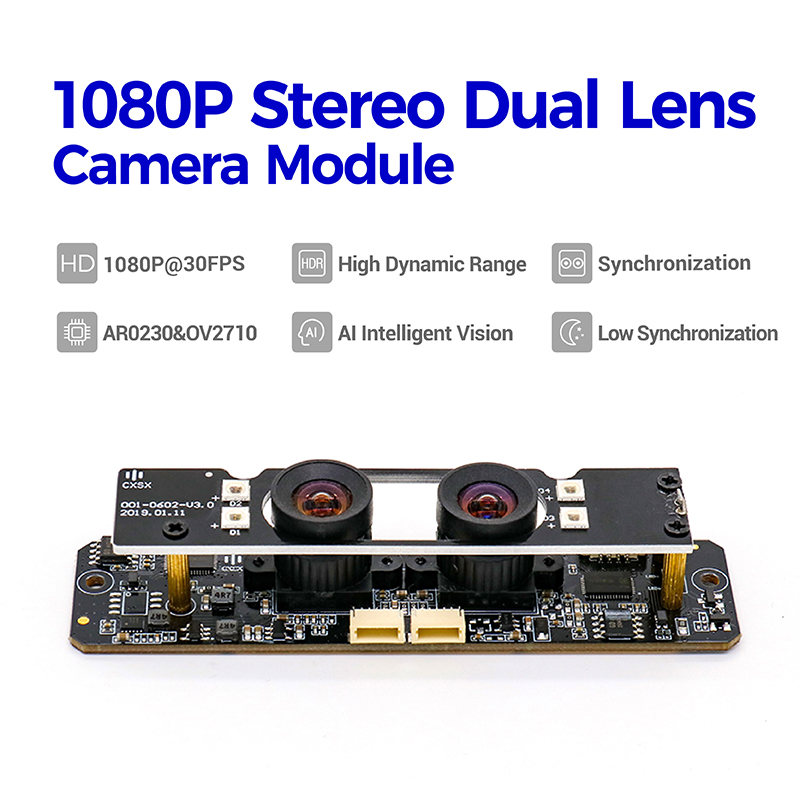

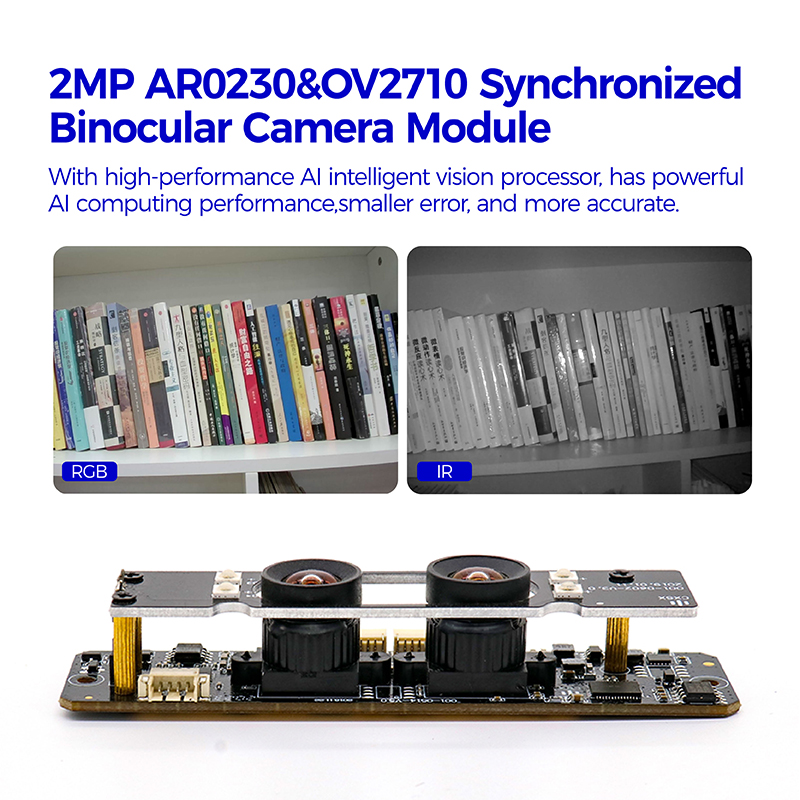

HAMPO-003-0514 is a synchronized dual lens USB camera module, with 1/2,7" CMOS AR0230 & OV2710 image sensor, the max resolution is 1920*1080P @30fps. Wide dynamic rage could reach 96db. Binocular dual lens camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first, that's why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.There are 2 DSP/CHIP and 2 USB cables, each chip controls its own sensor, so the 2 sensors work separately, you can choose to use one of AR0230 sensor only, or you can use them at the same time.

Specification

Sensor	AR0230&
Sensor Size	1/2.7"
Resolution	19201080P&19201080P
Data Format	MJPG/YUY2

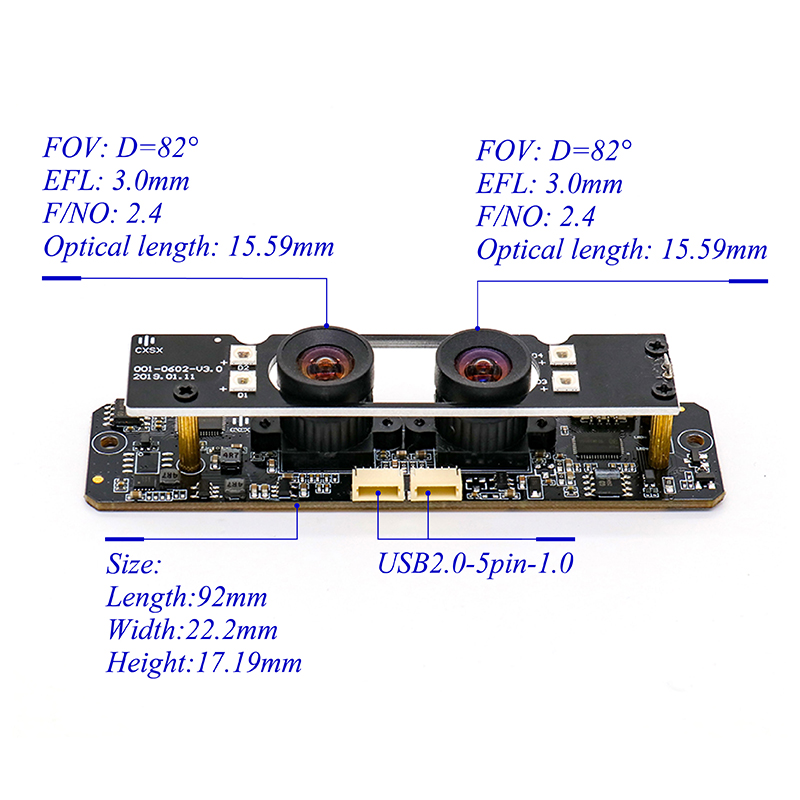

Field of View (FOV)	82 degree (D)
TTL	15.29MM
WDR	96dB&69dB
Working Current	MAX 500mA

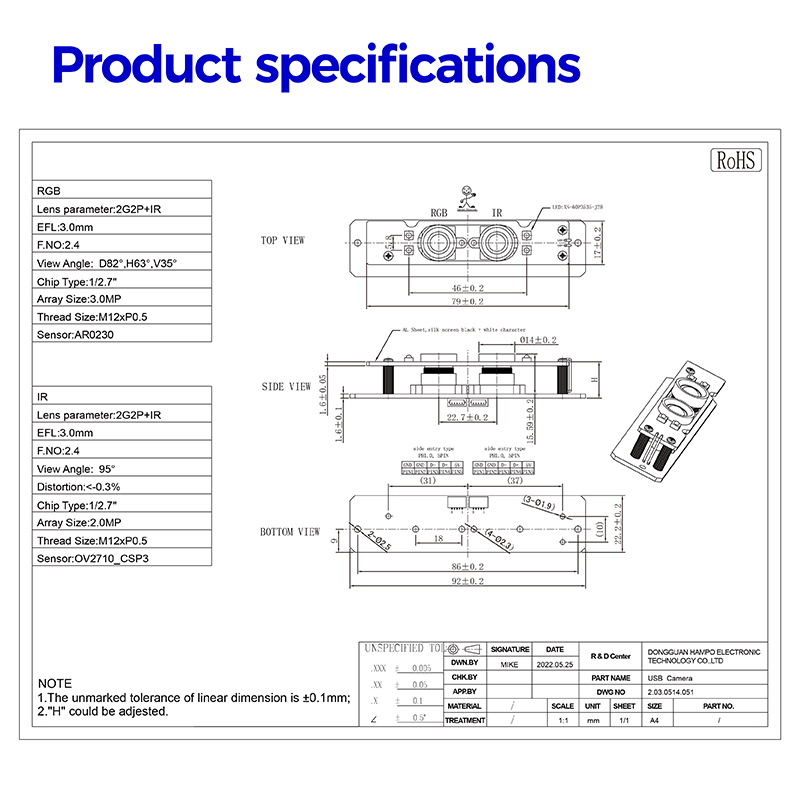

Dimension	92*22.2
Cable Length	3.3ft (1M),1.5M, 1.8M, 2M etc.could be optioned

Key Features

Synchronized dual lens camera module:
2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do.Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.Small outline 38*28mm for embedded application

Full HD 1080P Resolution:
The camera module adopt 1/2.7" AR0230 WDR color sensor. The max frame rate 1920*1080@ 30fps, full HD image.

WDR & Wide Angle Range Lens:
The camera's wide dynamic range is 96DB & 69DB, and the wide angle range is FOV D=95°

Best Universal Compatibility:
Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux with UVC.

Company Profile

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.

As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
