1080P Stereo Dual LensCamera Module

美元 $36.10 - 美元 $40.85

美元 $38.00 - 美元 $43.00

生产所需时间:

5 日

运送方式:

express delivery

是否可订造:

可以

型号编号:

HAMPO-003-0712

应用:

1) Windows XP（SP2,SP3）/Vista/7/8/10 2) Linux or OS with UVC driver

Sensor Size:

1/2.7"

Frame rate:

30fps

FOV:

74.38°

Function:

Face detection, Face Recognition

Focusing:

Fixed Focus

Resolution:

1920*1080

Optical Length:

8.61MM

描述

联络供应商

Product Description

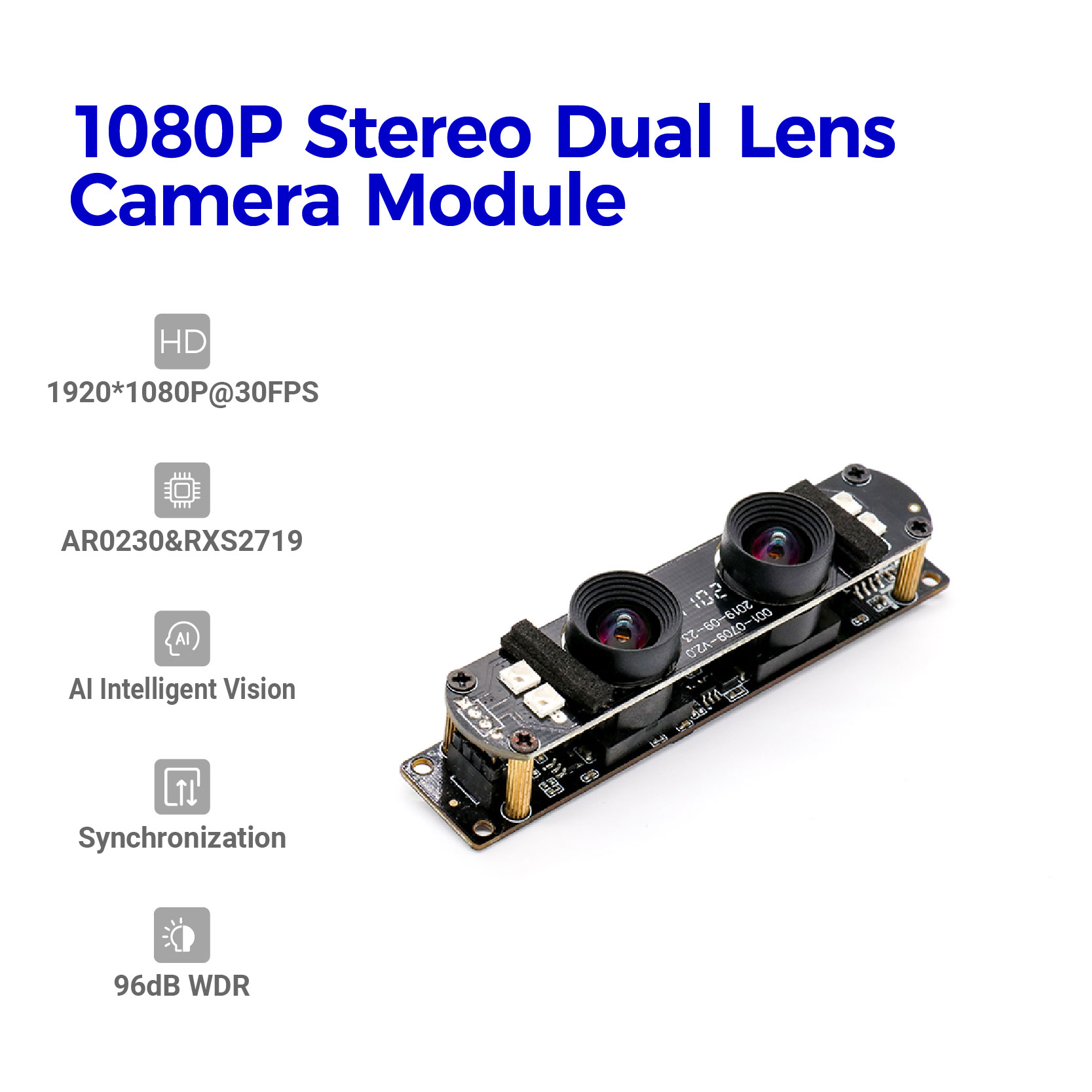

HAMPO-003-0712 is a synchronized dual lens USB camera module, with 1/2,7" CMOS AR0230 & RX2719 sensor, the max resolution is 1920*1080P @30fps. Wide dynamic rage could reach 96db.

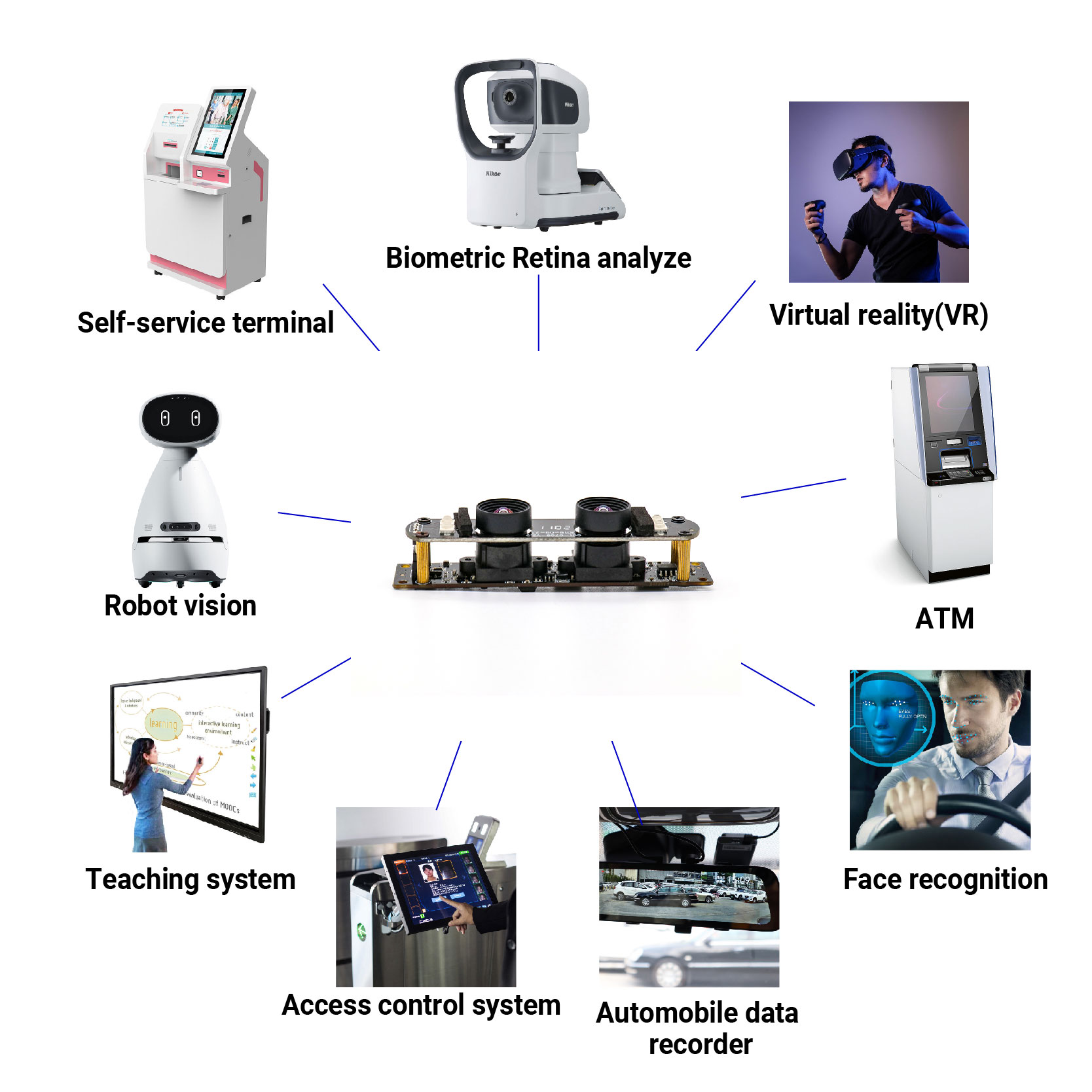

Binocular dual lens camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first, that's why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc.

Smaller error, and more accurate.

Key Features

   1/2.7" AR0230 &RX2719 Cmos camera module
   WDR 1080P Cmos USB Camera Module
   USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
   Plug and play, no need any driver USB camera module

Specification

Items	Parameters
	IR Camera	Color Camera
SENSOR	RXSX2719	AR0230,wide dynamic color photosensitive chip
Maximum Effective Pixels	1920*1080	1928*1088
Lens Size	1/2.7 inch	1/2.7 inch
Data Format	MJPG/YUY2	MJPG/YUY2
Pixel Size	3.0um*3.0um	19201080, 1280720, 640480, 320240
Dynamic Range	76db	Up to 96db
Lens	FOV :D= 74.38°	FOV :D= 74.38 °
	Optical Length :8.61MM	Optical Length :7.81 MM
	Lens Construction:4E+IR(850nm Filter)	Lens Construction:4E+IR(650nm Filter)
	Mount :M8*P0.5mm	Mount :M8*P0.5mm

Company Profile

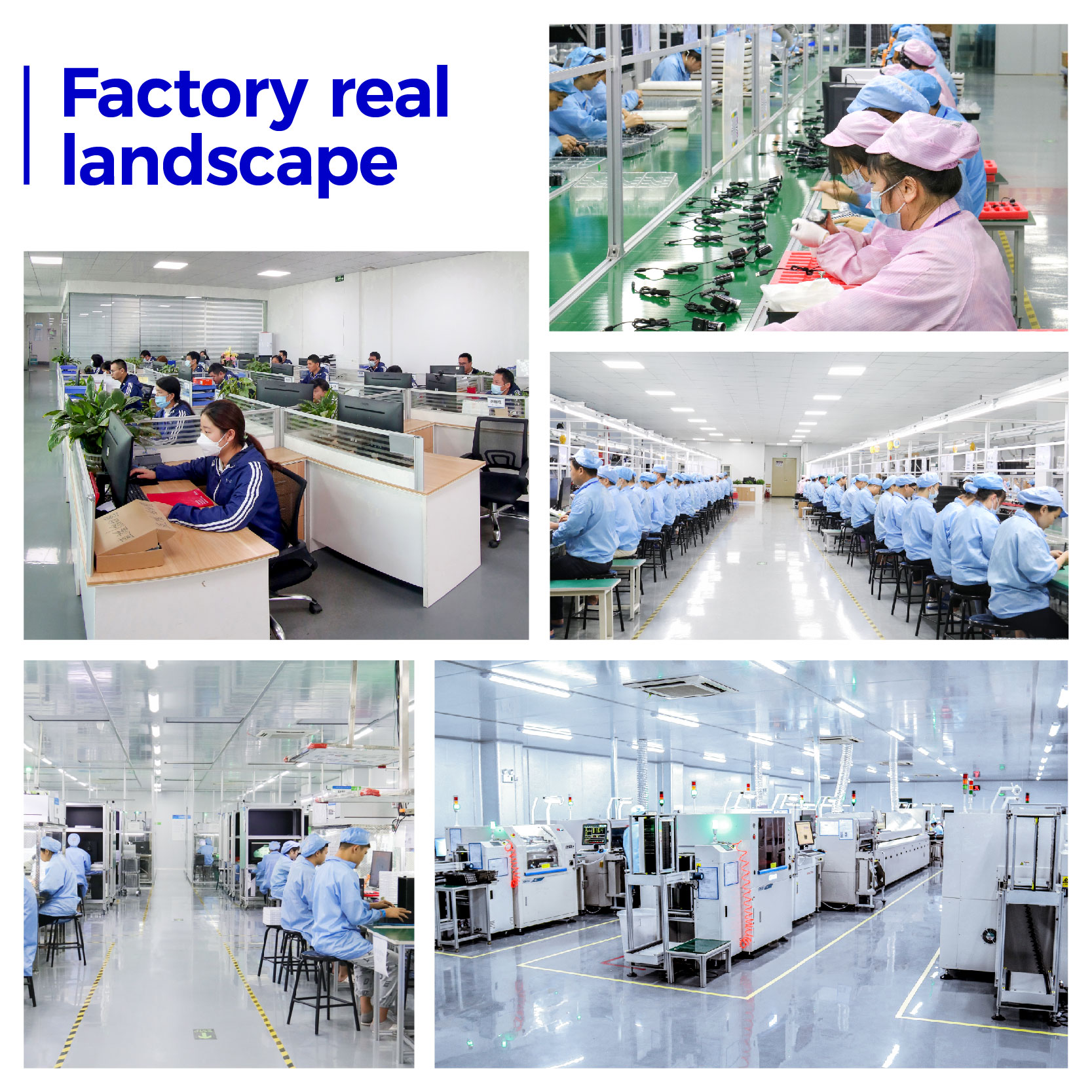

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.

As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
