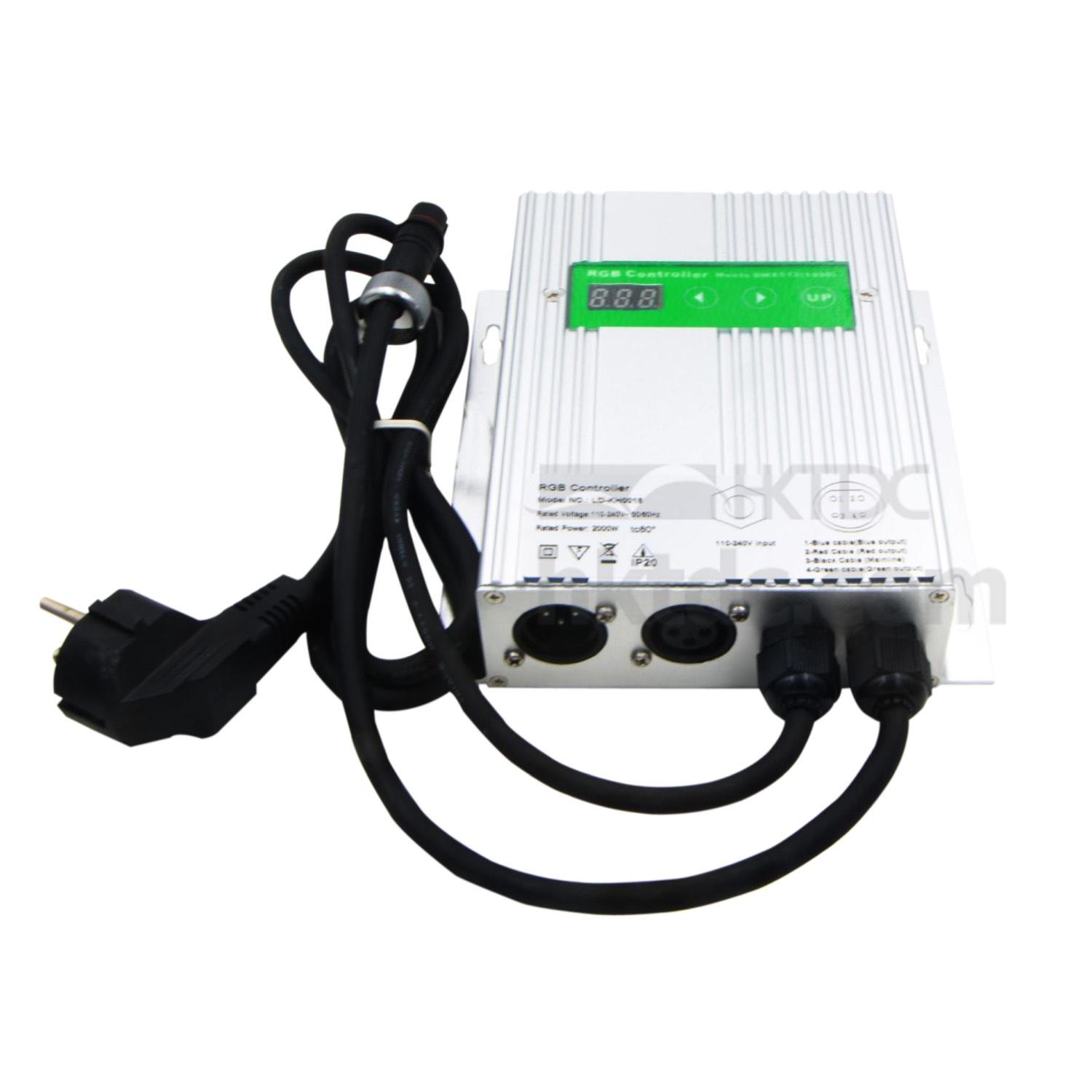

Feature of this LED controller：

This multi-functions controller which has digital indicating is specially designed to be used exclusively with LED lighting; its output has four wires three channels (common-anode)：

• Touching Panel, easy for operating and safe.
• Aluminum alloy housing is good for heat spreading directly.
• DMX digital addresses setting and power off protecting
• Working style: (master and slaver connecting mode, DMX mode, Independent mode）
• Gray glass 10 scale adjustable.
• Built in 10 set program
• Compatible with DMX512 signal, such as DMX 512 control.
• DMX dimmable and independent dimmable by pressing key

Specification:

• Input Voltage:       AC110V-240V 50HZ/60HZ
• Output Voltage:      DC110-240V
• Output power rate:   1000W/120V  2000W/230V
• Output current:       ≤3A
• Output Connector:   4  channels.   4-pin cables
• Communication port:DMX512 communicate port (1:earth, 2:Data-, 3:Data+)
• Working temperature:   0°C~+35°C (0°F ~ +104°F)
• Net Weight:   0.7Kg
• Dimension:  L160 mm * W147 mm * H42 mm
• Housing material:  Silvery aluminum alloy
• Metal Casting Process: Die Casting (Low Pressure)
