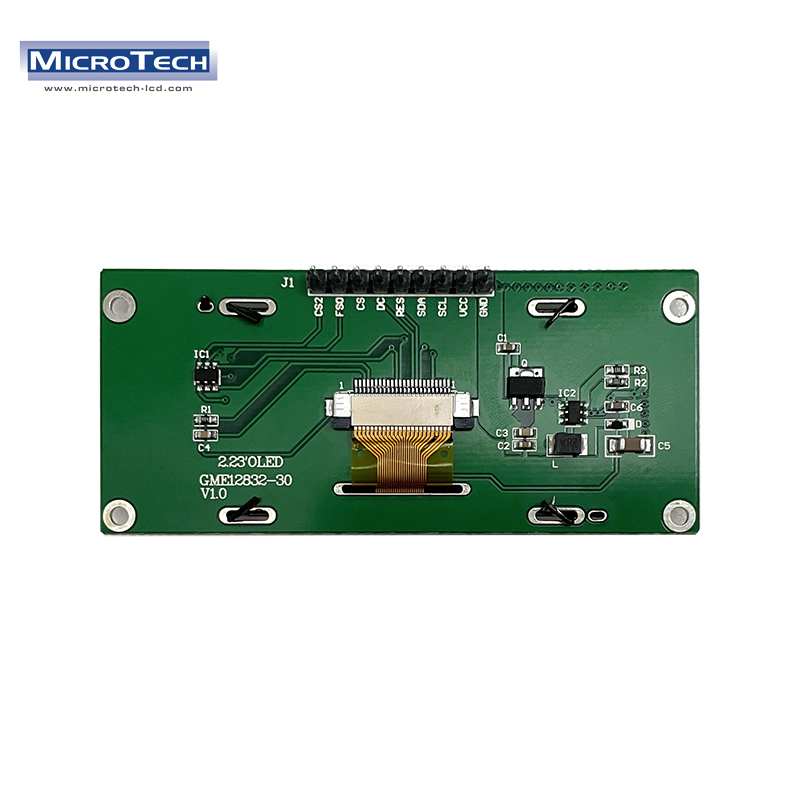

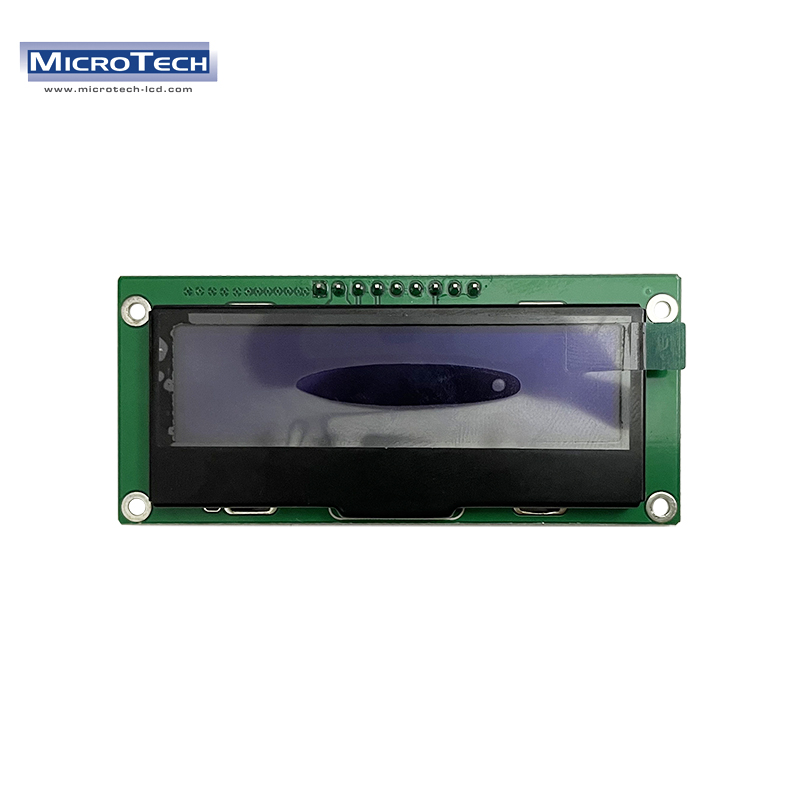

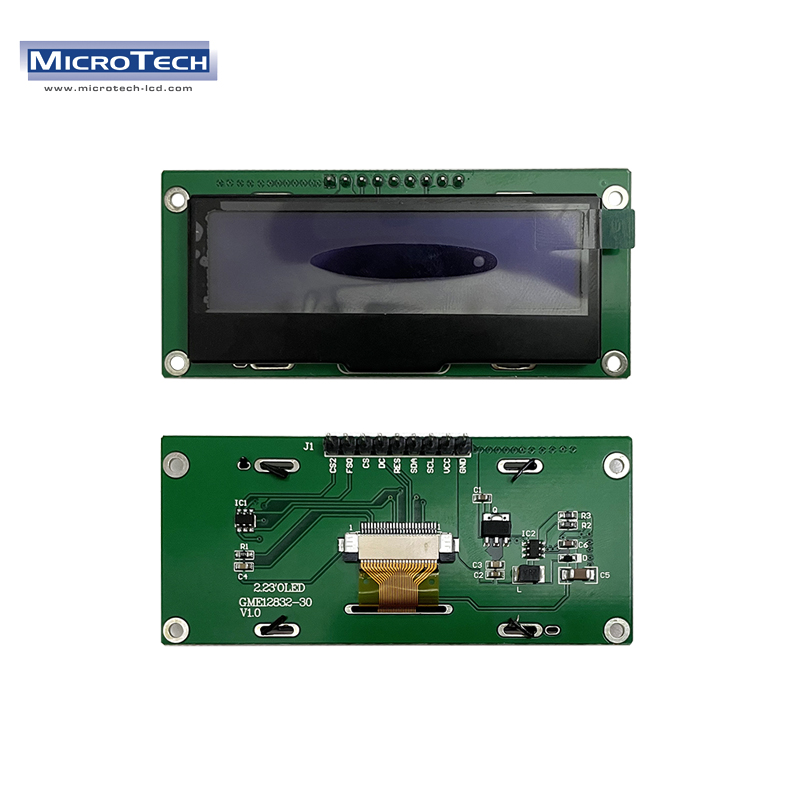

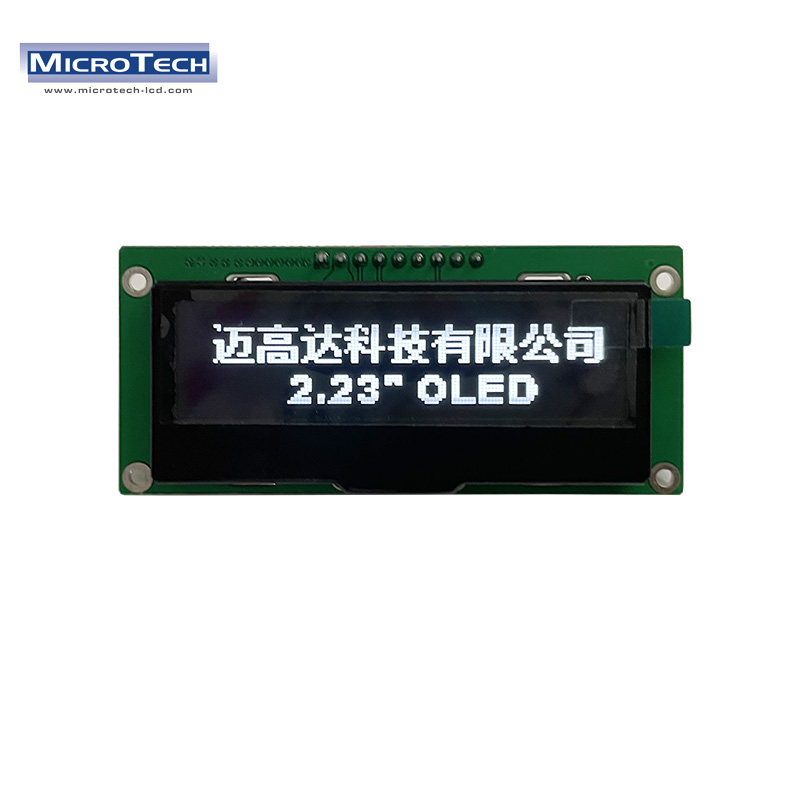

128*32 PMOLED COB black and white dot matrix module IC SSD1305 SPI interface

美元 $7.00 - 美元 $12.00

生产所需时间:

25-45 日

运送方式:

Support Express · Sea freight · Land freight · Air freight

品牌:

Microtech

型号编号:

MTL12832A

是否可订造:

可以

尺寸:

128*32

描述

联络供应商

2-1.Resolution: 128X32

2-2. OLED material: PM_OLED

2-3. Color: White
2-4. LCM working voltage (VCC): 3~5V;
 OLED screen operating voltage (Vdd) 2.4~3. 5V
2-5. OLED drive voltage rejection Vop: 12~13V
2-6. Working temperature: -30'C~70'C
2-7. Storage temperature: -40'C~80'C
2-8. Connection/Driver IC: COG/SSD1305
 24P pitch 0.5mm FPC seat
2-9. Interface: SPI, with font
3-1. Module size: 74.1mm(L)*33.1mm(W)*7.50Maxmm(T)
3-2. Visible area (V/A): 57.00mm(L)*15.10mm(W)
3-3. Effective area (A/A): 55.02mm(L)*13.10mm(W)
3-4. Point distance: 0.43mm(L)*0.41mm(W)
3-5. Point size: 0.41mm(L)*O. 39mm(W)
A4. Tolerance not noted: ±0.3mm;
