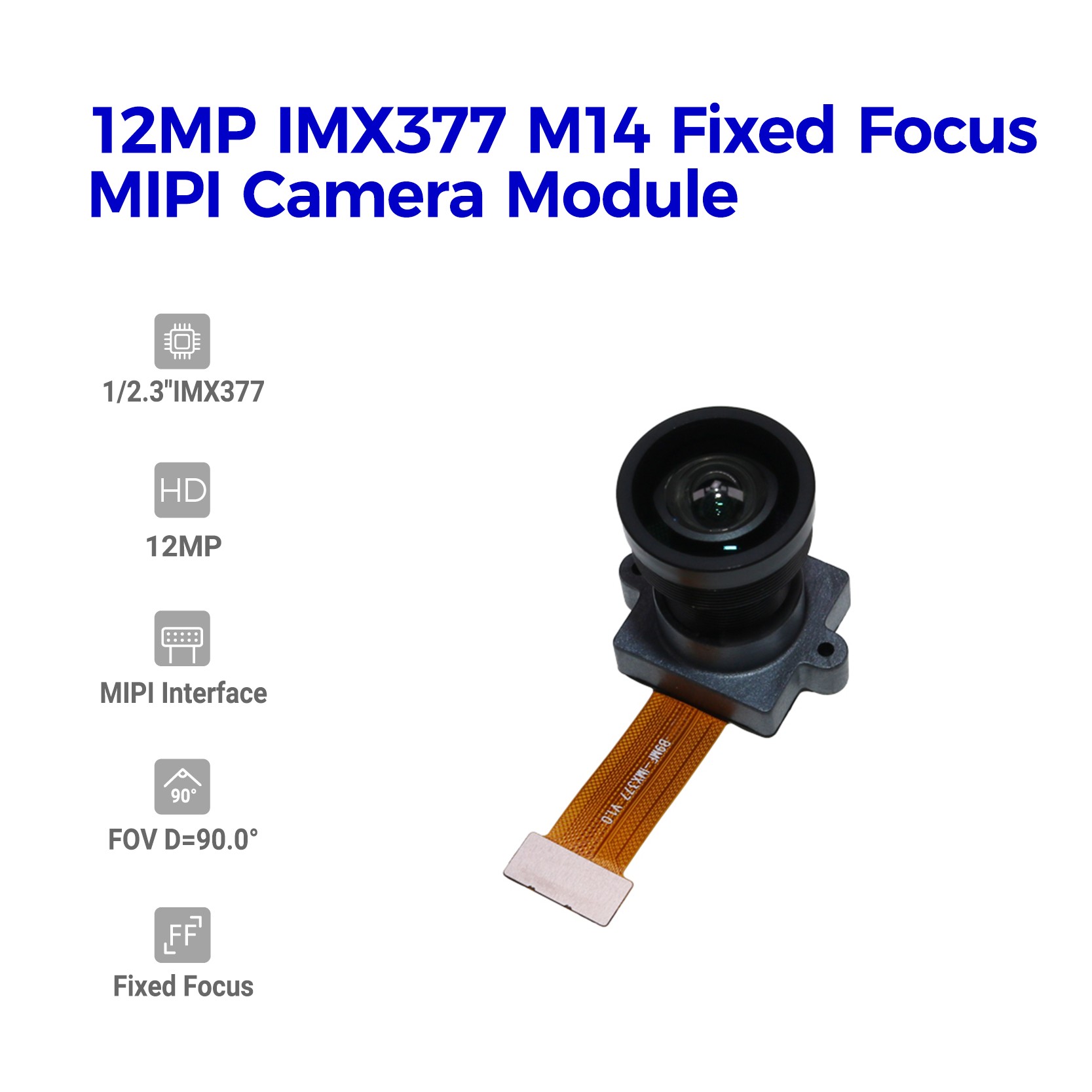

12MP IMX377 M14 Fixed FocusMIPI Camera Module

美元 $23.75 - 美元 $30.40

美元 $25.00 - 美元 $32.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-B9MF-IMX377 V1.0

Image Sensor:

IMX377

View Angle:

90°(DFOV)

Focusing:

Resolution:

12MP

Module Size:

42.09 x 24.20 mm

Interface:

MIPI

描述

联络供应商

Product Description

HAMPO-B9MF-IMX377 V1.0 is is a diagonal 7.81 mm (Type 1/2.3) mipi interface camera module, adopting advanced Sony IMX377 CMOS image sensor with a color square pixel array and approximately 12.35 M effective pixels. 12-bit digital output makes it possible to output the signals of approximately 12.35 M effective pixels with high definition for shooting still pictures.It also operates with three power supply voltages : analog 2.8 V, digital 1.2 V, and 1.8 V for I/O interface and achieves low power consumption. Furthermore, it realizes 12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical addition and subsampling. Realizing high-sensitivity, low dark current, this sensor also has an electronic shutter function with variable integration time.

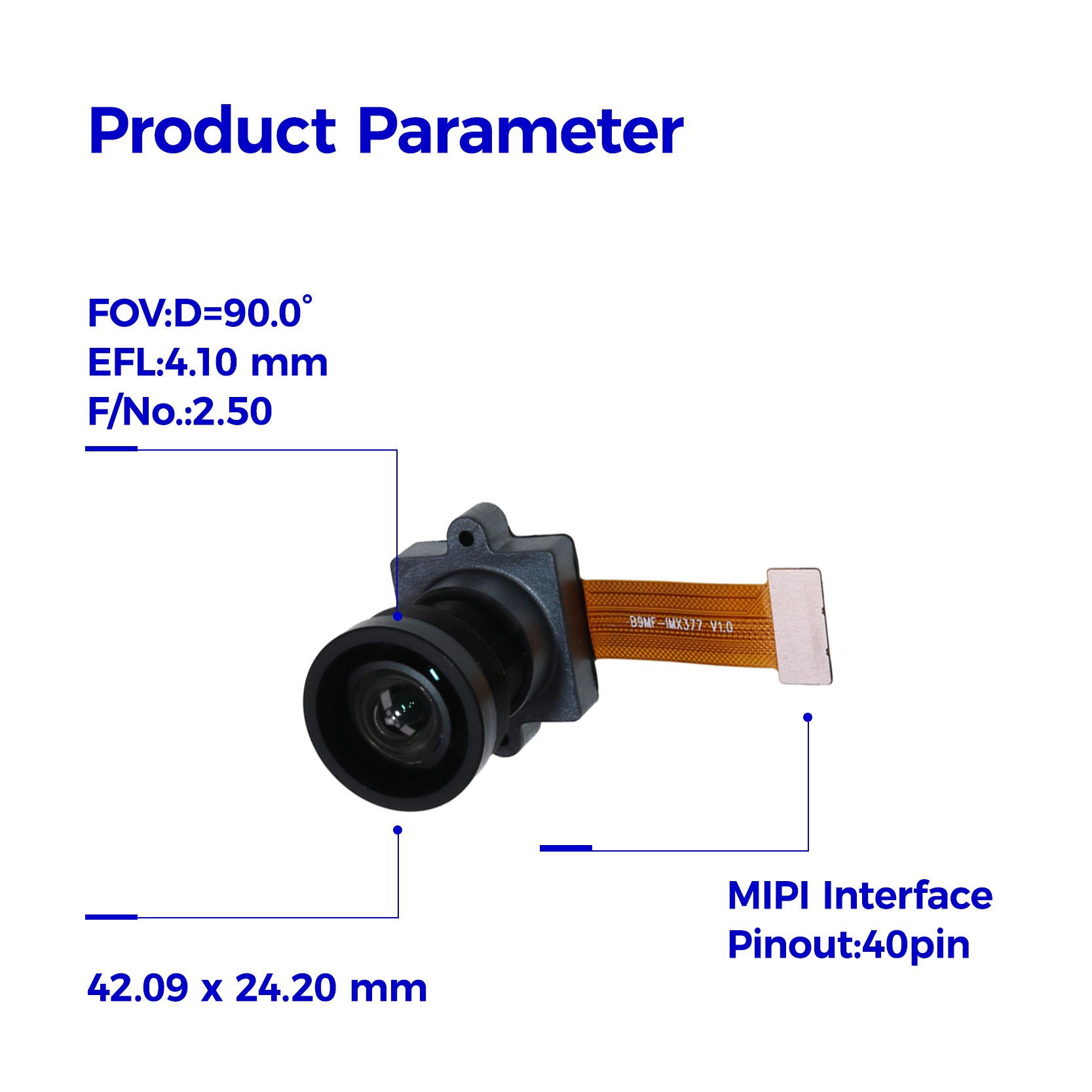

Specification
Camera Module No.
HAMPO-B9MF-IMX377 V1.0
Resolution
12MP
Image Sensor
IMX377
Sensor Size
1/2.3"
Pixel Size
1.55um x 1.55 um
EFL
4.1mm
F/No.
2.5
Pixel
4056 x 3046
View Angle
90.0°(DFOV) 77.0°(HFOV) 59.0°(VFOV)
Lens Dimensions
17.20 x 17.20 x 26.80 mm
Module Size
42.09 x 24.20 mm
Focusing
Fixed Focus
Interface
MIPI
 Lens Type
650nm IR Cut
Operating Temperature
-20°C to +70°C

Key Features
CMOS active pixel type pixels
◆Input clock frequency 6 to 27 MHz
◆MIPI Specifications (CSI-2 high-speed serial interface)
◆All-pixel scan mode
Various readout modes (*)
◆High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics
◆Vertical and horizontal arbitrary cropping function
◆Variable-speed shutter function (minimum unit: 1 horizontal period)
◆Low power consumption
◆H driver, V driver and I2C communication circuit on chip
◆CDS/PGA on chip: Gain +27 dB (step pitch 0.1 dB)
◆10-bit/12-bit A/D conversion on chip
◆R, G, B primary color mosaic filters on chip
◆All-pixel simultaneous reset supported
◆98-pin high-precision ceramic package

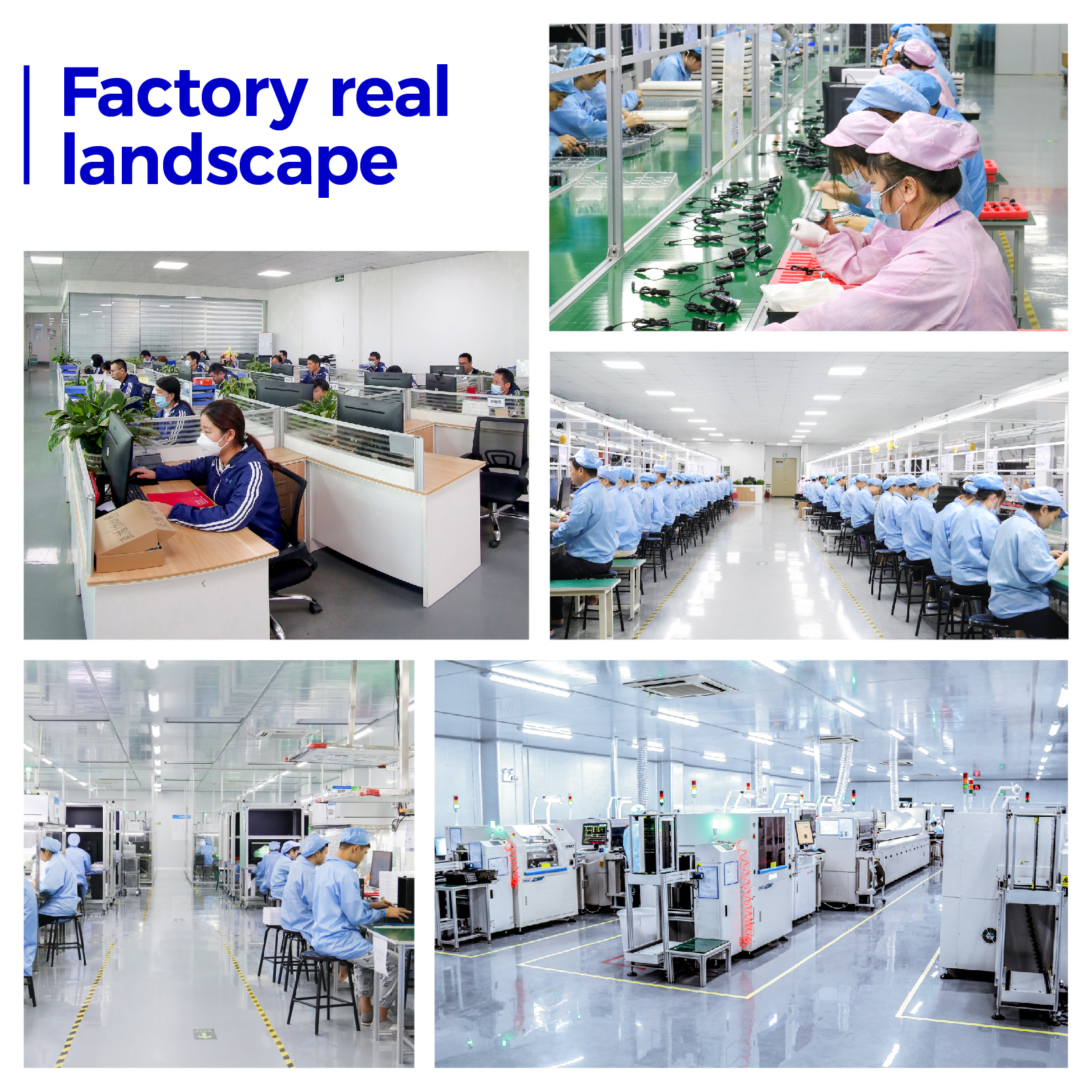

Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
