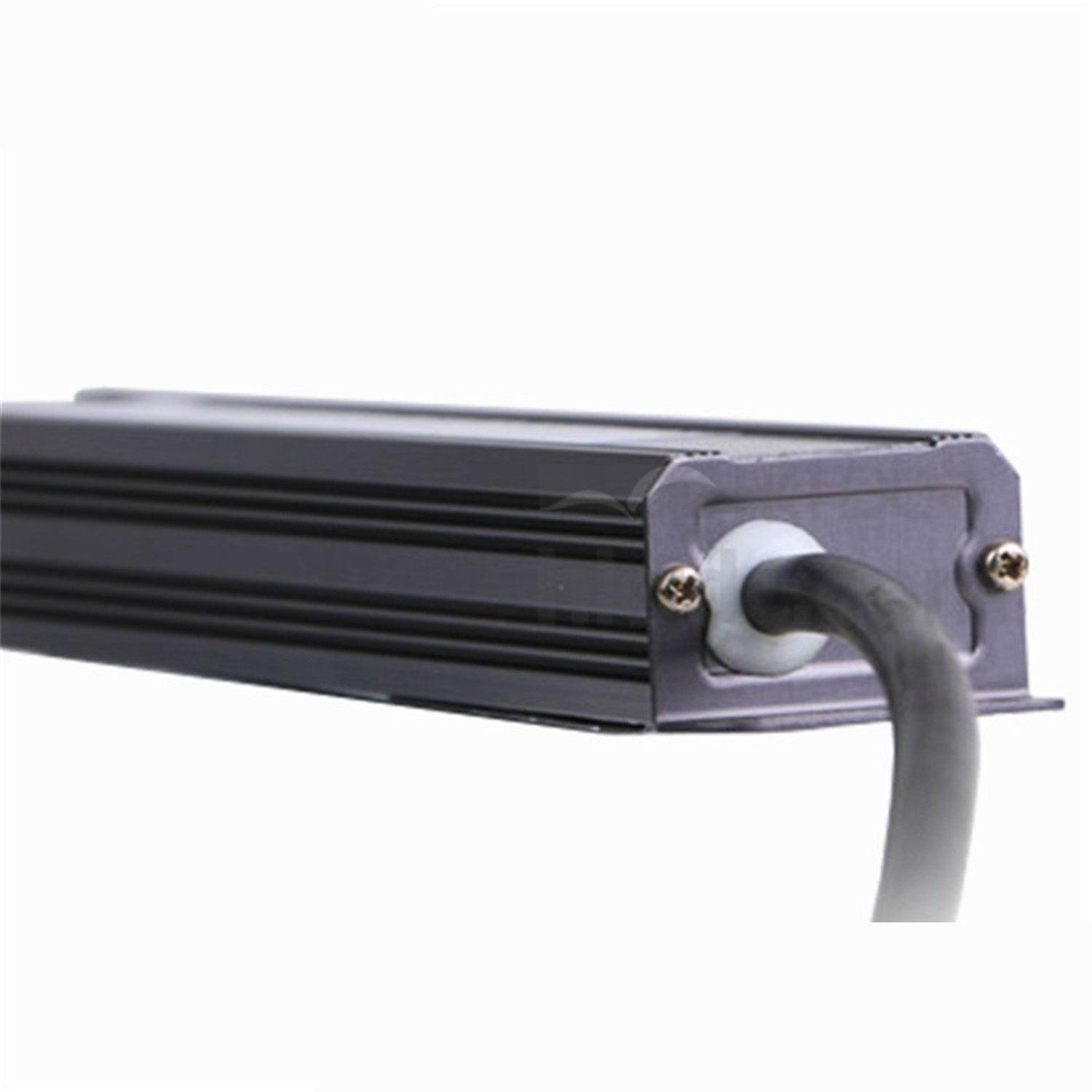

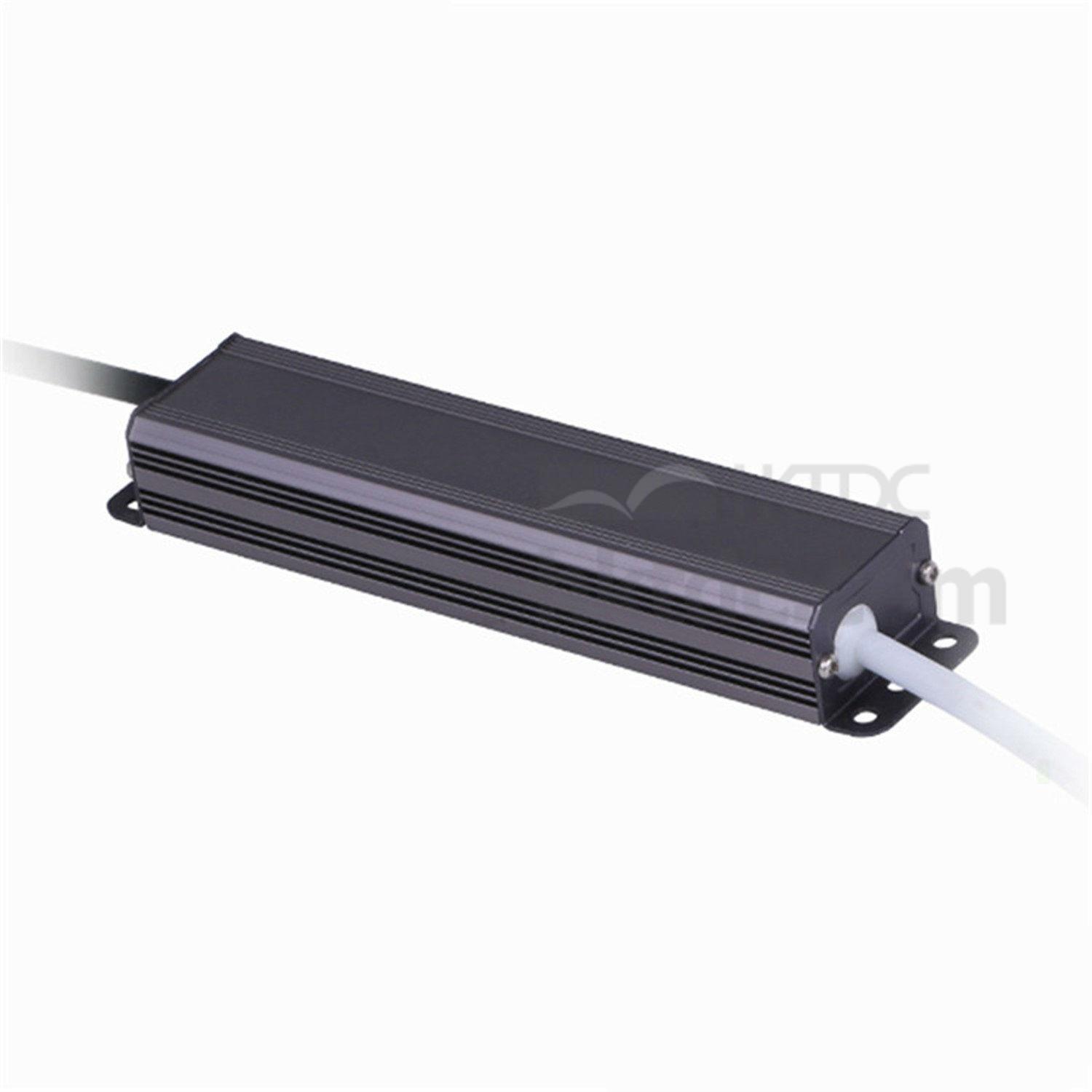

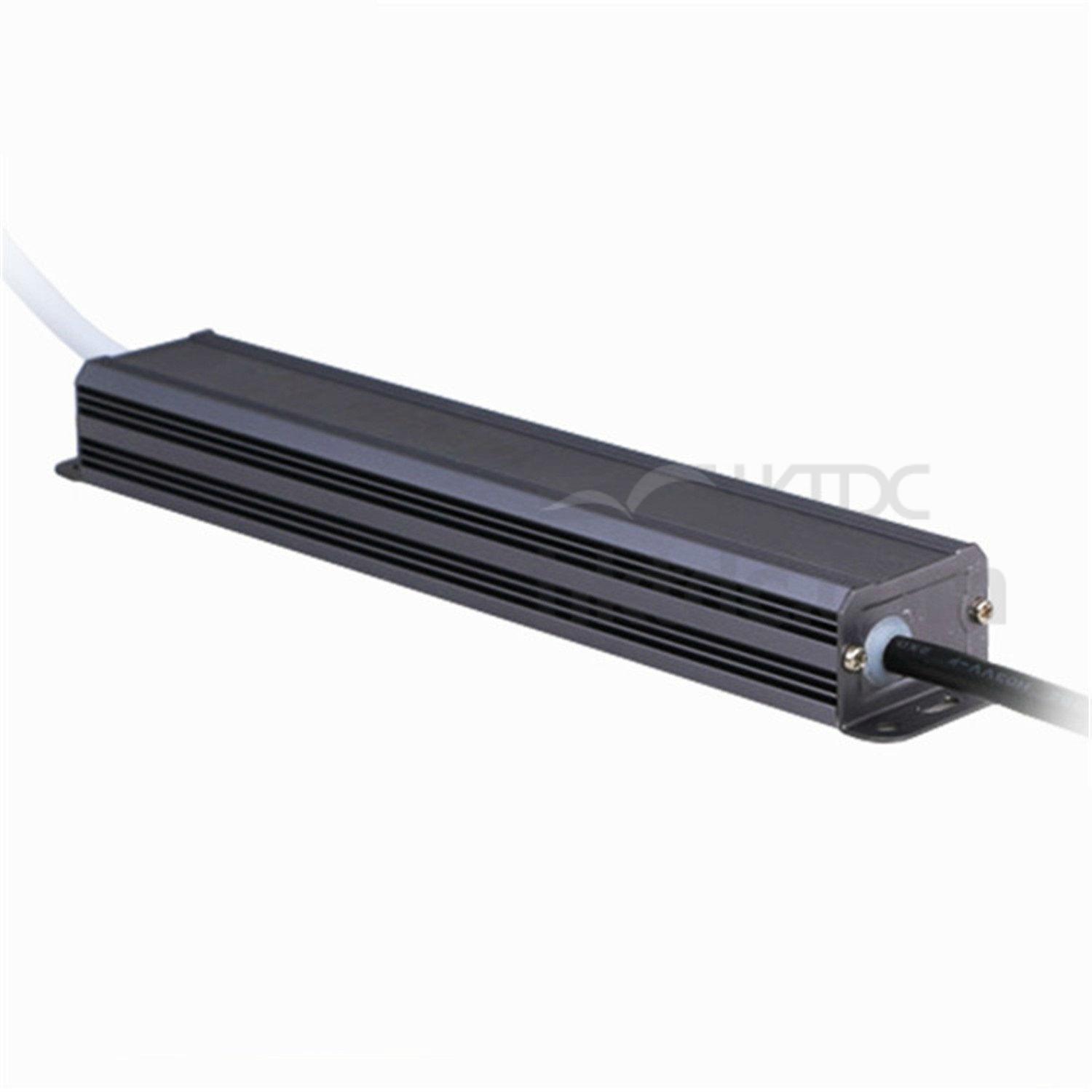

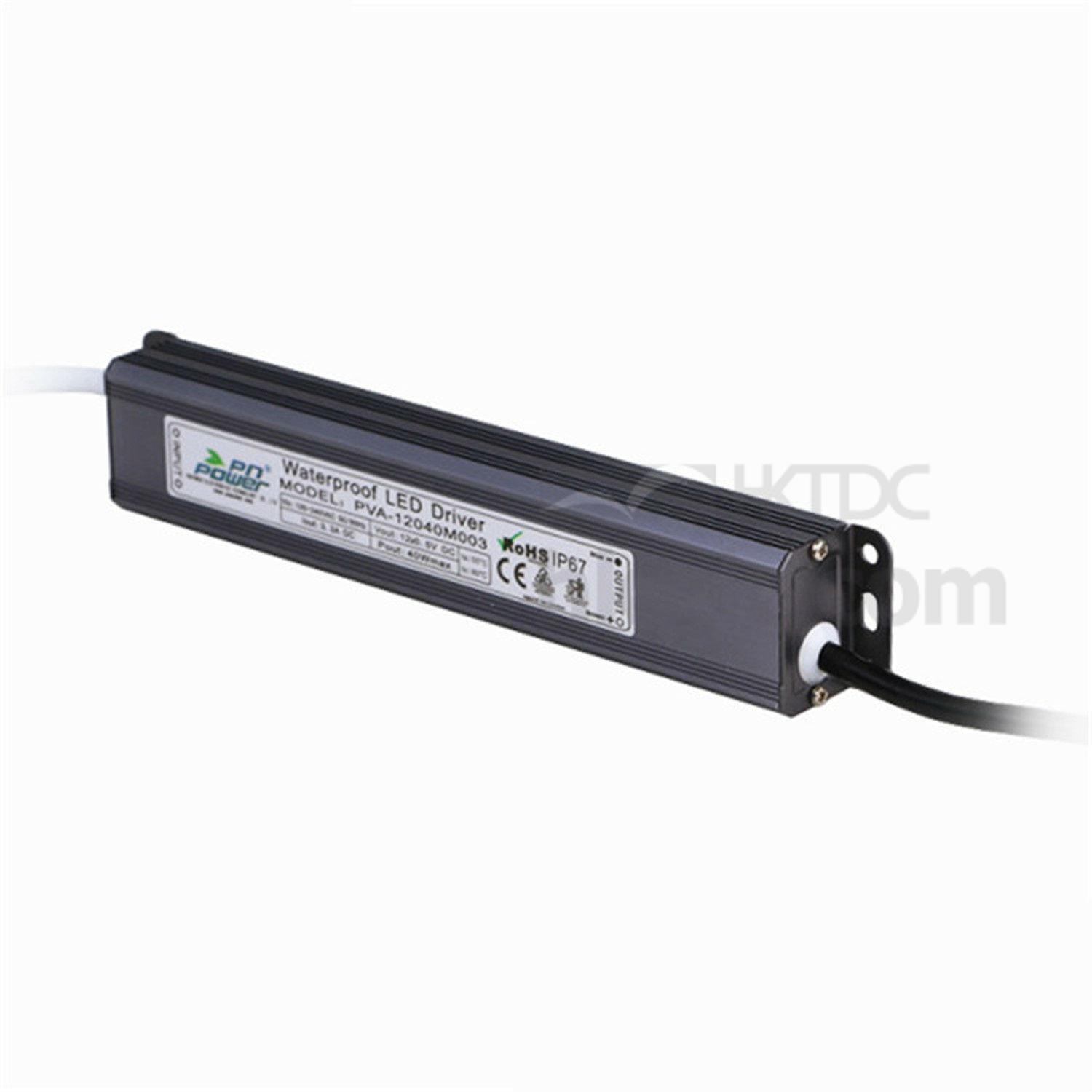

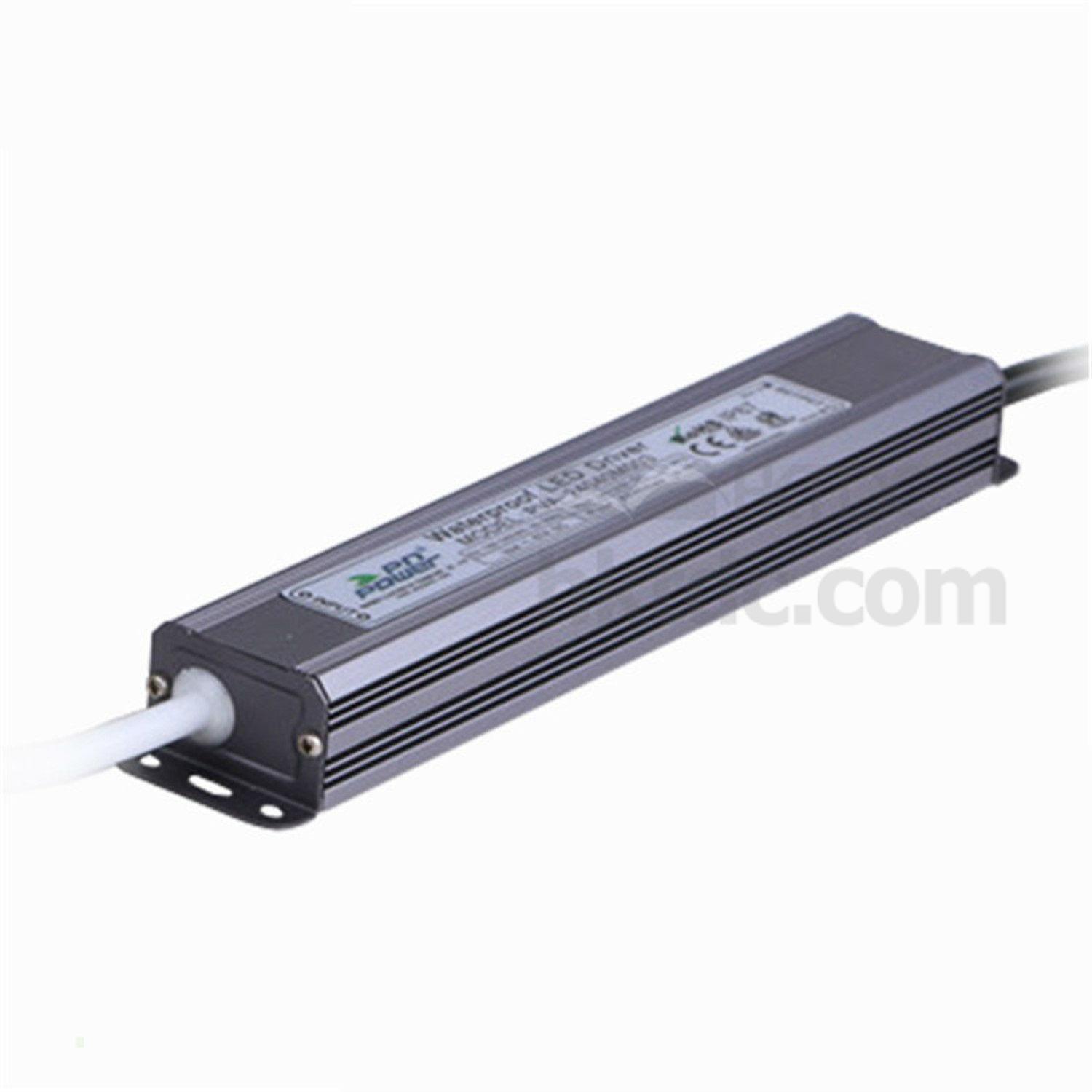

12V 30W LED Power Supply
生产所需时间:
7 日
产品型号:
PVA-12030M003
品牌名称:
PNpower
尺寸:
200*35*23
港口:
FOB
付款方式:
T/T
最低订购数量:
100
是否有包装:
有
描述
联络供应商
描述
Features:
█universal ac input /full range(100-240vac)
█constant voltage
█isolated
█high reliability,low cost
█100%full load burn-in test
█ip67
specification:
model: pva-12030m003
1.output:
dc voltage(v):12
rated current(a ):2.5
voltage range(v) :12±5%
rated power(w) :30
ripple&noise(mv ):300
load regulation :±5%
2.input:
voltage range(v) :100～240
fre. Range(hz) :47～63
ac current(a) :1.2～0.5
efficiency(type) :80%
power factor :0.45-0.65
t.h.d :--
inrush current(a):30
leakage current((ma ):0.5ma /240vac
3.protection:
over load : automatically after fault condition is removed
short circuit: hiccup mode,recovers automatically after fault condition is removed
o.t.p : 130℃±10℃,
over voltage : shut down o/p voltage, recovers automatically after temperature goes down
4.environment
working temp.& humidity : -30℃~+50℃,20-90%rh
storage temp.& humidity : -40℃~+80℃,10-95%rh
drop test : 1 carton, 36 inches, 6 face, 8 corners
safety standards : en61347-1，en61347-2-13，
5.safety & emc
safety standards : en61347-1，en61347-2-13，
emi conduction & radiation : compliance to en55015
harmonic current : compliance to en61000-3-2 class c
mtbf : 30000hr,at 25℃ (mil-std-217f)
█universal ac input /full range(100-240vac)
█constant voltage
█isolated
█high reliability,low cost
█100%full load burn-in test
█ip67
specification:
model: pva-12030m003
1.output:
dc voltage(v):12
rated current(a ):2.5
voltage range(v) :12±5%
rated power(w) :30
ripple&noise(mv ):300
load regulation :±5%
2.input:
voltage range(v) :100～240
fre. Range(hz) :47～63
ac current(a) :1.2～0.5
efficiency(type) :80%
power factor :0.45-0.65
t.h.d :--
inrush current(a):30
leakage current((ma ):0.5ma /240vac
3.protection:
over load : automatically after fault condition is removed
short circuit: hiccup mode,recovers automatically after fault condition is removed
o.t.p : 130℃±10℃,
over voltage : shut down o/p voltage, recovers automatically after temperature goes down
4.environment
working temp.& humidity : -30℃~+50℃,20-90%rh
storage temp.& humidity : -40℃~+80℃,10-95%rh
drop test : 1 carton, 36 inches, 6 face, 8 corners
safety standards : en61347-1，en61347-2-13，
5.safety & emc
safety standards : en61347-1，en61347-2-13，
emi conduction & radiation : compliance to en55015
harmonic current : compliance to en61000-3-2 class c
mtbf : 30000hr,at 25℃ (mil-std-217f)
