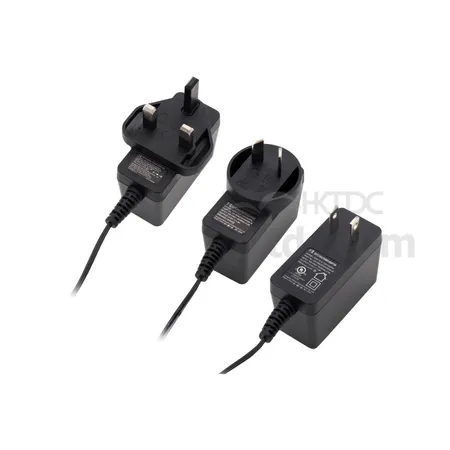

12W ITE Power Adapter
产品型号:
UES12LZ-SPA
品牌名称:
FUHUA
颜色:
Black, White
尺寸:
62(L) x 29(W) x 40(H)mm
港口:
FOB Hong Kong
最低订购数量:
1,000 piece(s)
是否有包装:
有
是否可定制:
是
输出电压:
12.0V
输入电压:
90 - 264VAC
输出频率:
47-63Hz
输出功率:
12W
输出电流:
0.01-1.0A
输出类型:
单
原产地:
中国内地
描述
联络供应商
描述
Output data:
Features:
Specifications:
Safety Standard:
- Voltage:12V
- Current:0.1-1.0A
- Ripple:300mA
Features:
- Wide range of AC input voltage90-264VAC;
- Protections against:short circuit/over current/over voltage
- Meets 4KV surge immunity
- Meets energy star level Ⅵ & CoC V5 Tier 2(2016)
Specifications:
- Input Voltage Range:90-264VAC
- Operation Temperature:-5~40℃
- Input Current:500mA
- Storage Temperature:-40~70℃
- Average Efficiency:Meets energy star level Ⅵ & CoC V5 Tier2 (2016)
- Humidity:5%~95% non condenising
- Output Voltage Range±5%
- MTBF:100,000 hours at full load at 25℃ ambient, calculated per MIL-HDBK-217
- Stanby Power:0.075W
Safety Standard:
- Meets IEC/EN/UL62368-1,J62368-1,AS/NZS62368-1,CNS14336
- Weight: 75g
- Dimensions: 62mm (L) ;29mm (W) ;40mm (H)
- Applications: ITE Equipment
