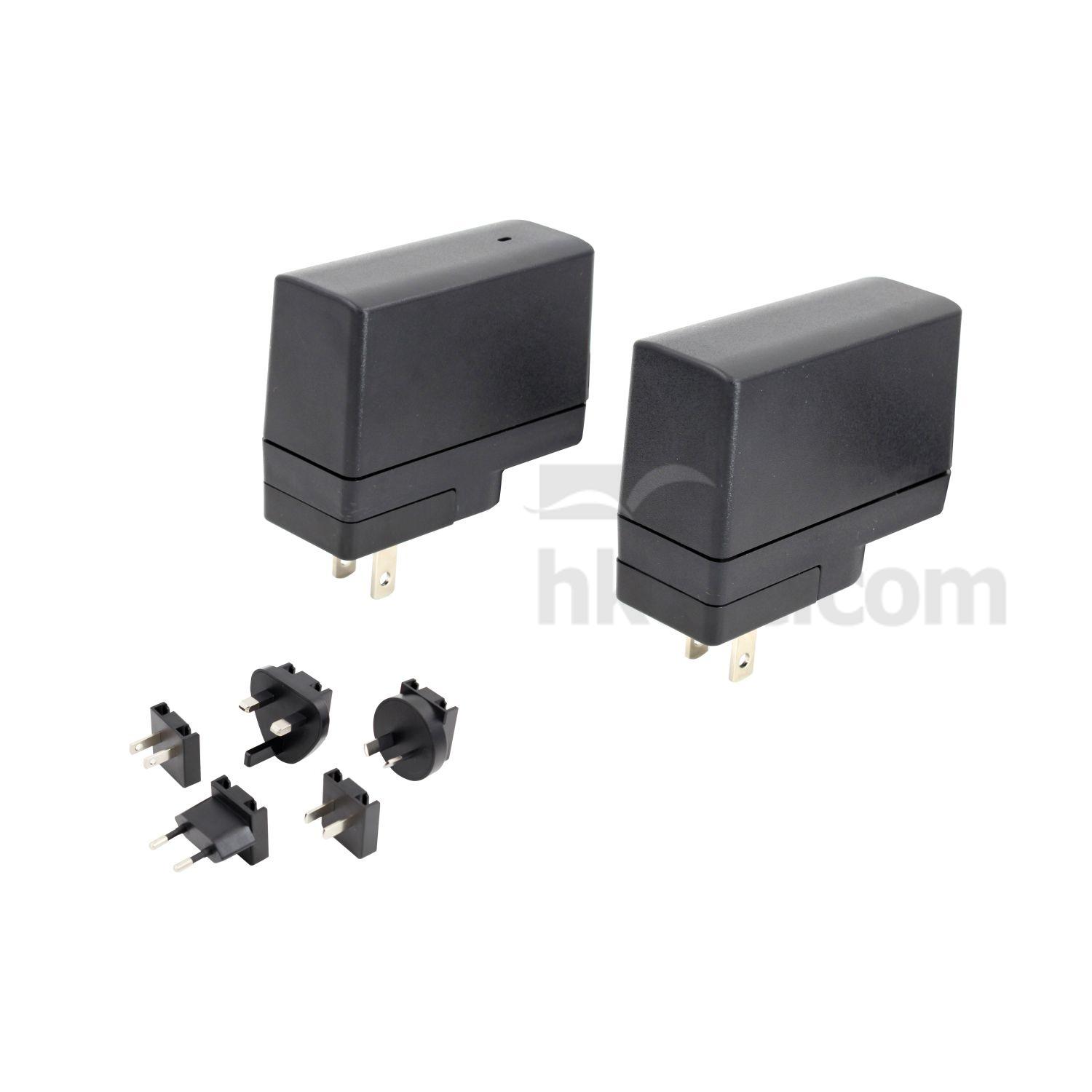

12W Medical Power Adapter
产品型号:
UES12LCP-SPA
品牌名称:
FUHUA
颜色:
Black, White
尺寸:
76(L) x 30.3(W) x 48.2(H)mm
港口:
FOB Hong Kong
最低订购数量:
1,000 piece(s)
是否有包装:
有
是否可定制:
是
输出电压:
4.0-24.0
输入电压:
90 - 264VAC
输出频率:
47-63Hz
输出功率:
12W
输出电流:
0.01-0.5A
输出类型:
单
原产地:
中国内地
描述
联络供应商
描述
Product feature
Environmental requirement:
Safety standard
Models & Ratings:
- Wide range of AC input voltage: 90 - 264V AC
- Protections against: short circuit/over current/over voltage
- 2MOPP input to output isolation
- Suitable for medical equipment up to class BF
- DOE affiance level VI CoC-V5 Tier2
- leakage current lower 10ua (8.1-14V), and lower 50ua (6.1A-8V & 14V-24V)
- Up to 5,000 operating altitude
- Interchangeable AC plugs
- Technical data:
- Input voltage: 90-264V AC
- Input current: 500mA
- Output voltage range: ±5%
- Standby power: 0.075W
- Average efficiency: CoC-V5 Tier2
- Reliability: at 25°C ambient temperature, maximum load work 50,000 hours MTBF (according to MIL - HDBK - 217 standard)
- Machinery specification: 88.0x30.0x49.5mm
Environmental requirement:
- Operating temperature: -5 - 45°C
- Storage temperature: -25 - 75°C
- Humidity enrichment conditions, humidity: 10-90%
Safety standard
- Medical: CB/IEC60601, UL/ES60601, TUV/EN60601
- ITE: CB/IEC60950, UL/UL60950, AS/NZS60950, TUV/EN60950
- Applications: portable medical devices, medical equipment, ITE devices
Models & Ratings:
- UES12LCP-XXXYYYSPA 4.0-5.0(V) 0-2.00(A) 10(W) 79.01%(Efficiency)
- UES12LCP-XXXYYYSPA 5.1-5.9(V) 0-2.00(A) 11.8(W) 80.19%(Efficiency)
- UES12LCP-XXXYYYSPA 6.1-7.0(V) 0-1.71(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 7.1-8.0(V) 0-1.50(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 8.1-9.0(V) 0-1.33(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 9.1-10.0(V) 0-1.20(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 10.1-11.0(V) 0-1.09(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 11.1-12.0(V) 0-1.00(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 12.1-13.0(V) 0-0.94(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 13.1-14.0(V) 0-0.86(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 14.1-15.0(V) 0-0.80(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 15.1-16.0(V) 0-0.75(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 16.1-17.0(V) 0-0.71(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 17.1-18.0(V) 0-0.67(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 18.1-19.0(V) 0-0.63(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 19.1-20.0(V) 0-0.60(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 20.1-21.0(V) 0-0.57(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 21.1-22.0(V) 0-0.55(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 22.1-23.0(V) 0-0.52(A) 12(W) 83.30%(Efficiency)
- UES12LCP-XXXYYYSPA 23.1-24.0(V) 0-0.50(A) 12(W) 83.30%(Efficiency)
