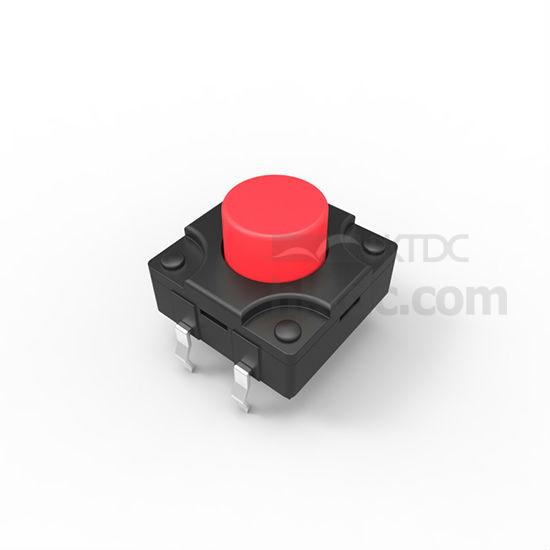

12mm Waterproof Tact Switch
产品型号:
TSW12
品牌名称:
khan
颜色:
Black
尺寸:
12mm x 12mm
港口:
Ningbo, Shanghai
付款方式:
T/T, Western Union, MoneyGram, PayPal
最低订购数量:
1,000 piece(s)
是否有包装:
有
是否可定制:
是
最大电压:
12VDC
工作温度:
-25~+70℃
最大电流:
50mA
机械寿命:
100,000 cycles
最大工作压力:
280gf±50gf
防护等级:
IP67
描述
联络供应商
描述
12*12 waterproof Tact Switch
1: Surface mount and through hole available
2. Height: 4.3mm to 21mm
4. ROHS compliance
SPECIFICATION FOR TSW12:
1、Environmental Temperature -25～+70℃
2、Relative Humidity (40℃)≤95%
3、Rated Load DC12V.50mA
4、Contact Resistance ≤0.03Ω
5、Insulation Resistance ≥100MΩ
6、Withstand Voltage AC250V 50Hz/1min
7、Electric Life 10 0000 Cycles Min
8、Operation force 280±50gf
9、Travel 0.3±0.1mm
1: Surface mount and through hole available
2. Height: 4.3mm to 21mm
4. ROHS compliance
SPECIFICATION FOR TSW12:
1、Environmental Temperature -25～+70℃
2、Relative Humidity (40℃)≤95%
3、Rated Load DC12V.50mA
4、Contact Resistance ≤0.03Ω
5、Insulation Resistance ≥100MΩ
6、Withstand Voltage AC250V 50Hz/1min
7、Electric Life 10 0000 Cycles Min
8、Operation force 280±50gf
9、Travel 0.3±0.1mm
