13MP AR1335 Fixed FocusMIPI Camera Module

美元 $19.00 - 美元 $23.75

美元 $20.00 - 美元 $25.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-F9MF-AR1335 PLCC V3.0

Image Sensor:

AR1335

View Angle:

26.3°(DFOV)

Focusing:

Resolution:

13MP

Module Size:

60.00 x 22.00 mm

Interface:

MIPI

描述

联络供应商

Product Description

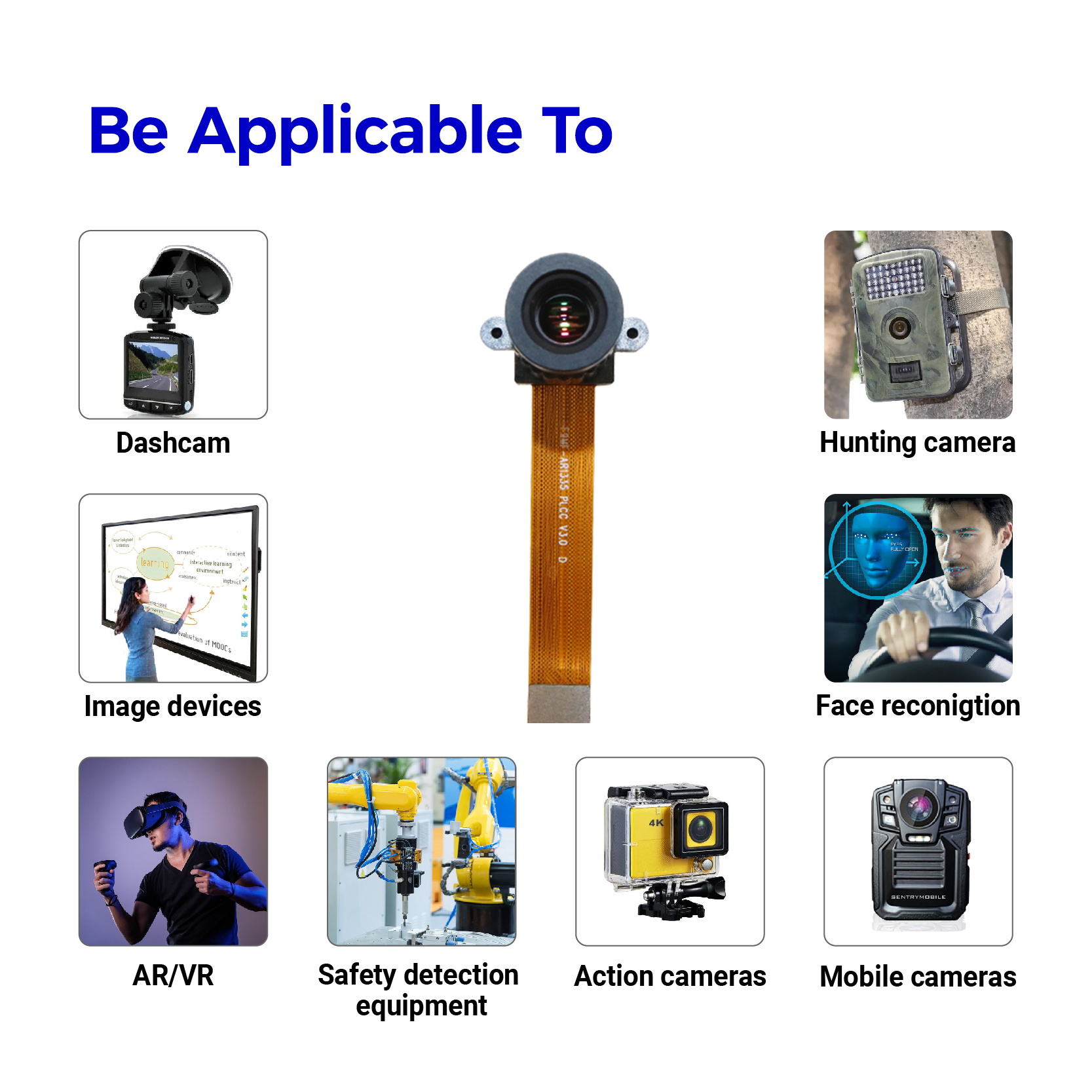

HAMPO-F9MF-AR1335 PLCC V3.0 is a 1/3.2-inch CMOS active-pixel digital mipi camera module with a pixel array of 4208H x 3120V . This camera module, features breakthrough 1.1m pixel technology that delivers superior low-light image quality through leading sensitivity, quantum efficiency and linear full well. This allows image quality that rivals digital still cameras.With a sensor architecture focused on low power and a high Chief Ray Angle (CRA) for low Z-heights, the AR1335 camera is ideal for smartphone and other mobile device applications. It incorporates sophisticated on-chip camera functions such as windowing, mirroring, column and row skip modes, and snapshot mode.
It is programmable through a simple two-wire serial interface. The camera module can generate full resolution image at up to 30 frames per second (fps) and supports advanced video modes including 4K 30fps, 1080P 60fps and 720P 120fps.

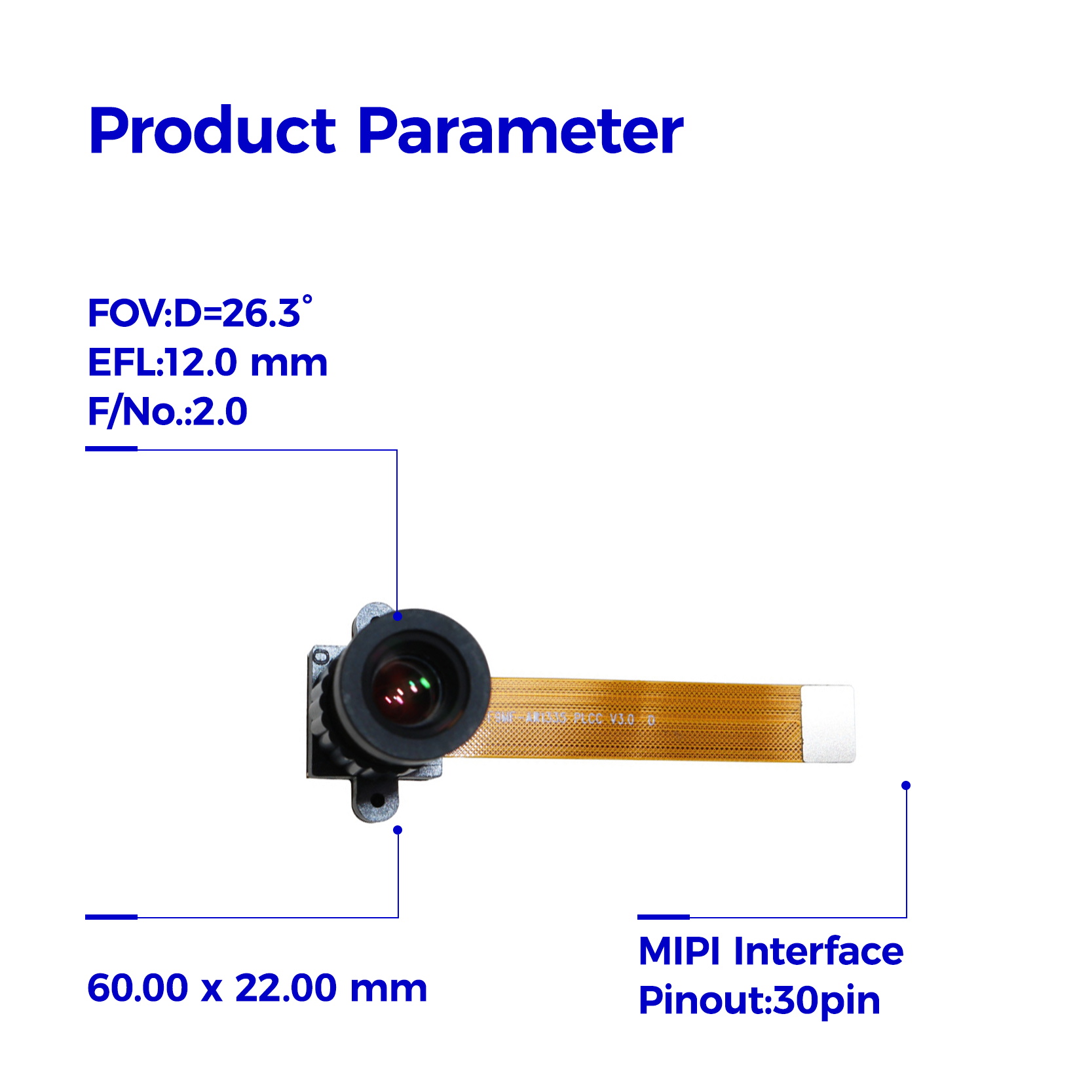

Specification

Camera Module No.	HAMPO-F9MF-AR1335 PLCC V3.0
Resolution	13MP
Image Sensor	AR1335
Sensor Size	1/3.2"
Pixel Size	1.1 um x 1.1 um
EFL	12 mm
F/No.	2.0
Pixel	4208 x 3120
View Angle	26.3°(DFOV) 21.0°(HFOV) 15.5°(VFOV)
Lens Dimensions	13.20 x 13.20 x 27.52 mm
Module Size	60.00 x 22.00 mm
Focusing	Fixed Focus
Interface	MIPI
Lens Type	650nm IR Cut

Key Features * 13MP CMOS sensor with advanced 1.1µm pixel BSI technology
 *  Data interfaces: 2,3 and 4 lane MIPI
 *  Bit-depth compression available for MIPI: 10-8 and 10-6 to lower bandwidth
 *  3D synchronization controls to enable stereo video capture
 *  6.8 kbits one time programmable memory (OTPM)
 *  Programmable controls: gain, horizontal and vertical blanking, auto black level offset correction, frame size/rate,     exposure,left right and top-bottom image reversal, window size, and panning
 *  Two on-die phase-locked loop (PLL) oscillators for super low noise performance
 *  On-chip temperature sensor
 *  Bayer pattern horizontal down-size scaler
 *  Simple two-wire fast-mode+ serial interface For more features, see the data sheet
Company Profile

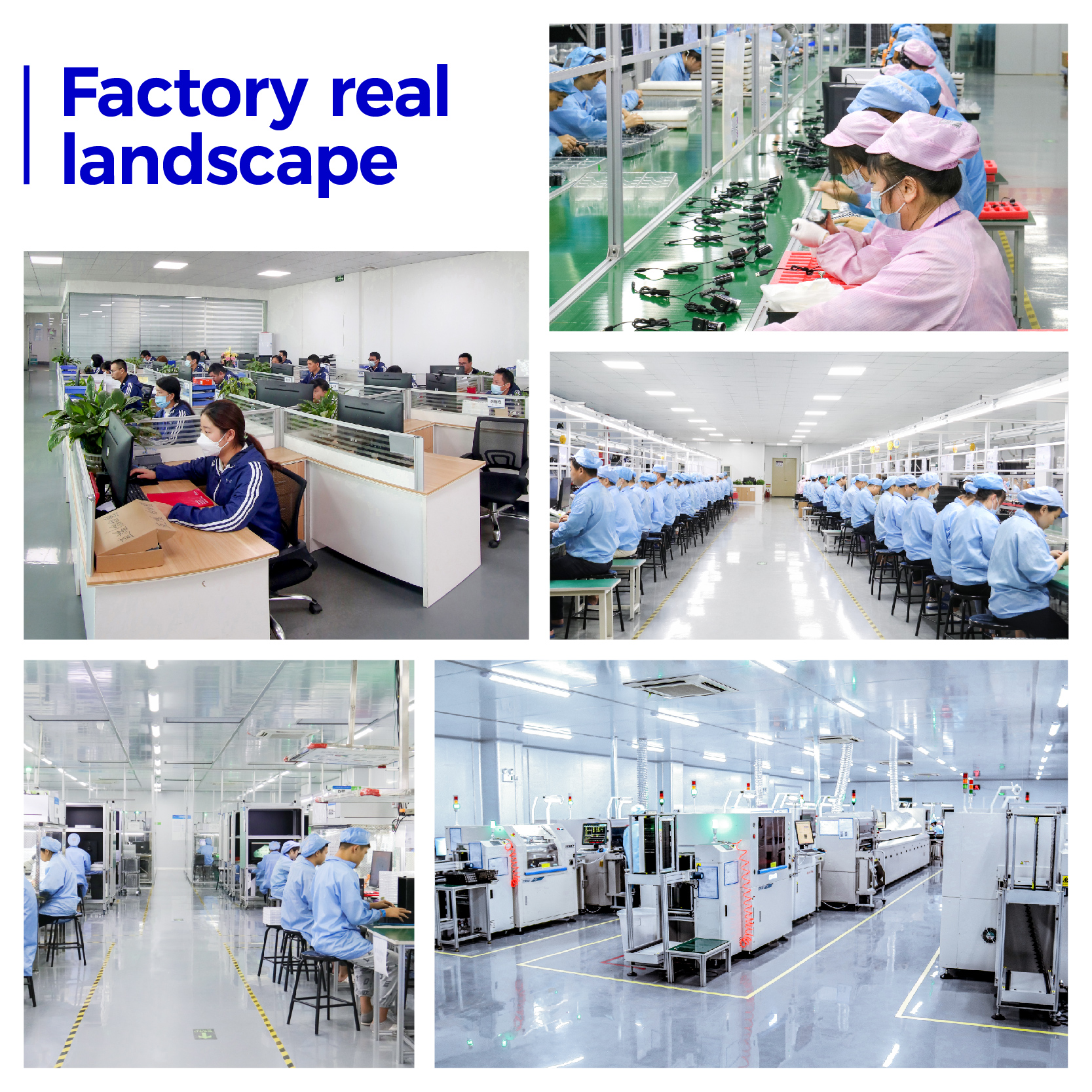

Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
