13MP IMX214 HighDefinition Camera Module

美元 $42.75 - 美元 $46.55

美元 $45.00 - 美元 $49.00

生产所需时间:

5 日

运送方式:

express delivery

型号编号:

HAMPO-003-0697

应用:

Win XP/Win7/Win8/Win10/Linux

Sensor Size:

CMOS, 1/3.06"

Frame rate:

30fps/7fps

FOV:

70°

Function:

Abnormal sound detection, Built-in Mic, NIGHT VISION

Focusing:

Fixed Focus

Resolution:

4192*3104

Customised:

Yes

Size:

38*38(mm)

描述

联络供应商

Product Description

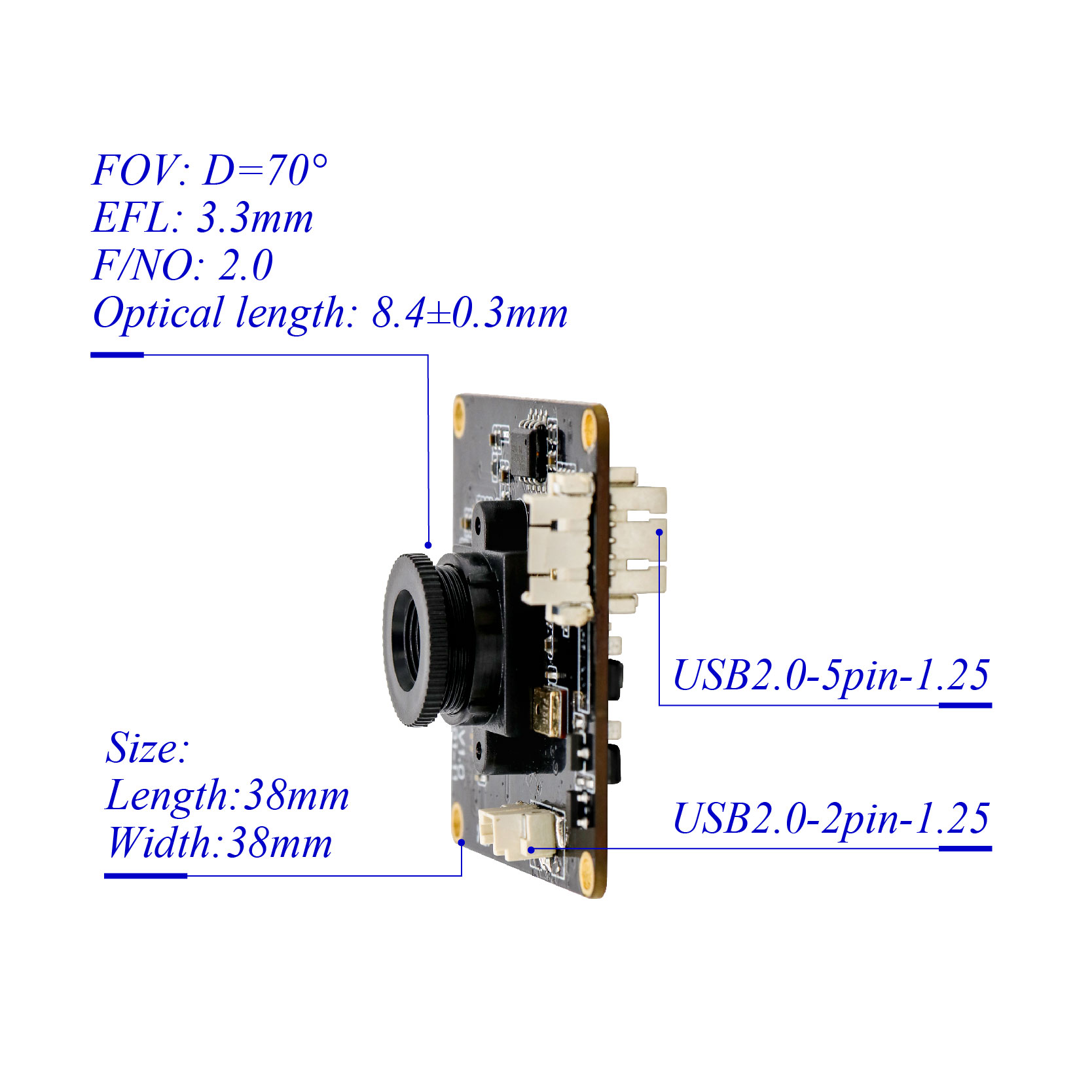

HAMPO-003-0697 is a 13MP resolution,support 4192X3104 and YUV video streaming USB camera module. Mini fixed focus lens USB camera ,true and no distortion color image.

Widely used in document scanner, beauty equipment, education products, etc. During scanning, all the corners of the document is clear as the center part.

Key Features

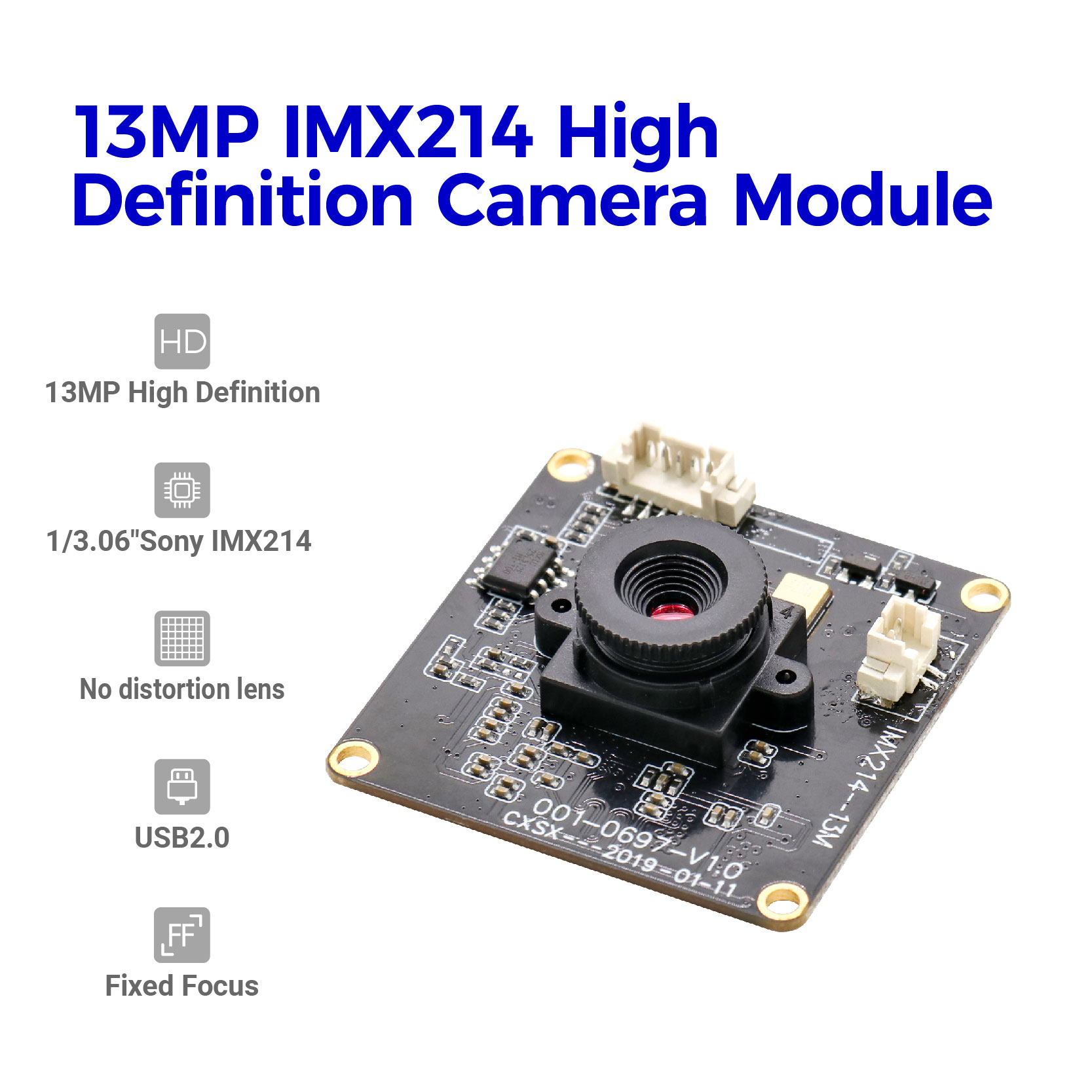

13MP Ultra HD Sony IMX214 USB Webcam13MP USB webcam with microphone,ultra HD advanced 1/3 Sony IMX214 sensor USB camera for high quality image. Max resolution is 4192X3104 USB camera module.

ApplicationsDocument Scanner;
Beauty Detector;
Education Products etc.
Plug&Play: (UVC compliant),USB2.0 camera module with 1 meter USB2.0 cable(cable can be optioned). Embedded with 1/3" CMOS Imx214 image sensor for better picture performance. Supported OS:Win7/8/10,Linux,Mac,Wince and Android with UVC.Size:38x38mm.

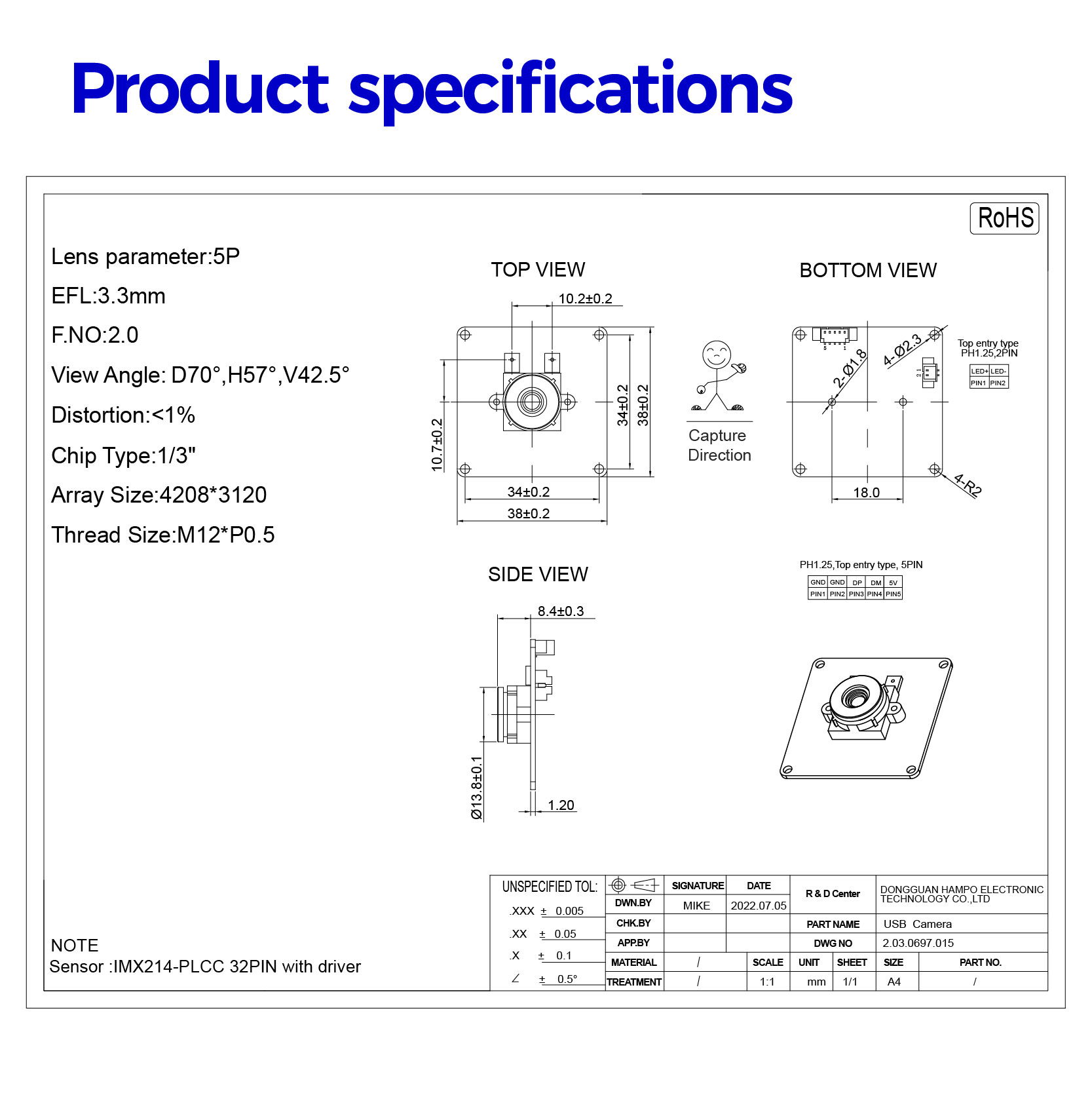

Specification

Model
003-0697
Max Resolution
4192*3104
Sensor Size
1/3.06"
Pixel Size
1.12μm*1.12μm

Output Format	MJPG/YUY2
Focus	Fixed focus
Frame rate	30fps/7fps

PCBA Size	38*38mm
FOV	D=70°
TTL	6.3mm
Lens construction	5P
Thread size	M12*P0.5mm

Company Profile

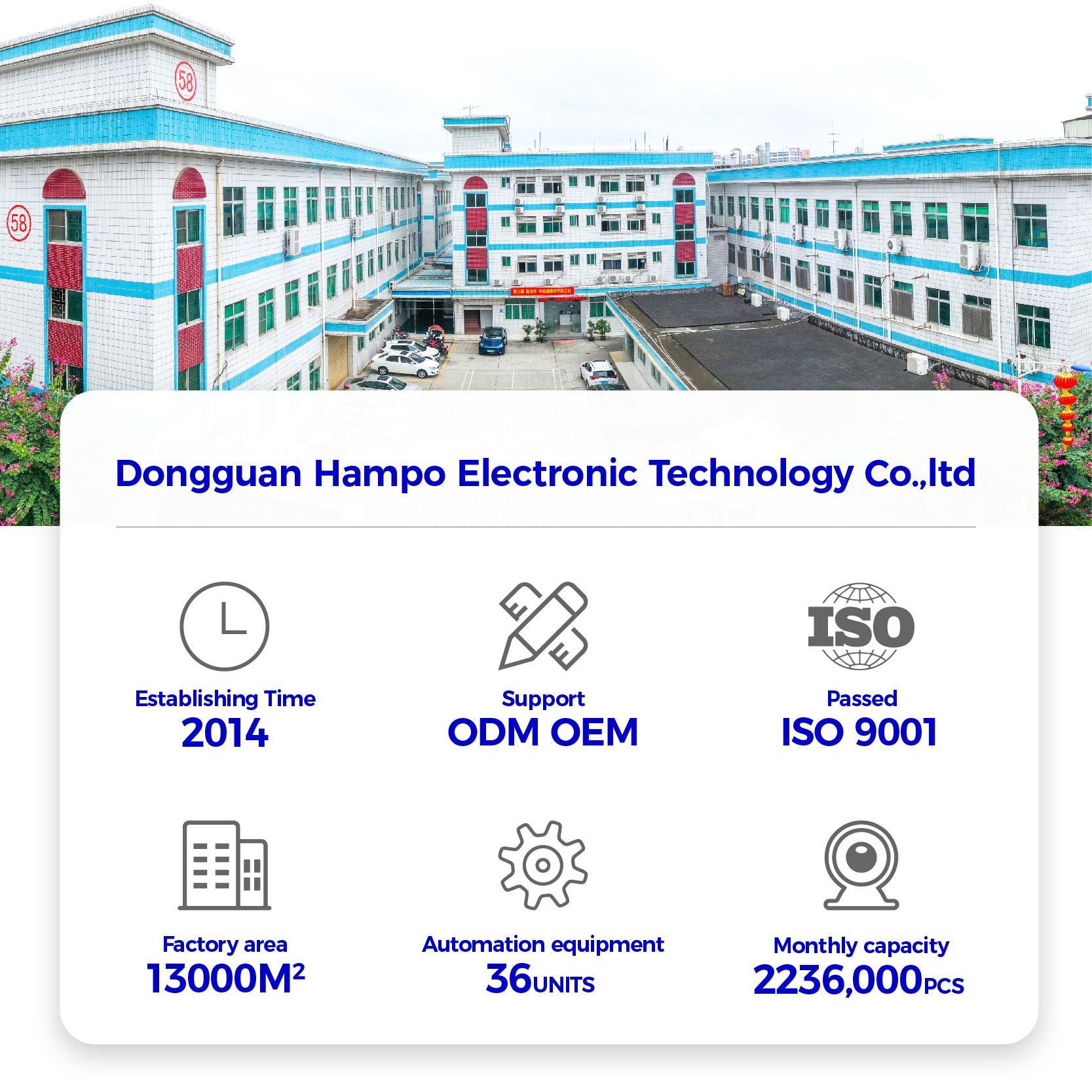

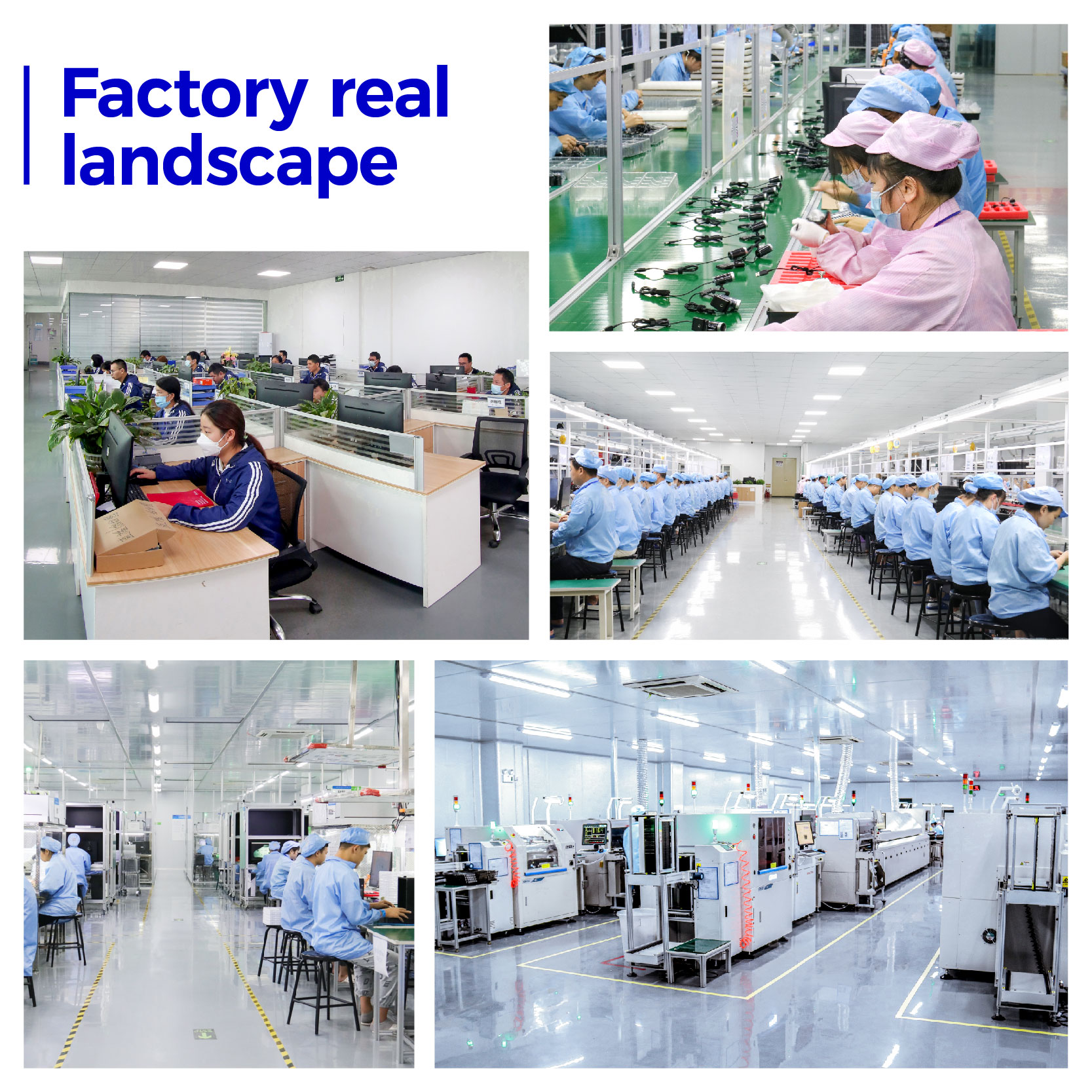

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products. Hampo owned two buildings as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.

As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
