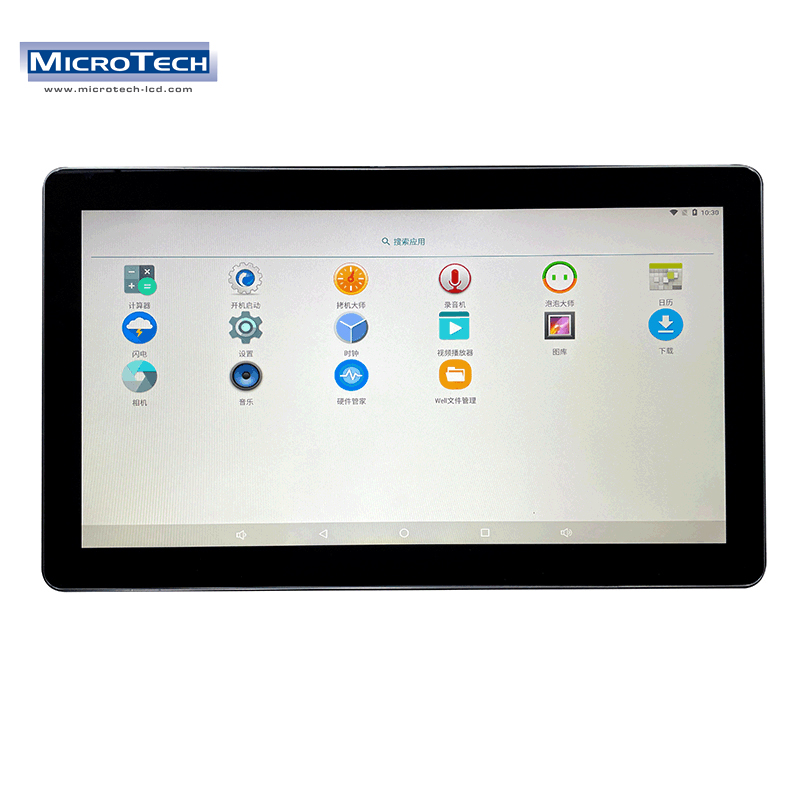

15.6" Wall Mounted Touch All in One LCD Advertising Player Display Rk3399 Windows/Linux/Android System Touch Screen Monitor for 7"10.1"11.6"13.3"15.6" Srceen
美元 $100.00 - 美元 $150.00
生产所需时间:
25-45 日
运送方式:
Support Express · Sea freight · Land freight · Air freight
品牌:
Microtech
型号编号:
MTR156FD12A-V1
是否可订造:
可以
尺寸:
15.6inch
描述
联络供应商
描述
| Display size | 15.6 inch |
| Zoom | 16:9 |
| Backlight type | LED |
| Pixel size | 0.17925x0.17925mm |
| Display area | Horizontal: 344mm Vertical: 194mm |
| best resolution | 1920x1080@60Hz |
| response time | 5ms |
| color | 16.7 million |
| brightness | 300 cd/m2 highlight (optional) |
| Contrast (standard value) | 1000:1 |
| Viewing angle | 89/89/89/89 (Typ.) (CR>10) |
| Touch screen type | capacitive touch screen |
| cover glass | 2.4mm |
| Touch screen transmittance | 87% |
| Surface hardness | 7H |
| touch points | 10 |
| touch response time | ≤10ms |
| touch method | Finger/Capacitive Pen |
| Single touch life | ≥50 million times |
| touch linearity | <2% |
| single point operating system | Windows XP, Linux |
| multipoint operating system | Windows7/8/10, Android |
| CPU | RK3288 Cortek-A17 Fourth floor 16GHz default |
| RK3399 Cortex-A72 Cortex-A53 16GHz (optional) | |
| RAM | Default 2G 4G/8G (optional) |
| store | Default 16G 32G/64G/128G(optional) |
| network port | Adaptive Ethernet RJ45 Fast/Gigabit Ethernet port |
| Blue tooth function | Support V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 |
| WiFi | Built-in high-performance WiFi module, support IEEE 802.11 b/g/n |
| GPIO | 8 GPIO signals. Expandable GPIO buttons and/or 3.3V input/output |
| Decoding resolution | HDMI supports 4K output |

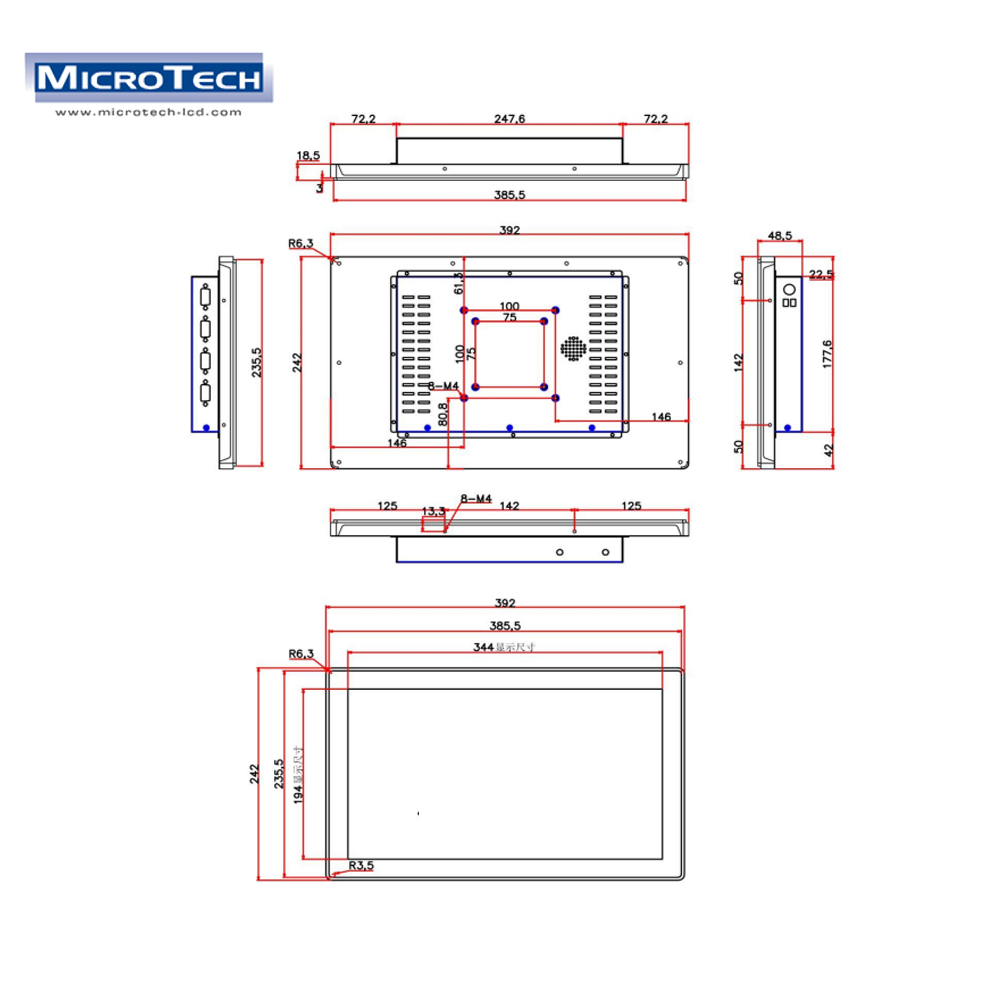

| Overall dimensions | 392mm×242mm×48.5mm |
| Size of the opening | 385.5mm × 235.5mm |
| weight | Net weight: 2.45KG |
| One package weight (plus accessories): 3.8KG | |
| Two packaging weight (plus accessories): 6.8KG | |

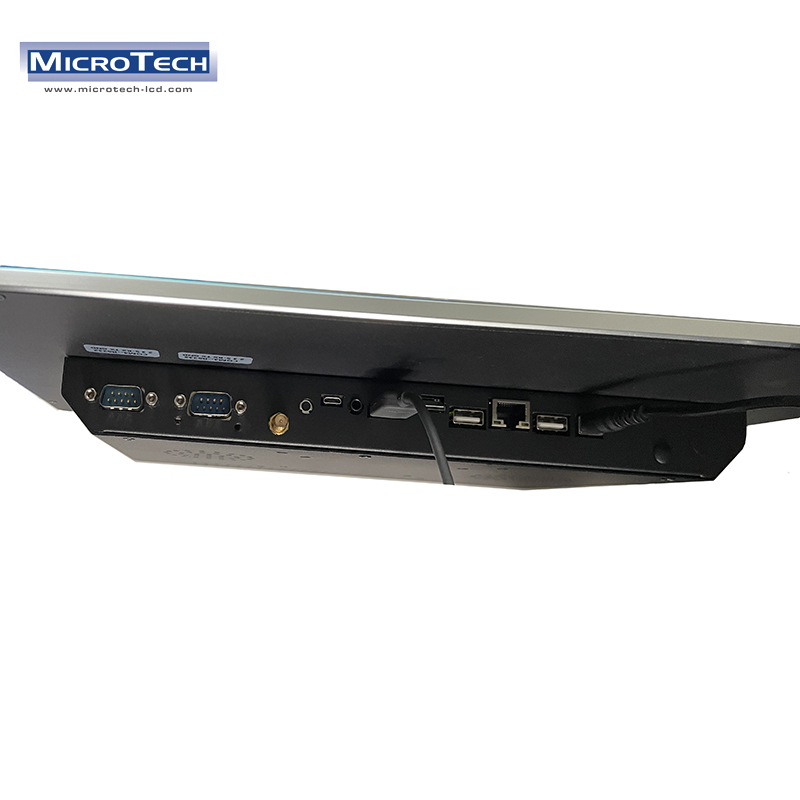

| Machine interface | HDMI*1, COM*2 default 232 protocol, USB*2, network port*1, audio output*1, DC power port*1, TF card*1, SIM card*1, metal switch*1, WiFi connector*1 |
| Upgradeable interface | RS485/422 protocol, GPIO, Phoenix terminal/aviation power interface, MiniPCI-E, MIC |
| Performance upgrade | Explosion-proof, anti-glare, dust-proof and waterproof, light sensor head (automatically adjust screen brightness according to the environment), electromagnetic screen |
| power input | DC 12V/3A |
| power | 8w |
| Installation method | Side Mount Bracket / VESA 75mm&100mm |
| Appendix | Power adapter 12V/3.0A, 105x50x32mm, cable length 1.1m, ￠2.0 |
| Power Cord CCC Standard Power Cord, Chinese Style, 1.5m, Black | |
| Whole machine certification | CCC FCC CE ROHS |
| ambient temperature | Working: -10℃-60℃; Storage: -20℃-70℃ Wide temperature (optional) |
| environment humidity | Work: 20%-80%; Storage: 10%-90% |
| Warranty | 3 years |
| system | Android 6.0 (default) 7.1 (optional) |
