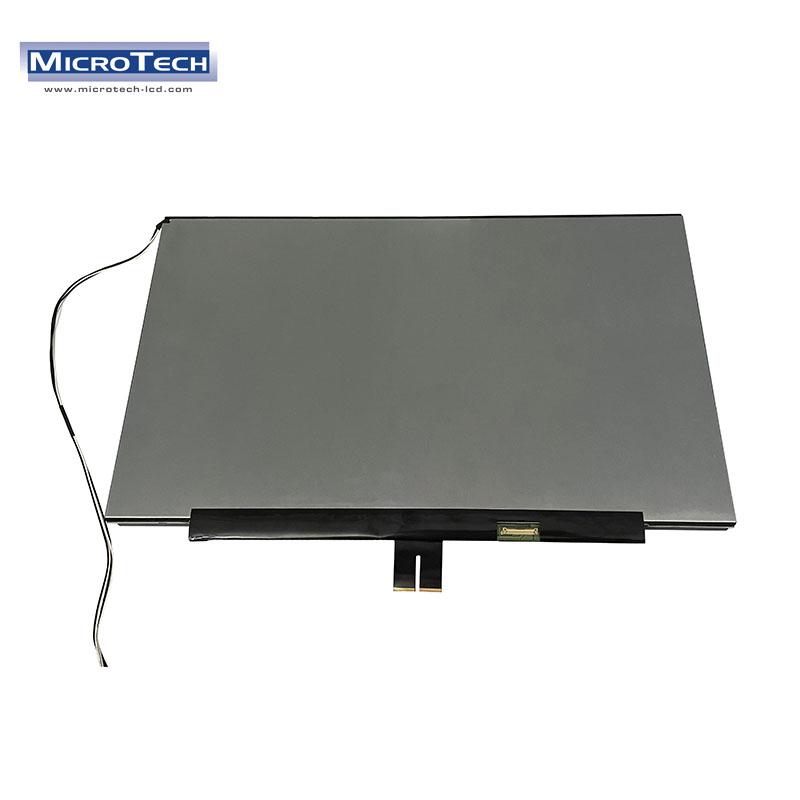

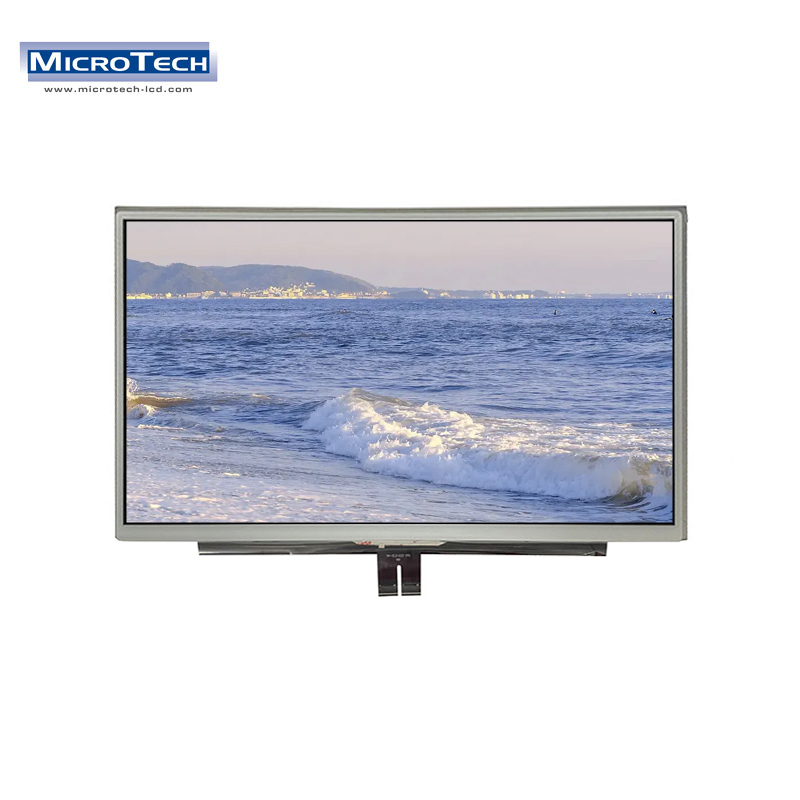

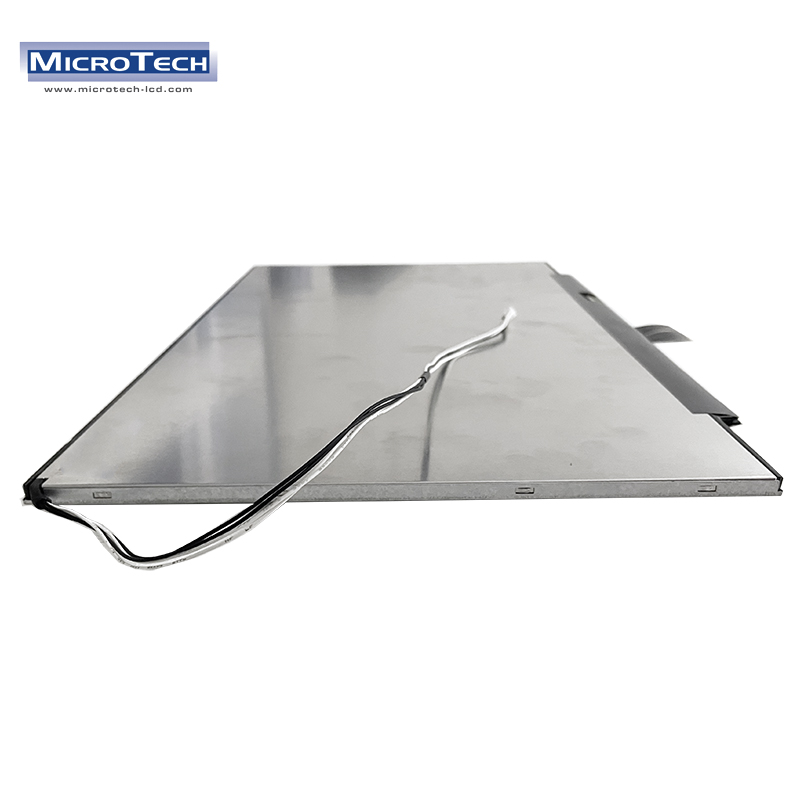

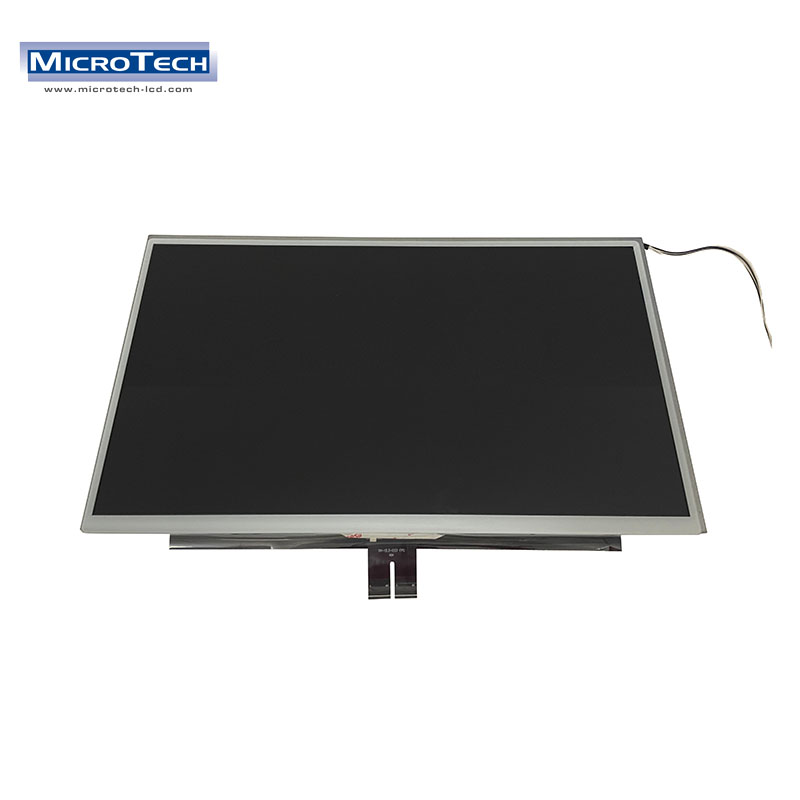

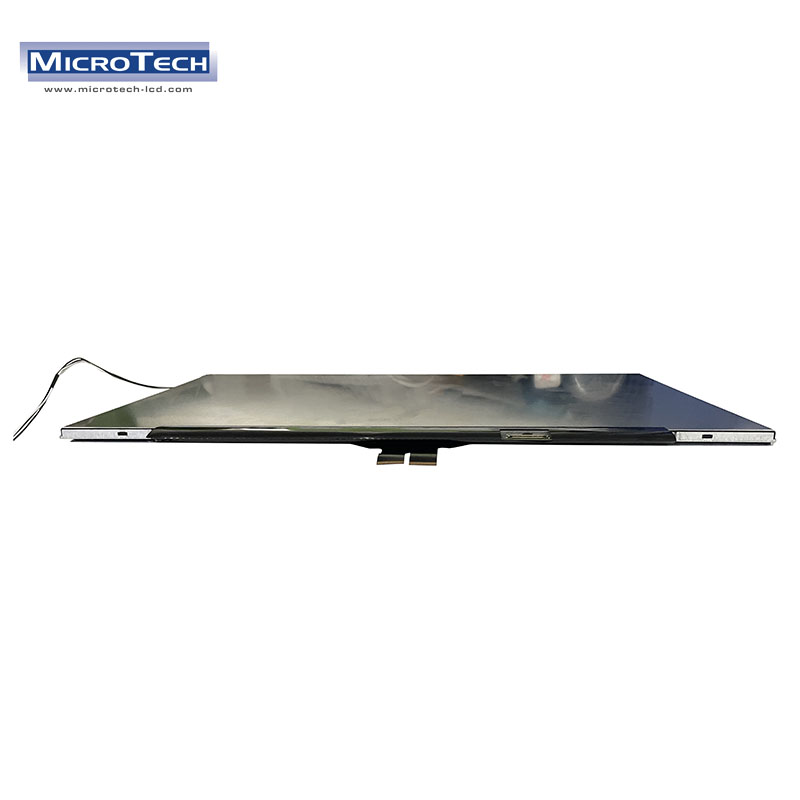

15.6 inch 1920*1080 TFT LCD Screen 1000Nits Driver IC*4 LED*100 backlight EDP interface Can bring PCBA plus touch screen

美元 $30.00 - 美元 $80.00

生产所需时间:

25-45 日

运送方式:

Support Express·Sea freight·Land freight·Air freight

品牌:

Microtech

型号编号:

MTF156FD10A-V1

Size:

15.6inch

Resolution:

1920*1080

描述

联络供应商

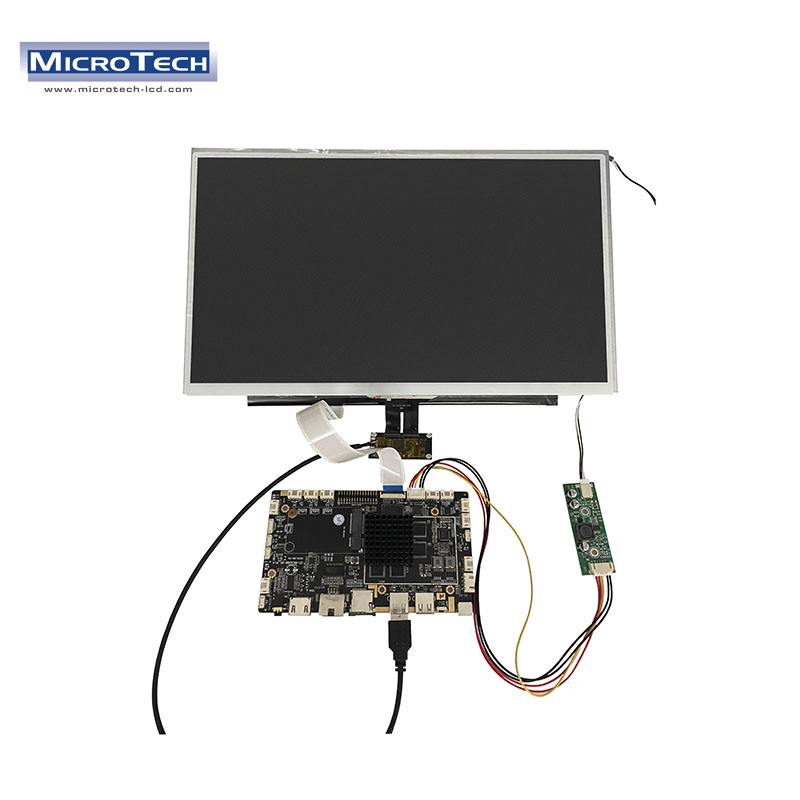

MTF156FD10A-V1 is a transmissive type color active matrix liquid crystal display(LCD) which uses amorphous thin film transistor(TFT) as switching devices. This product is composed of a TFT LCD panel, 4 drives IC, a PCBA and a LED-backlight unit. The active display area is 15.6 inches diagonally measured and the native resolution is 1920*RGB*1080.Features of this product are listed in the following table.

Parameter	Value	Unit
LCD Mode	TFT/Transmissive	—
Color Depth	16.7M	—
Display Resolution	1920RGB*1080	pixels
Module Size	212.3(H)360.0(W)5.70(T)(Exclude PC BA)	mm
Active Area (A.A)	193.59(H)*344.16(W)	mm
Pixel Arrangement	RGB-stripe	—
Viewing Direction	ALL
Display Mode	Normally Black
LCD Controller/Driver	ILI6145A	—
IC Package Type	COG	—
Interface	eDP	—
Power Supply Voltage	3.0-3.6 (Cell 0.9Wmax)	V
LCM Brightness	1000 (Type.)	cd/m2
Back-light	White LED*100	PCS
