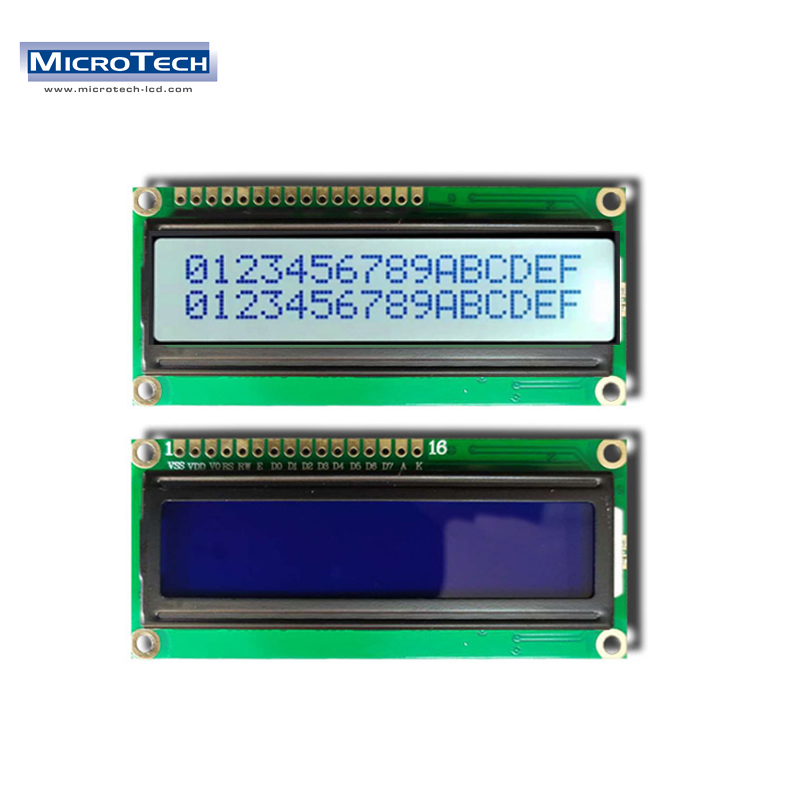

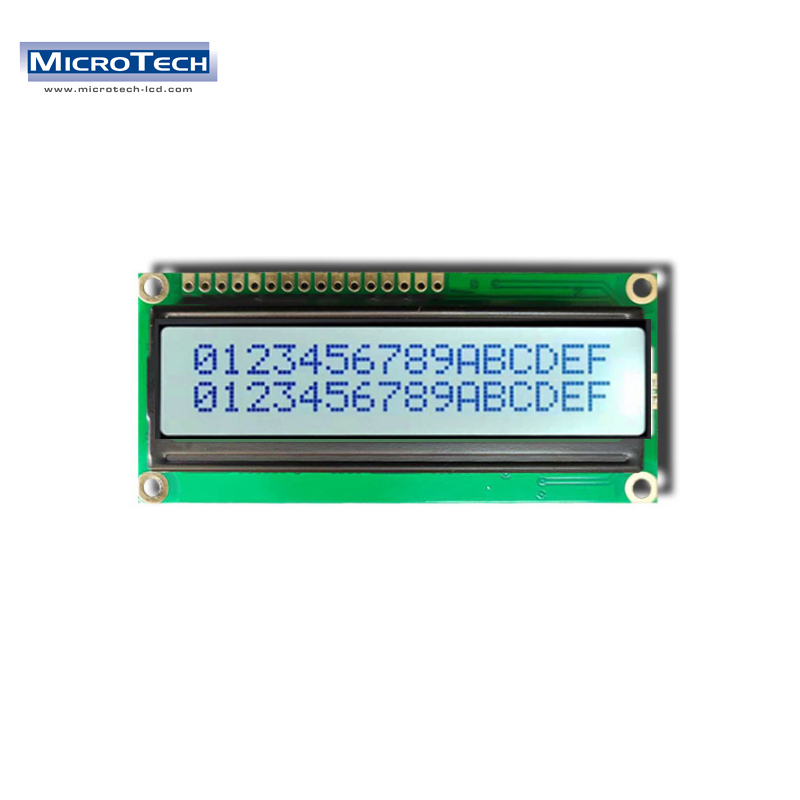

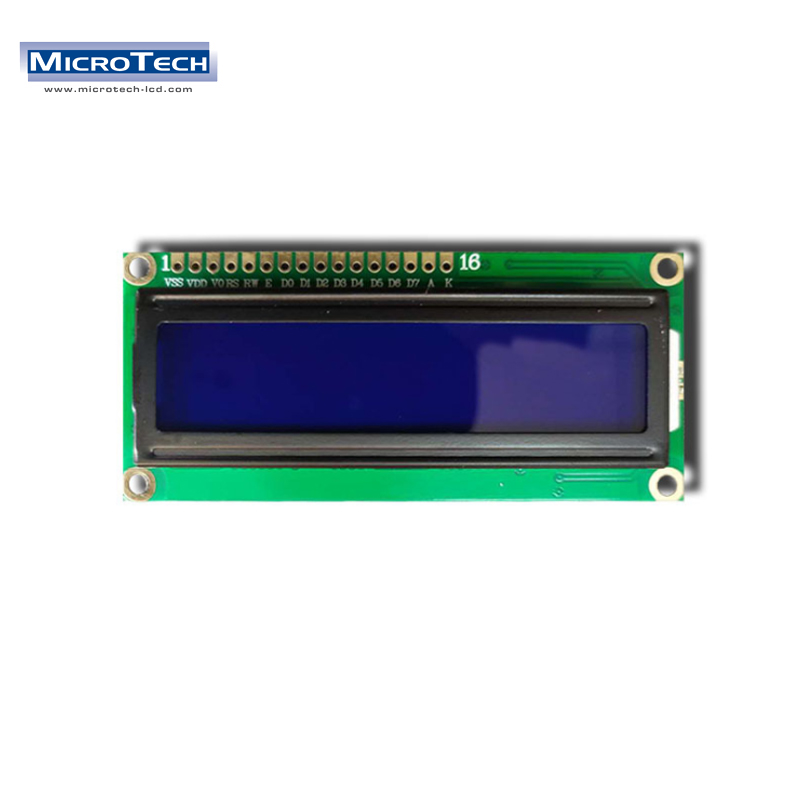

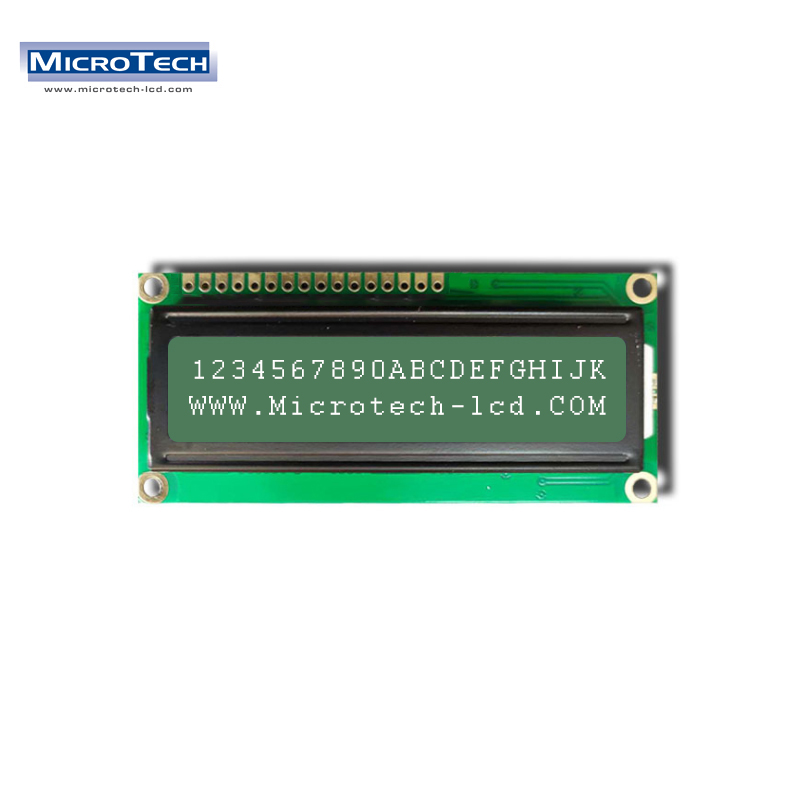

1602 dot matrix module MPU interface COB FSTN/STN monochrome character LCD module

美元 $1.00 - 美元 $1.20

生产所需时间:

25-45 日

运送方式:

Support Express · Sea freight · Land freight · Air freight

品牌:

Microtech

型号编号:

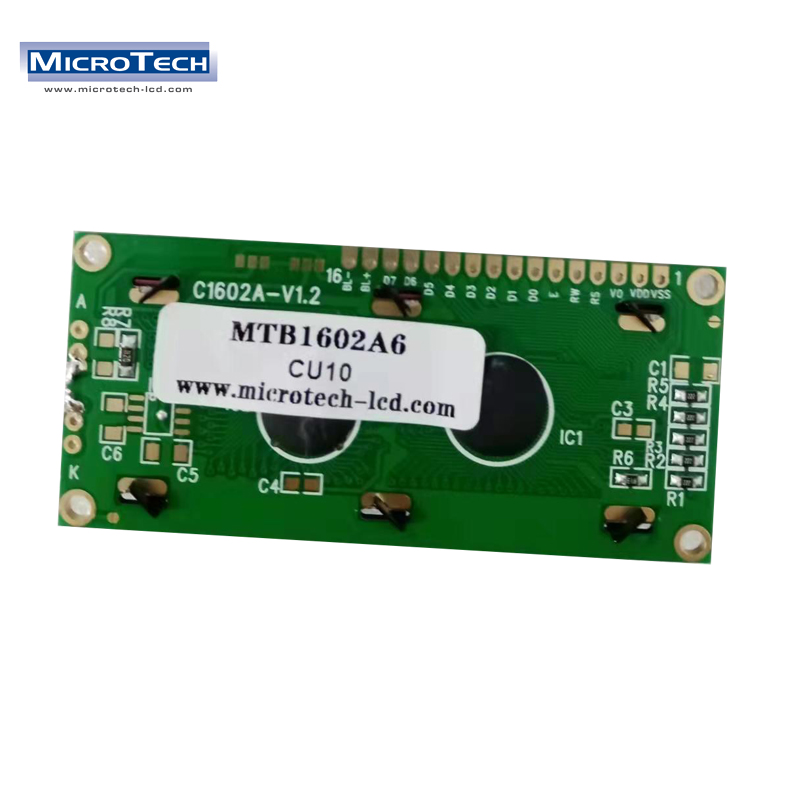

MTB1602A6

是否可订造:

可以

尺寸:

16x2

描述

联络供应商

16x2 COB LCD Module FSTN/STN Monochrome LCD Display Directly Connected to M6800 Serial Port MPU

Interface with 4-bit or 8-bit MPU (directly connected M6800 serial MPU)
Display Specification
Display Character: 16 character X 2 line
Character Font:5X8dors+cursor
Display color-Display background color : POWER： +5V
Polarize mode: positive, Transmissive, Gray
Viewing angle: 6:00
Display duty: 1/16
Driving bias: 1/5
Character Generator ROM (CGROM): 8320 bits (192 characterX5X8 dots) & (32 characterX5X10 dots)
Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)
Display Data RAM (DDRAM) :40X8 bits (80 characters max)
Mechanical characteristics (Unit: mm)
External dimension: 80.0X36.0X13.0
View area : 64.5X16 Character font: 5X8 dots + cursor
Character size: 2.96X5.16
Dots size:0.56X0.61
Character pitch: 3.5 X5.6
