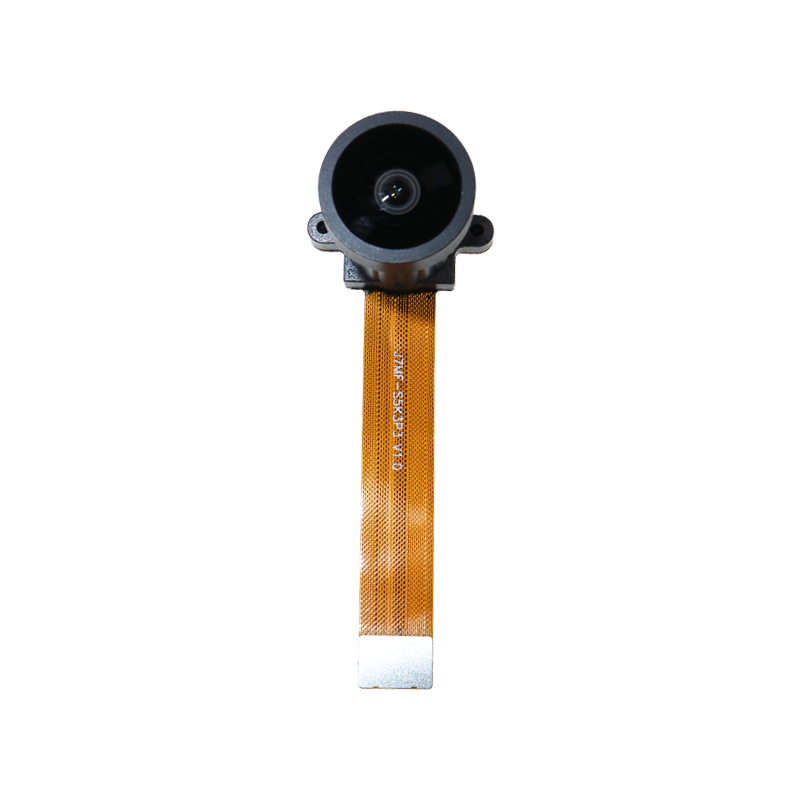

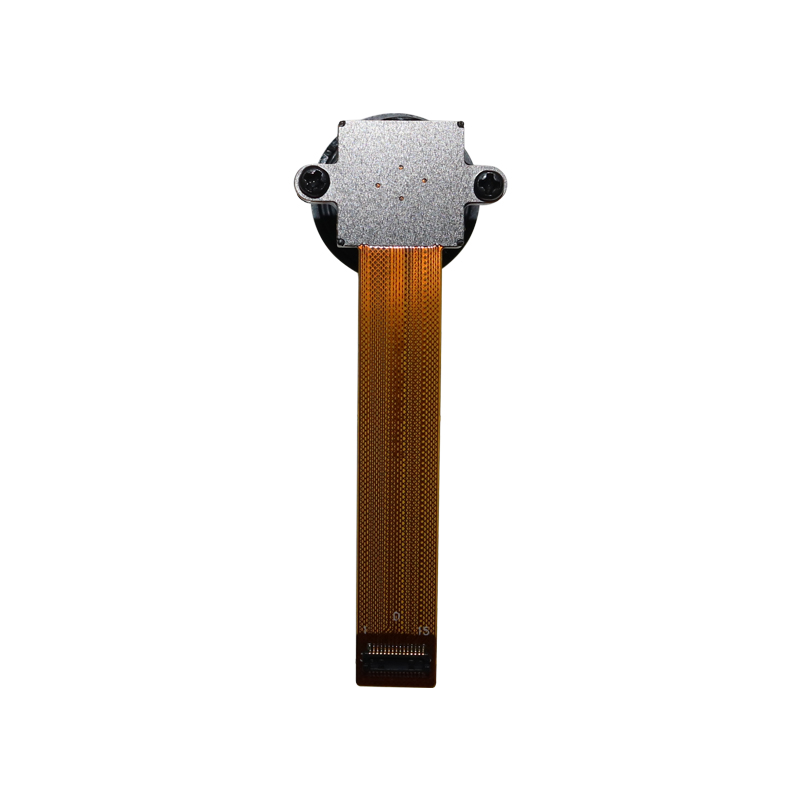

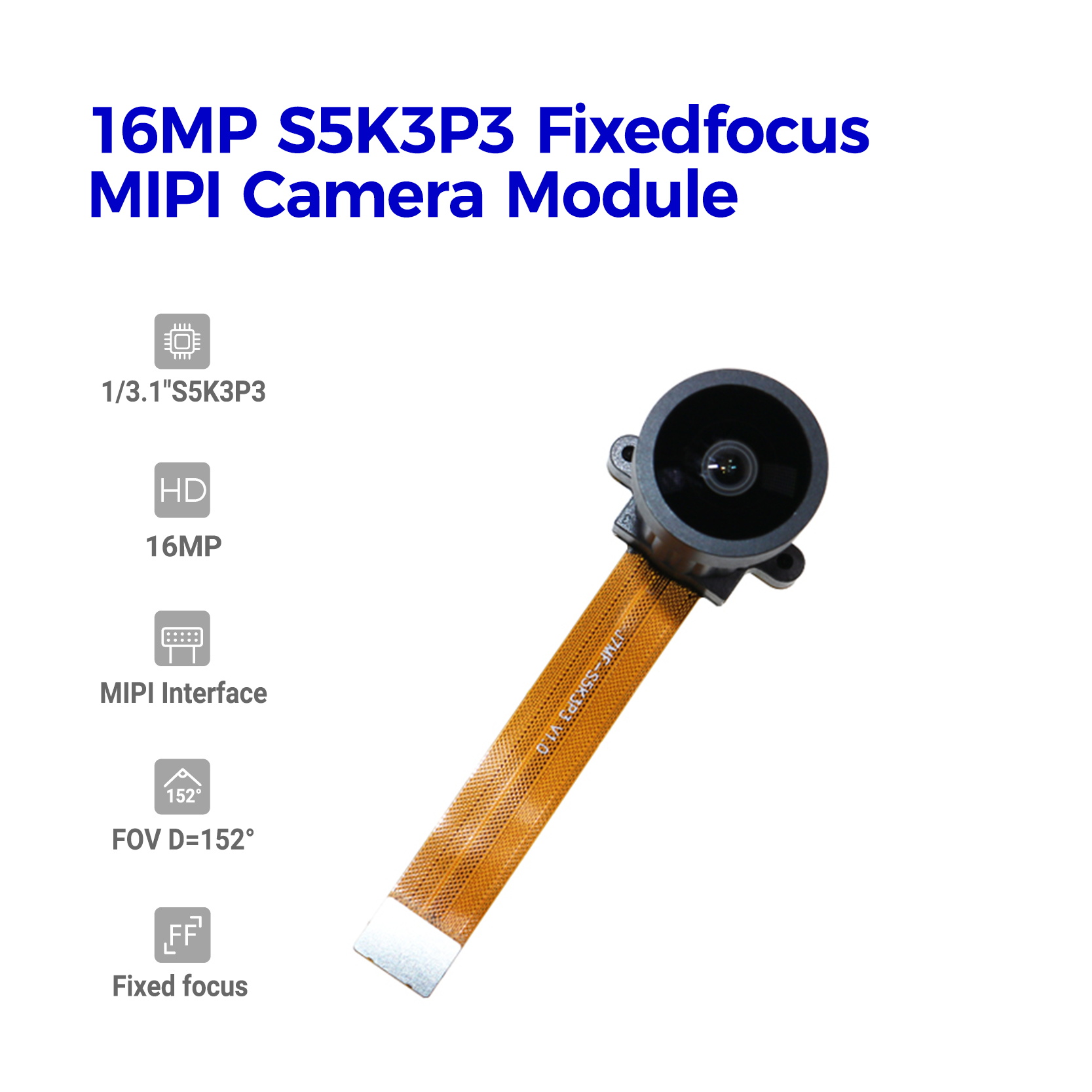

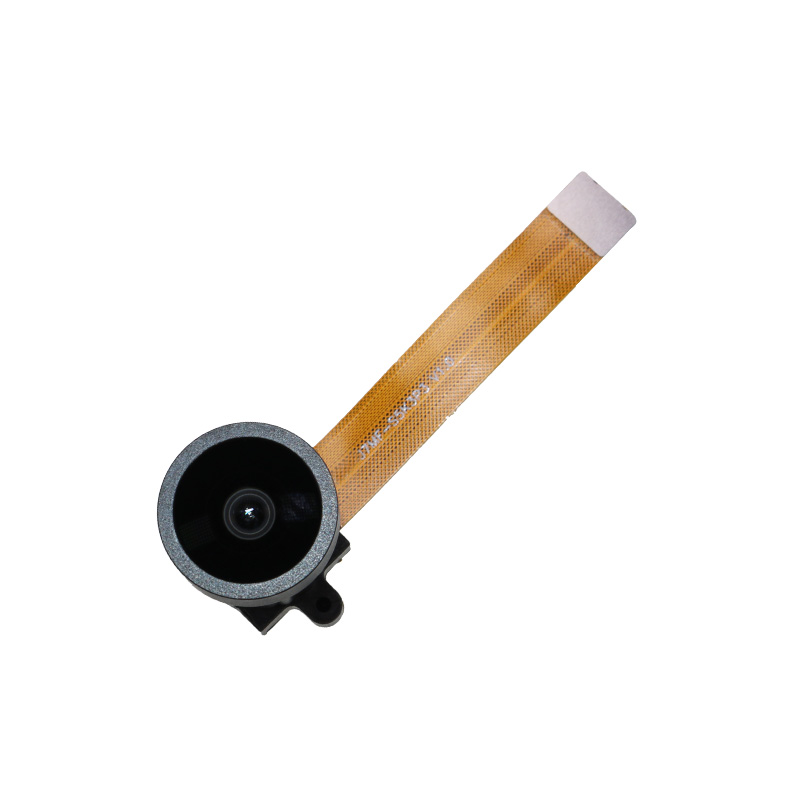

16MP S5K3P3 Sensor ISP Smartphone MIPI Dvp Camera Module

美元 $19.00 - 美元 $24.70

美元 $20.00 - 美元 $26.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-J7MF-S5K3P3 V1.0

Image Sensor:

S5K3P3

View Angle:

152°(DFOV)

Focusing:

Resolution:

16MP

Module Size:

60.00 x 22.00 mm

Interface:

MIPI

描述

联络供应商

Product Description

The HAMPO-J7MF-S5K3P3 V1.0 is a highly integrated 16M pixel camera chip camera module that includes a CMOS image sensor (CIS) , image correction functionality and serial transmission using 4-lane MIPI. It is designed for fast yet low power operation, delivering full resolution capture at 30 frames per second (fps) and full field of view (16:9) FHD video at 60fps. The S5K3P3SQ camera module supports Phase Detection Auto Focus (PD AF) mechanism allowing efficient Auto Focus in the system.

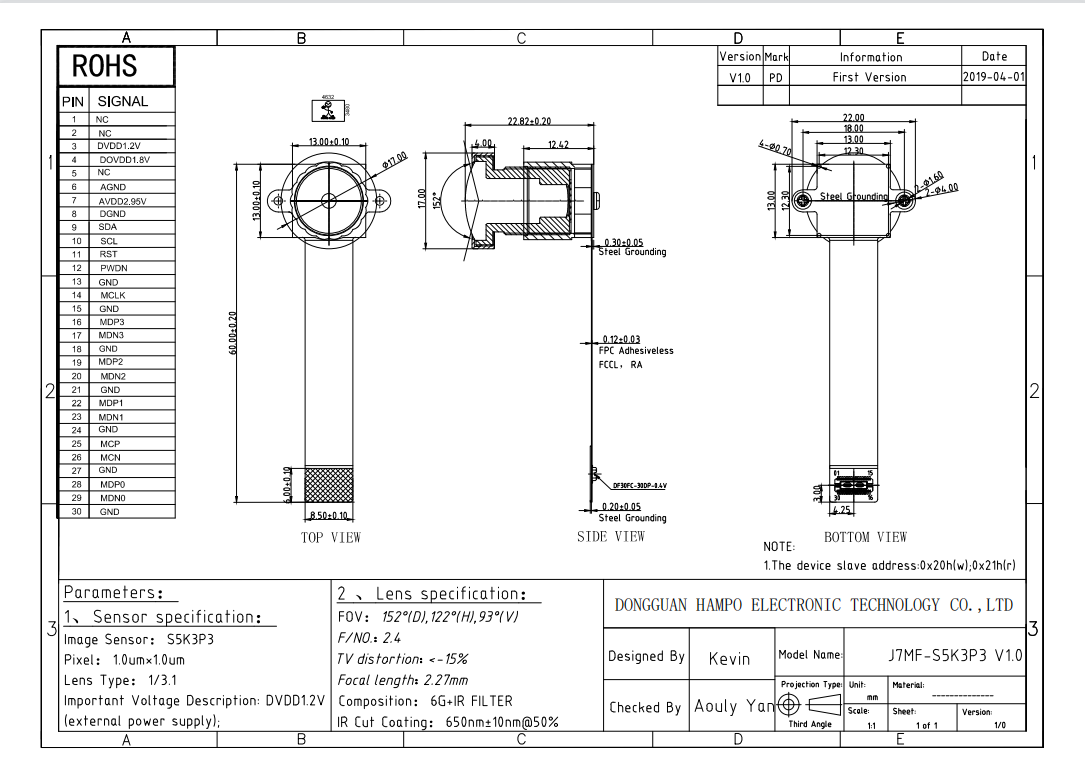

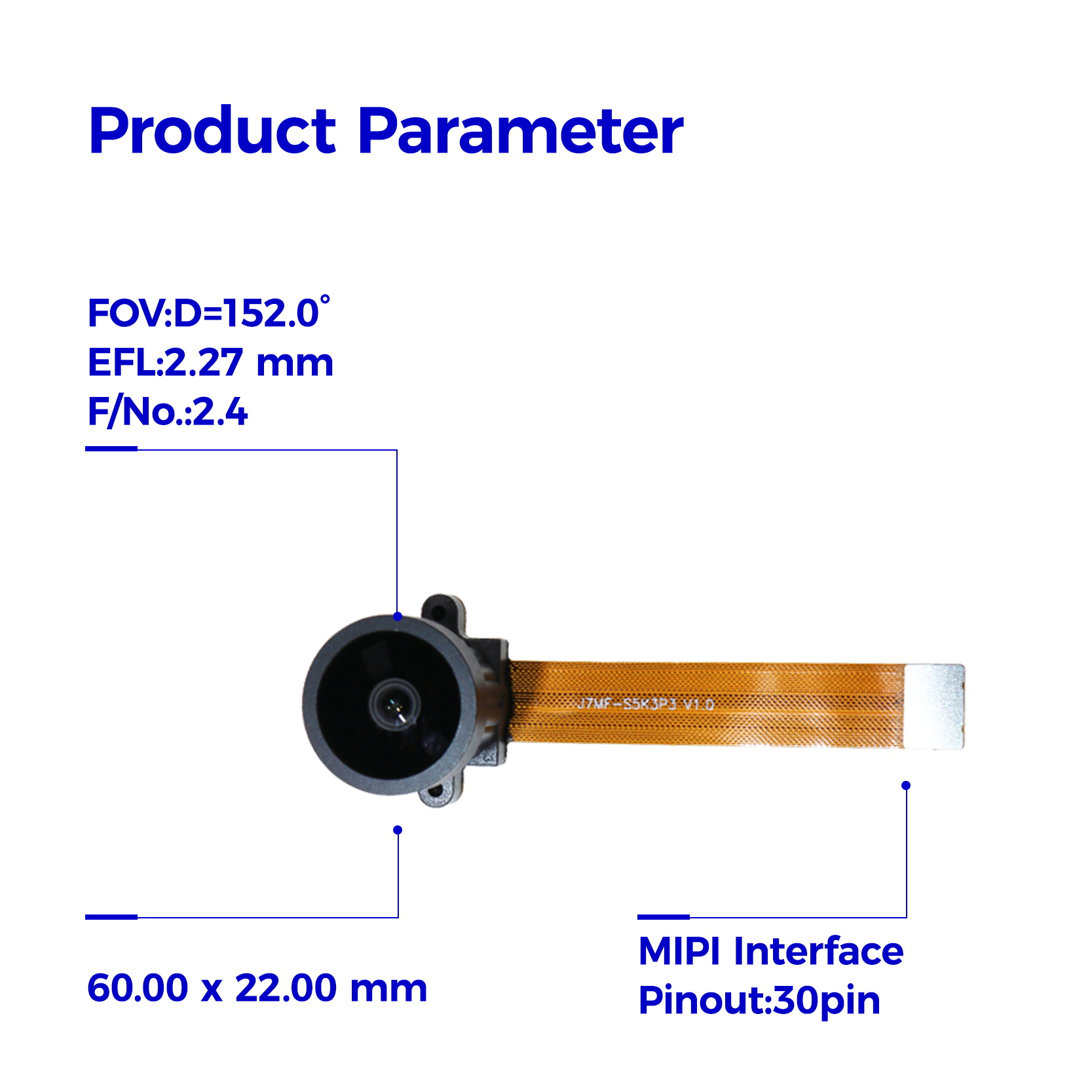

Specification
 Camera Module No.
HAMPO-J7MF-S5K3P3 V1.0
Resolution
16MP
Image Sensor
S5K3P3
Sensor Size
1/3.1"
Pixel Size
1.00 um x 1.00 um
EFL
2.27mm
F/No.
2.4
Pixel
4632 x 3480
View Angle
152.0°(DFOV) 122.0°(HFOV) 93.0°(VFOV)
Lens Dimensions
13.00 x 13.00 x 22.82 mm
Module Size
60.00 x 22.00 mm
Focusing
Fixed Focus
Infterface
MIPI
 Lens Type
650nm IR Cut
Operating Temperature
-20°C to +70°C

Key Features
16Mp sensor with 1/3.1" optics
Pixel size: 1.0um
Effective resolution: 4632 (H)  3480 (V)
Electronic rolling shutter and global reset
Support digital video stabilization margins in main view modes
Capture: 16M 30 fps
FHD video: 4M(16:9) 60 fps
HD video: 1.78M (16:9) 120 fps
High speed: WVGA 120 fps
High speed: VGA (4:3) 120 fps
Phase Detection Auto Focus (PD AF) support
Interfaces:
Fine interface frequency control using additional dedicated PLL for EMI avoidance and integration flexibility.
MIPI CSI2 - four lanes (1.5 Gbps per lane)
Supply voltage: 2.95 V for analog and 2.8 V or 1.8 V for I/O, 1.2 V for digital core supply
Operating temperature: –30 C to +70 C
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
