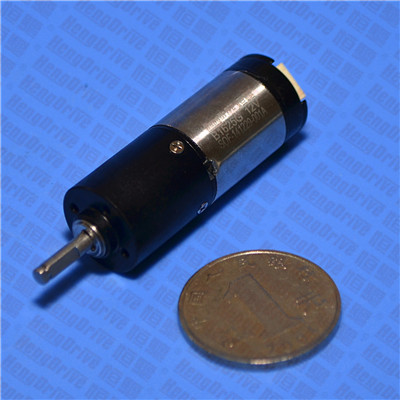

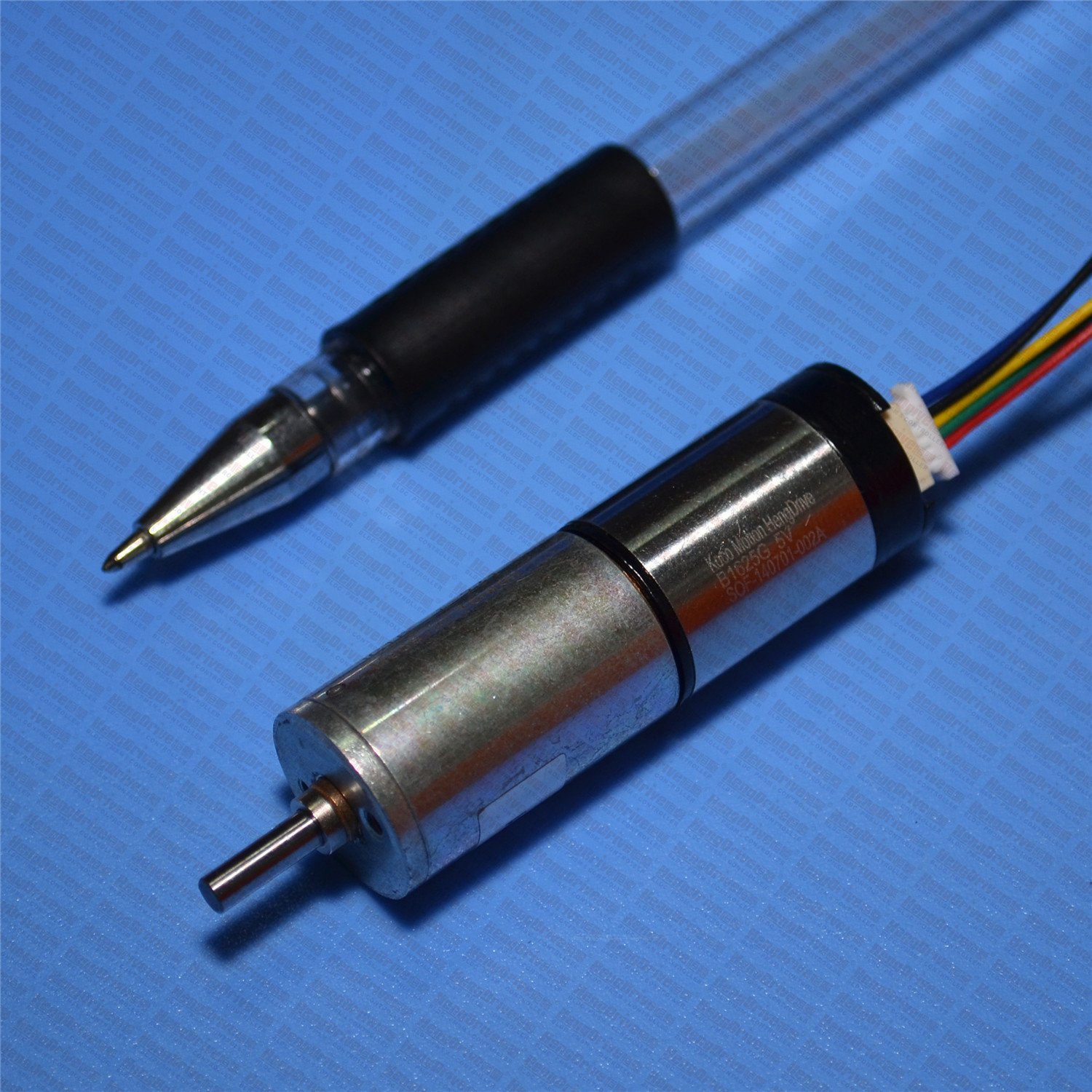

• B1625M brushless DC motor
• Output power: 0.1W~1W weight: 18g (approx.)

Typical application

• Home application: white goods, small appliance, kitchen appliance, smart home, micro actuator
• Automobile parts: micro pump, switcher
• Medical apparatus: medical pump, liquid pump, gas pump
• Industry equipment: micro pump, micro valve, instrument, meter
• Business equipment: printer, copier, projector, scanner, cash register
• Personal care: skin care, beauty apparatus

Specification:

• No load
• Voltage(V): 12
• Speed(rpm) : 7850
• Current(A) : 0.034
• Rated
• Torque (mNm):0.687
• Speed (rpm):6690
• Current (A):0.080
• Output P.(W):0.482

Starting

• Torque (mNm):4.67
• Current (A) : 0.35

It has outer rotor, inner rotor, and geared box types.

• Characteristic: CW & CCW, signal function available, locked rotor protection, stepless speed regulation, low noise, low EMI, long life 10000-30000hrs
• Notice: data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
• For outline drawing and more specifications, please mail to get them!

HENGDRIVE is the top level corporation of R&D and manufacturing standard and general brushless DC motor (BLDC) with high quality and low cost in China. We are the number one in BLDC series and models in China. Hengdrive BLDC motors use innovative patented internal drive circuit (controller) inside of motor, which will help our customers to easily assemble, connect, control and operate our BLDC motors.

Hengdrive BLDC motors have absolute technical advantage of high efficiency, high reliability, super low noise, super excellent EMC, signal function available, stepless speed regulation, locked rotor protection, high current protection, high temperature protection, super long life 10000-50000hrs.

We have total 12 standard series of BLDC motors with diameter 16, 22, 24, 28, 36, 42, 56, 68, 90mm inner rotor BLDC motor and diameter 30,37, 60mm outer rotor BLDC motor, output power from 0.1W to 400W, with standard interface connectors. We have passed the certification of ISO9001, ISO14001 as well as the strict TS16949 certification of the automobile industry. Moreover, we also lay emphasis on the international certification of product quality, and have obtained CE certificate.
