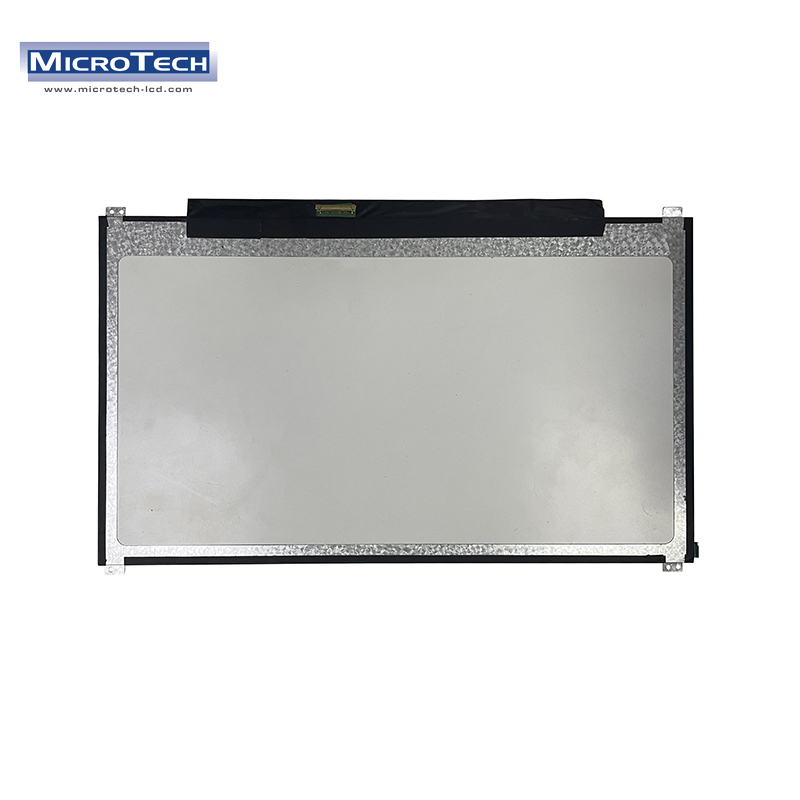

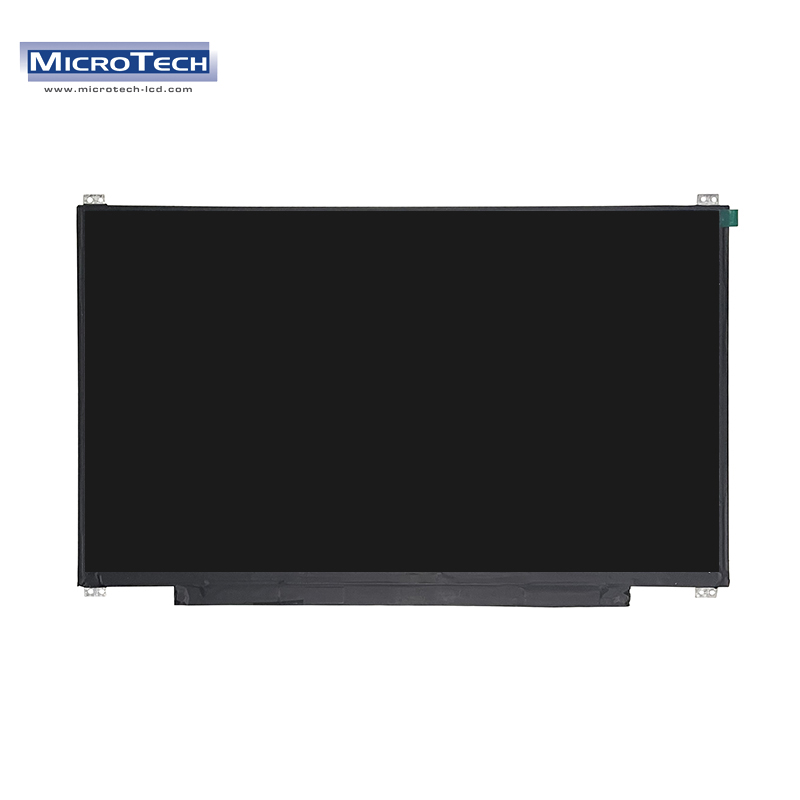

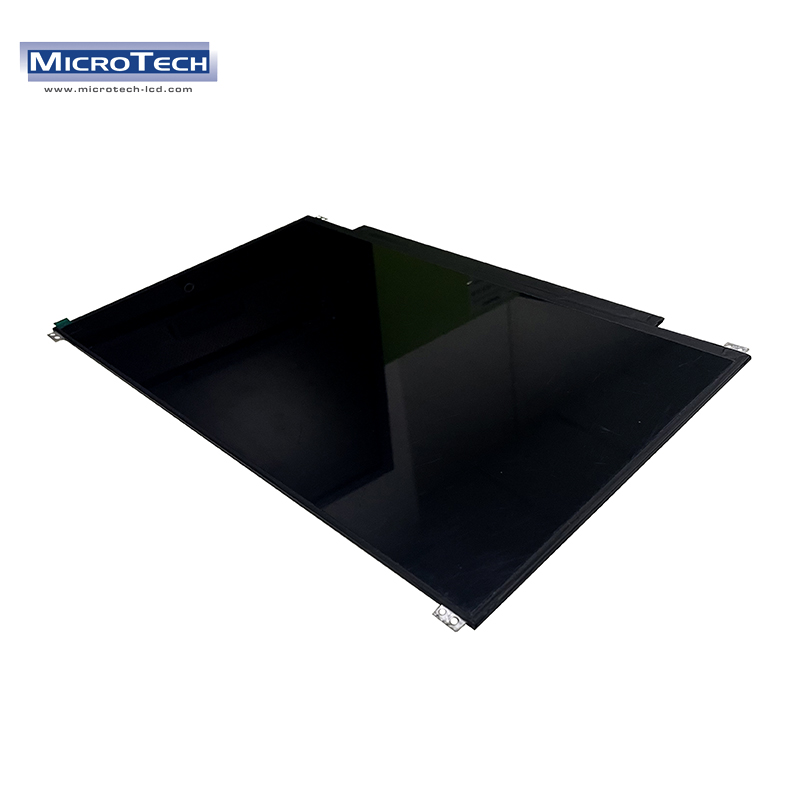

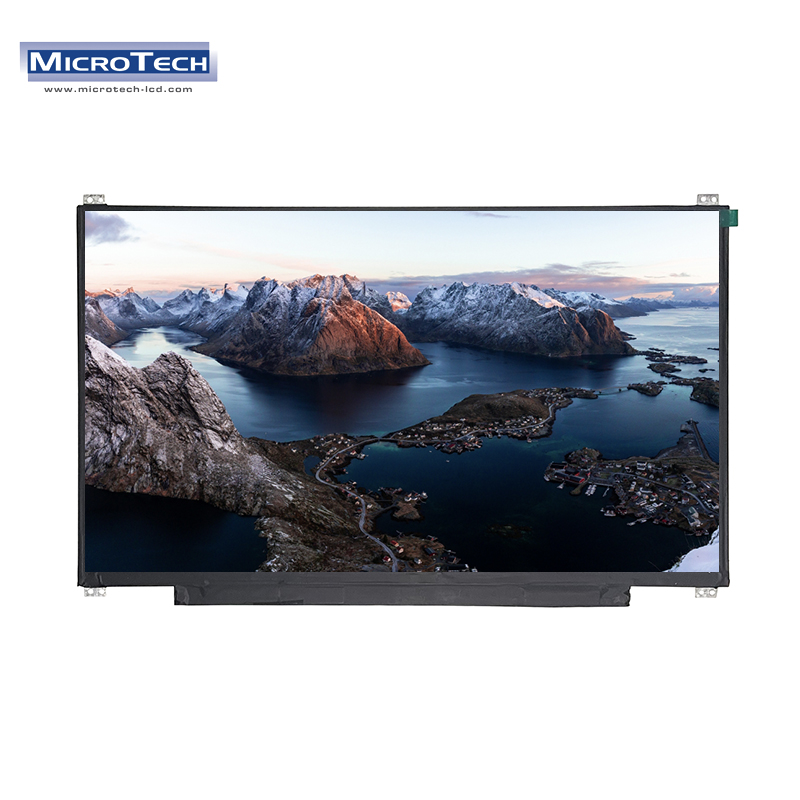

1920*1080 TFT LCD screen 13.3 inch display 1000 high brightness display panel

美元 $5.00 - 美元 $15.00

生产所需时间:

25-45 日

运送方式:

Support Express · Sea freight · Land freight · Air freight

品牌:

Microtech-lcd

型号编号:

MTF133FD16A-V1

是否可订造:

可以

尺寸:

13.3inch

描述

联络供应商

1920*1080 TFT LCD screen 13.3 inch display 1000 high brightness display panel

This module is a color active matrix LCD module incorporating Oxide TFT (Thin Film Transistor).It is composed of a
color TFT-LCD panel, driver ICs, a control circuit and power supply circuit. Graphics and texts can be displayed on a
1920×3×1080 dots panel with 262144 colors by using eDP (Embedded Display Port) Ver1.2 interface and supplying +3.3V
DC supply voltage for TFT-LCD panel driving.
In this TFT-LCD panel, color filters for excellent color performance is incorporated to realize brighter and clearer
pictures, making this Module optimum for use in multi-media applications.
Optimum viewings are in all directions. 9serial
4paralel LED structure.
Backlight-driving LED controller is built in this Module. eDP
transfer rate specification: 2.7Gbps/2 lane.

Parameter	Specification	Unit	Remarks
Panel Size	13.3”	inch
Number of Pixels	1920RGB(3)1080	pixels
Active Area	293.76(H) *165.24(V)	mm
Pixel pitch	0.153(H) *0.153 (V)	mm
Outline Dimension	307.6(H)183.05(V)5.5(D)	mm
Number of Colors	16.7M
Display Mode	Normally Black
Display Format	RGB vertical stripe
Luminance (cd/m^2)	1000(TYP.)	nit

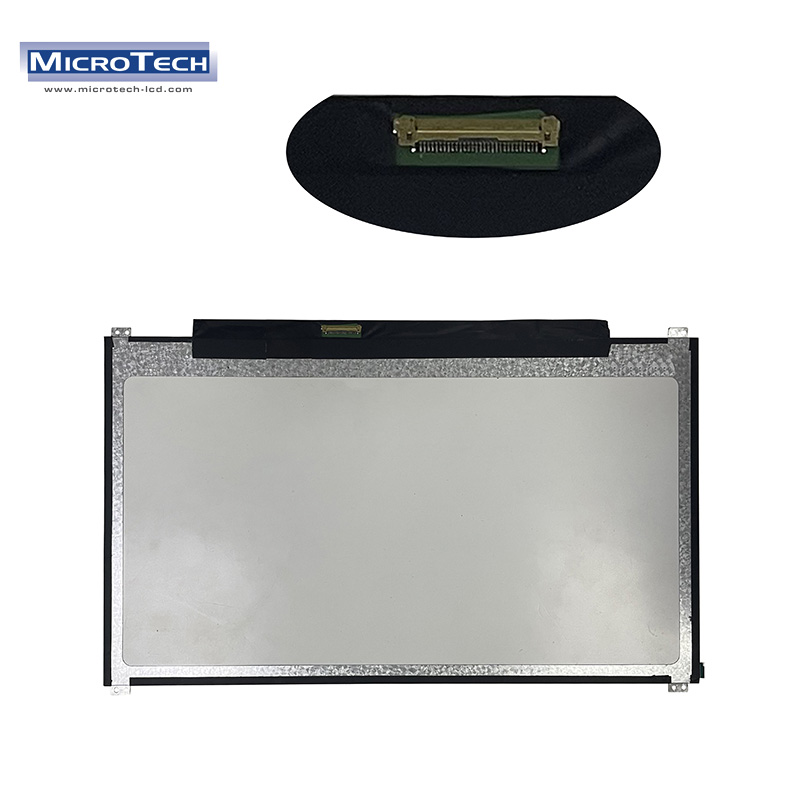

Interface	EDP
Backlight	White LED
Operation Temperature	0~50	℃
Storage Temperature	-20~60	℃
Weight	TBD	g
