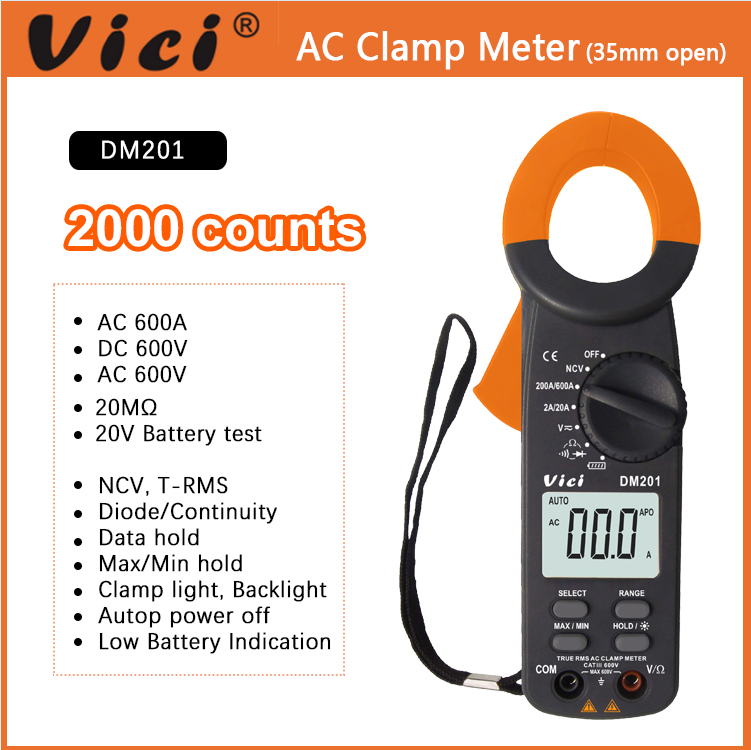

1999 Digits Digital Mini Clamp Meter
生产所需时间:
3 - 5 日
产品型号:
DM201
品牌名称:
Vici
颜色:
Orange, Grey
尺寸:
65mm×195mm×33mm
港口:
Shenzhen
最低订购数量:
40
是否可定制:
是
测量范围:
DCV/ACV/ACA/Resistance/Diode Test
工作温度:
23+-5C
显示方式:
数字
描述
联络供应商
描述
- Clamp open 35 mm
- Portable design, easy to operate
- Full function protection, anti high voltage circuit design
- CE stander design, improve the safety of the test
- MAX. data hold
- CE certified, OEM available
- Technical data:
- DCV 200mV/2V/20V/200V/500V ±(1.0%+3)
- ACV 200mV/2V/20V/200V/500V ±(1.5%+5)
- ACA 2A/20A/200A/400A ±(2.0%+5)
- Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(1.0%+3)
- Special functions:
- Diode test
- Continuity alarming: less than30Ω±10Ω
- Low battery indication: approx less than 2.4 V
- Data hold: max. hold
- Auto power off: about 15minutes
- Function protect: full function protection
- Input impedance: 10MΩ
- Sampling rate: 3times /s
- AC frequency response: Amperemter50Hz/Voltage(50-400)Hz
- Operation way: Manual or auto range
- Max. display: 1999
- Clamp open35mm
- Battery3V (2*1.5v)
