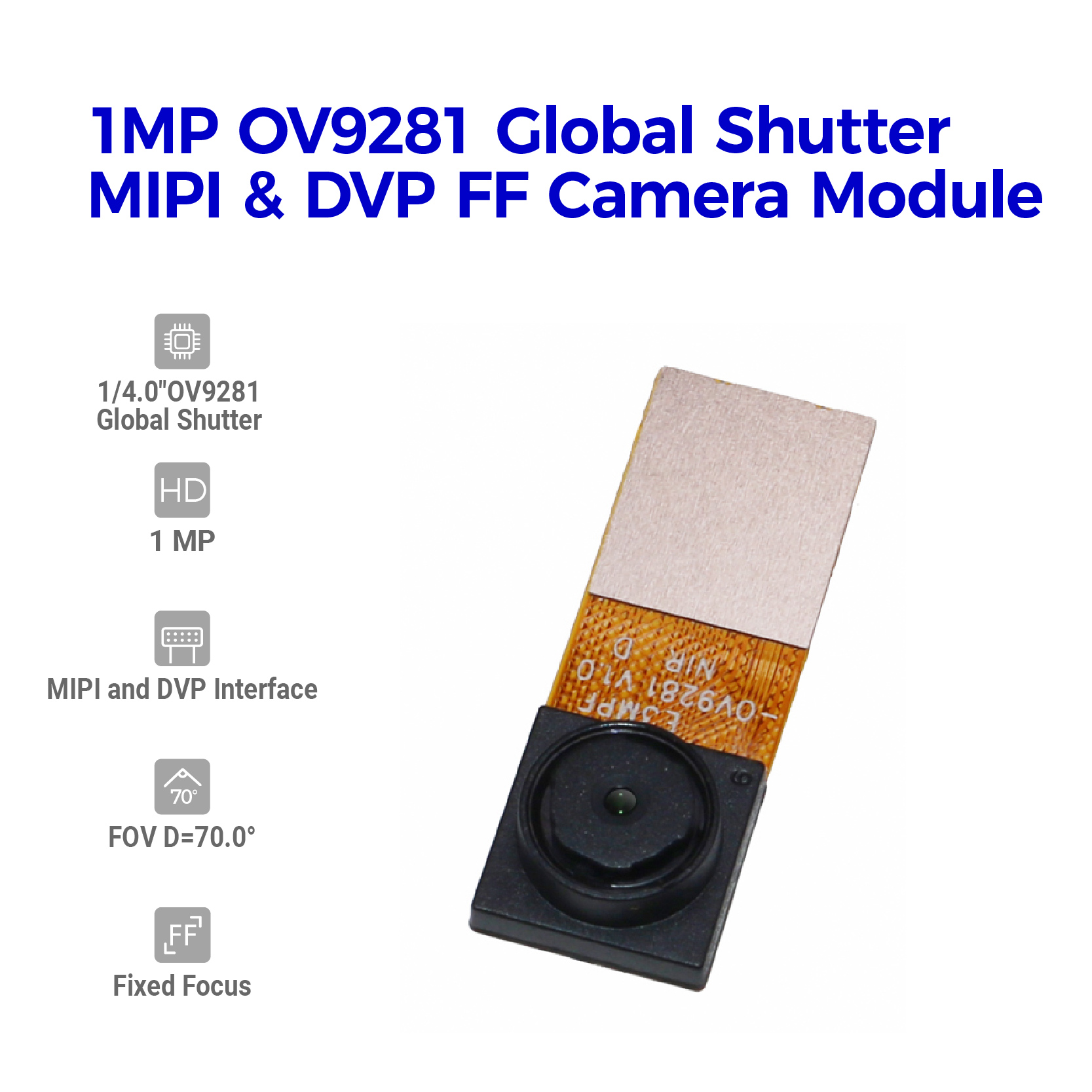

1MP OV9281 Global Shutter MIPI & DVP FF Camera Module

美元 $15.20 - 美元 $19.95

美元 $16.00 - 美元 $21.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-E3MPF-OV9281 V1.0 NIR

Image Sensor:

OV9281 Global Shutter

View Angle:

70.0°(DFOV)

Focusing:

Fixed Focus

Resolution:

1MP

Module Size:

24.00 x 8.50 mm

Interface:

MIPI and DVP Parallel

描述

联络供应商

Product Description

HAMPO-E3MPF-OV9281 V1.0 NIR is a 1MP OmniVision OV9281 Global Shutter MIPI and DVP Interface No IR
Fixed Focus Camera Module.It uses 0.4 mm Pitch, 0.9 mm Height, Board-to-Board / Board-to-FPC Connectors.

APPLICATIONS :Cellular phones, PDA's, mobile computers, digital cameras, digital video cameras, and other devices demanding high reliability connections in extremely limited spaces.

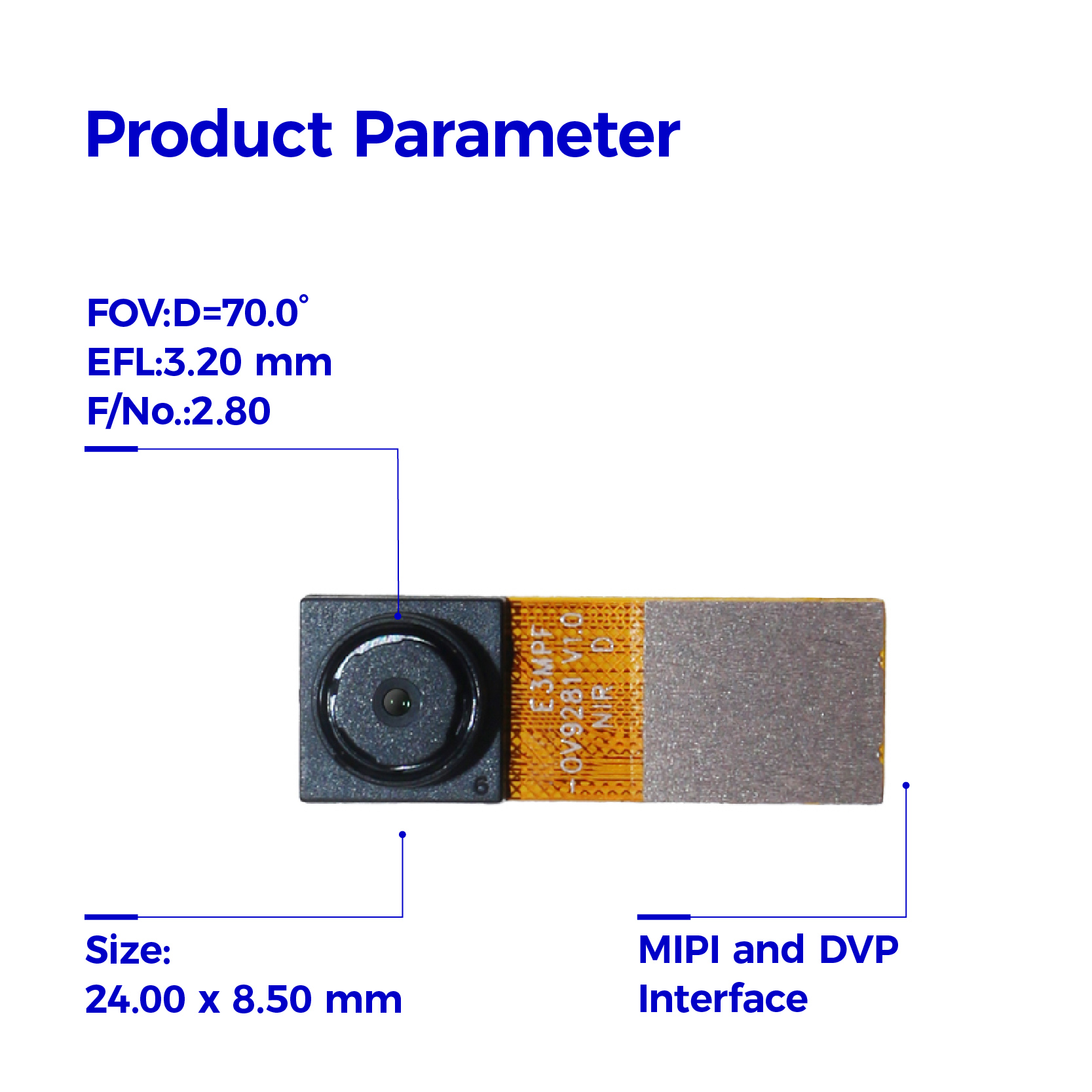

Specification
 Camera Module No.
HAMPO-E3MPF-OV9281 V1.0 NIR
Resolution
1MP
Image Sensor
OV9281 Global Shutter
Sensor Type
1/4"
EFL
3.20 mm
F.NO
2.80
Pixel
1296 x 816
View Angle
70.0°(DFOV) 58.6°(HFOV) 45.3°(VFOV)
Lens Dimensions
8.50 x 8.50 x 4.75 mm
Module Size
24.00 x 8.50 mm
Module Type
Fixed Focus
Interface
MIPI and DVP Parallel
Auto Focus VCM Driver IC
None
 Operating Temperature
-30°C to +85°C
 Mating Connector
DF30FC-24DS-0.4V
Key Features
*3 µm x 3 µm pixel with OmniPixel®3-GS technology
*automatic black level calibration (ABLC)
*programmable controls for:
- frame rate
- mirror and flip
- cropping
- windowing
*support output formats: 8/10-bit RAW
*fast mode switching
*supports 2x2 monochrome binning
*two-lane MIPI serial output interface
*DVP parallel output interface
Company Profile

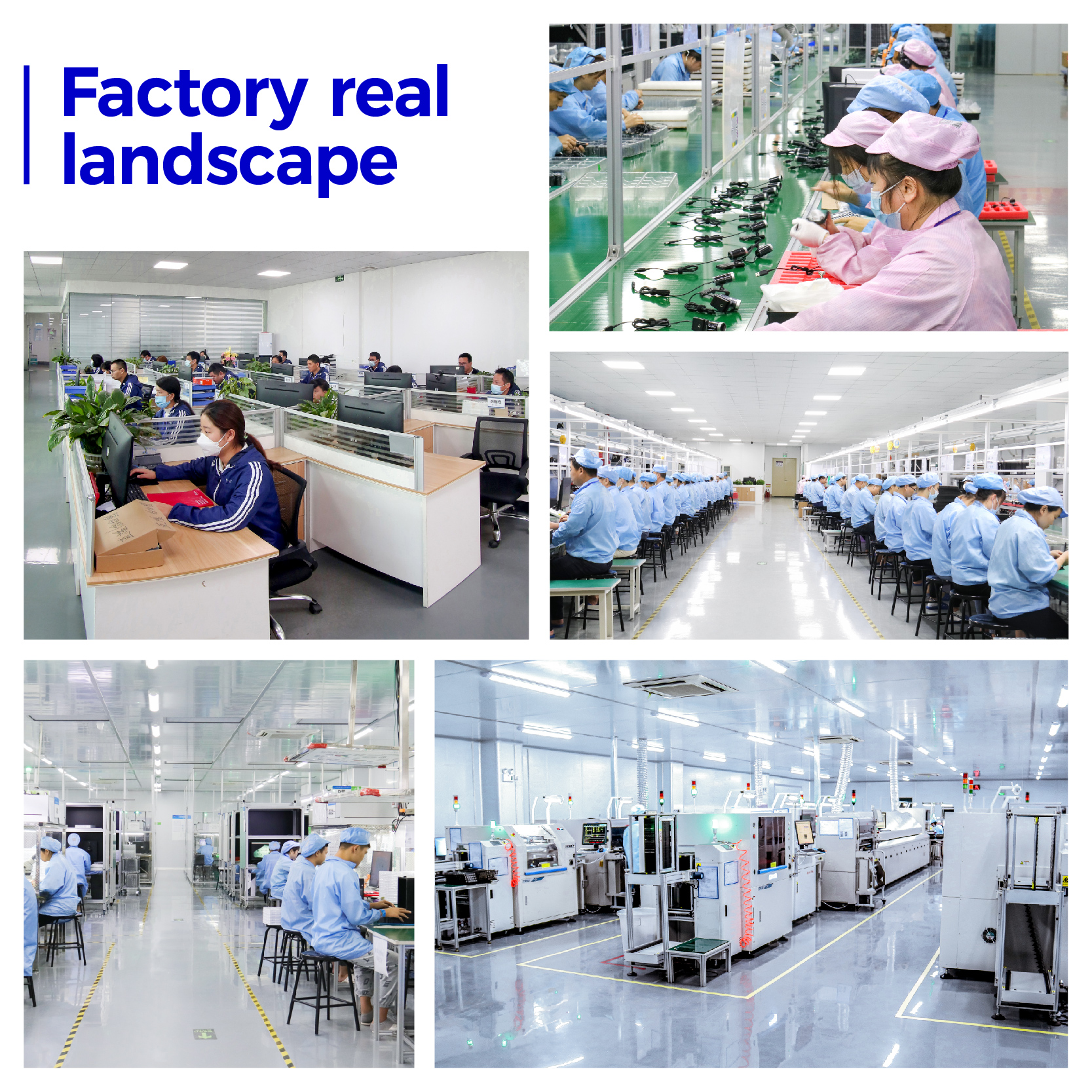

Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
