1MP OV9712 Fixed Focus Mipi Camera Module

美元 $11.40 - 美元 $15.20

美元 $12.00 - 美元 $16.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-KM1-OV9712-1D V6.0

Image Sensor:

OV9712

View Angle:

120°(DFOV)

Focusing:

Resolution:

1MP

Module Size:

100.00 x 10.40mm

Interface:

MIPI

描述

联络供应商

Product Description

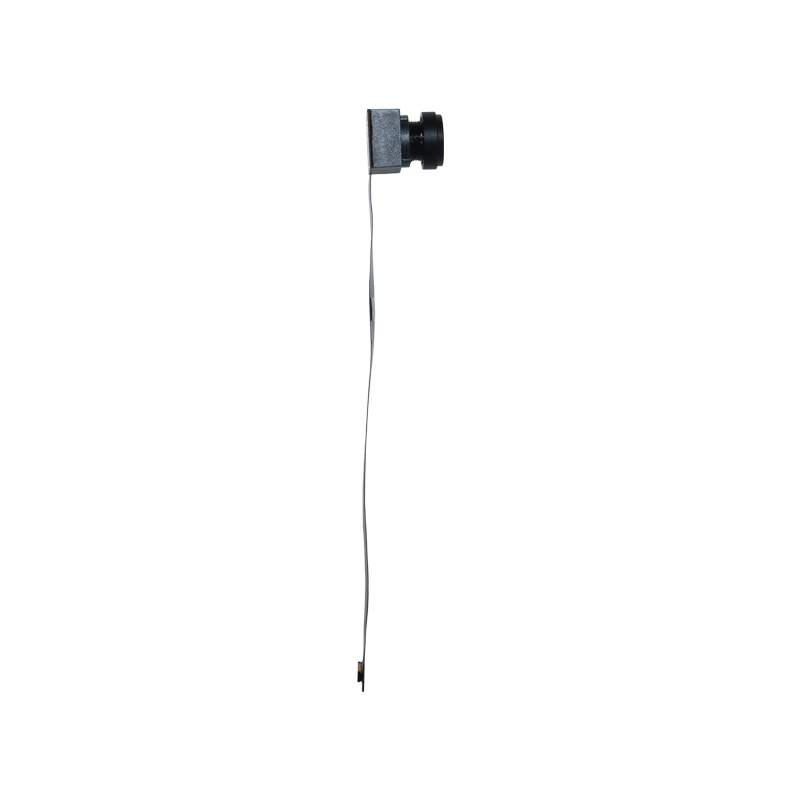

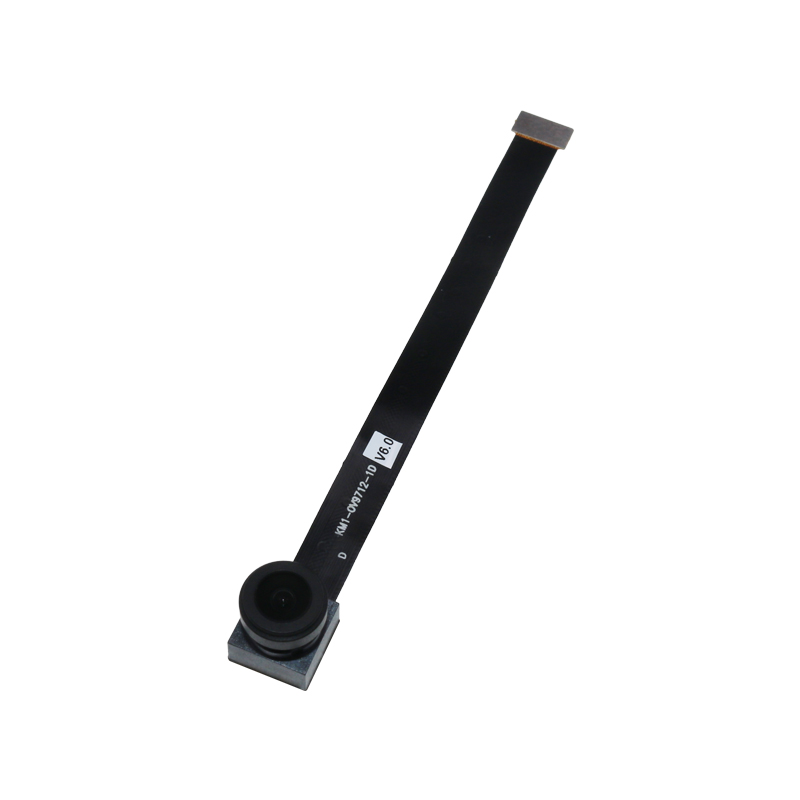

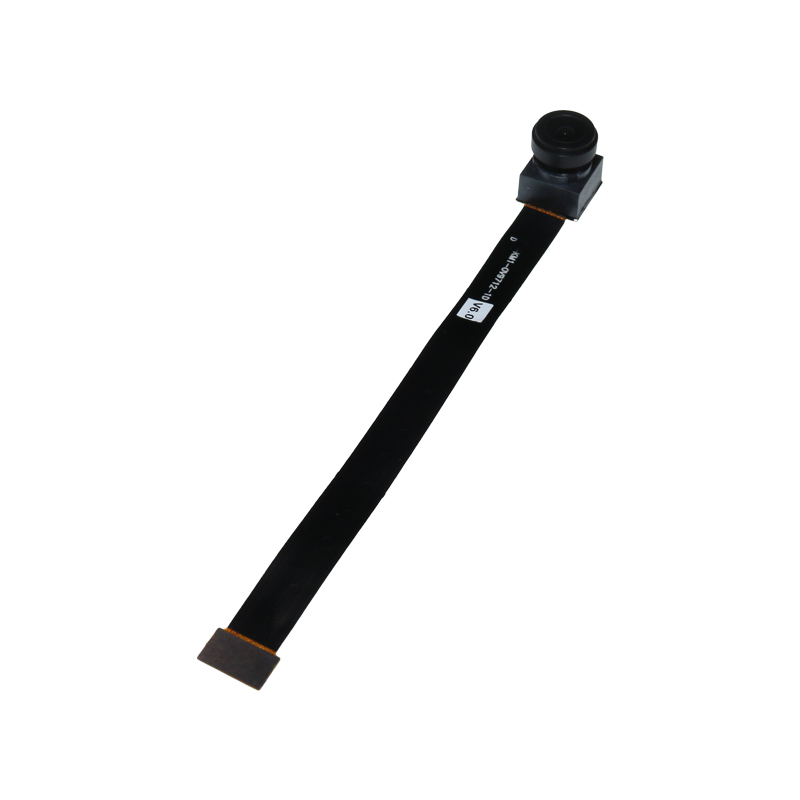

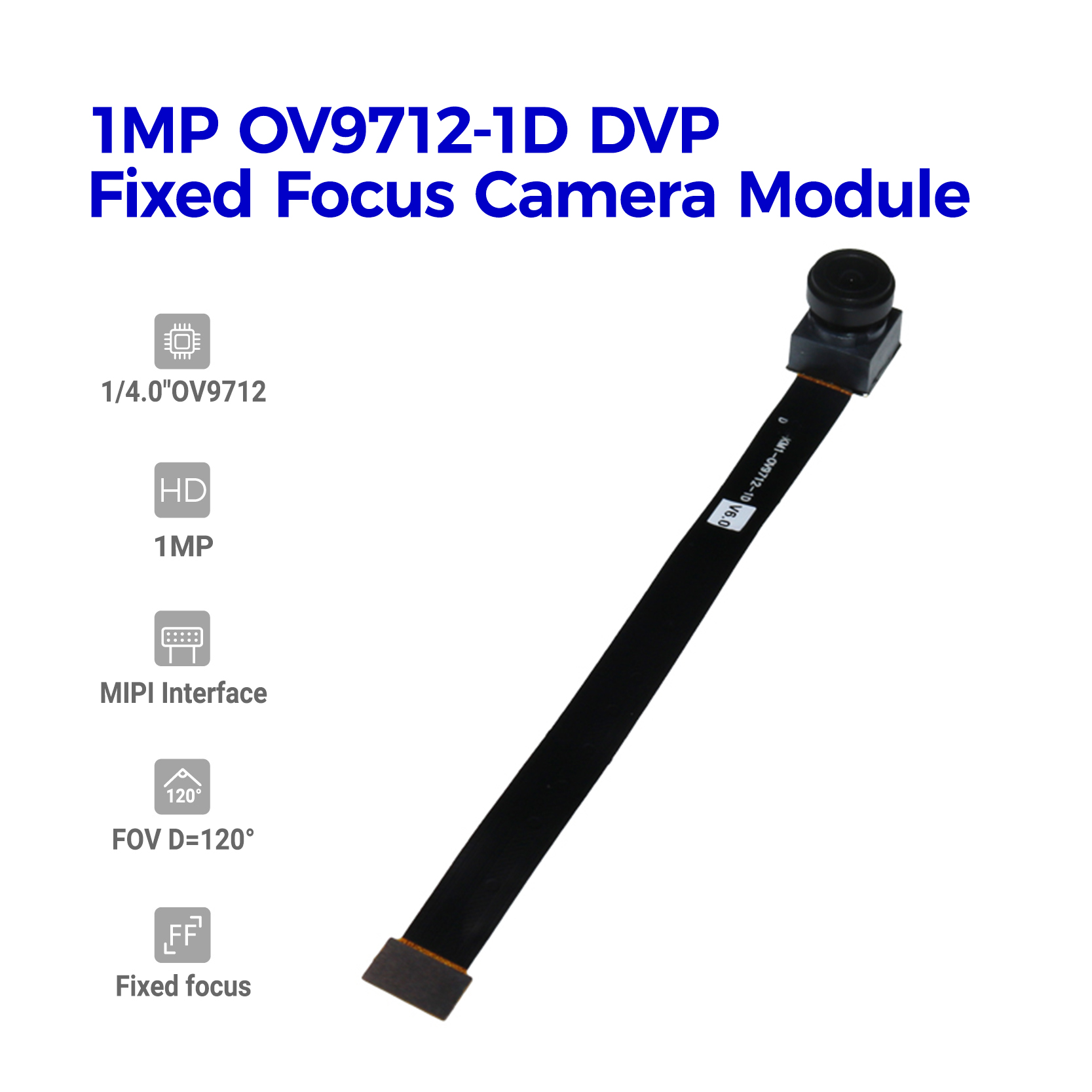

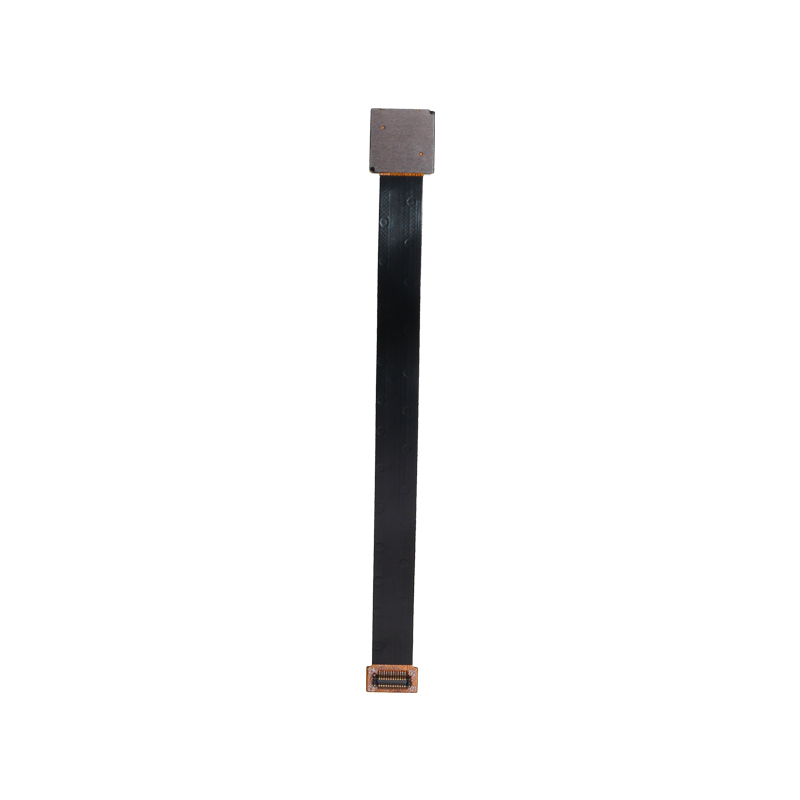

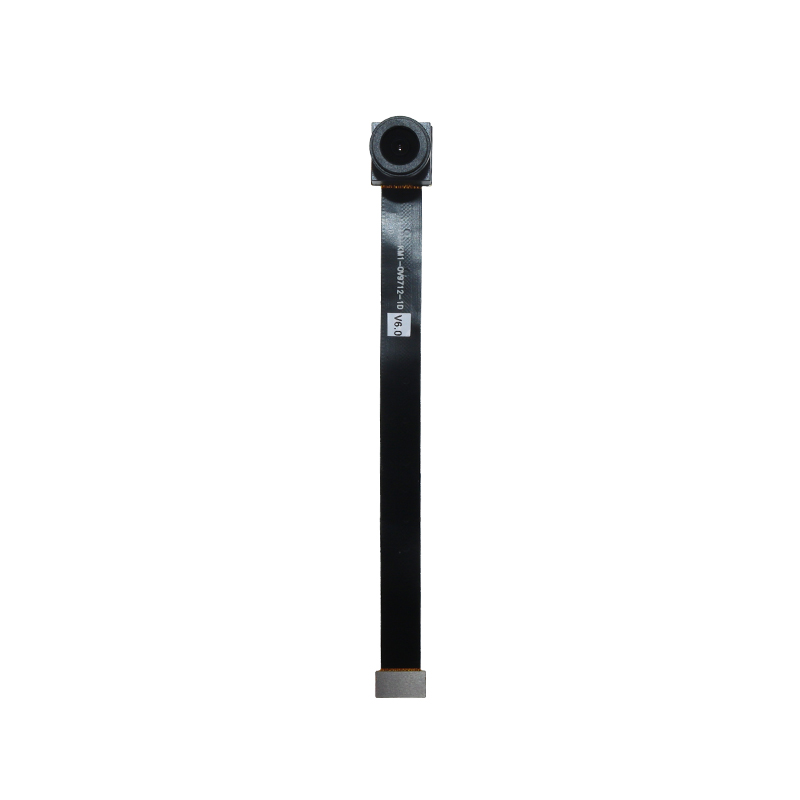

HAMPO-KM1-OV9712-1D V6.0 is a 1MP OmniVision OV9712-1D DVP Parallel Interface Fixed Focus Camera Module.It uses NARROW PITCH (0.4 mm) CONNECTORS F4S SERIES.

APPLICATIONS :Compact portable devices “Cellular phones, DVC, Digital cameras, etc”.

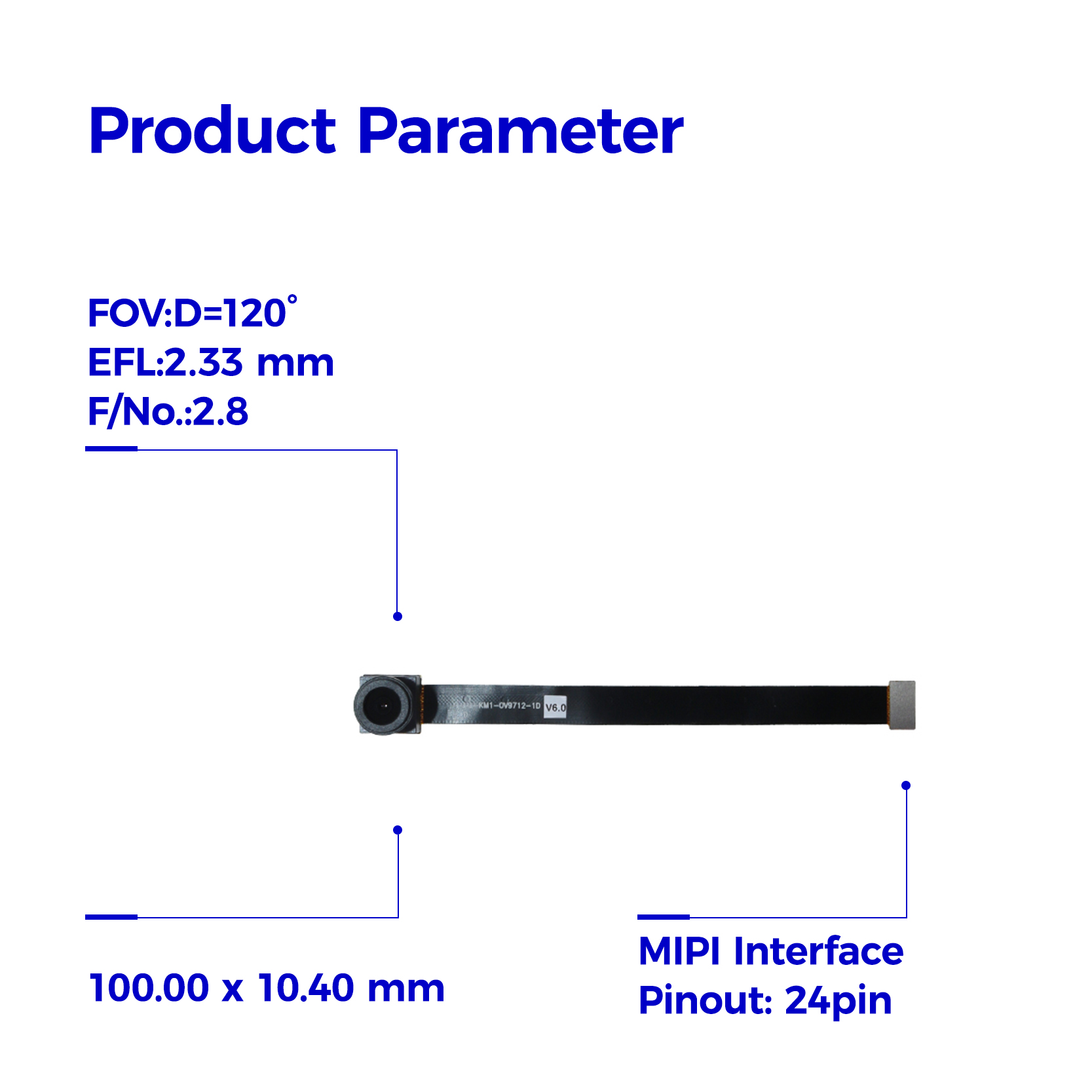

Specification

Camera Module No.	HAMPO-KM1-OV9712-1D V6.0
Resolution	1MP
Image Sensor	OV9712-1D
Sensor Type	1/4"
EFL	2.33
F.NO	2.80
Pixel	1280 x 800
View Angle	120.0°(DFOV) 99.0°(HFOV) 55.0°(VFOV)
Lens Dimensions	10.40 x 10.40 x 12.80 mm
Module Size	100.00 x 10.40 mm
Module Type	Fixed Focus
Interface	DVP Parallel
Auto Focus VCM Driver IC	None
Operating Temperature	-30°C to +70°C
Mating Connector	AXT524124

Key Features
*high sensitivity for low-light operation
*ultra low power and low cost
*image quality controls:
- lens correction
- defective pixel canceling

*output support for raw RGB
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
