1U Slim Class D Switching Power Amplifier | 消费电子产品

瑞扬电子有限公司

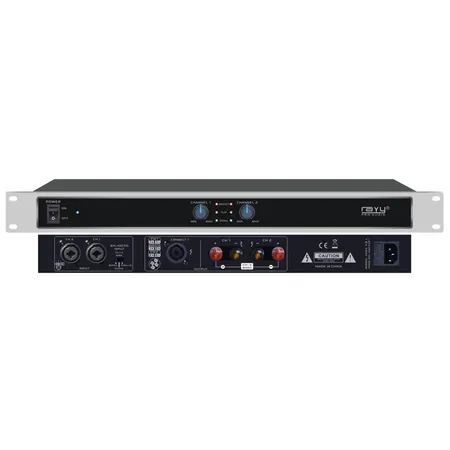

1U Slim Class D Switching Power Amplifier

产品型号:

PAD-182A

颜色:

Black

尺寸:

482 x 310 x 42 mm (WxDxH)

港口:

Guangzhou

付款方式:

T/T

输出功率:

2 x 50W, 4ohm

是否有包装:

有

是否可定制:

是

类别:

家用功率放大器

声道:

描述

联络供应商

Features:

DC Protection: protects the loudspeakers against infrasonic signals
High Frequency Protection: protects the loudspeakers against strong very high frequency non-musical signals above the audible range
Thermal Protection: shuts down the power supply if the line voltage is outside the operating voltage
Short Circuit Protection: protects the amplifier from the output fault
Clip Limiter: Prevents severely clipped waveforms from reaching the loudspeakers while maintaining full peak power.
Sound for a given input signal level.
The maximum input gain is achieved by turning the control completely clockwise.
4Ω Stereo Output Power :2 x 50W
8Ω Bridge Output Power: 2 x 100 W
Damping Factor:> 600
Input Impedance:>10kΩ
Input sensitivity:775 mV / 0 dB
Frequency response:20 Hz ~ 20 KHz distortion
S/N ratio:> 98dB
