20mm Slim Light Box LED Backlight Module

生产所需时间:

7 - 25 日

产品型号:

RX-BKT28T-A-120LED

品牌名称:

Xinelam

颜色:

WW NW CW

尺寸:

304x304mm, 304x60mm, 304x50mm,60x50mm

港口:

Zhongshan

付款方式:

T/T, Western Union, Paypal

最低订购数量:

1 piece

电压(伏):

DC24V

功率(瓦):

28.8W

用途:

Lightbox backlit

描述

联络供应商

Latest update new style advertising light box backlight led module, dedicated to slim light box backlight
Continuously stitching no need additional wires, high brightness 32000Lm/M2
With wide angle lens 160 degree
Light box over height 20mm can be uniform light, no hot spot be seen

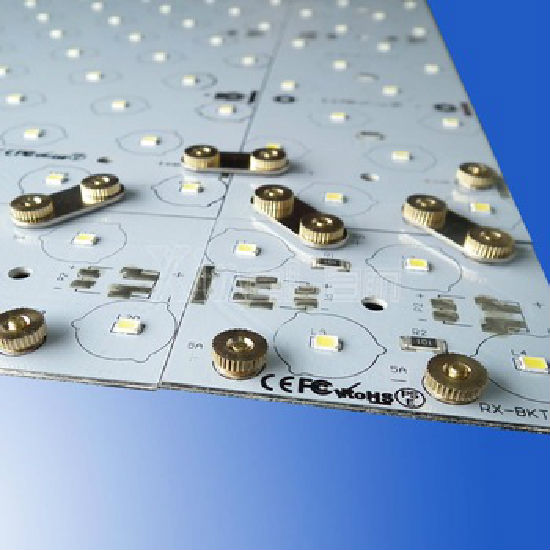

WAGO 2060 terminal block
Sizes optional
Warranty 3 years, lifespan 50.000hrs
Optional colors
CE RoHS FCC approved
Low cost, easy to install
Ideal for light boxes backlight, large-scale back lights projects, Ideal backlight-light source, Do your own energy-saving lighting project
Specification of the model:
Item no: RX-BKT28T
Optional sizes: 304X304/304X60/304X50/60X50mm
Power: 28.8W/5.8W/4.3W/1.4
Lumens: 2900Lm/570Lm/480Lm/90Lm
Voltage: DC24V AC100~240V
Light source: top SMD2835
CRI: 85
Viewing angle: 160 degree
Available CCT: 2700-3200k, 4200-4700k, 6000-6500k
Operated temp: -30-60degree
Connectors: Hand-tighten screws,wago 2060 terminals
Lifetime: 50.000hrs
Warranty: 3 years
Certification: CE RoHS FCC
