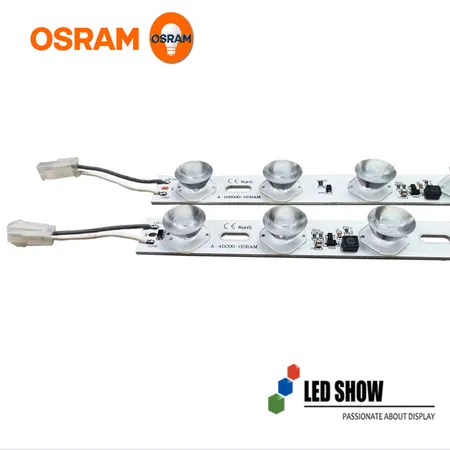

OSRAM LED strips are an economical solution for illuminating light boxes with a minimum thickness of 100 mm on both sides. These high-power LED strips are extremely bright and easy to install and are safe to use with a DC24V input voltage. OSRAM LED strips require aluminum profiles for better heat dissipation.

The strip led has some features as below:

1. Osram LED chip is used.

2. Energy saving lighting strip.

3. Constant current, conversion efficiency is more than 95%.

4. Uniform brightness.

5. Compliance with international safety standards.

6. Adopted PMMA high efficiency lens.

7. DC24~30V wide voltage input, brightness remains unchanged.

8. CE, RoHS certified.

9. Warranty: 2 years

Recommended installation:

The high power LED strip itself only has basic heat dissipation function, users need to paste or use fastening screws to fix the OSRAM strip on the aluminum frame for better heat dissipation. If an aluminum frame is not available, a special shaped heat sink is required. The size of the heat sink should be larger than 30 mm wide and 30 mm thick fin type. When the light box is installed for a long period of time in an environment lower than 28 degrees Celsius, the size of the heat sink can be smaller.
