256*192 High Definition 25HZ Long-wave Thermal Imaging Camera Module

美元 $342.00 - 美元 $350.55

美元 $360.00 - 美元 $369.00

生产所需时间:

10 日

运送方式:

express delivery

Max. Resolution:

256*192

Detector Frame Reta:

50Hz/25Hz

Spectral Band:

8-14μm

Weight:

Less Than 8g

Function:

Thermal image

Detector:

Wlp Uncooled Vox Infrared Focal Plane Detector

Video Output Format:

DVP/SPI

描述

联络供应商

Product Description

256*192 25HZ High Frame Rate Plug Series Thermal Imaging Tiny Module for Infrared Camera Thermal Camera

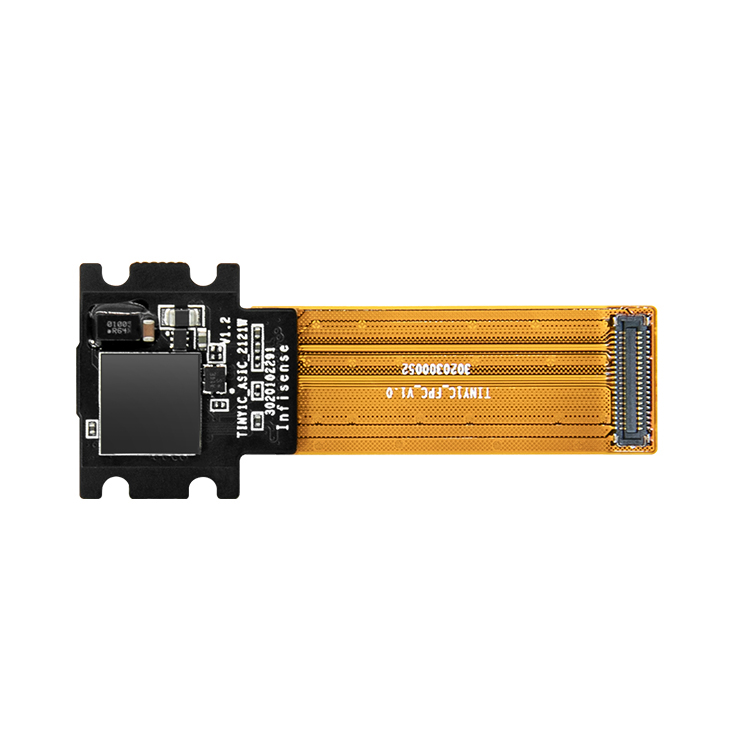

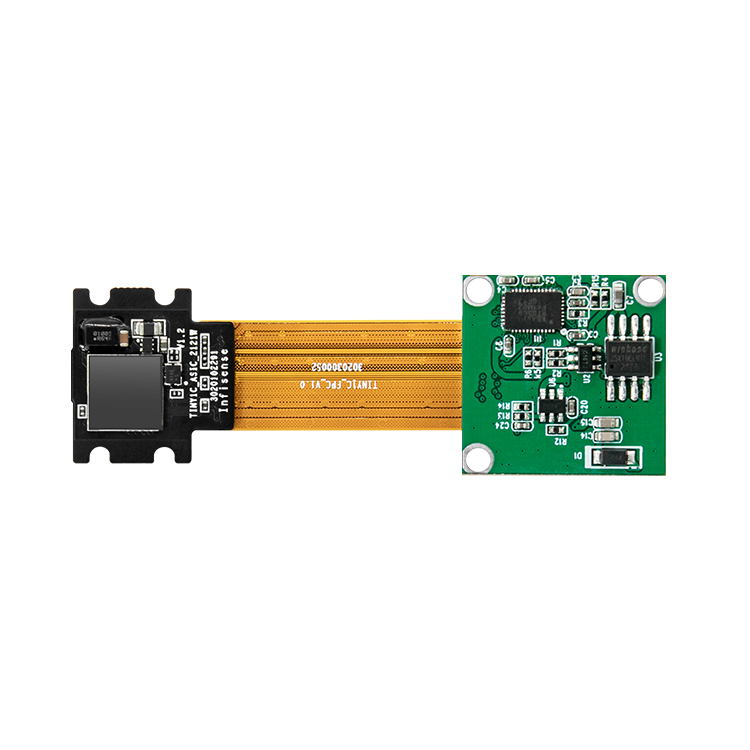

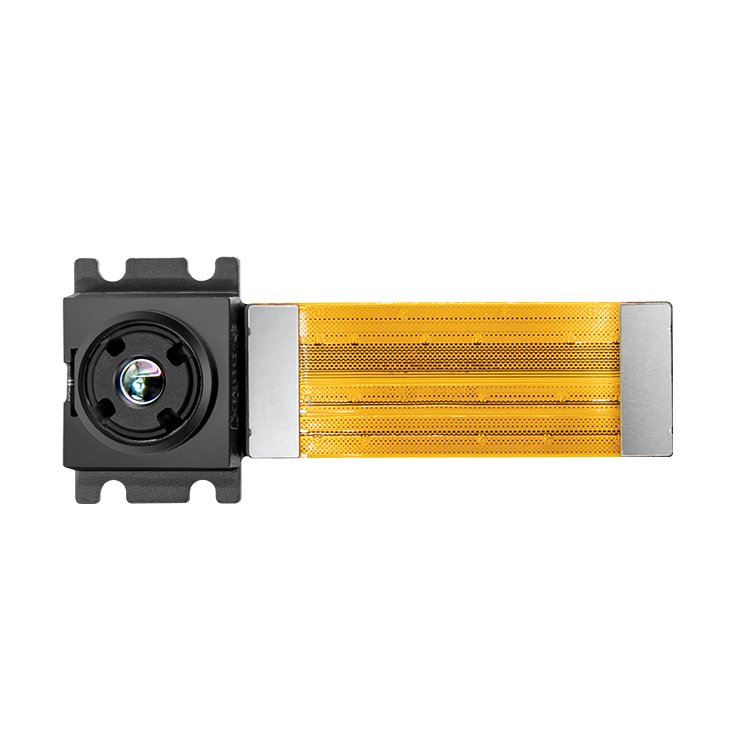

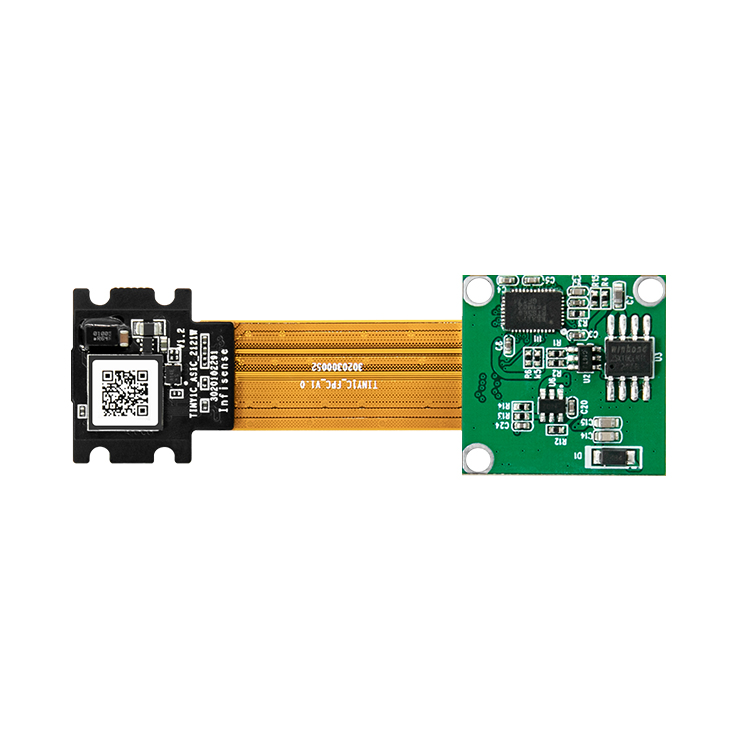

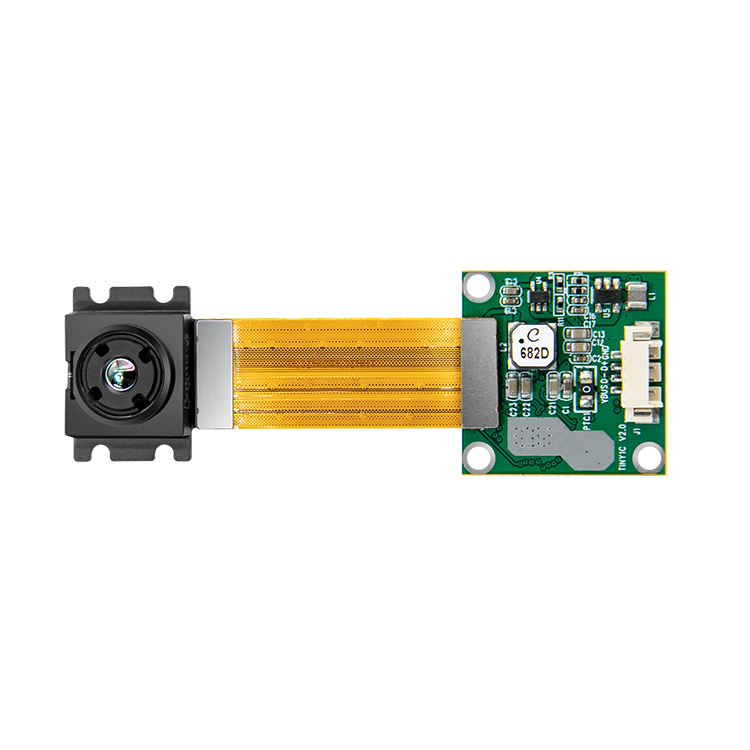

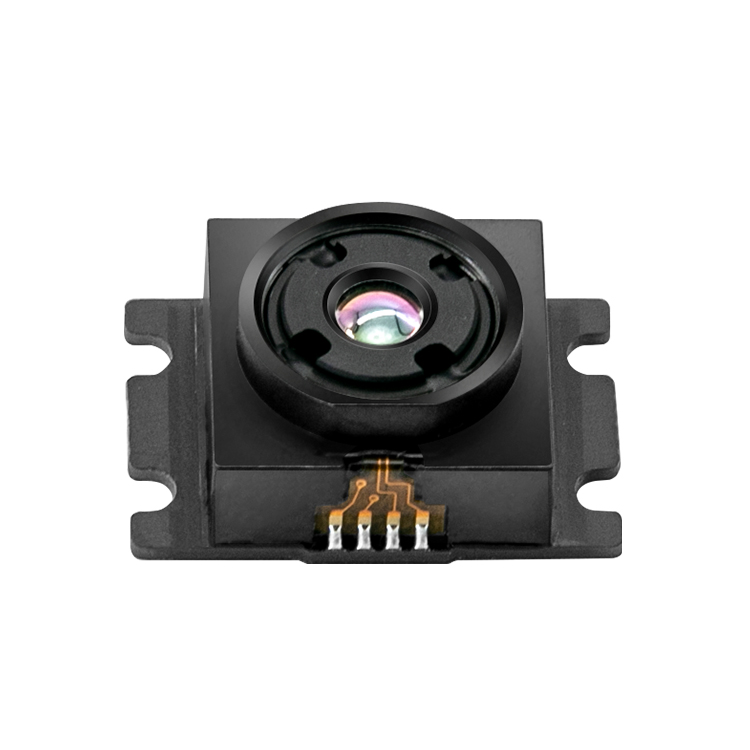

Tiny1-C is a long-wave (8~14μm) thermal camera designed for consumer electronics. It captures infrared radiation and transmit it into thermal images and temperature data.

Features

Extremely small size, extremely low power consumption, and extremely light weight
Benefit from the size advantages of ASIC and WLP;
Benefit from the low power consumption of ASIC;
Mini series thermal imaging module has only one circuit board, which is extremely light.

Self-developed Core

With advanced image detection algorithm, it can realize automatic monitoring alarm, warning area customizing, and automatic target recognizing or tracking; The interface software has complete functions and friendly interaction. It provides a variety of monitoring methods such as 360° panoramic image, radar image, and single frame image, and various parameters of the device can be set; When the monitored target appears, it can alarm via image slice, log, sound, and other methods;

Specification

item	value
Place of Origin	China
Model	Mini256
High Definition Support	256*192
Additional Function	Recording Function, Camera Function, Nightshot
Imaging Sensor	CMOS
Detector Frame Reta	50Hz/25Hz
Size	13138mm
Digital Video	Dvp
Resolution	256*192
Spectral Band	8-14μm
Detector	Wlp Uncooled Vox Infrared Focal Plane Detector
Weight	Less Than 10g
