2MP IMX291 Low Light Camera Module

美元 $20.90 - 美元 $23.75

美元 $22.00 - 美元 $25.00

生产所需时间:

5 日

运送方式:

express delivery

Model Number:

HAMPO-003-0318

Special Features:

NIGHT VISION

Resolution:

1920*1080

Compression Format:

H.264/MJPG/YUV

Focusing:

Fixed focus

Sensor:

CMOS, 1/2.8" IMX291

Function:

Startlight low illumination

Customized support:

OEM, ODM

Frame Rate:

30fps

PCB Size:

38*38(mm)*32*32(mm)

描述

联络供应商

Product Description

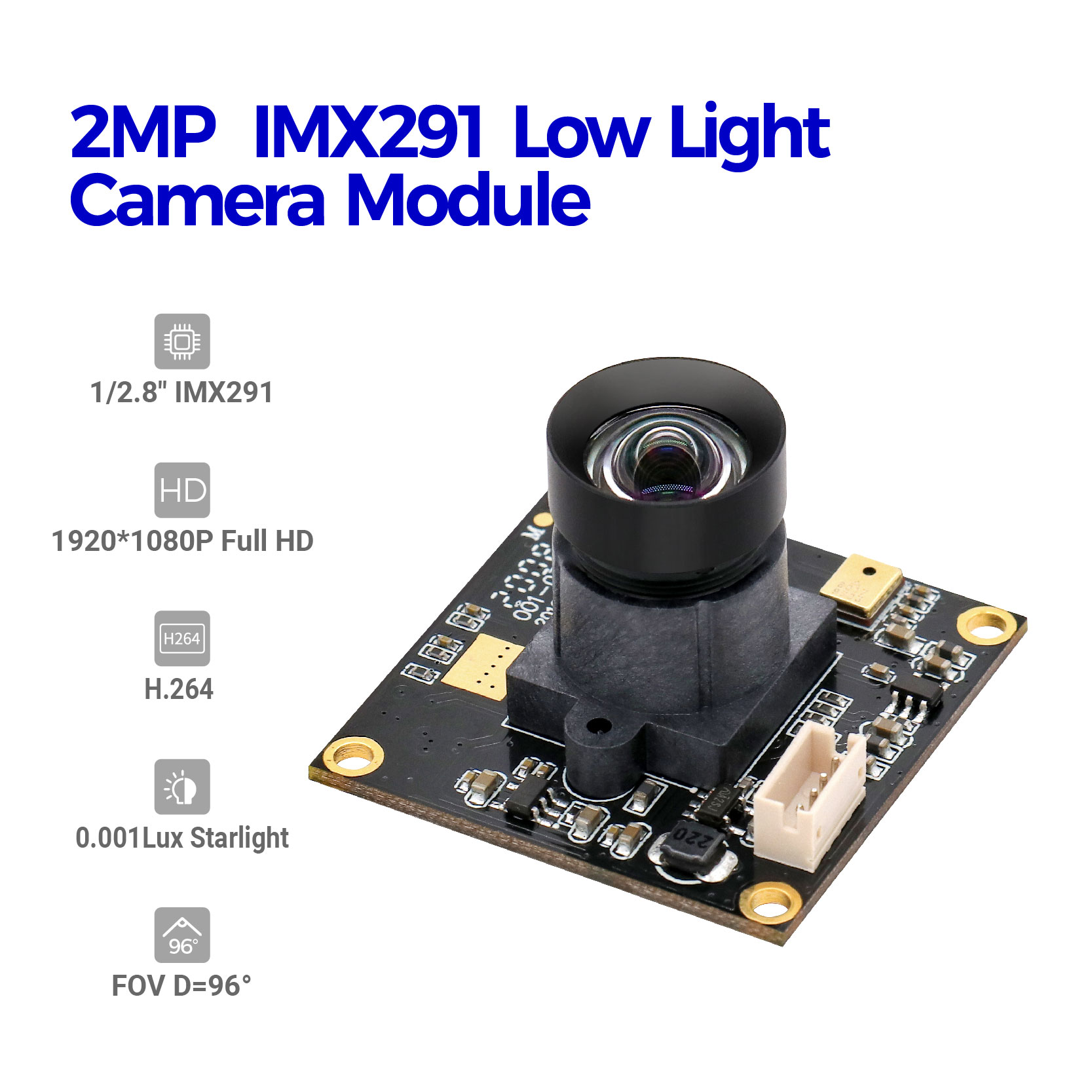

Hampo 003-0318 is a  Full HD ultra-low light USB camera module, the starlight illumination could reach 0.001Lux. This Full HD camera module is based on 1/2.8" Sony® STARVIS™ IMX291 CMOS sensor with 2.9-µm pixel size. Its high sensitivity in both visible and near infrared region helps to produce extraordinary images under extreme low-light conditions or even no light (nearly 0 lux) conditions. These capabilities make it ideally suited for home video system, day and night low light vision security camera system, dashcam and other machine vision etc. application.

Key Features

HD Resolution and Low Light: This camera adopts the SONY 2MP IMX291 Color COMS sensor with an 72dB wide dynamic range, can capture the minimum illumination 0.001Lux.

Wide Angle: High quality 96 degree wide view angle (diagonal) M12 lens without distortion.

Capture Video with Audio: High frame rates, H.264 30fps@1920×1080; MJPG 30fps@1920×1080; YUY2 30fps@640x 480; Audio,Single microphone (optional dual channel).

Plug&Play: UVC-compliant, support Windows XP/7/8/10, Linux, and Mac OS, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed.

Applications: this tiny camera board can be installed in the most hidden and narrow position for a home video system, day&night low light vision security camera system, dashcam or other machine vision application.

Specification

Camera
Model No.	003-0318
Max Resolution	1920*1080P
Sensor	1/2.8" IMX291
Frame Rate	MJPG 1920X1080@30FPS; 1280X1024@30FPS; 1280X720@30FPS; 1024X768@30FPS; 800X600@30FPS; 640X480@30FPS; 320X240@30FPS;
Pixel Size	3.0μm*3.0μm
Output Format	YUY2/MJPG
Illumination	0.001Lux
Lens
Focus	Fixed focus
FOV	D=96°
Lens Mount	M12 * P0.5mm
Power
Working Current	MAX 200mA
Voltage	DC 5V
Physical
Interface	USB2.0
Storage Temperature	-20ºC to +70ºC
PCB Size	3838(mm)&3232(mm)
Cable Length	3.3ft (1M)
TTL	15.79MM
Functionality and Compatibility
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

Company Profile

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.

Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
