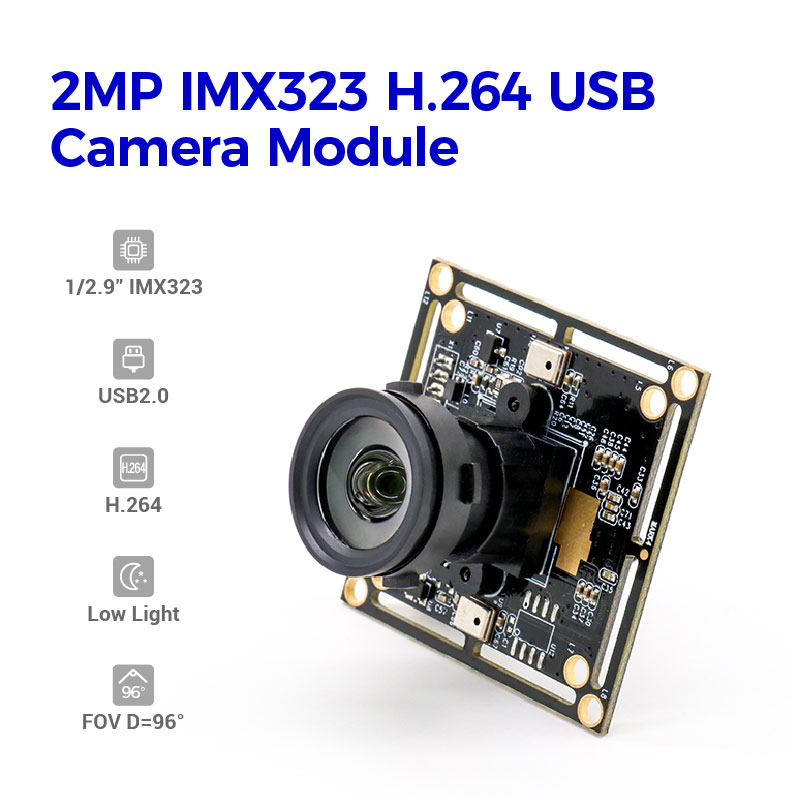

2MP IMX323 H.264 USBCamera Module

美元 $20.90 - 美元 $23.75

美元 $22.00 - 美元 $25.00

生产所需时间:

5 日

运送方式:

express delivery

Model Number:

HAMPO-003-0362

Special Features:

Low Power

Resolution:

2001 (H) × 1121 (V)

Compression Format:

H.264/MJPG/YUV

Focusing:

Fixed focus

Sensor:

CMOS, 1/2.9" IMX323

Function:

Low light

Customized support:

OEM, ODM

Frame Rate:

30fps

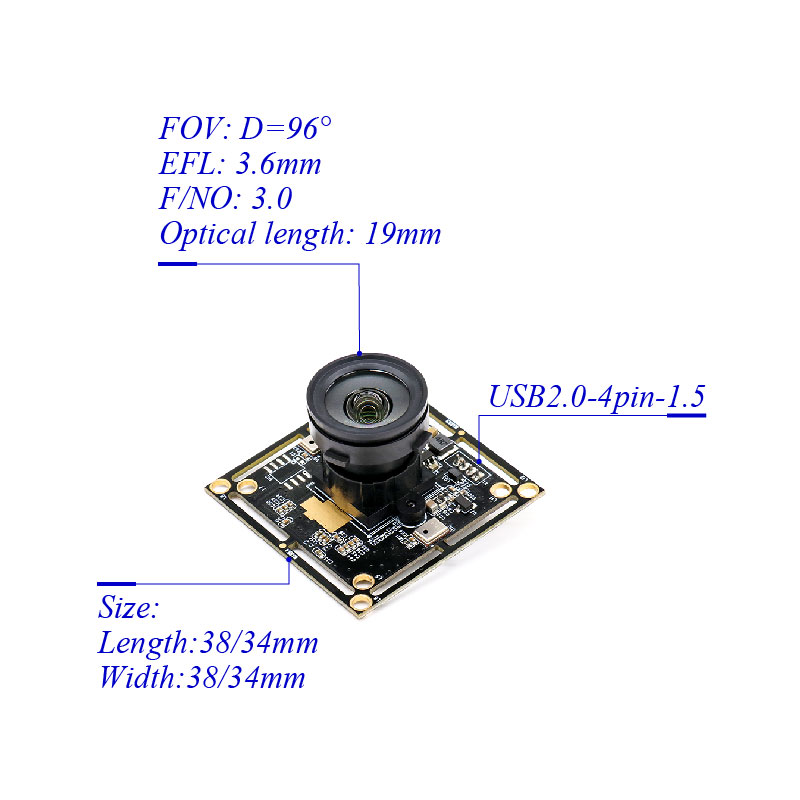

PCB Size:

38*38(mm) & 34*34(mm)

FOV:

D=96°

描述

联络供应商

Product Description

Hampo 003-0362 is a 2 megapixel low light USB camera module support H.264 video coding. Adopting advanced Sony 1/2.9" IMX323 CMOS image sensor,image quality is very high and stable,low color deviation reproduction. Full HD definition 2001 (H) × 1121 (V)   approx 2.24M pixel at 30fps.
USB The connection port in the camera module supports USB 2.0 high-speed data transmission, and the USB of the camera board also supports OTG protocol (UVC). 2mp USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression .
Field of view 96° true color image without distortion, suitable for skin detector, document scanner, dashcam,3D printer,Robot, ATM, Kiosk,security applications etc. Compatible with Windows 7, 8/10/11, Linux operating system.

Key Features

Full HD Resolution: The camera module adopting 1/2.9" Sony IMX323 CMOS image sensor, the max resolution is about 2001 (H) × 1121 (V).

Excellent Low Light Performance: The camera module with a good low light performance, the illumination color 0.01 Lux@F1.2,B&W 0.005 Lux@F1.2.

Low color deviation reproduction: The camera module with low color deviation reproduction, image quality is very high and stable.

High Compression: H.264 compression technology on USB Camera for sharp image and accurate color.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device with the USB cable without extra drivers to be installed.

Specification

Camera
Model No.	003-0362
Max Resolution	2001 (H) × 1121 (V)
Sensor	1/2.9" IMX323
Frame Rate	30fps
Pixel Size	2.8μm*2.8μm
Output Format	YUY2/MJPG/H.264

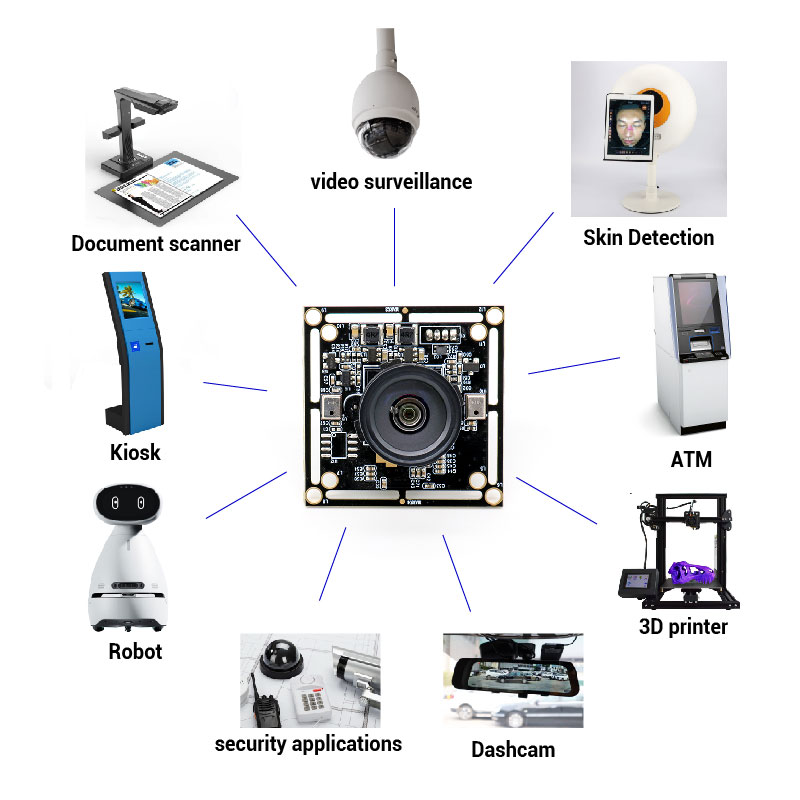

Applications

Machinary equipment All-in-one machine
Robot
Document scanner
Industrial machine

DroneMedical auxiliary equipment
Security camera
Face recognition
ATM

Company Profile

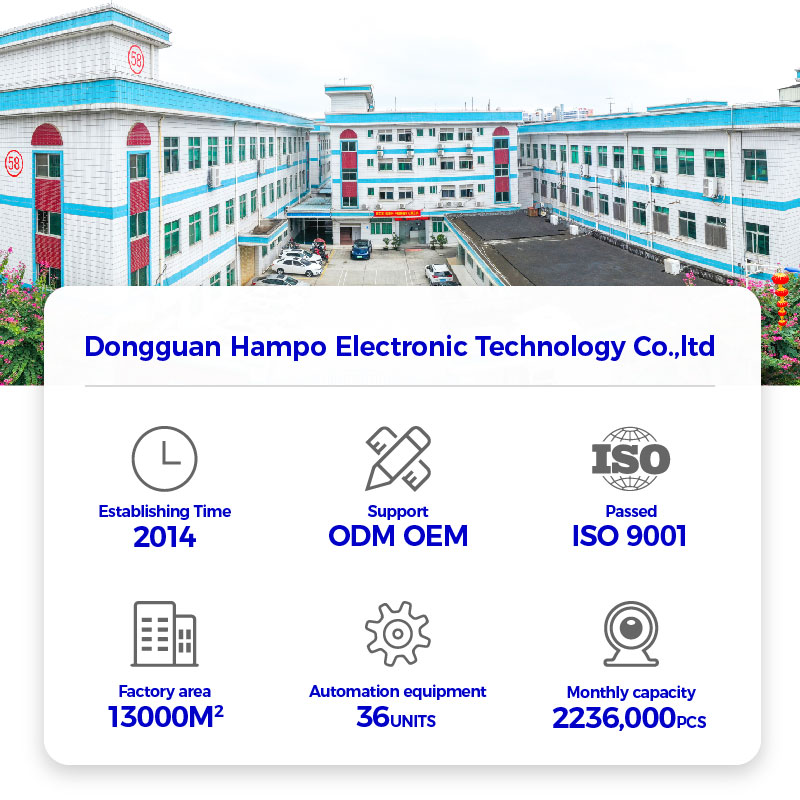

Dongguan Hampo Electronic Technology Co., Ltd, located in Tangxia Town, Dongguan City and founded in 2014, is a manufacturer specialized in design, R&D and manufacture of audio and video electronic products.

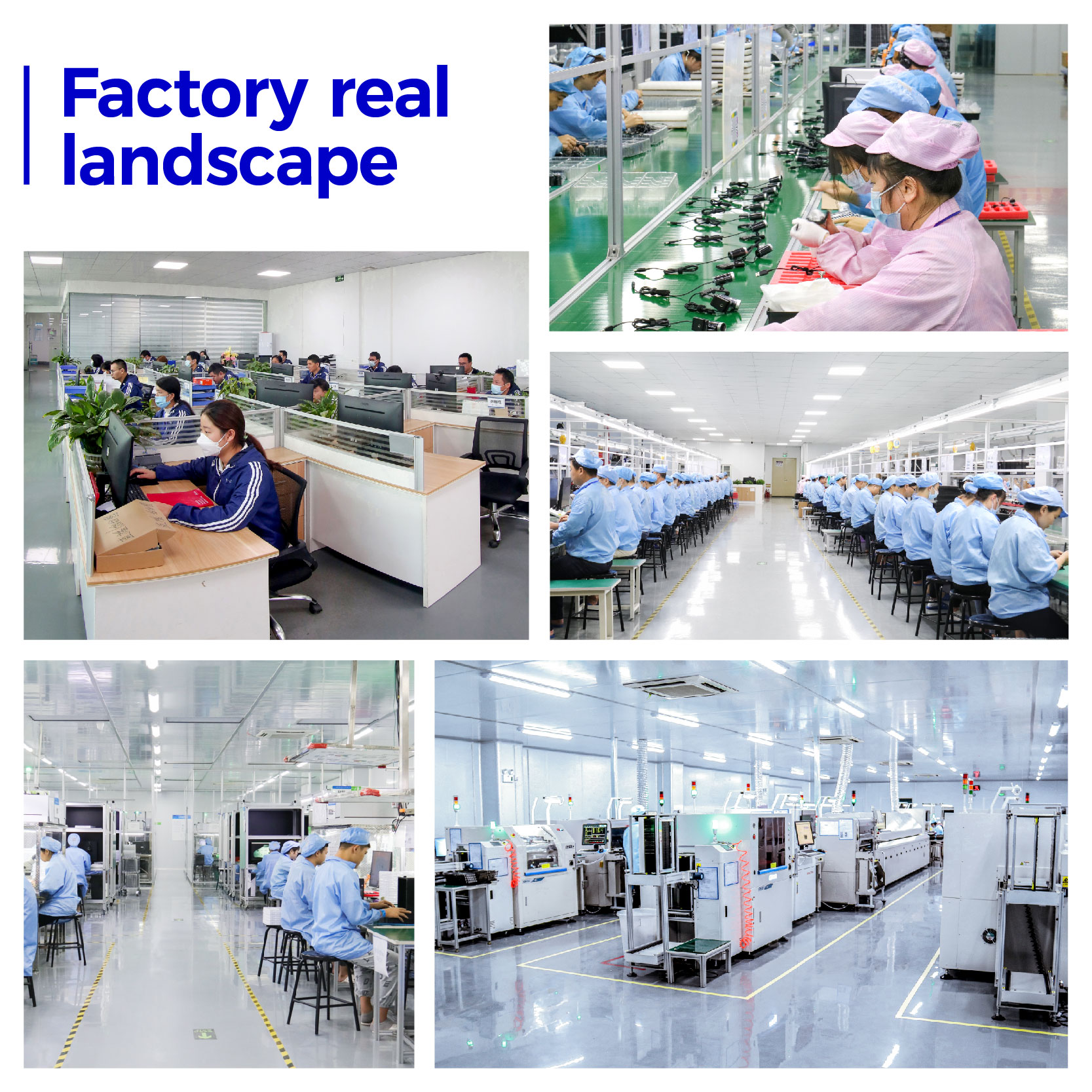

Hampo owned two buildings(Building58 and building 26) as production bases covering total 13,000 square meters. For the time being, Hampo has around 300 employees, and provides a full range of production services such as SMT, module assembly, packaging and so on.
As member of Hampo Family, we will adhering to the concept of “Market- Lead and Customer First”; keep providing our best services to customers. Also we will always be open to new technology and strive to have a bright future for audio and video industry.
