2MP OV2735 Low Light Robot Vision Camera Module

美元 $20.90 - 美元 $26.60

美元 $22.00 - 美元 $28.00

生产所需时间:

5 日

运送方式:

express delivery

Model Number:

HAMPO-003-1664

Special Features:

Low Power

Resolution:

1920*1080

Compression Format:

MJPG/YUV

Focusing:

Fixed focus

Sensor:

CMOS, 1/2.7" ov2735

Function:

Low light

Customized support:

OEM, ODM

Frame Rate:

30fps

PCB Size:

38*38(mm)/32*32(mm)

FOV:

D=95° H=86°

描述

联络供应商

Product Description

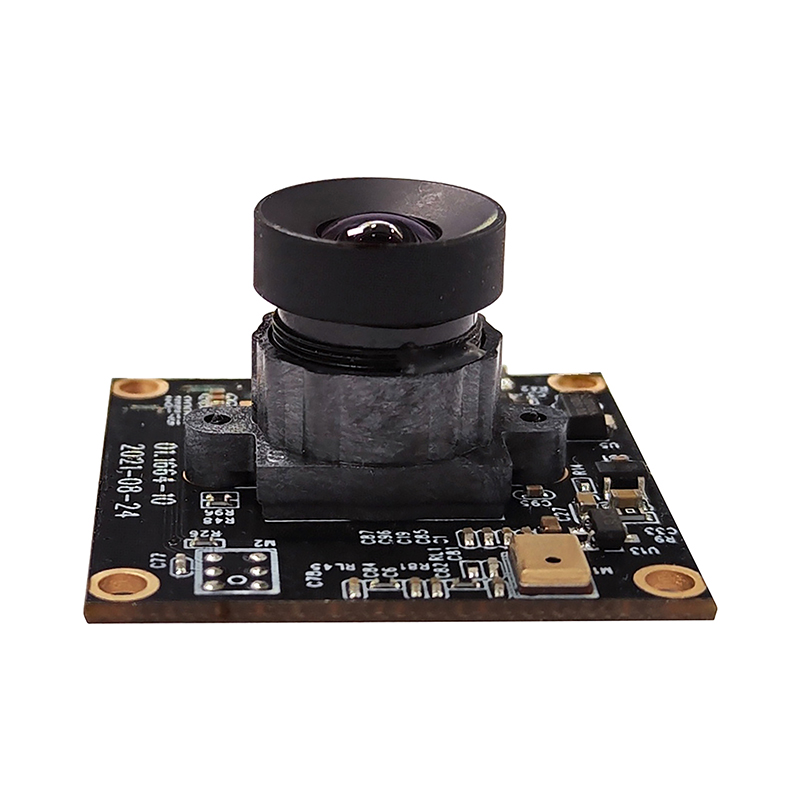

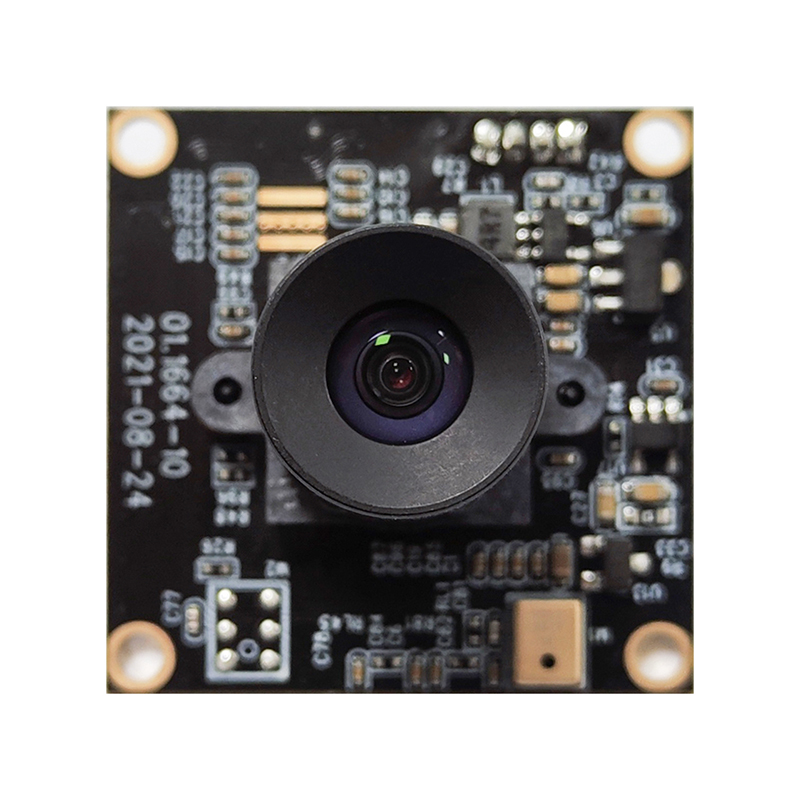

Hampo 003-1664 is a 2MP full HD low light camera module, which adotping a high-performance 1/2.7" OMNIVISION’s OV2735 image sensor that brings 1080p high-definition (HD) video capture to mainstream security cameras. The 1080P usb camera module offers technical advancements such as support for low-power mode, stable image quality within operating temperatures ranging from 0°C to 60°C, and dramatically reduced power consumption.

Key Features

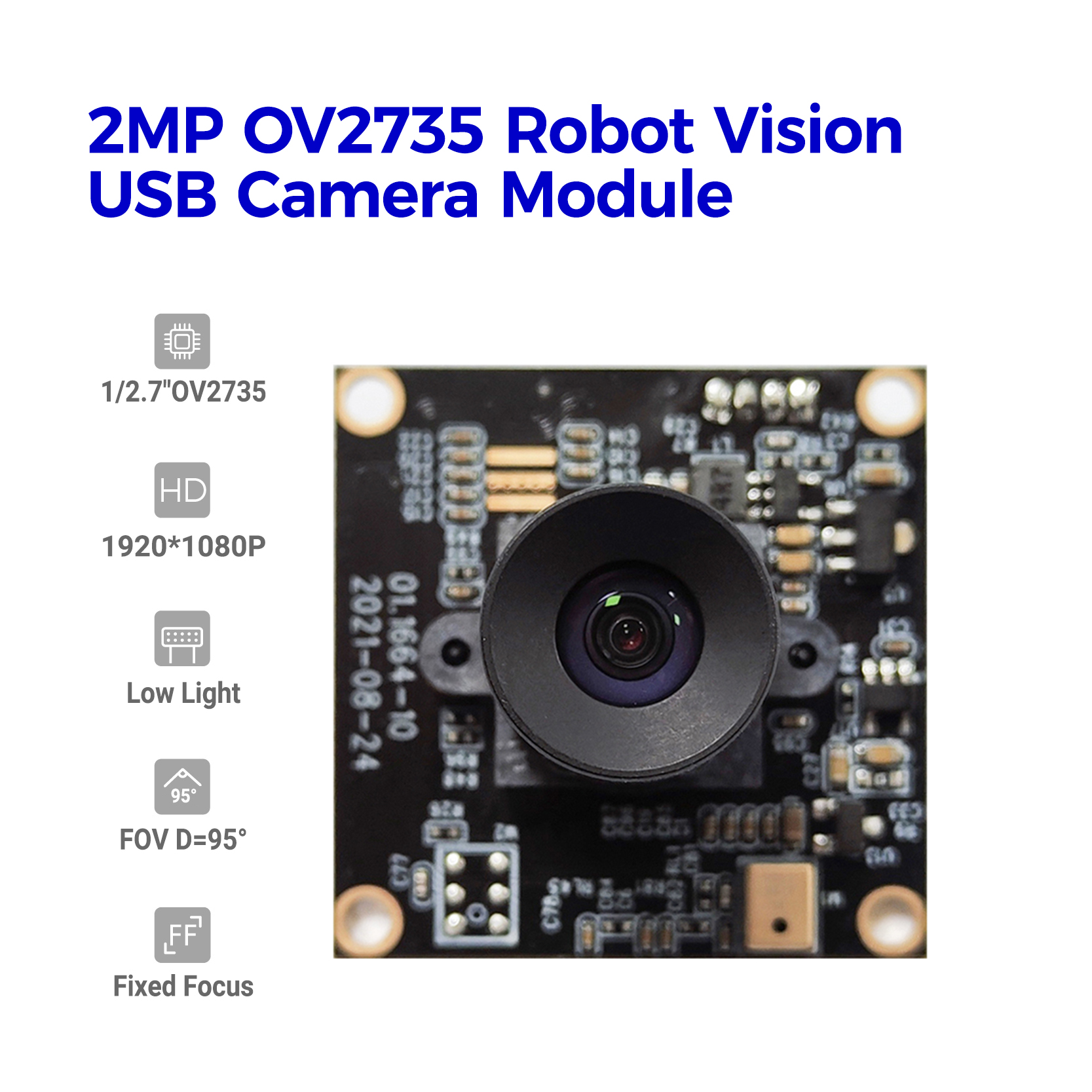

More than HD: This camera module adopts 1/2.7" Omnivision OV2735 sensor for full HD 1920*1080P image quality and smooth video.

Capture Video with Audio: High frame rates,   the 2MP OV2735  camera module captures full-resolution 1080p HD video at 30 frames per second (fps) and 720p video at 60 fps.
Low Power&Low Light: The camera module feature low power and good low light performance.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: This tiny32mm x 32mm camera board can be installed in most hidden and narrow position for notebooks, PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications.

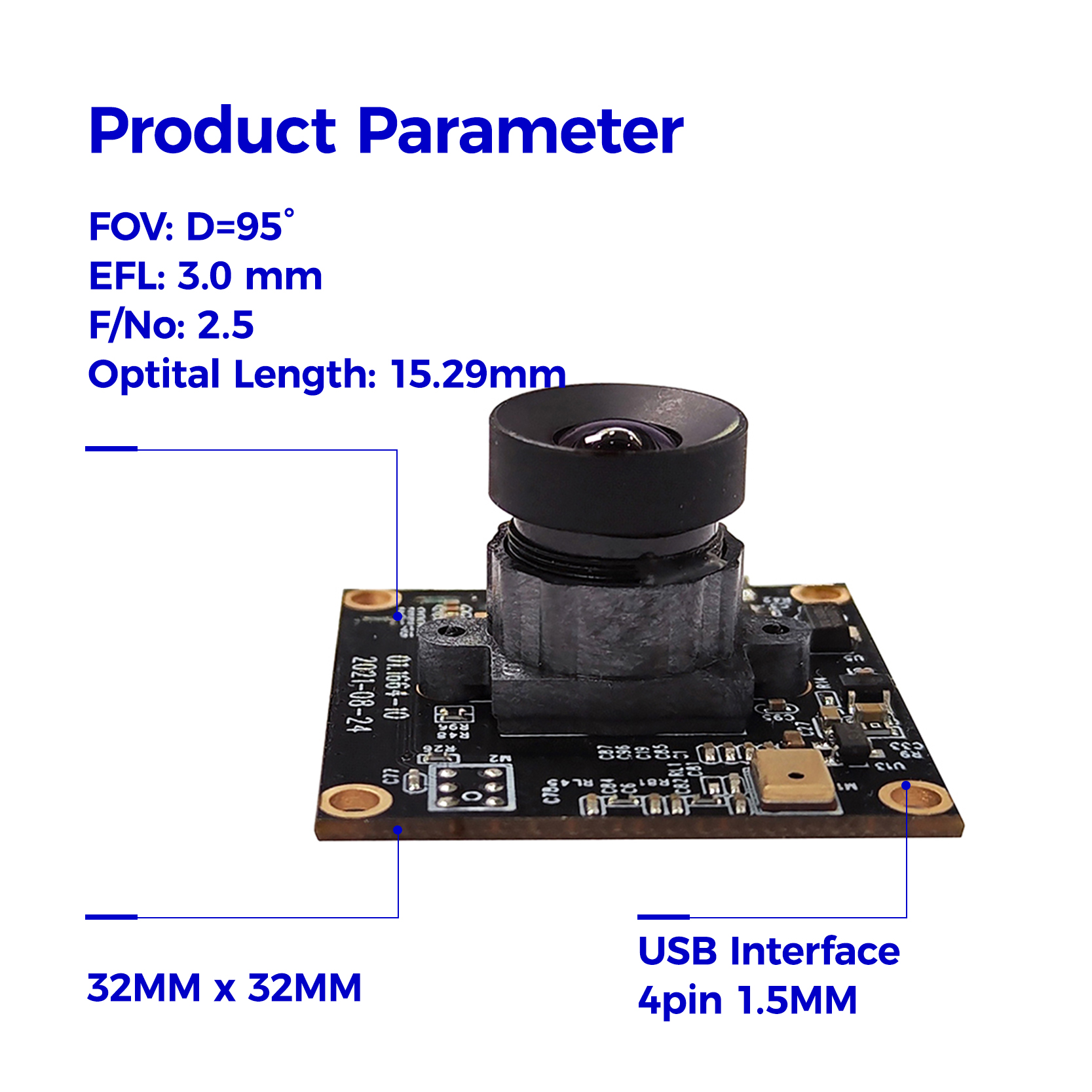

Specification

Camera
Model No.	003-1664
Max Resolution	1920*1080P
Sensor	1/2.7" OV2735
Frame Rate	MJPG 30fps@1920 x 1080/60fps@720P
Pixel Size	3.0μm*3.0μm
Output Format	YUY2/MJPG
Dynamic Range	72dB
Lens
Focus	Fixed focus
FOV	D=95° H=86°
Lens Mount	M12 * P0.5mm
Focusing Range	3.3ft (1M) to infinity
Power
Working Current	MAX 200mA
Voltage	DC 5V
Physical
Interface	USB2.0
Storage Temperature	-20ºC to +70ºC
Operating Temp	0°C~60°C
PCB Size	32*32MM(Hole pitch compatible with 28x28mm)
Cable Length	3.3ft (1M)
TTL	15.29MM
Functionality and Compatibility
Adjustable parameter	Exposure/ White balance
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

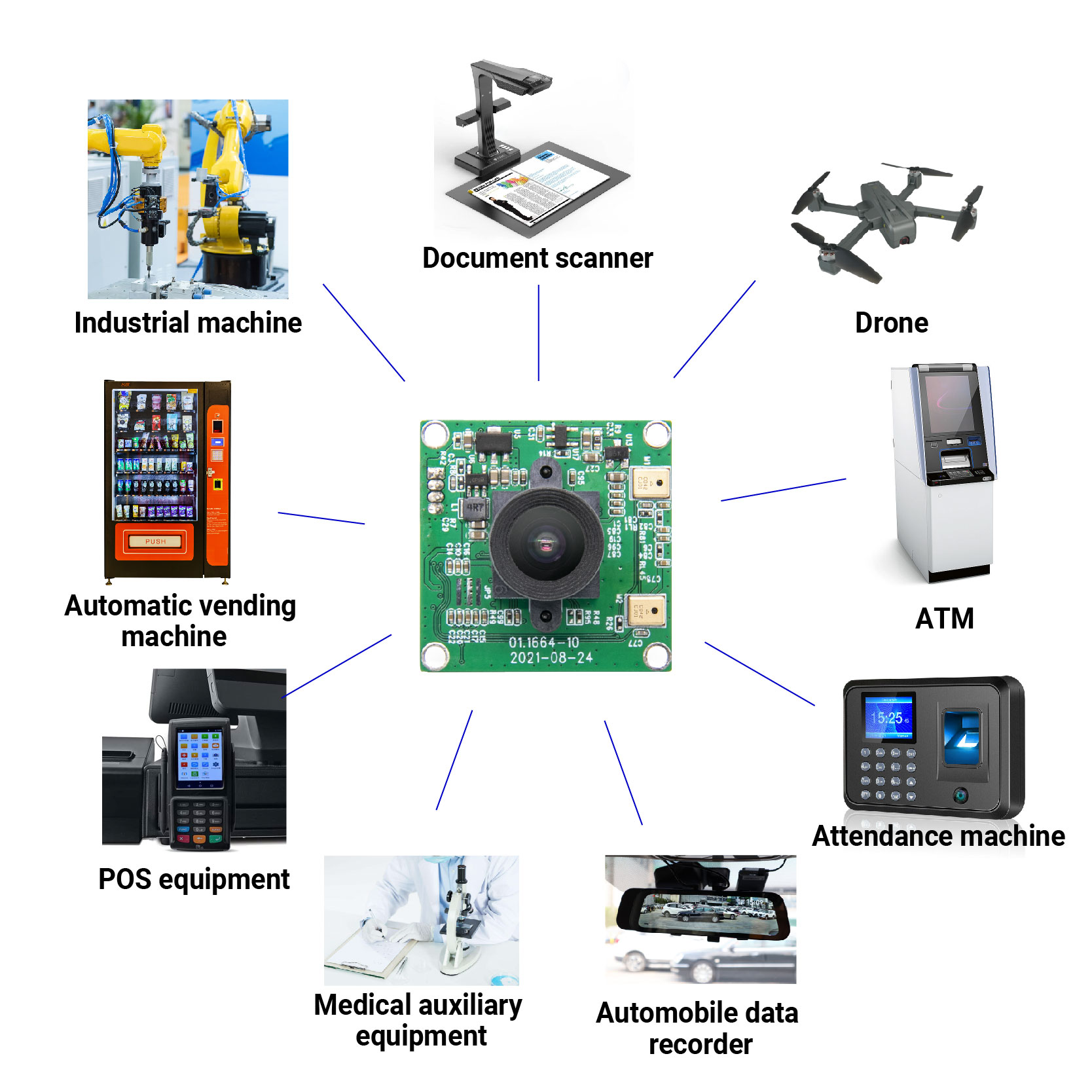

Applications

Machinary equipment All-in-one machine
Robot
Document scanner
Industrial machine

DroneMedical auxiliary equipment
Security camera
Face recognition
ATM
Access control system smart terminal
