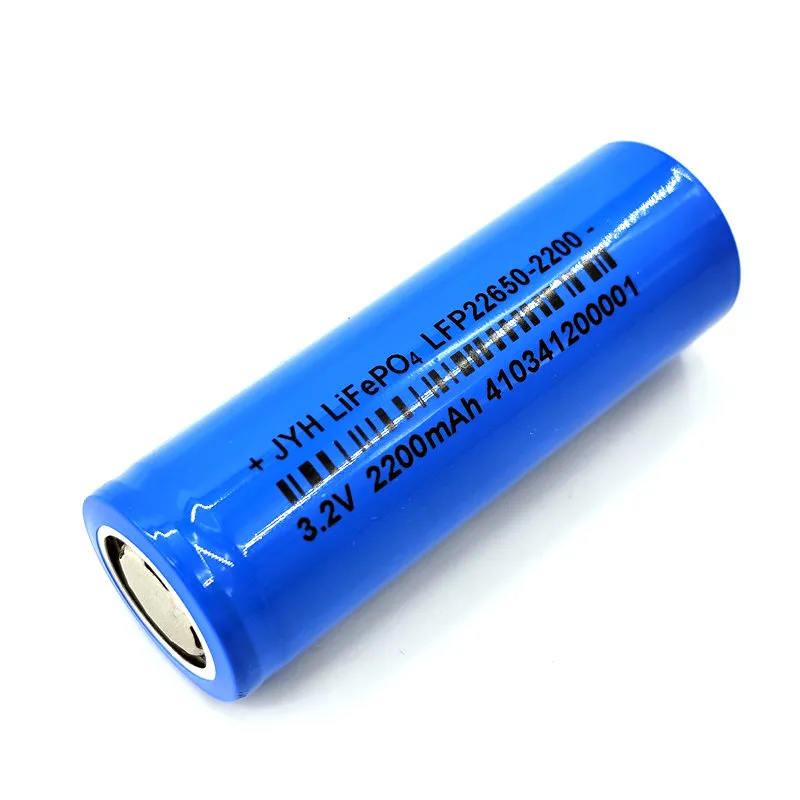

3.2V 2.2Ah LFP22650-2200 Battery

美元 $3.00 - 美元 $5.00

生产所需时间:

25 日

运送方式:

Air/Sea

应用:

Lighting, Backup power for Low Temerature Conditions

品牌:

JYH

型号编号:

LFP22650-2200

IEC Designation:

IFpR23/66

描述

联络供应商

LFP22650 2200mAh for Safety exit illumination

PRODUCT FEATURES

- LiFePO4 has a good performance in high temperature environment, long cycle life and safety.

- Based on latest requirement of IEC/EN 60598-2-22, Lithium battery should comply with IEC 62133-2 and IEC 62620, JYH LiFePO4 batteries can fully meet above standards.

CERTIFICATE OR REPORT

- ROHS Directive (2006/66/EC and its amendment)

- New Battery Regulation (EU) 2023/1542, heavy metals and CE marking

- MSDS

- IEC 62620

- IEC 62133-2

- UN38.3

APPLICATION

Evacuation Light, Exit sign, ELU, Solar Light, Personal Care, Medical Devices, Roof, Backup Power....

Model	LFP22650-2200
IEC61960 Designation	IFpR23/66
Nominal Voltage	3.2V
Nominal Capacity	2200mAh
Typical Capacity	2250mAh after standard charge and standard discharge
Minimum Capacity	2150mAh after standard charge and standard discharge
Standard Charge	Constant current at 1100mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤22mA
Fast Charge	Constant current at 2200mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤22mA
Standard Discharge	1100mA to 2.0V
Fast Discharge	2200mA to 2.0V
Maximum Continuous Charge Current	2200mA
Maximum Continuous Discharge Current	6600mA
Operating Temperature	Charge 0℃ to 45℃ Discharge -20℃ to 60℃
Storage Temperature	<1 year -20℃ to 25℃ <3 months -20℃ to 40℃ <30days -20℃ to 50℃
Typical Weight	65g
