3.4 inch Round LCD Display TFT LCD 800(RGB)*800 with MIPI Interface | 零件，组件及电器用品

迈高达科技有限公司

3.4 inch Round LCD Display TFT LCD 800(RGB)*800 with MIPI Interface

美元 $10.00 - 美元 $30.00

生产所需时间:

25-45 日

运送方式:

Support Express · Sea freight · Land freight · Air freight

品牌:

Microtech-lcd

型号编号:

MTF034WV02A-V1

是否可订造:

可以

尺寸:

3.4inch

描述

联络供应商

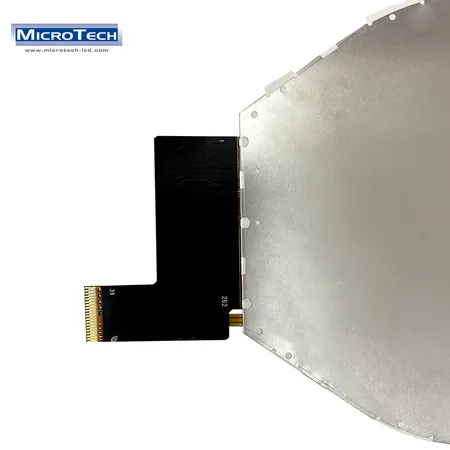

3.4 inch Round LCD Display TFT LCD 800(RGB)*800 with MIPI Interface

Feature		Spec
Display Spec.	Size	3.4 inch
	Resolution	800(RGB) * 800
	Technology Type	a-Si
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(um)	109.5*109.5
	Display Mode	SFT
	Surface Treatment	HC
	Viewing Direction	FREE
Mechanical Characteristics	Module (W* H * D) (mm) with CTP	99.096.63.98
	Active Area(mm)	87.6*87.6
	With /Without TSP	With CTP
	Matching Connection Type	FPC
	LED Numbers	8 LEDs
	CTP Surface hardness	>7H
	Weight (g)	TBD
Electrical Characteristics	Interface	MIPI3lane
	Color Depth	16.7M
	LCD Driver IC	ILI9881C
	CTP Driver IC	HX8526-E30
	CTP Interface	HC
