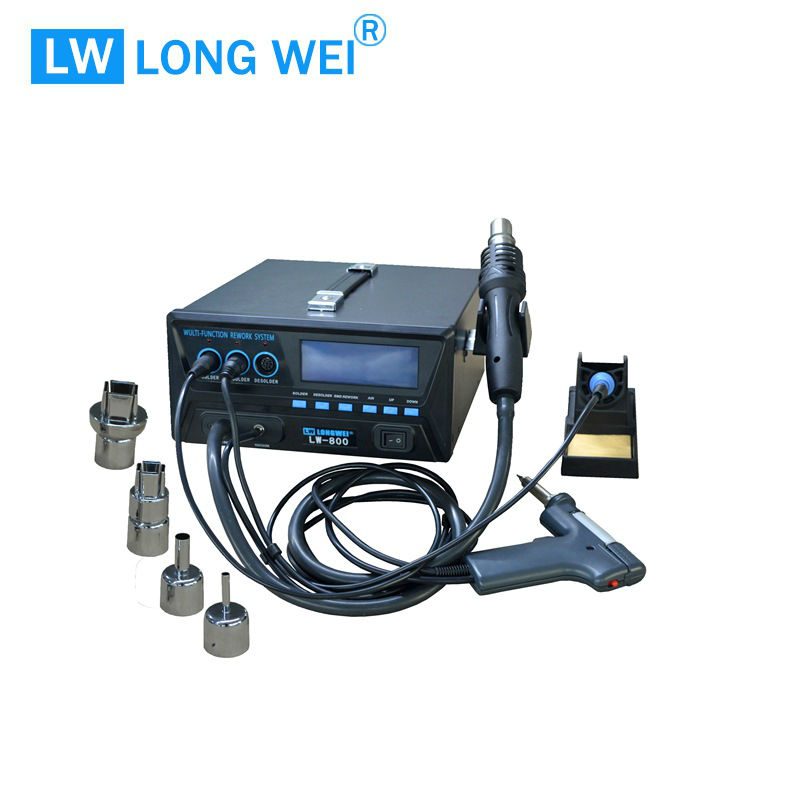

3 in 1 soldering station hot air gun and suction tin device
Application

• 1. industrial production of electronic products assembly
• 2.research department for product development
• 3.all enterprises and institutions electrician for soldering operation
• 4. teaching practice
• 5.electronic product maintenance repair industry
• 6.list for electronic assembly technology enthusiasts

Feature
Soldering station

• 1.soldering station with silver alloy thermal conductive materials and thermal conduction mode, high speed back to temperature, only takes 10 seconds to boot from room temperature to 350 ℃.
• 2.welding head and heater fission design, saving the cost.
• 3. sensor front, high precision temperature control, temperature stability is good.
• 4.the welding handle light, use comfortable.

Suction tin soldering station

• 1.absorption tin soldering station heater with 36 vac output low voltage power supply and main power supply is a transformer isolation, safe and reliable.
• 2. the built-in vacuum pump, the suction is strong.

 Hot air desoldering station

• 1.intelligent cooling system, automatic shutdown can delay supply, greatly prolong the service life of heater and the handle.
• 2.using spiral heater, longer service life.
• 3. the heat gun handle parts, blow out the air volume is more even, and not easy to damage, easy to maintain and storage.

Specification:

• MODEL：
• LW-800
• Input voltage：
• 220VAC±10%   50/60HZ
• Machine power：
• 800W（Max）
• Noise：
• <52Db(A)
• Working temperature：
• 0℃~40℃
• Type：
• Hot air desoldering station
• Soldering station
• Suction tin soldering station
• Power:
• 550W ,pump25W
• 90W
• 150W,pump 15W
• Temperature range：
• 100℃~500℃
• 100℃~500℃
• 300℃~500℃
• School Tem range：
• ±50℃
• ±50℃
• ±50℃
• Temperature stability
• ±5℃
• ±2℃
• ±2℃
• Heater voltage：
• 24VAC
• Tip over the ground impedance：
• <2Ω
• Tip of reactance：
• <2mV
• Suction nozzle to ground impedance：
• <2Ω
• The suction nozzle of reactance：
• <2mV
• Vacuum pressure：
• 600mmHg
• Tin suction pump
• diaphragm
• Max air flow：
• 23L/min
• Air gear：
• 020~99gear
• Air supply type：
• Diaphragm chamber air pump
• Dormancy：
• 1-99min can be set
• 1-99min
• Packing size&N.W.
• 48.5×39.3×26（cm
