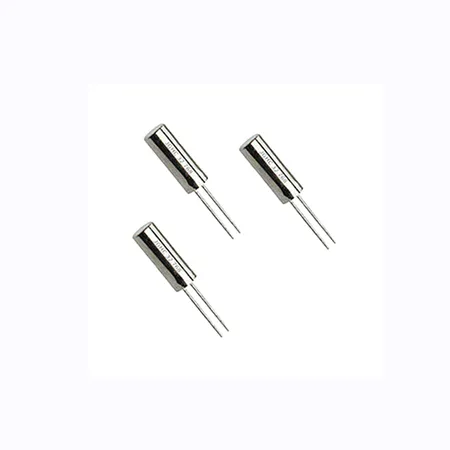

32.768KHz DT-26 DIP Crystal 32.768K Xtal | 无源组件

CRYSTAL BRIGHT GROUP(HK)LIMITED

32.768KHz DT-26 DIP Crystal 32.768K Xtal

品牌:

JGHC晶光华

是否可订造:

可以

型号编号:

Y26

尺寸:

2.0x6.0mm

Nominal Frequency:

32.768KHz

Load Capacitance:

7pF/9pF/12.5pF

Frequency Difference:

10ppm/20ppm

描述

联络供应商

32.768khz Clock Crystal Resonator Y26 Series

Features

Application for variety products reference clocks.

reliable environmental performance.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE	Y26
Nominal Frequency	32.768KHz
Load Capacitance	7pF,9pF,12.5pF, or specify
Frequency Tolerance (at 25℃)	±20ppm, or specify
Operating Temperature Range	-70~+70℃, or specify
Parabolic Coefﬁcient (B)	(-0.03±0.01) 10^-6* / ℃²
Shunt Capacitance (C0)	2.0pF typical
Drive Level	1.0μW Max.
Aging (at 25℃)	±3ppm/year Max.
Storage Temperature Range	-55~+125℃
