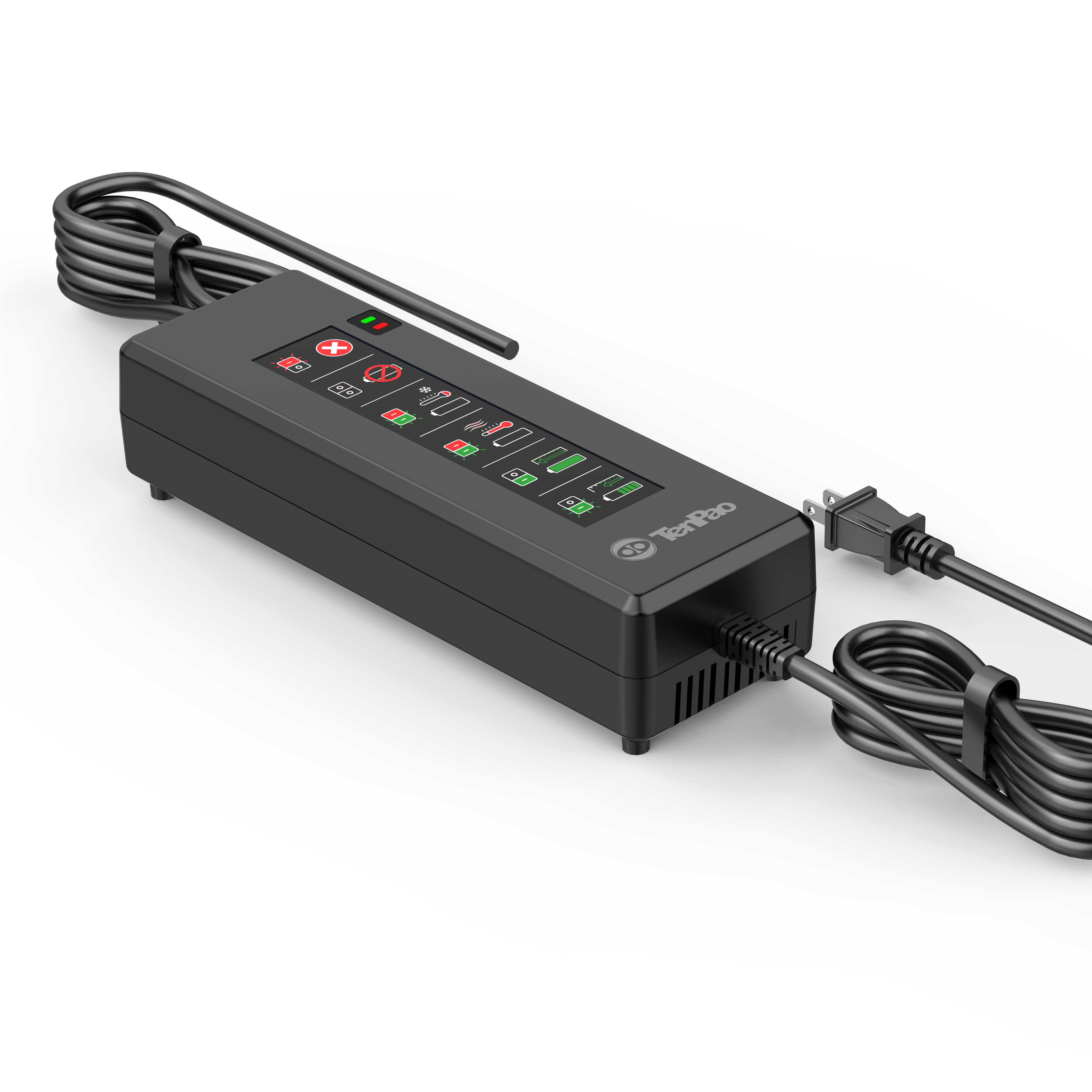

350W Smart Battery Charger

天宝国际兴业有限公司

查询

比较及批量查询

品牌:

tenpao

型号编号:

350W Smart Battery Charger

描述

联络供应商

Product introduction：

Middle protection series smart charger adopts fixed AC line design, built-in soft switch and digital communication technology, can quickly respond to control instructions, excellent performance in battery adaptation, can better match the battery charging curve, to achieve a safe and reliable effect.

Main feature：

Intelligent and efficient/Good heat dissipation/Small volume/Easy to carry/Wide range voltage/Flexible upgrade/Digital communication/IPx3 Protection

	350W		unit
AC Input
Input voltage range	90-264		Vac
AC current harmonics THD	<5		%
Power factor	>0.99
Efficiency	> 92@Full load		%
Max input current	5		Aac
DC output	Type 1	Type 2
Output rated voltage	60 (optional)	90 (optional)	Vdc
Output voltage range	20-60	30-88	Vdc
Charging current accuracy	≤10	≤10	mVp-p
Ripple	≤750	≤800	mAp-p
Max charging current	6	4	A
Communication method	CAN/485, UART/User define
Dimension	L283W95H69		mm
