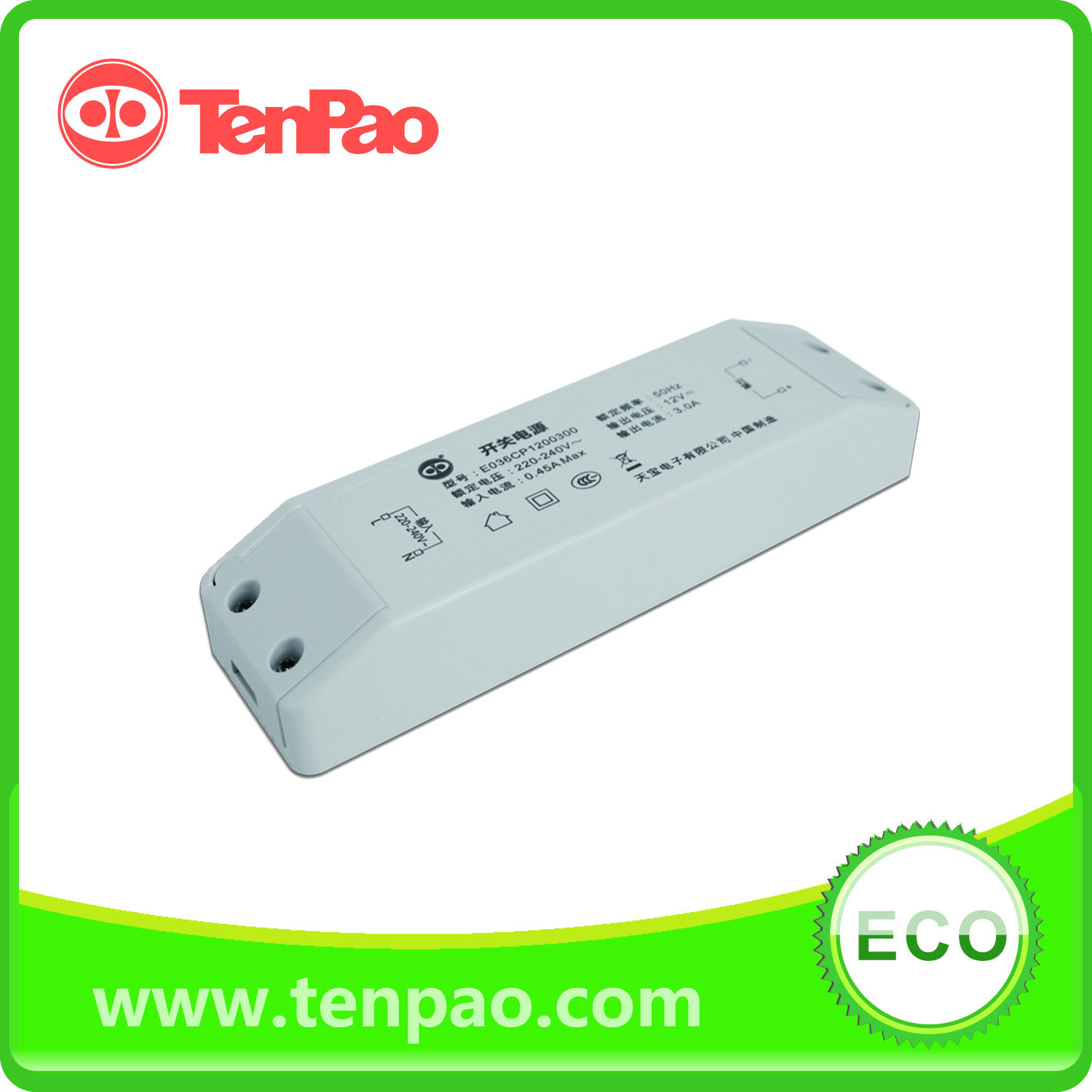

36W LED Driver Indoor Lighting
产品型号:
E036DP
品牌名称:
Ten Pao
尺寸:
140 x 45 x 29.5mm
保养期:
3 Years
输出电压(伏):
18Vdc-30Vdc, 28Vdc-42Vdc | 42Vdc-60Vdc, 50Vdc-70Vdc
输入电压(伏):
176-264Vac 47-63Hz
描述
联络供应商
描述
- Series: E036DP
- Features: Economic model;Constant-current design; High power factor;
- Full protective cabinet; Elegant appearance;
- Isolation design; Natural convection cooling; 3 years warranty;
- Output: 18Vdc-30Vdc | 28Vdc-42Vdc | 42Vdc-60Vdc | 50Vdc-70Vdc
- Output Current: 850mA |650mA | 600mA | 500mA
- Output Power: 36W
- Constant Current Precision: ±5%
- Input Voltage: 176~264Vac 47-63Hz
- Power Factor: >0.95
- Over Load Protection: Hiccup mode, auto recovery
- Over Voltage Protection: Hiccup mode, auto recovery
- Short Circuit Protection: Hiccup mode, auto recovery
- Operating Temperature: -20℃ to~+40℃
- Safety Standards: EN61347-1,GB19510
- EMC Standards: EN55015/GB17743
- Dimension(mm): 140 x 45 x 29.5mm(L x W x H)
- Main Application: Panel light; Grille light; Down light
