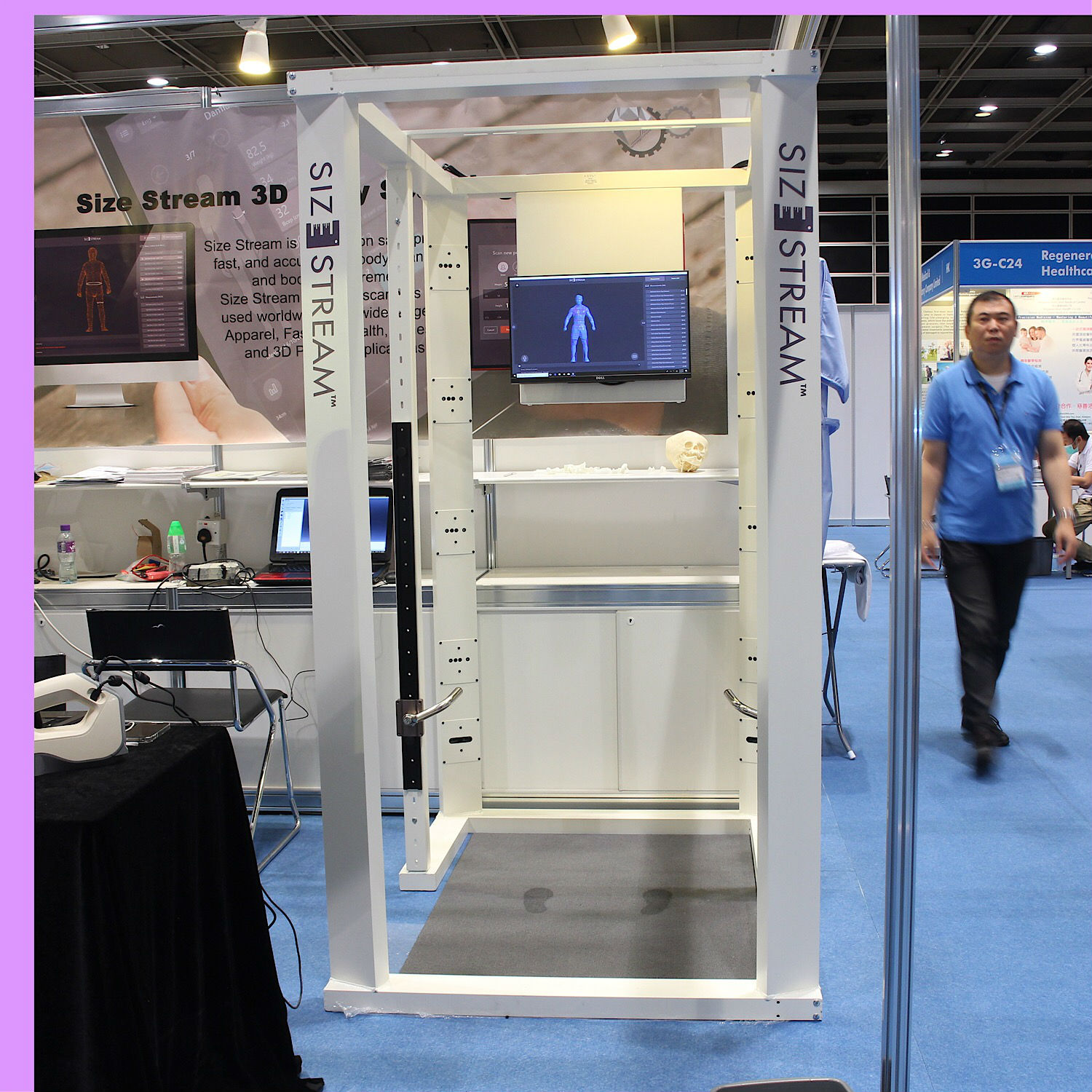

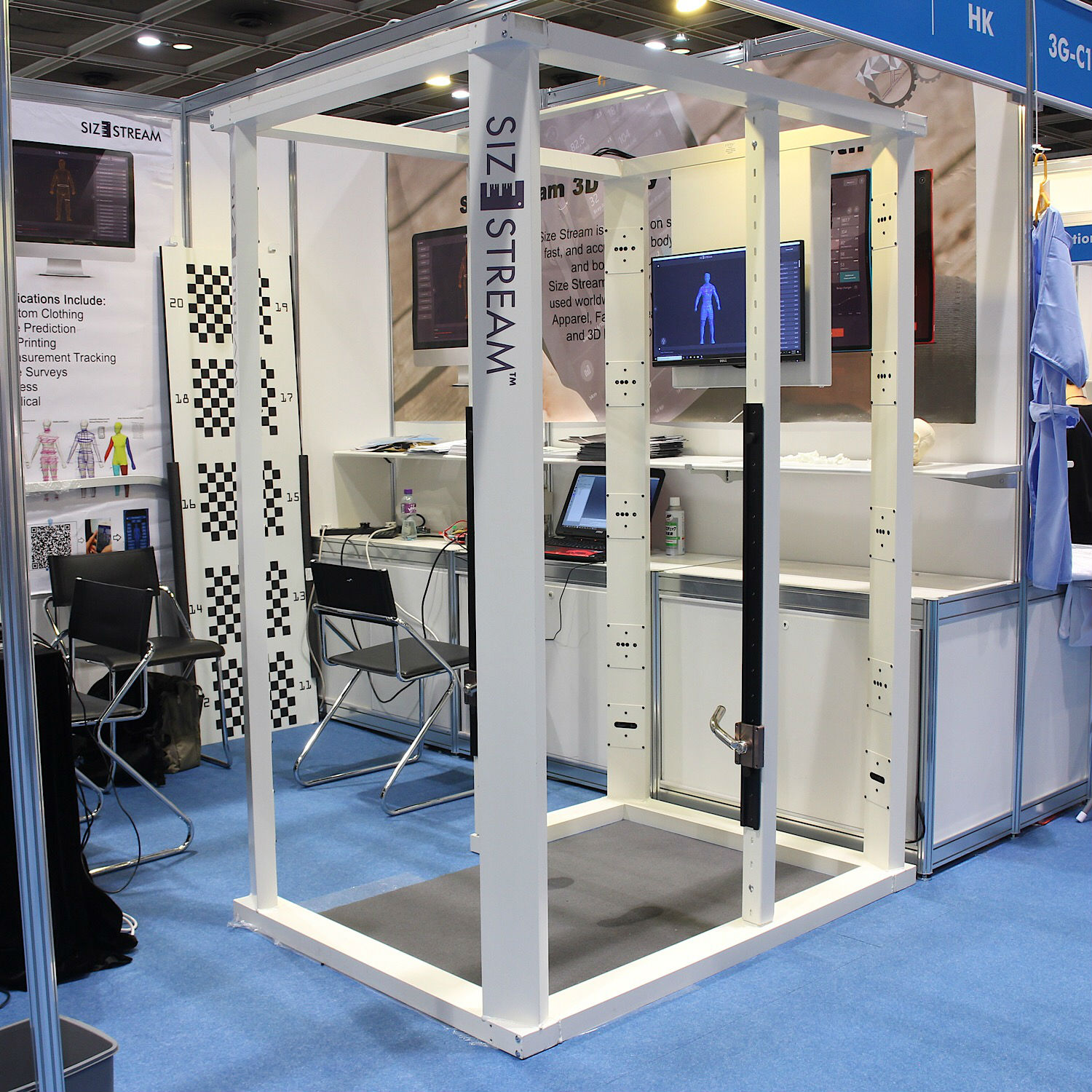

3D Body Scanner

生产所需时间:

30 日

描述

联络供应商

Specifications:

Sensor Configuration: Four angles around the body at five different heights (20 total)
Technology. Infrared Depth Sensor
Mechanical Construction: Light but rigid welded aluminum extrusion
Included CPU configuration Intel Quad Core i5, 16 gigabytes RAM, 500 gigabytes sso
Operating System: Windows 10 64-bit
Operational Power Requirements: 5A, 100-24ov source supported
Setup Time from Package: <<1 hour typical
Booth size (in/m), Length 5711.4; Width 431.1: Height 80/2.05

Features:

Color 3D scan mode
Logic engine for measurement-based formulas (body shape, body composition, size selection, etc.)
Up to 5x scan mode (5 in a single acquisition pass)
Auto generate water-tight mesh from raw scan data, auto generate avatar from measures
Two variable height stability handholds
Privacy curtain and zero square footage changing room (curtain)
Multi-language support: English, French, Spanish, Japanese, Chinese, others
ISO 20685 Measurement Standard Protocol support
Reposing and animation of 3D body scan avatar (lbx format rigging)

Performance Parameters

Scan time: 4 seconds
Data Processing Time: <30 seconds
Circumferential Accuracy (cylinder test: <+-5mm
Surface data density: 1mmx1mm, 20 million points for full body
Scan volume 2m height by 0.95m width by 0.8 depth
Automatic Extracted Measurements: 600 data points including 3D XYZ landmarks circumferences, lengths, surface areas, and body volume
Operating Environment. Indoors, Normal office Temperatures
