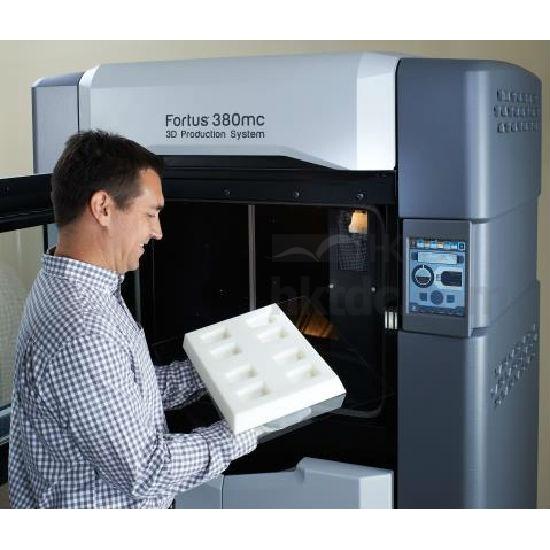

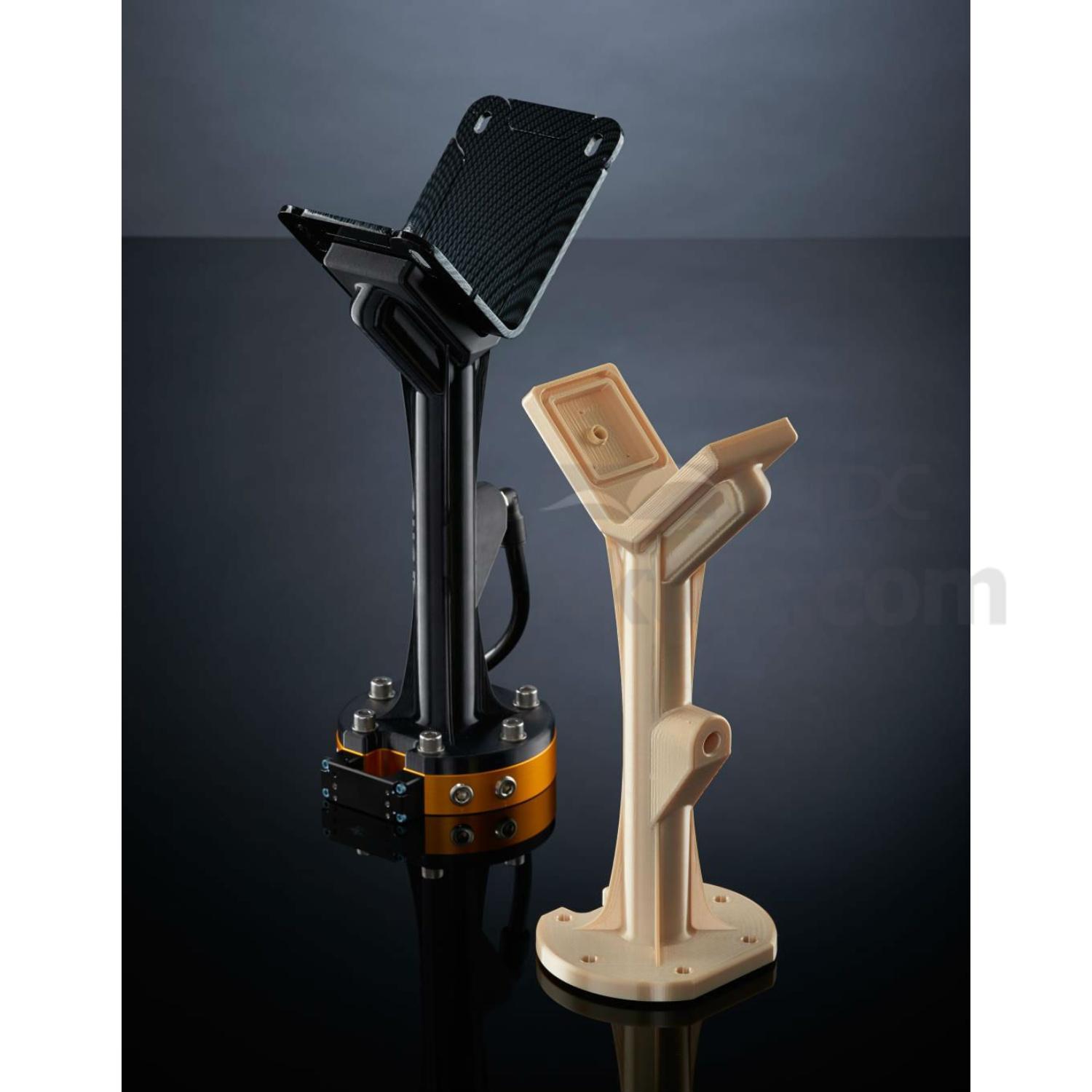

• For rugged prototypes that function like your end product, manufacturing tools that deliver under pressure, and production parts built on-demand, Fortus 380mc 3D Printers set a high bar for speed, performance and accuracy.

Specifications

Materials:
Fortus 380mc:

• ABS-M30
• ABS-M30i
• ABS-ESD7
• ASA
• PC-ISO in white and translucent
• PC
• FDM Nylon 12

Build envelope options:

• Fortus 380mc: 355 x 305 x 305 mm (14 x 12 x 12 in.)

Material delivery options:

• Fortus 380mc: One bay each for material and support canisters

Layer thicknesses:

• 0.330 mm (0.013 in.)
• 0.254 mm (0.010 in.)
• 0.178 mm (0.007 in.)
• 0.127 mm (0.005 in.)

Support structure:

• Soluble for most materials; break-away for PC-ISO and ULTEM; soluble or break-away for PC

System size/weight:

• 129.5 x 90.2 x 198.4 cm (51 x 35.5 x 78.1 in.)/with crate: 680 kg (1,500 lbs.), without crate: 601 kg (1,325 lbs.)

Achievable accuracy:

• Parts are produced within an accuracy of ± .127 mm (± .005 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater. (Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.)
