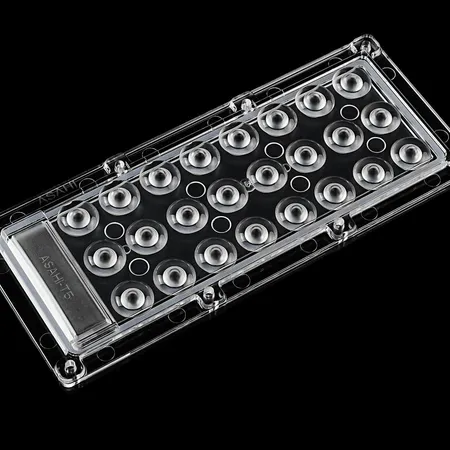

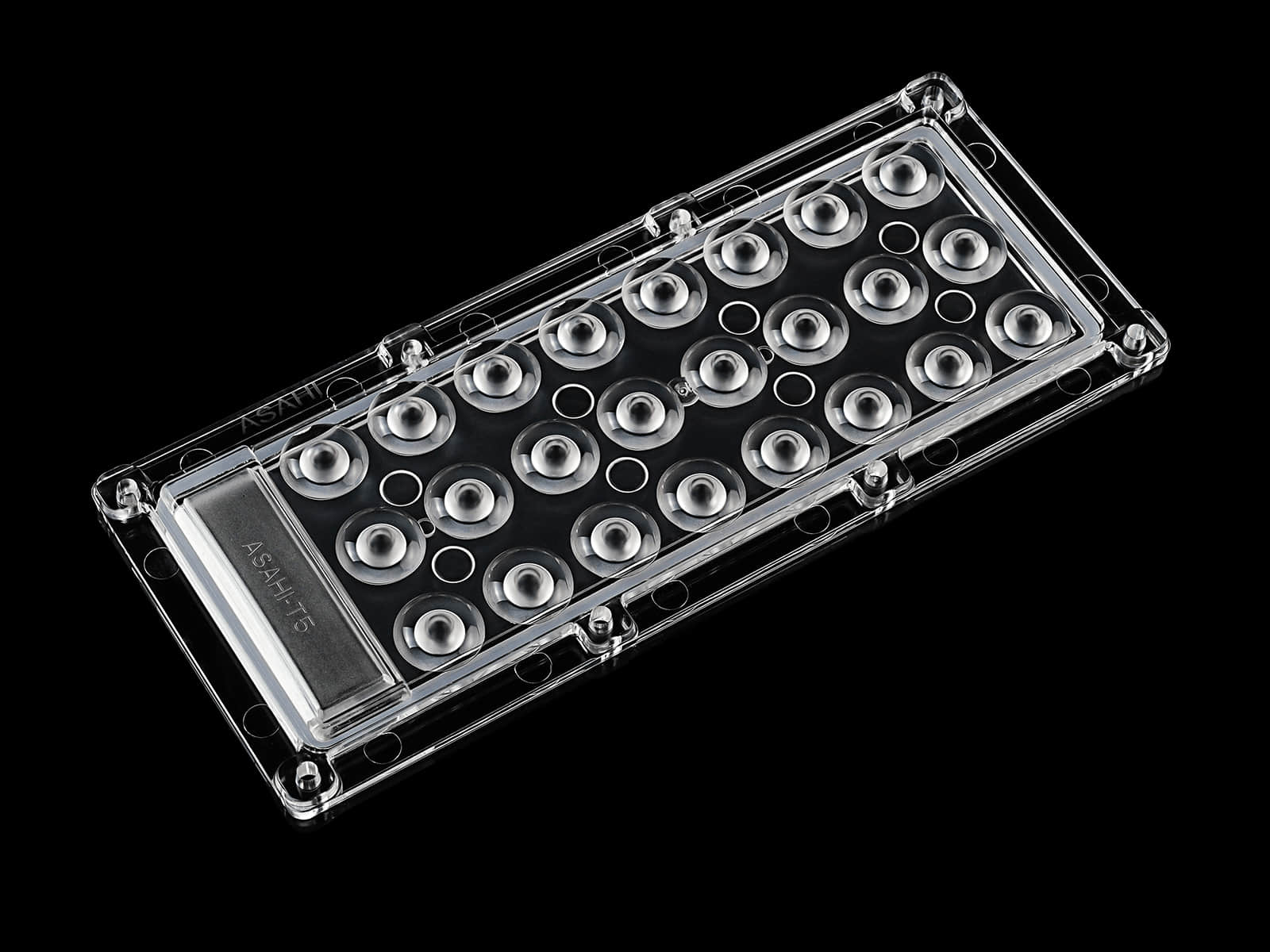

3x8 Arrays T5 IP66 5050LED Large Area Lighting Lens

Model:ALST173D24LEDT5

Diameter: 173mm

Height: 9.3mm

Angle: T5

Material:PMMA

Transmittance: >93%

LED Type:  2835/ 3030/ 5050LED

Lighting Applications: Car Park lighting, Street lighting,Architecture lighting,High Bay lighting

1. 3x8 IP lens 24LEDs, It shares the same profile 173mm*71.4mm as the 2x6 lens does.

2. It can be compatible with different sizes and quantities of LED chips such as  2*2835/2*3030,  3*2835/3*3030,  4*2835/4*3030, and 5050LED

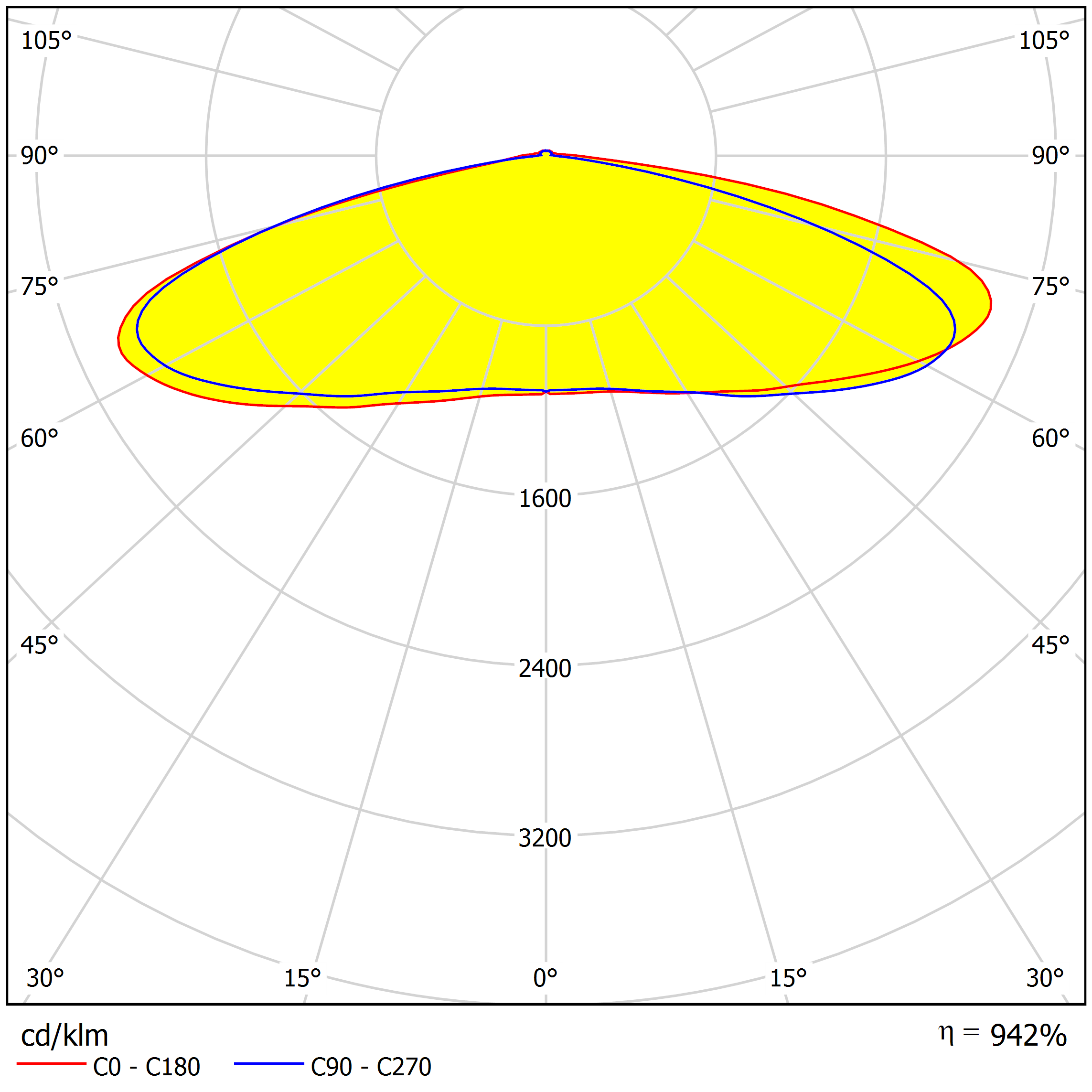

3. The Type V beam provides a wide and uniform distribution of light, making it suitable for applications that require coverage over a large area, such as street lighting and parking lot illumination.

IP66 3x8 lens 24LEDs 30x90°

It shares the same profile 173mmx71.4mm as the 2x6 lens does,

which is specially desgined for the application on corridors, such as logistics warehouses and supermarkets.

The beam angle is available for street light T2M, T5, and high bay lighting  30°, 60°，90°,  120°, 30x90°

The high efficiency and powerful lumen output to meet customers` required power

It can be compatible with different sizes and quantities of LED chips such as  2*2835/2*3030,  3*2835/3*3030,  4*2835/4*3030, and 5050LED

Our Services

• Innovative in LED Optical Engineering and Manufacturing Services
• Quick response (Quick-turn of new development)
• Strong R&D Team (Excellent engineering team with 10 years of experience), committed to bringing our customers the best LED optical designs.
• Production (Advanced equipment, Tooling dimensional accuracy is within 0.01mm, Optical finishing accuracy is within 0.001mm, Tolling lifetime can reach 500,000 shots.)
• Marketing (Wide range of products)
• One-stop service for private mold optics design, and mass production.
• Services (Thorough and satisfactory before & after-sales service)
